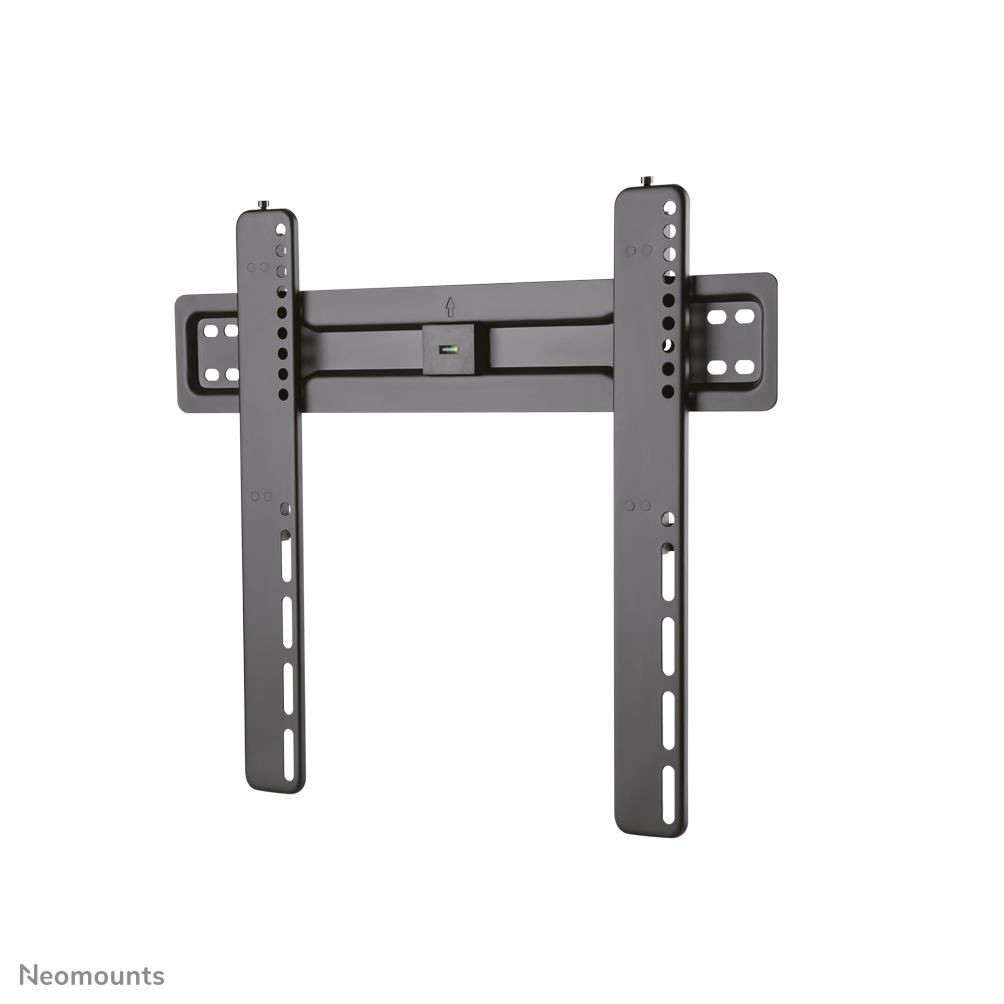

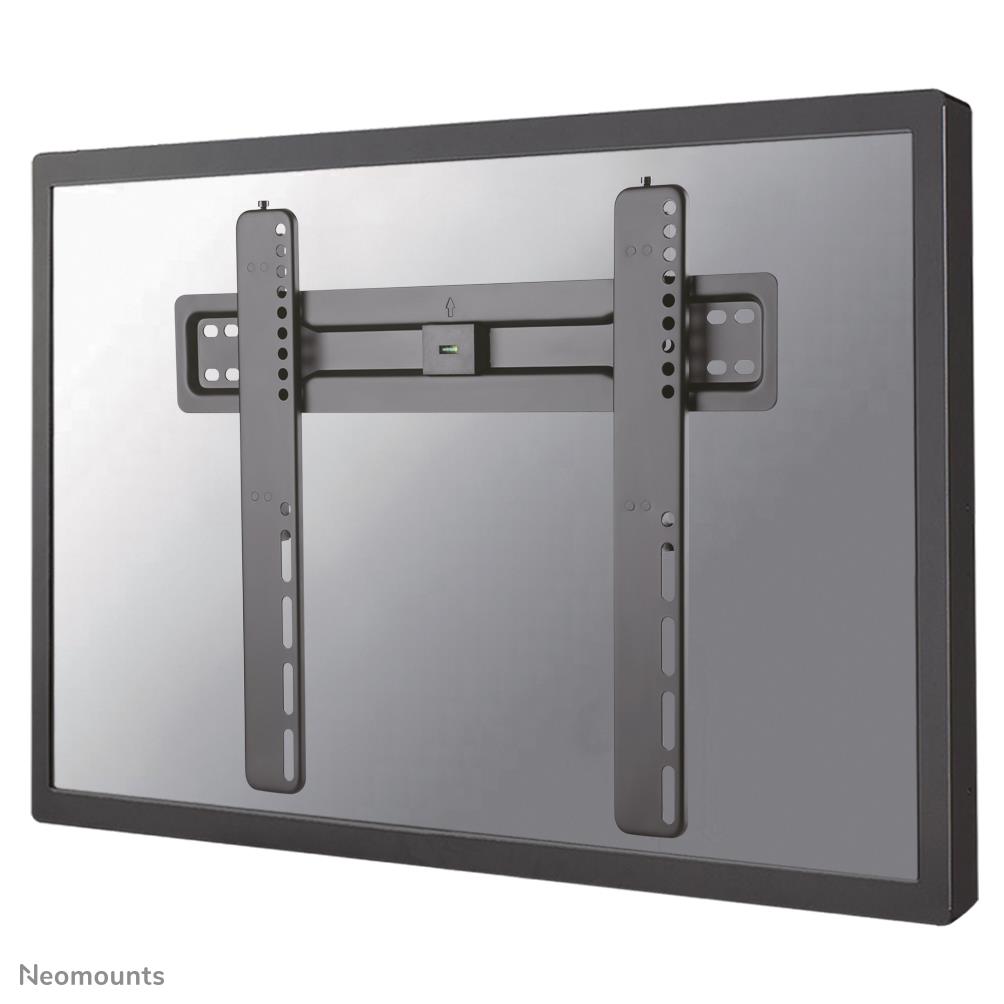

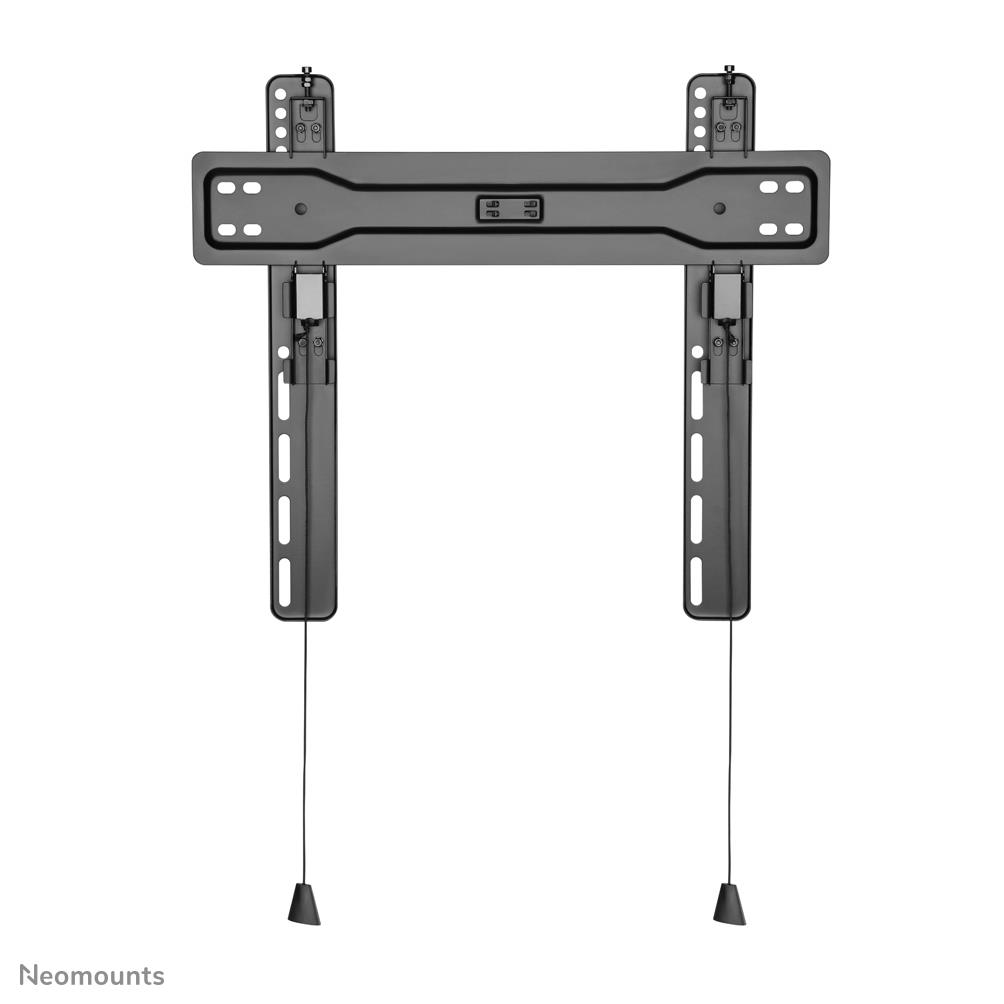

The Neomounts wall mount, model LED-W400BLACK is a fixed wall mount for flat screens up to 55". This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Depth of this mount is 1,8 centimetres.
Neomounts LED-W400BLACK is suitable for screens up to 55". The weight capacity of this product is 35 kg. The wall mount is suitable for screens that meet VESA hole patterns between 100x100 and 400x400 mm.
Create a clean design ambiance for your flat screen TV in a living room, bedroom or public environment.
All installation material is included with the product.
General
| Unit Calculated Weight | 2.1 kg |
| Unit Calculated Volume | 0.005957 cubm |
| Units per Shipping Box | 1 |
| Summary | Neomounts LED-W400BLACK TV mount wall 32-55" - ultra-flat. Maximum weight capacity: 35 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 139.7 cm (55"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 400 x 400 mm. Distance to the wall (max): 1.8 cm. Product colour: Black |
| Unit Box Height | 0.055 |
| Unit Box Length | 0.57 |
| Unit Box Width | 0.19 |
Mounting
| Maximum screen size | 55 " |
| Maximum VESA mount | 400 x 400 mm |
| Maximum weight capacity | 35 kg |
| Maximum weight capacity (per display) | 35 kg |
| Minimum screen size | 32 " |
| Minimum VESA mount | 100 x 100 mm |
| Mounting type | Wall |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/100 x 200/200 x 100/200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/350 x 350/400 x 200/400 x 300/400 x 400 mm |
Ergonomics
| Distance to the wall (max) | 18 mm |
| Type | Fixed |
Design
| Housing material | Steel |
| Product colour | Black |
Technical details
| Country of origin | China |
| Package net weight | 2150 g |
Weight & dimensions
| Weight | 1730 g |
Packaging data
| Package depth | 55 mm |
| Package height | 565 mm |
| Package weight | 2200 g |
| Package width | 185 mm |
Logistics data
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 12900 g |
| Master (outer) case height | 185 mm |
| Master (outer) case length | 390 mm |
| Master (outer) case net weight | 10800 g |
| Master (outer) case width | 580 mm |
| Products per master (outer) case | 6 pc(s) |
| Products per pallet (EU) | 168 pc(s) |
