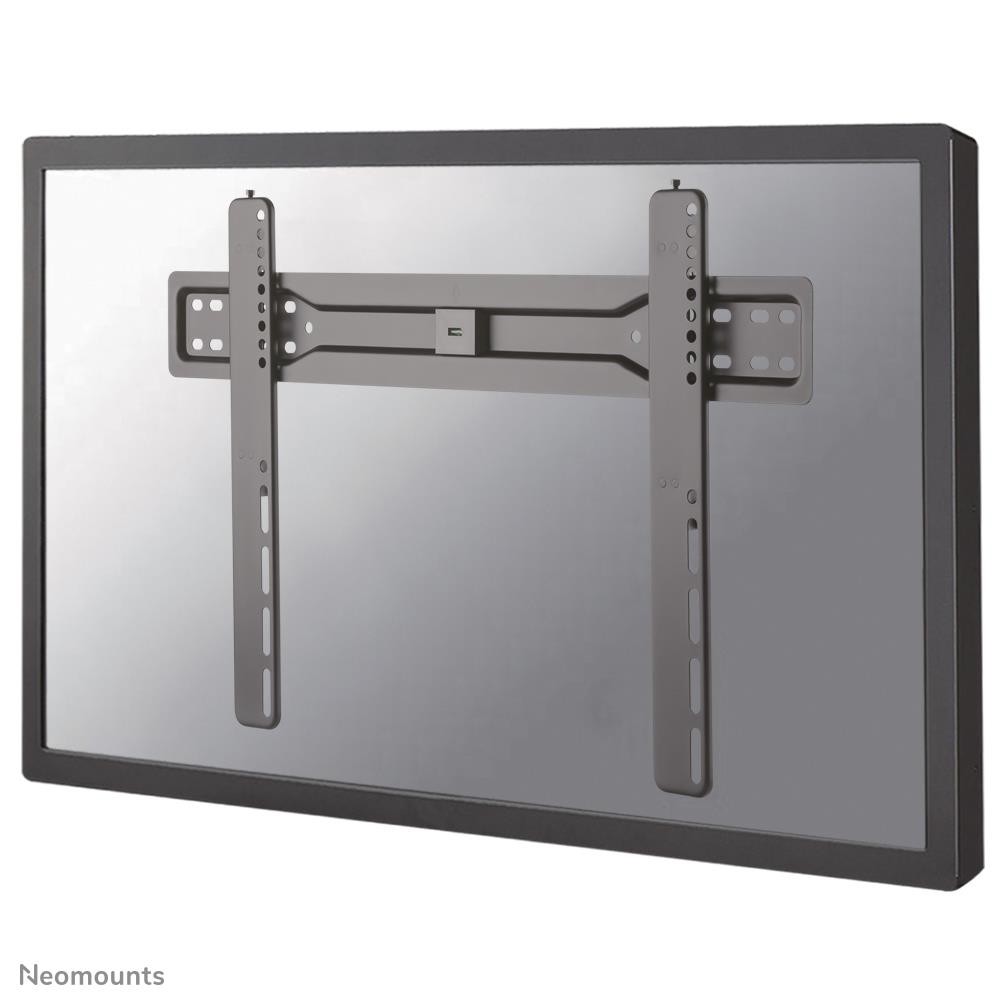

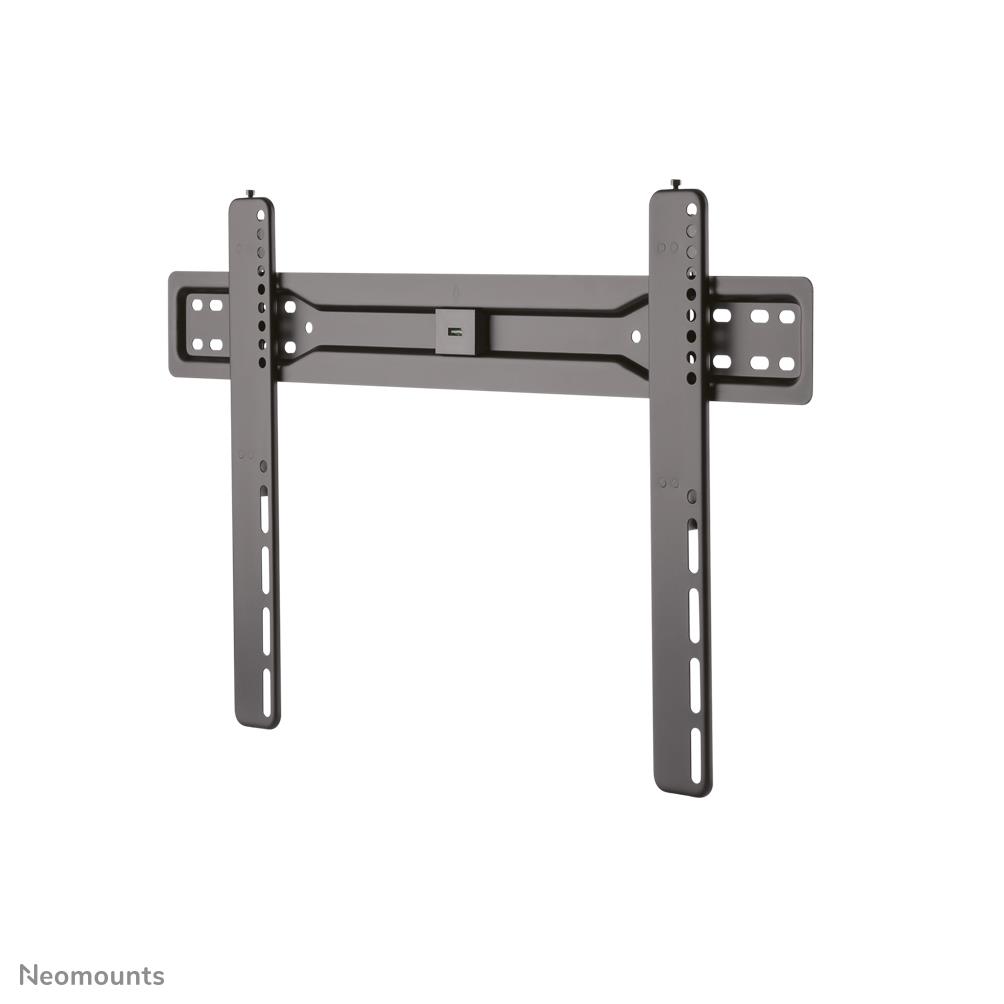

The Neomounts LED-W600BLACK is a fixed wall mount for flat screens up to 75".
With a depth of only 1,8 centimetres this wall mount is the best choice if you want your TV close to the wall.
Neomounts LED-W600BLACK is suitable for screens up to 75". The weight capacity of this product is 35 kg. The wall mount is suitable for screens that meet VESA hole pattern 100x100 to 600x400 mm.
Create a clean design ambiance for your flat screen TV in a living room, bedroom or public environment.

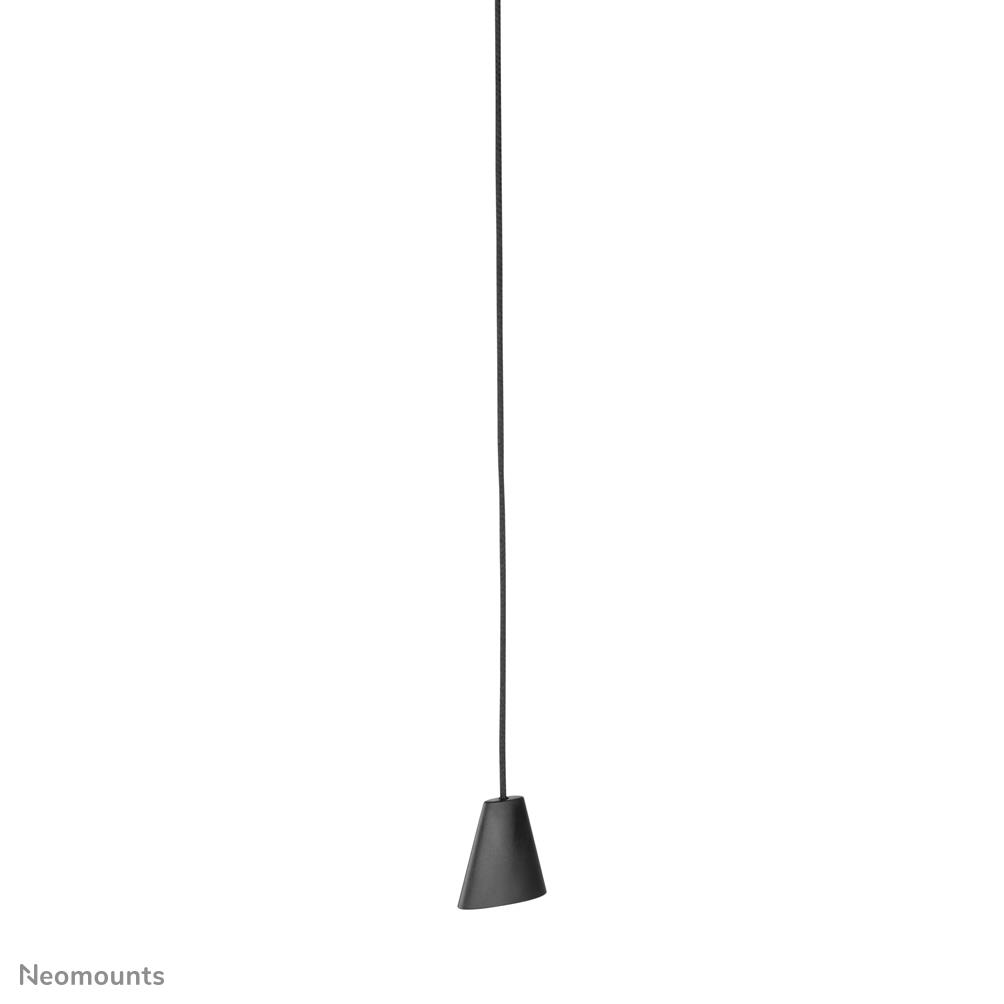

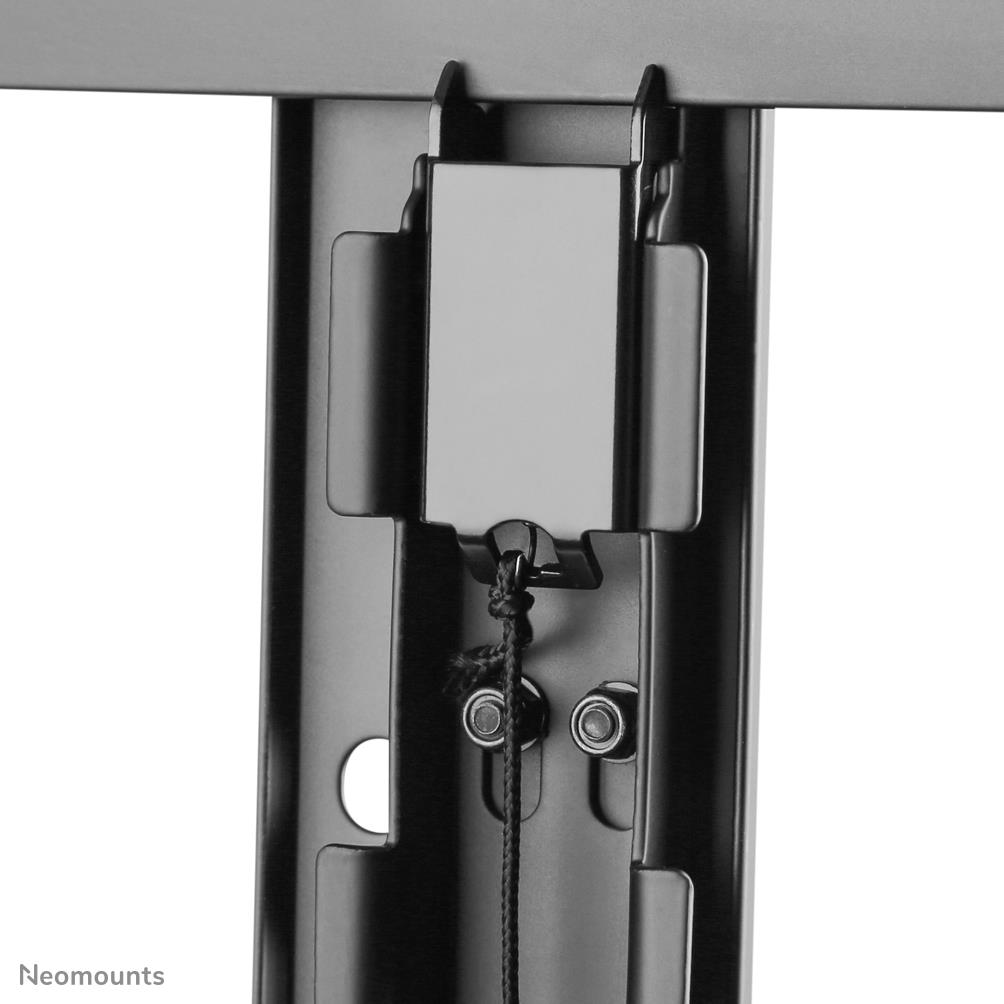

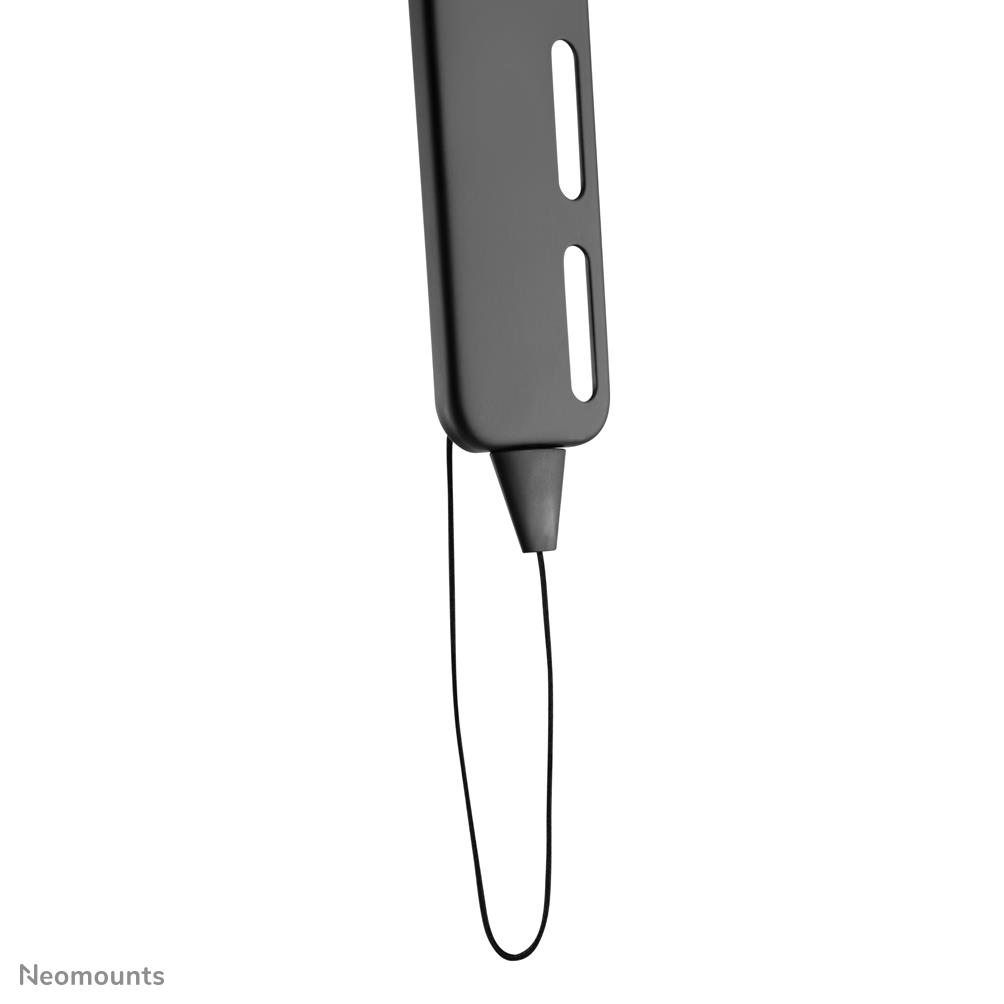

All installation material including anti-theft lock is included with the product.
General
| Unit Calculated Weight | 2.41 kg |
| Unit Calculated Volume | 0.008047 cubm |
| Units per Shipping Box | 1 |
| Summary | Neomounts LED-W600BLACK TV mount wall 37-75" - ultra-flat. Maximum weight capacity: 35 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 190.5 cm (75"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Distance to the wall (max): 1.8 cm. Product colour: Black |
| Unit Box Height | 0.055 |
| Unit Box Length | 0.77 |
| Unit Box Width | 0.19 |
Mounting
| Maximum screen size | 75 " |
| Maximum VESA mount | 600 x 400 mm |
| Maximum weight capacity | 35 kg |
| Maximum weight capacity (per display) | 35 kg |
| Minimum screen size | 37 " |
| Minimum VESA mount | 200 x 200 mm |
| Mounting type | Wall |
| Number of displays supported | 1 |
| Panel mounting interface | 200 x 200/200 x 300/200 x 400/300 x 200/300 x 300/350 x 350/400 x 200/400 x 300/400 x 400/440 x 400/500 x 400/600 x 200/600 x 300/600 x 400 mm |
Ergonomics

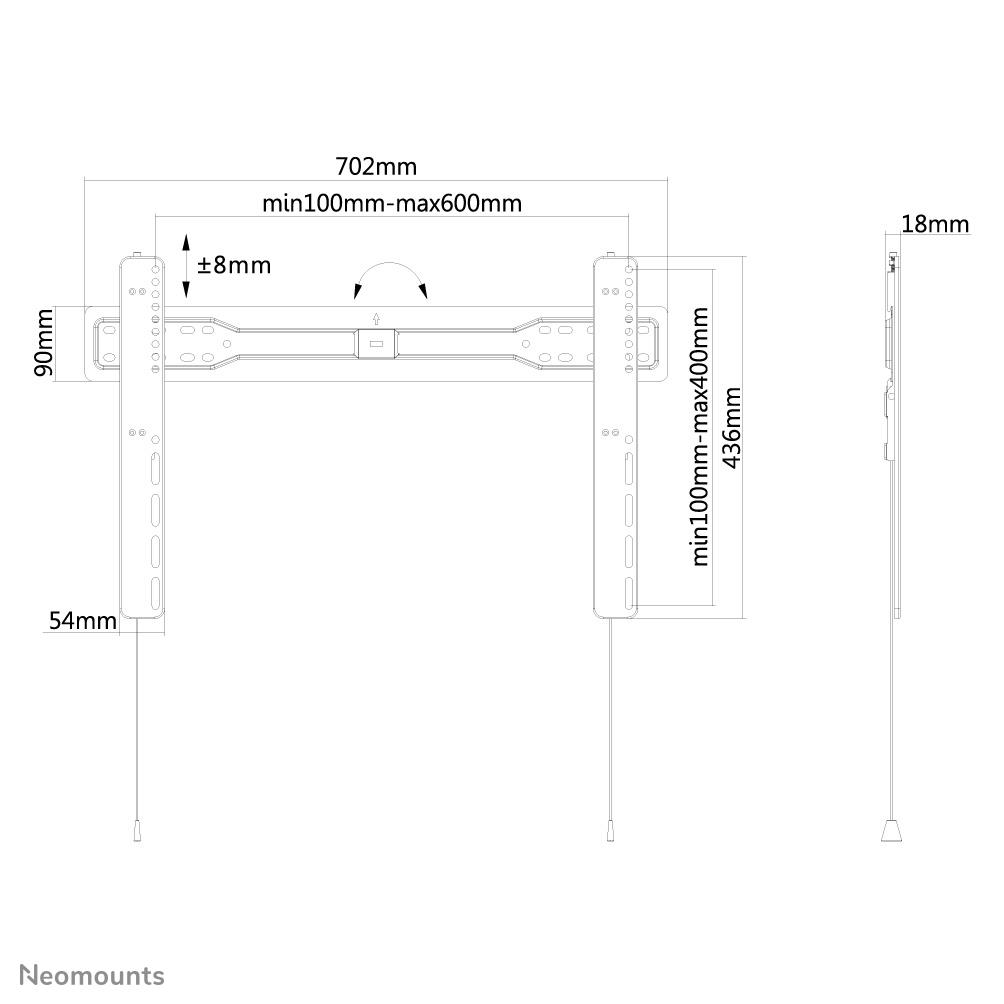

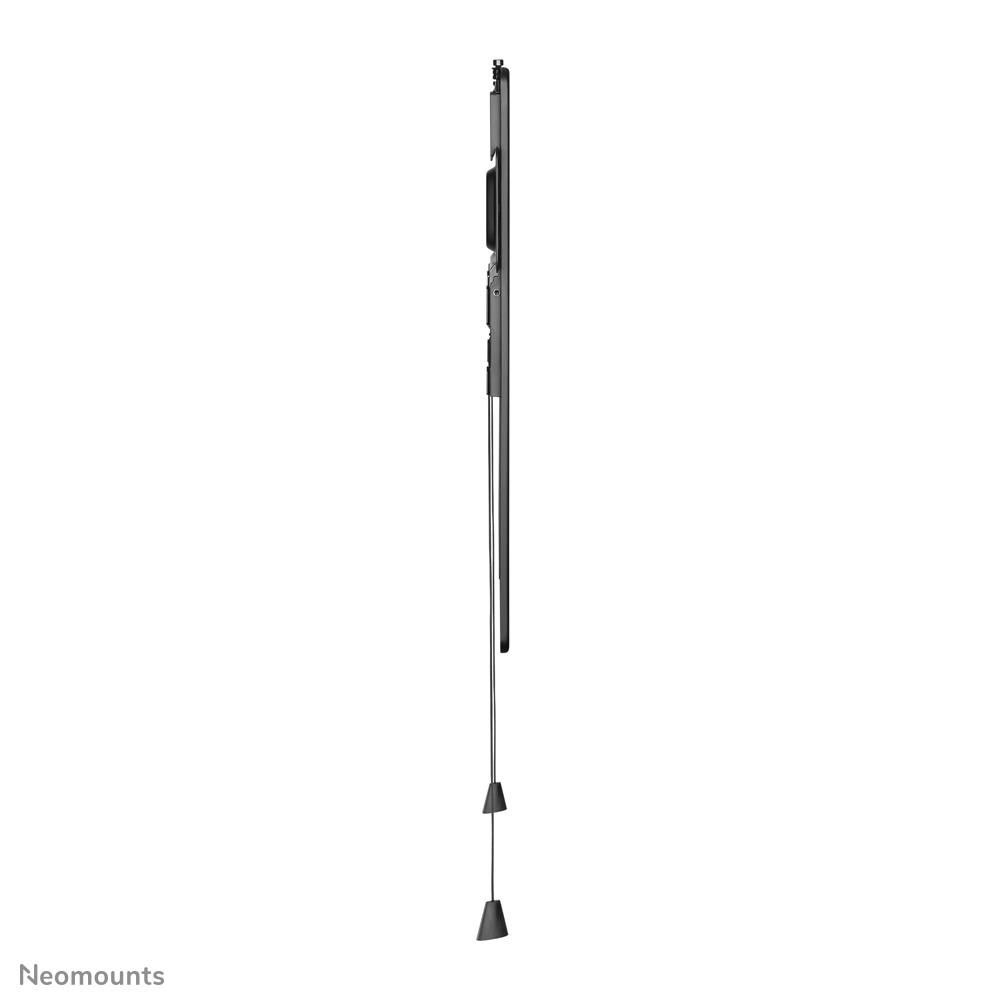

| Distance to the wall (max) | 18 mm |
| Type | Fixed |
Design
| Housing material | Steel |
| Product colour | Black |
Technical details
| Country of origin | China |
| Package net weight | 2500 g |
Weight & dimensions
| Weight | 1970 g |
Packaging data
| Package depth | 55 mm |
| Package height | 765 mm |
| Package weight | 2500 g |
| Package width | 185 mm |
Logistics data
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 14700 g |
| Master (outer) case height | 185 mm |
| Master (outer) case length | 390 mm |
| Master (outer) case net weight | 12300 g |
| Master (outer) case width | 780 mm |
| Products per master (outer) case | 6 pc(s) |
| Products per pallet (EU) | 126 pc(s) |
