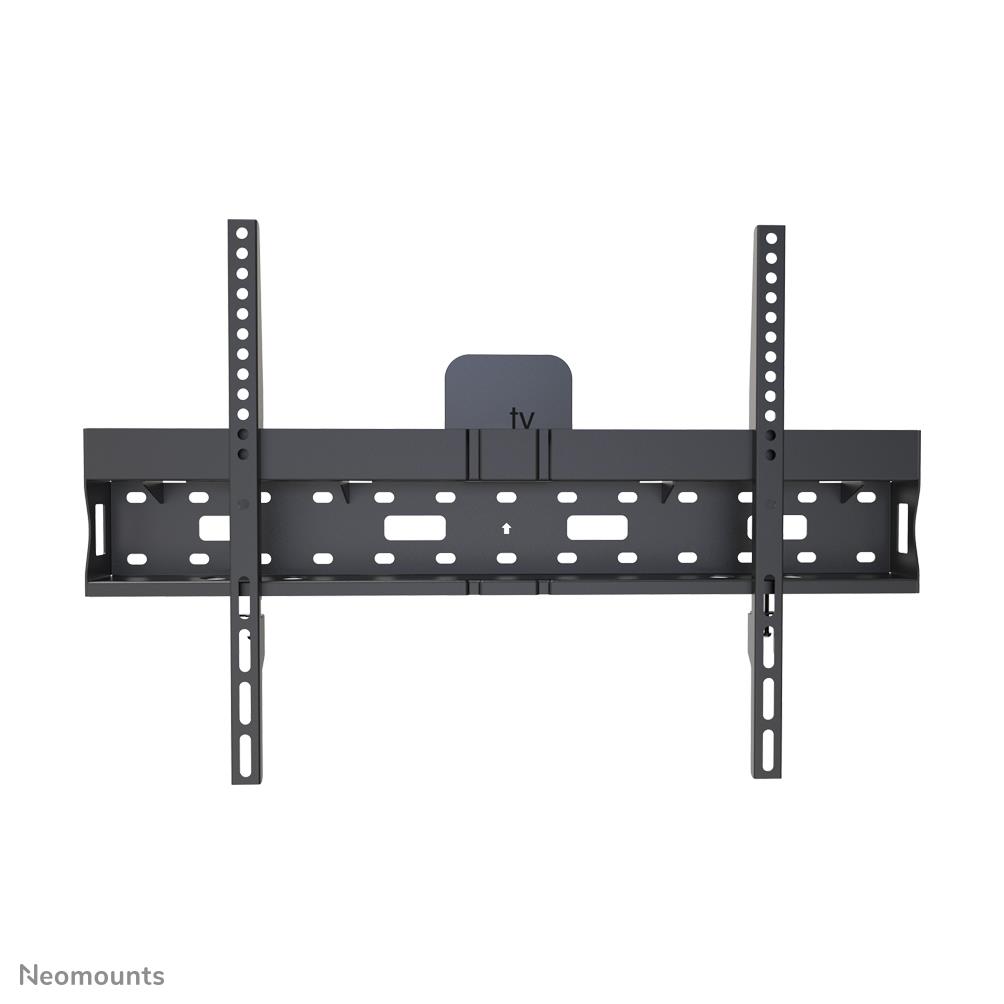

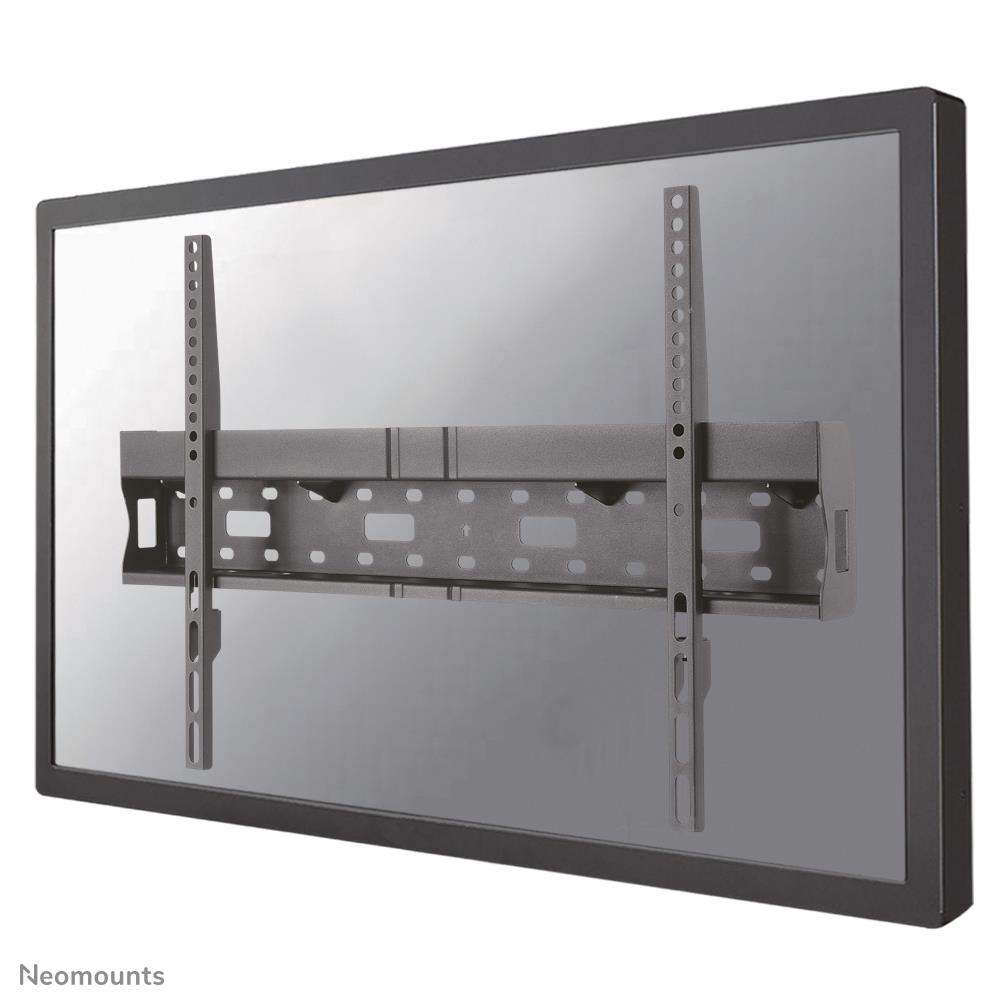

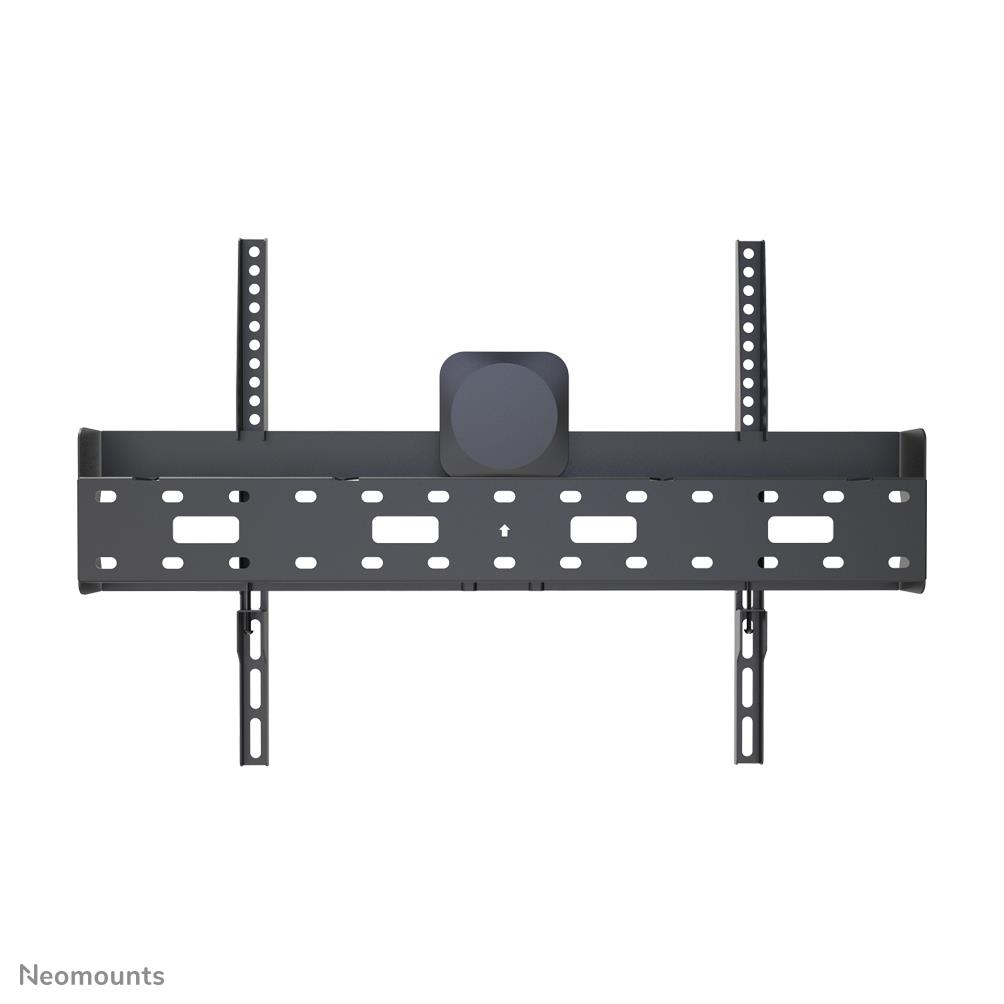

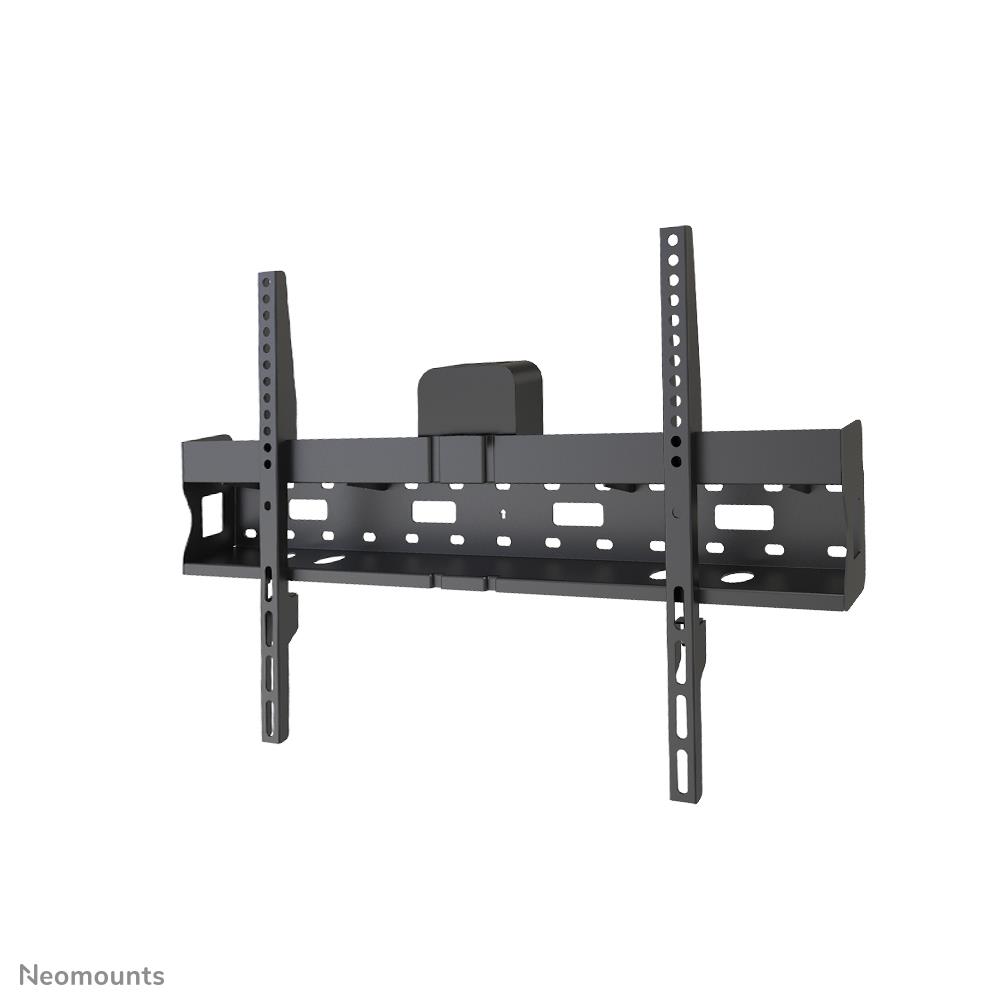

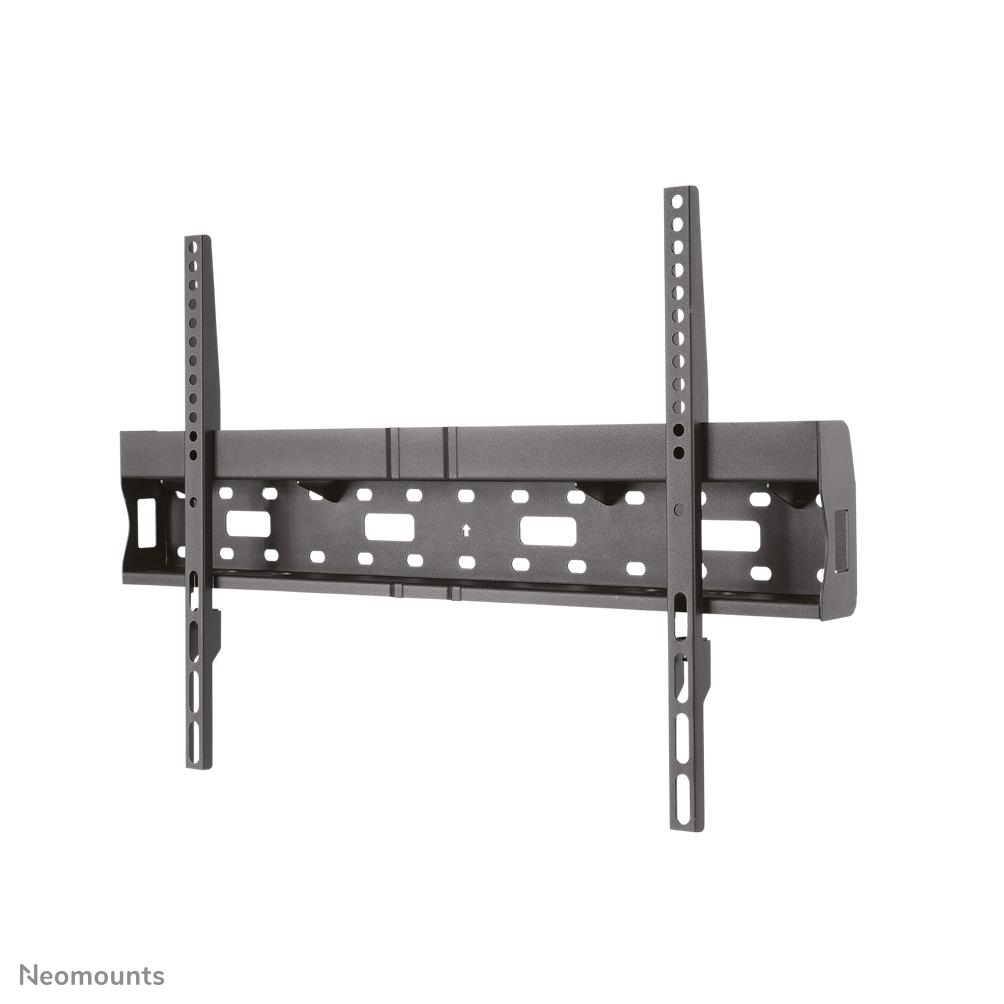

Neomounts model LFD-W1640MP is a fixed wall mount for flat screens up to 75". The depth of this mount is 6,2 centimetres and also offers the option to store a Mediaplayer or Mini PC.
Neomounts LFD-W1640MP is suitable for screens up to 75". The weight capacity of this product is 35 kg and is suitable for screens that meet VESA hole pattern 200x200 to 600x400mm.
Create a clean design ambiance for your flat screen TV or LFD in public areas.
All installation material including is included with the product.
General
| Unit Calculated Weight | 2.86 kg |
| Unit Calculated Volume | 0.005628 cubm |
| Units per Shipping Box | 1 |
| Summary | Neomounts LFD-W1640MP TV mount wall 37-75" - fixed. Maximum weight capacity: 35 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 190.5 cm (75"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Distance to the wall (min): 6.2 cm, Distance to the wall (max): 6.2 cm. Product colour: Black |
| Unit Box Height | 0.14 |
| Unit Box Length | 0.67 |
| Unit Box Width | 0.06 |
Mounting
| Maximum screen size | 75 " |
| Maximum VESA mount | 600 x 400 mm |
| Maximum weight capacity | 35 kg |
| Maximum weight capacity (per display) | 35 kg |
| Minimum screen size | 37 " |
| Minimum VESA mount | 200 x 200 mm |
| Mounting type | Wall |
| Number of displays supported | 1 |
| Panel mounting interface | 200 x 200/200 x 300/200 x 400/300 x 200/300 x 300/350 x 350/400 x 200/400 x 300/400 x 400/400 x 600/440 x 400/600 x 200/600 x 300/600 x 400 mm |
Ergonomics
| Distance to the wall (max) | 62 mm |
| Distance to the wall (min) | 62 mm |
| Type | Fixed |
Design
| Housing material | Steel |
| Product colour | Black |
Technical details
| Country of origin | China |
| Package net weight | 3000 g |

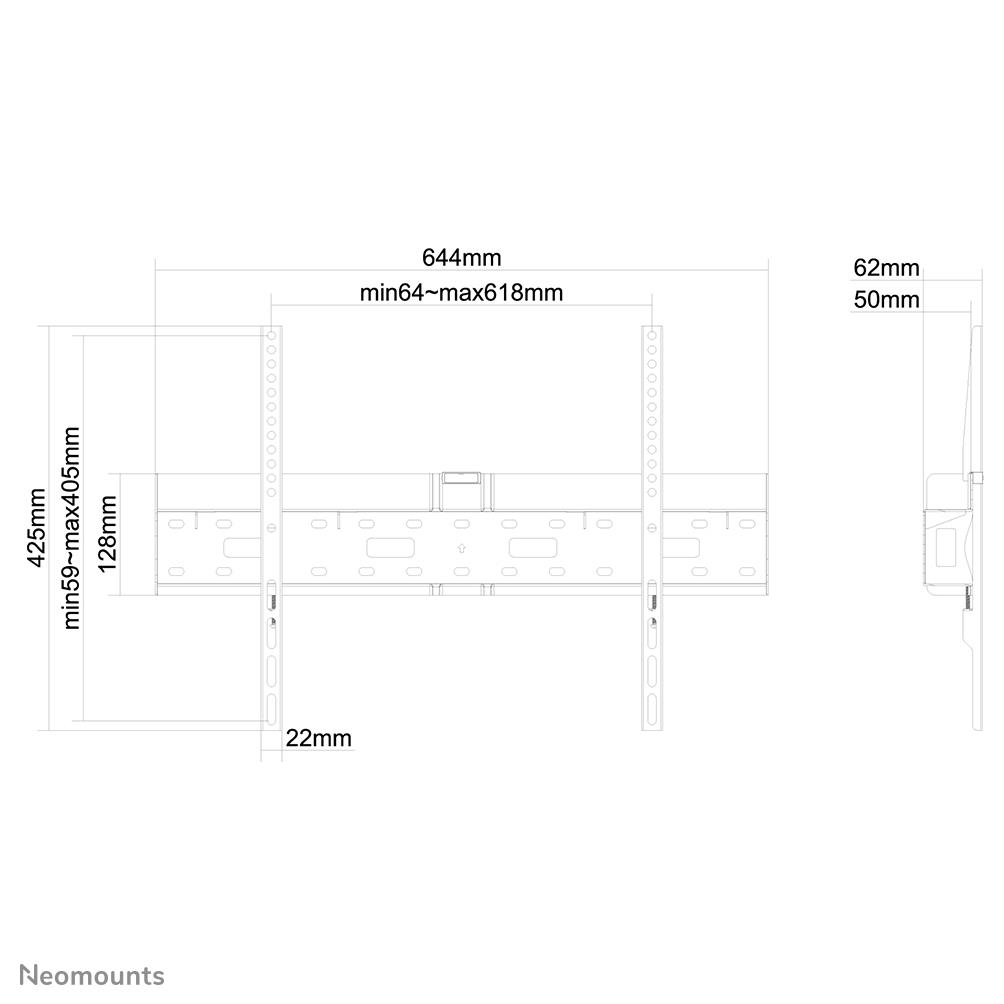

Weight & dimensions
| Height | 425 mm |
| Weight | 2560 g |
| Width | 644 mm |
Packaging data
| Package depth | 57 mm |
| Package height | 666 mm |
| Package weight | 3000 g |
| Package width | 133 mm |
Logistics data
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 17800 g |
| Master (outer) case height | 200 mm |
| Master (outer) case length | 285 mm |
| Master (outer) case net weight | 16600 g |
| Master (outer) case width | 685 mm |
| Products per master (outer) case | 6 pc(s) |
| Products per pallet (EU) | 180 pc(s) |
