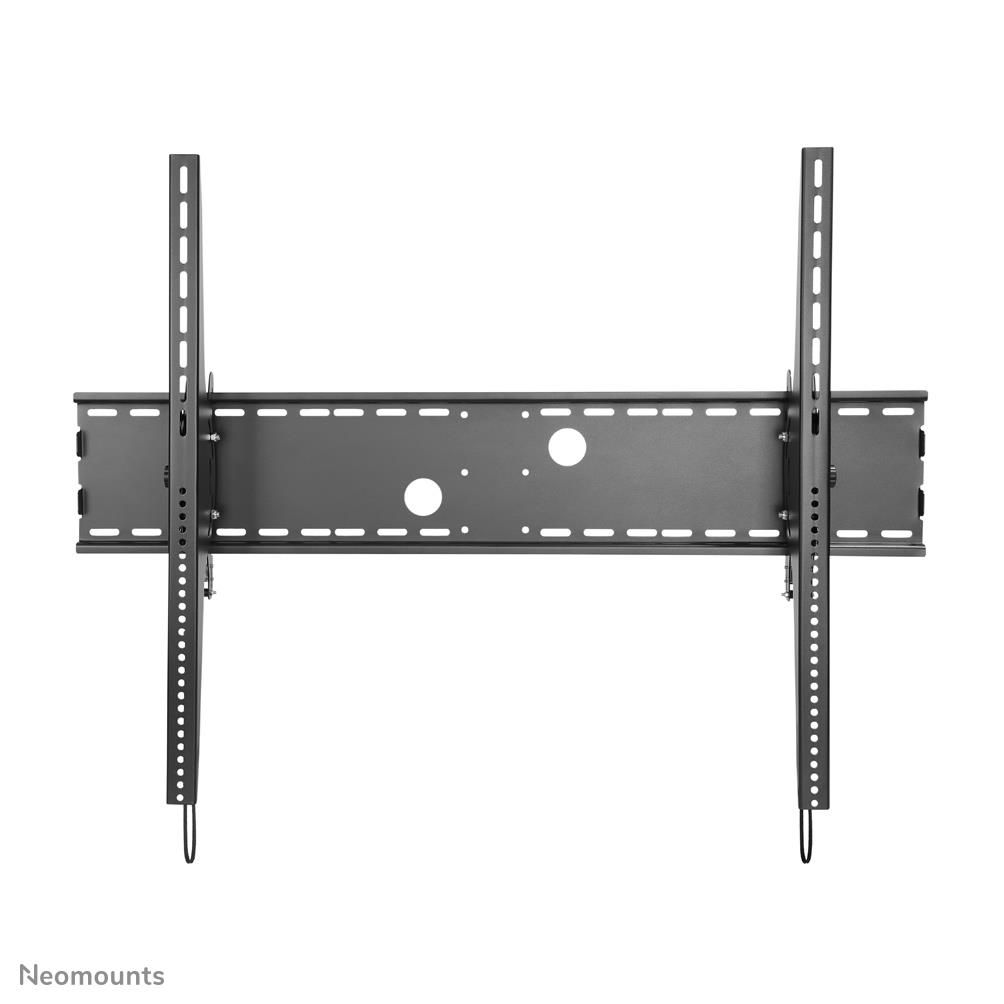

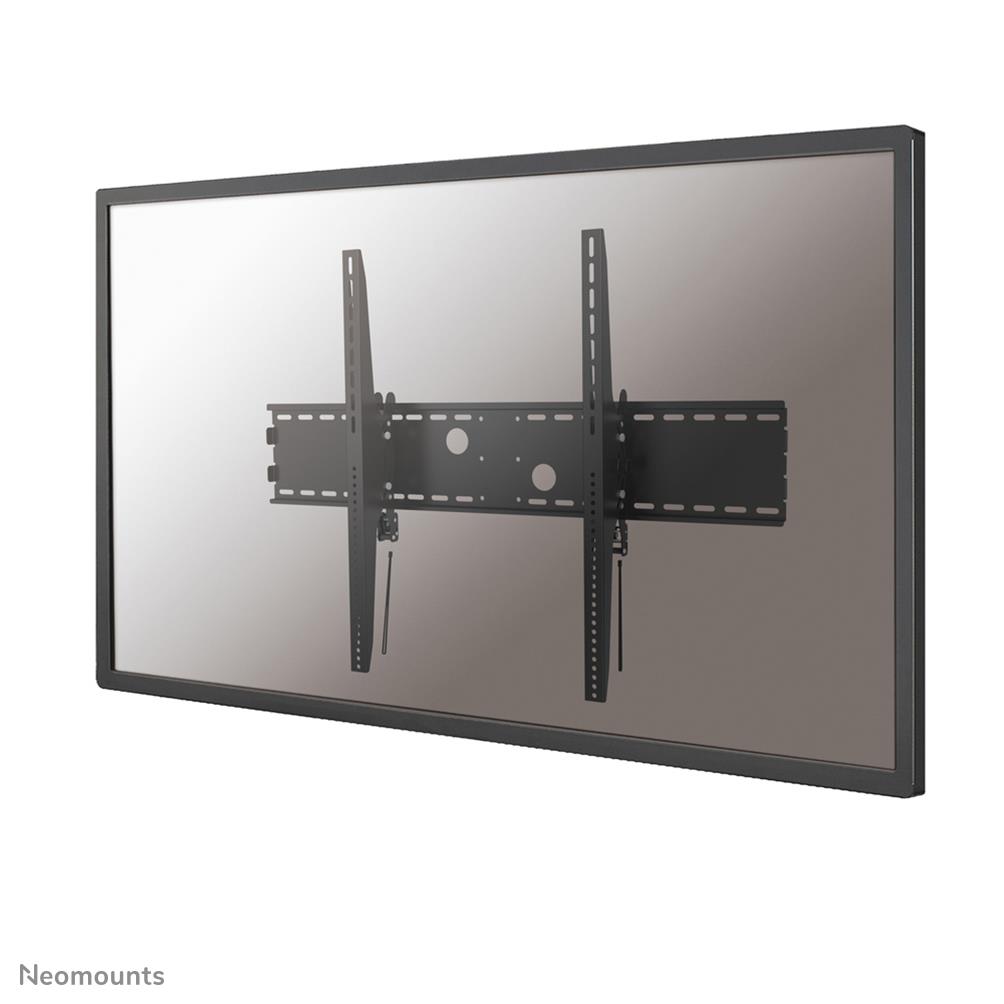

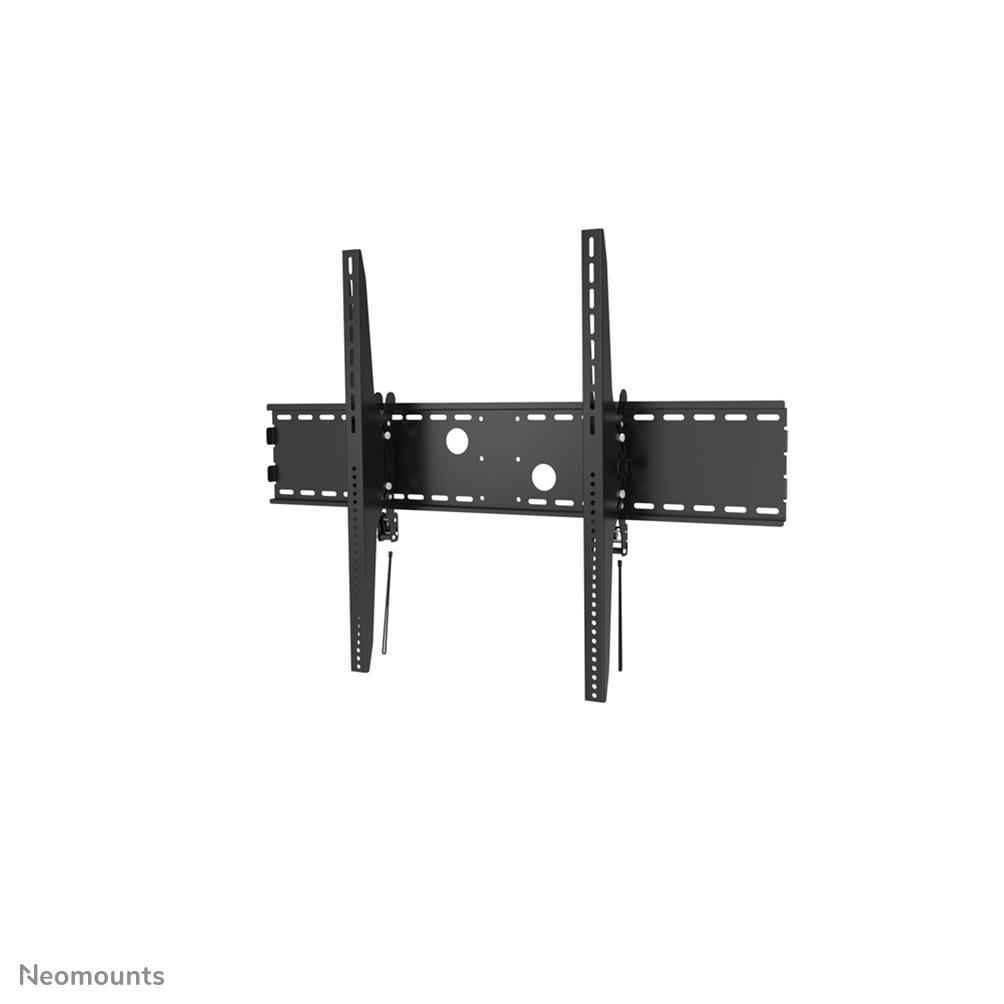

The Neomounts wall mount, model LFD-W2000 is a tiltable wall mount for flat screens up to 100" (254 cm). This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Depth of this mount is 13 centimetres.

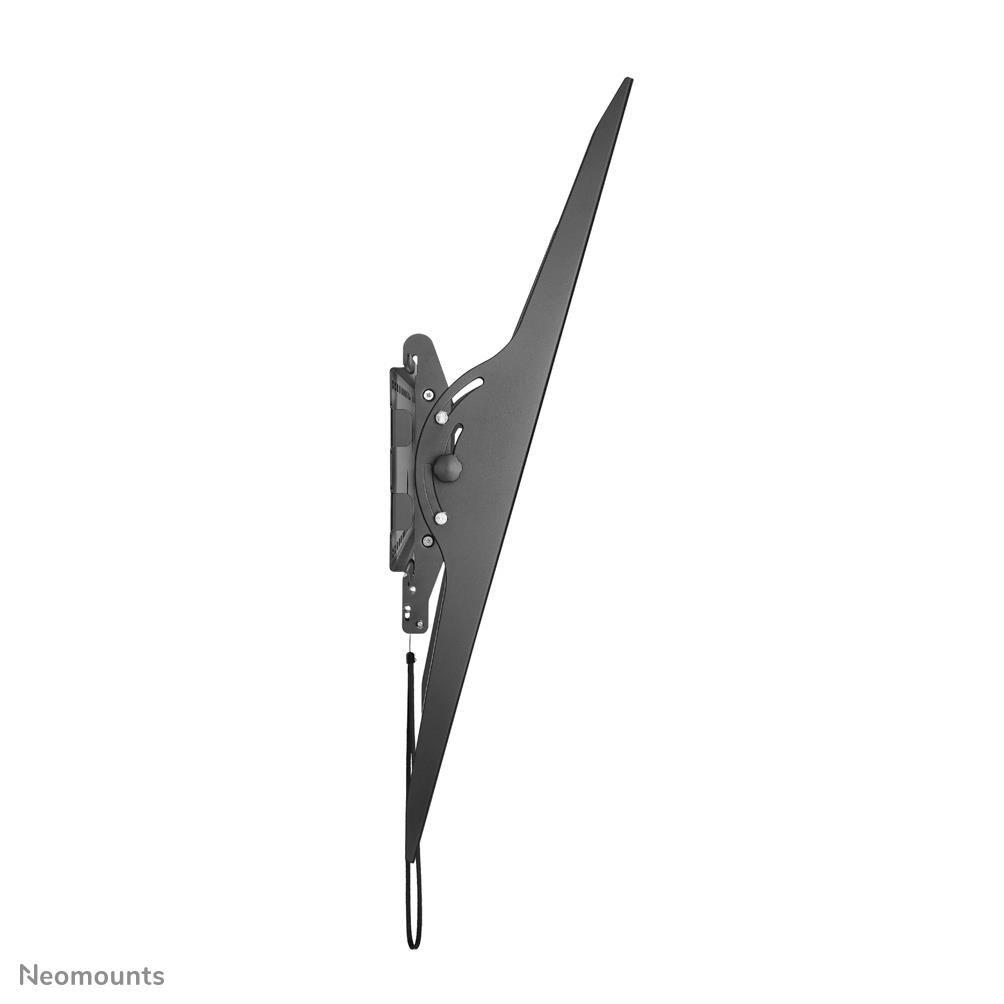

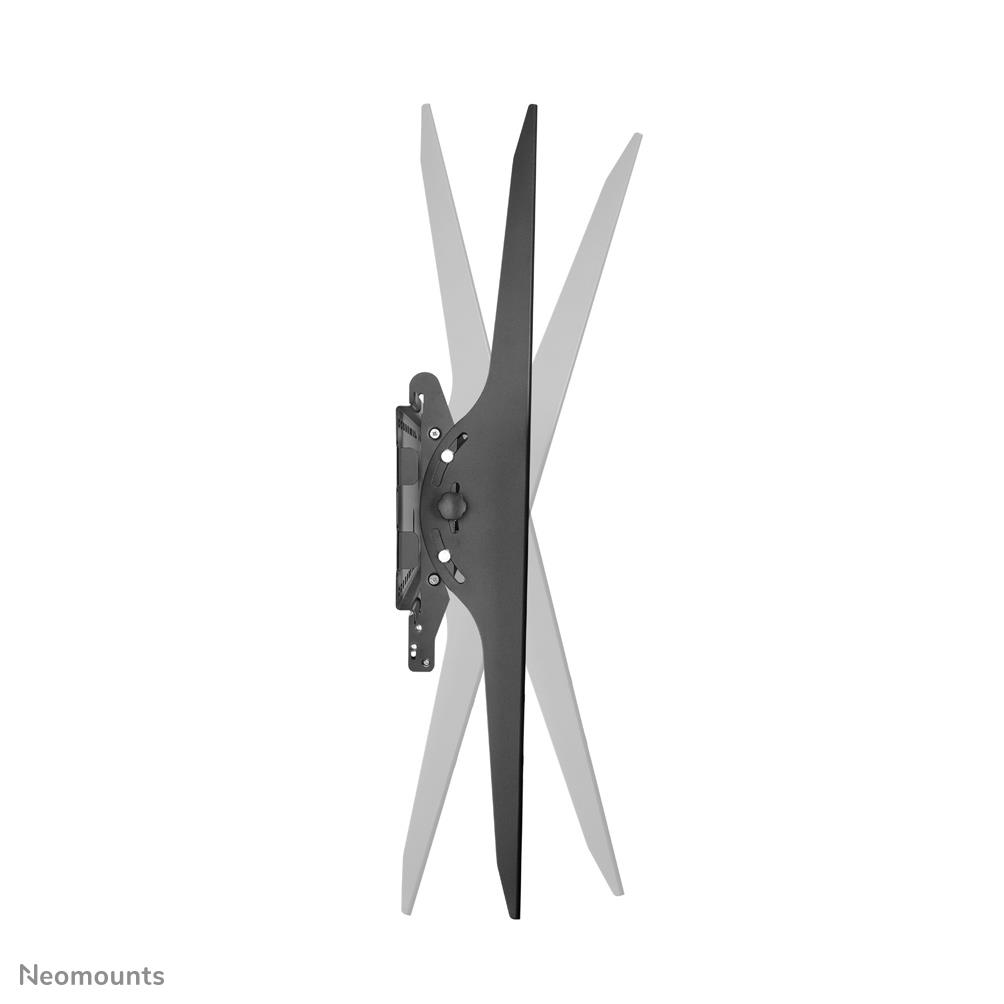

Neomounts' tilt (-15°|+15°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen.
Neomounts LFD-W2000 is suitable for screens up to 100" (254 cm). The weight capacity of this product is 125 kg. The wall mount is suitable for screens that meet VESA hole pattern 200x200 to 1000x800mm.
Create a clean design ambiance for your flat screen TV in the living room, bedroom or home cinema.

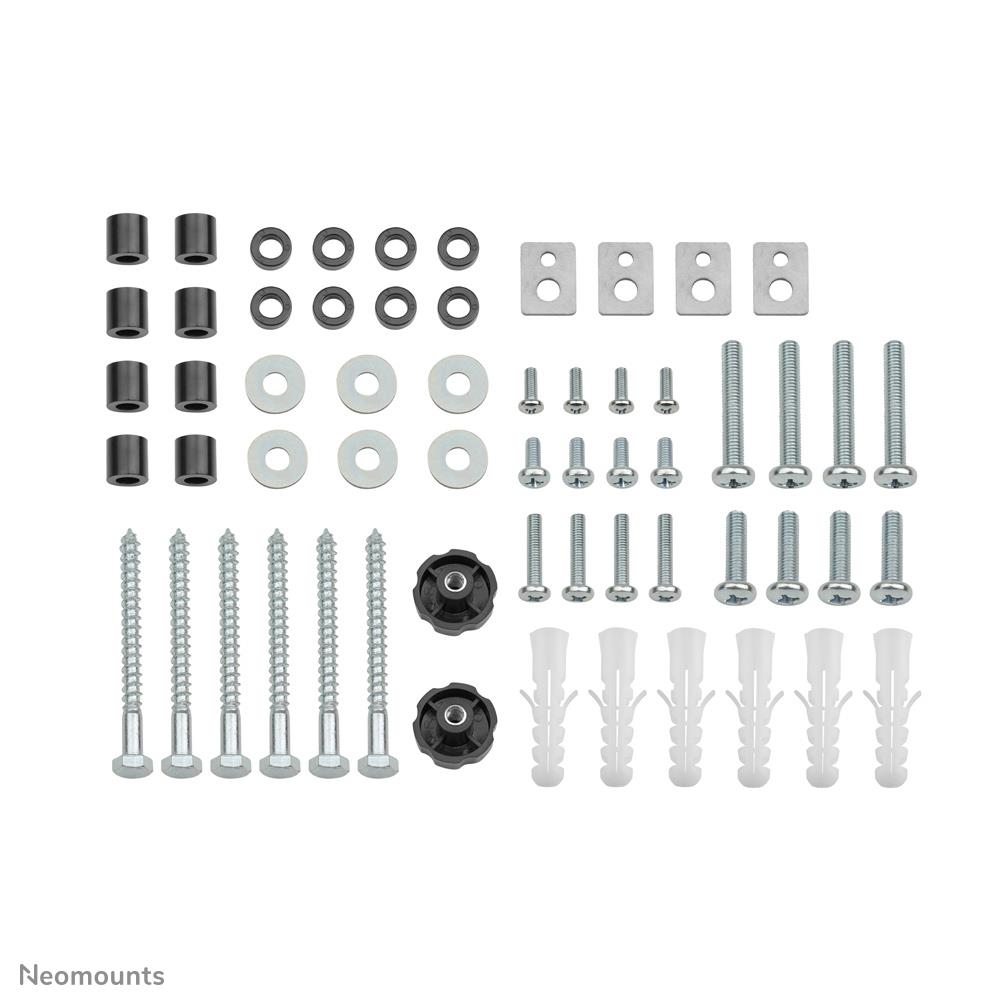

All installation material is included with the product.
General
| Unit Calculated Weight | 9.5 kg |
| Unit Calculated Volume | 0.01941 cubm |
| Units per Shipping Box | 1 |
| Summary | Neomounts LFD-W2000 TV mount wall 60-100" - tiltable. Maximum weight capacity: 125 kg, Minimum screen size: 152.4 cm (60"), Maximum screen size: 2.54 m (100"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 1000 x 800 mm. Tilt angle range: 0 - 30°, Distance to the wall (max): 13 cm. Product colour: Black |
| Unit Box Height | 0.235 |
| Unit Box Length | 1.18 |
| Unit Box Width | 0.07 |
Mounting
| Maximum screen size | 100 " |
| Maximum VESA mount | 1000 x 800 mm |
| Maximum weight capacity | 125 kg |
| Maximum weight capacity (per display) | 125 kg |
| Minimum screen size | 60 " |
| Minimum VESA mount | 200 x 200 mm |
| Mounting type | Wall |
| Number of displays supported | 1 |
| Panel mounting interface | 1000 x 400/1000 x 600/1000 x 700/1000 x 800/200 x 200/200 x 300/200 x 400/300 x 200/300 x 300/350 x 350/400 x 200/400 x 300/400 x 400/400 x 600/440 x 400/500 x 400/500 x 500/600 x 200/600 x 300/600 x 400/600 x 500/600 x 600/8/800 x 200/800 x 400/800 x 800 mm |
Ergonomics
| Distance to the wall (max) | 130 mm |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 30 ° |
Design
| Housing material | Steel |
| Product colour | Black |
Technical details
| Country of origin | China |
| Package net weight | 8190 g |
Weight & dimensions
| Weight | 8120 g |
Packaging data
| Package depth | 68 mm |
| Package height | 1178 mm |
| Package weight | 8200 g |
| Package width | 232 mm |
Logistics data
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 19600 g |
| Master (outer) case height | 250 mm |
| Master (outer) case length | 155 mm |
| Master (outer) case net weight | 16400 g |
| Master (outer) case width | 1195 mm |
| Products per master (outer) case | 2 pc(s) |
| Products per pallet (EU) | 48 pc(s) |
