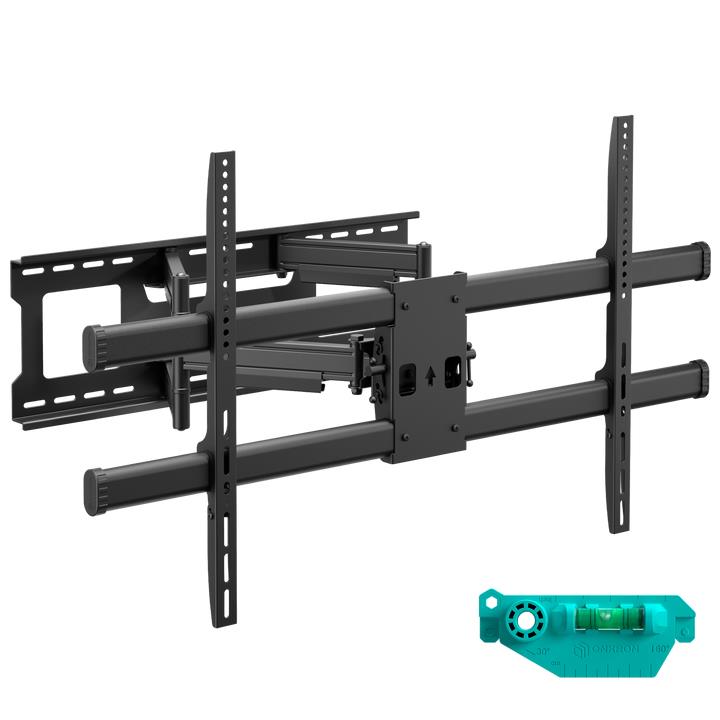

TV SET ACC WALL MOUNT/42-120"/BLACK M10-B ONKRON
General
| Unit Calculated Weight | 16.5 kg |
| Unit Calculated Volume | 0.0525 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |

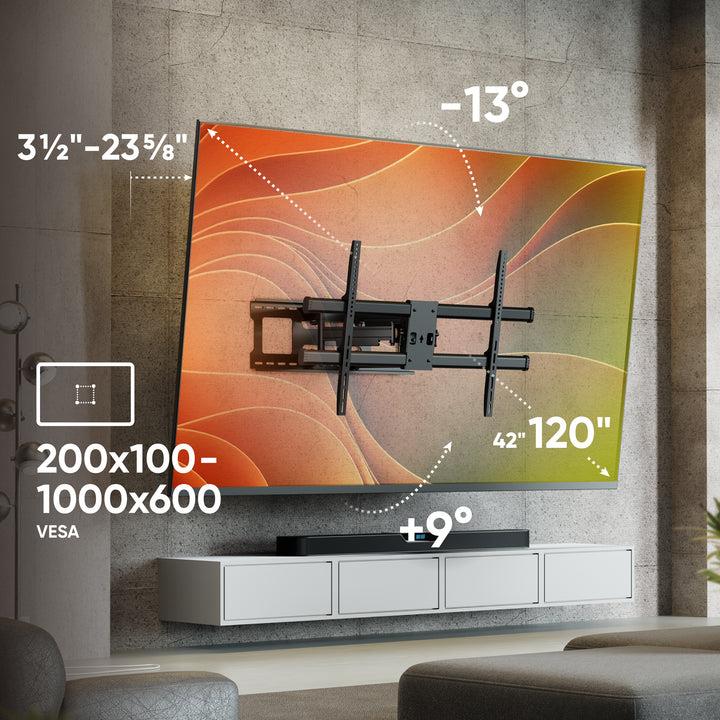

| Summary | ONKRON Full Motion Wall Mount 42"-120" max 220lbs, Black. Maximum weight capacity: 100 kg, Minimum screen size: 106.7 cm (42"), Maximum screen size: 3.05 m (120"), Minimum VESA mount: 200 x 100 mm, Maximum VESA mount: 1000 x 600 mm. Tilt angle range: -13 - 9°, Swivel angle range: -45 - 45°, Distance to the wall (min): 9 cm, Distance to the wall (max): 60 cm. Product colour: Black |
| Unit Box Height | 0.37 |
| Unit Box Length | 0.86 |
| Unit Box Width | 0.165 |
| Model | M10 |
Mounting
| Maximum screen size | 120 " |
| Maximum VESA mount | 1000 x 600 mm |

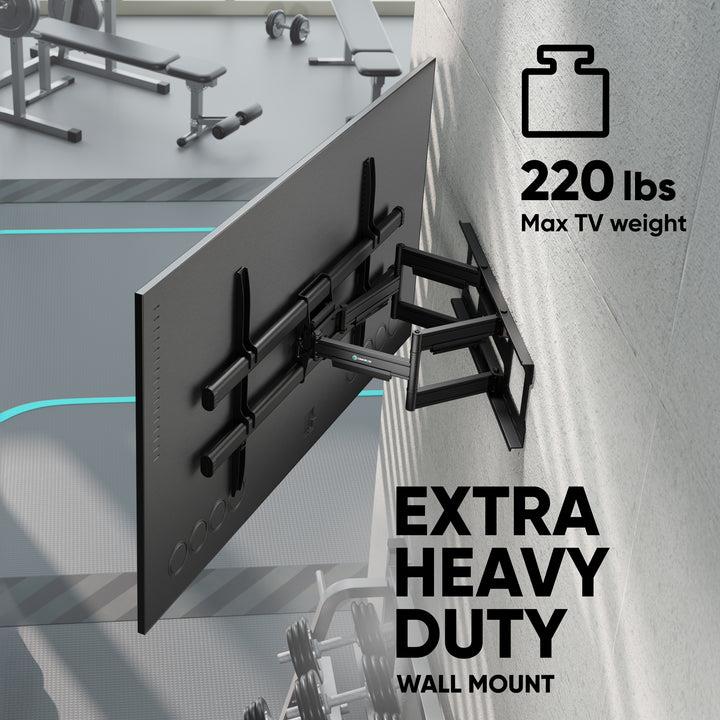

| Maximum weight capacity | 100 kg |
| Maximum weight capacity (per display) | 100 kg |
| Minimum screen size | 42 " |
| Minimum VESA mount | 200 x 100 mm |

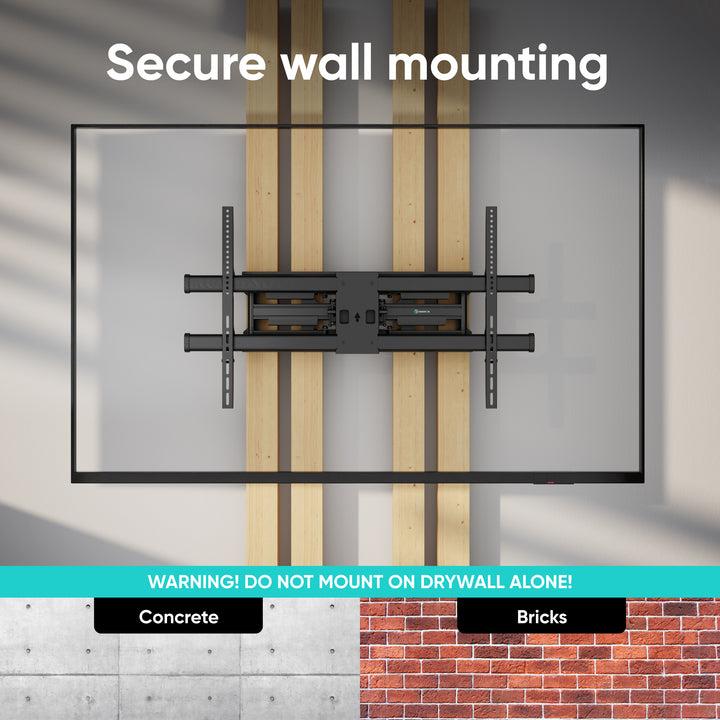

| Mounting type | Wall |
| Number of displays supported | 1 |
| Panel mounting interface | 200 x 100/200 x 200/200 x 300/200 x 400/200 x 600/300 x 400/300 x 500/300 x 600/400 x 200/400 x 300/400 x 400/400 x 500/400 x 600/500 x 200/500 x 400/500 x 500/500 x 600/600 x 200/600 x 300/600 x 400/600 x 600/700 x 400/700 x 500/800 x/800 x 200/800 x 400 mm |
Ergonomics
| Distance to the wall (max) | 600 mm |
| Distance to the wall (min) | 90 mm |
| Swivel angle | 90 ° |

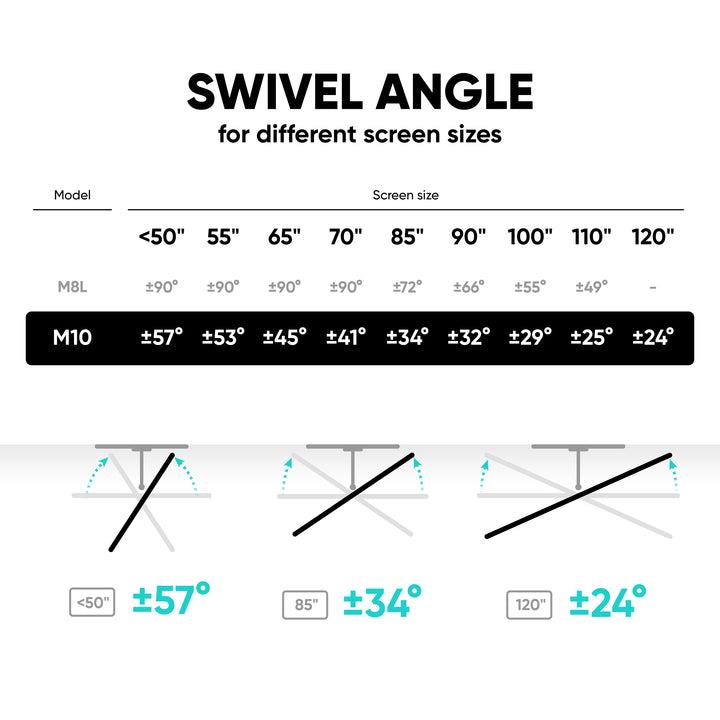

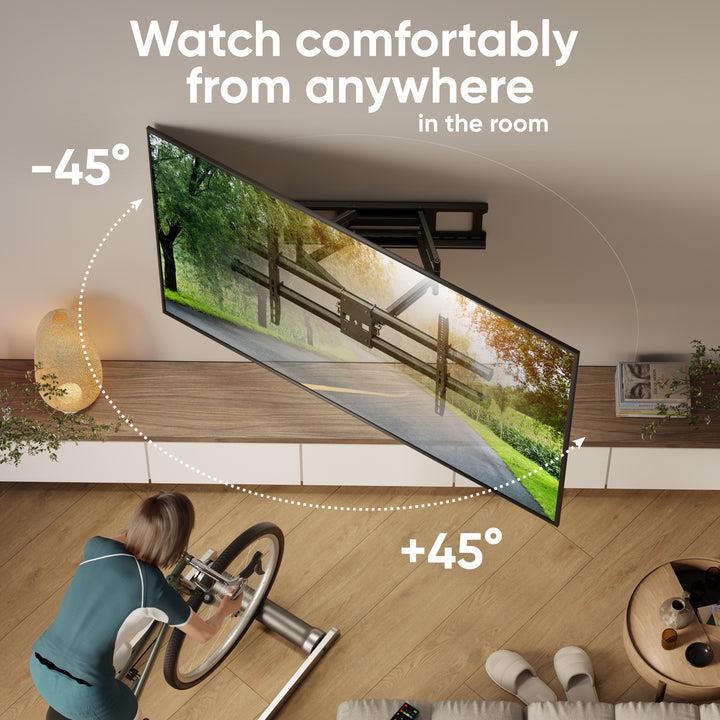

| Swivel angle range | -45 - 45 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle | 22 ° |
| Tilt angle range | -13 - 9 ° |
| Type | Full motion |
Design
| Housing material | SPCC |
| Product colour | Black |

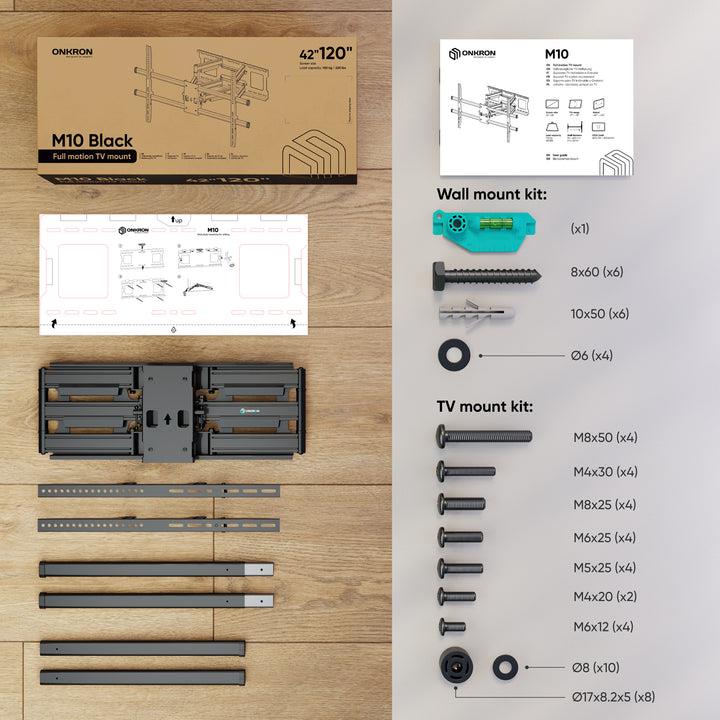

Packaging content
| Manual | Yes |
| Mounting kit | Yes |
Technical details
| Warranty period | 5 year(s) |
Packaging data
| Package depth | 370 mm |
| Package height | 170 mm |
| Package type | Box |
| Package weight | 16300 g |
| Package width | 865 mm |
| Quantity per pack | 1 pair(s) |
