- For TVs 40"–75"

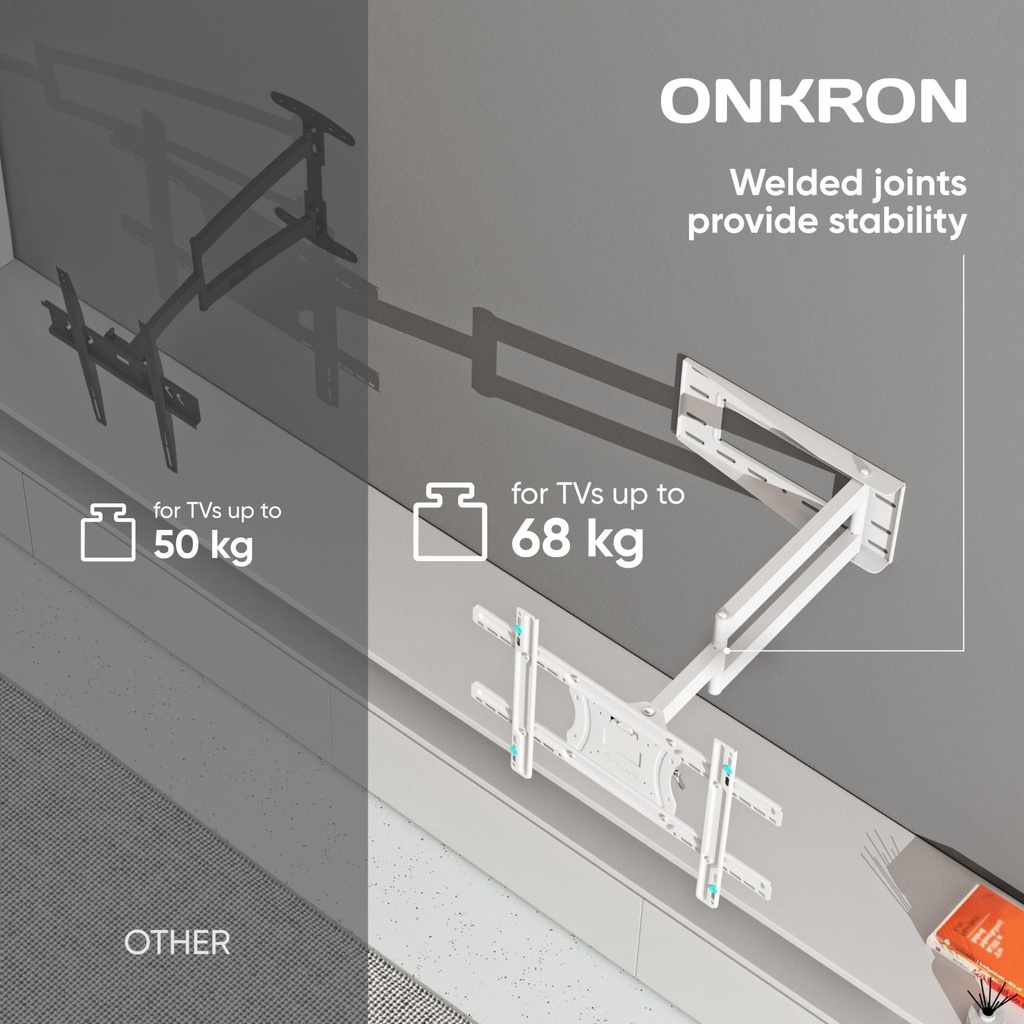

- Max load: 68 kg

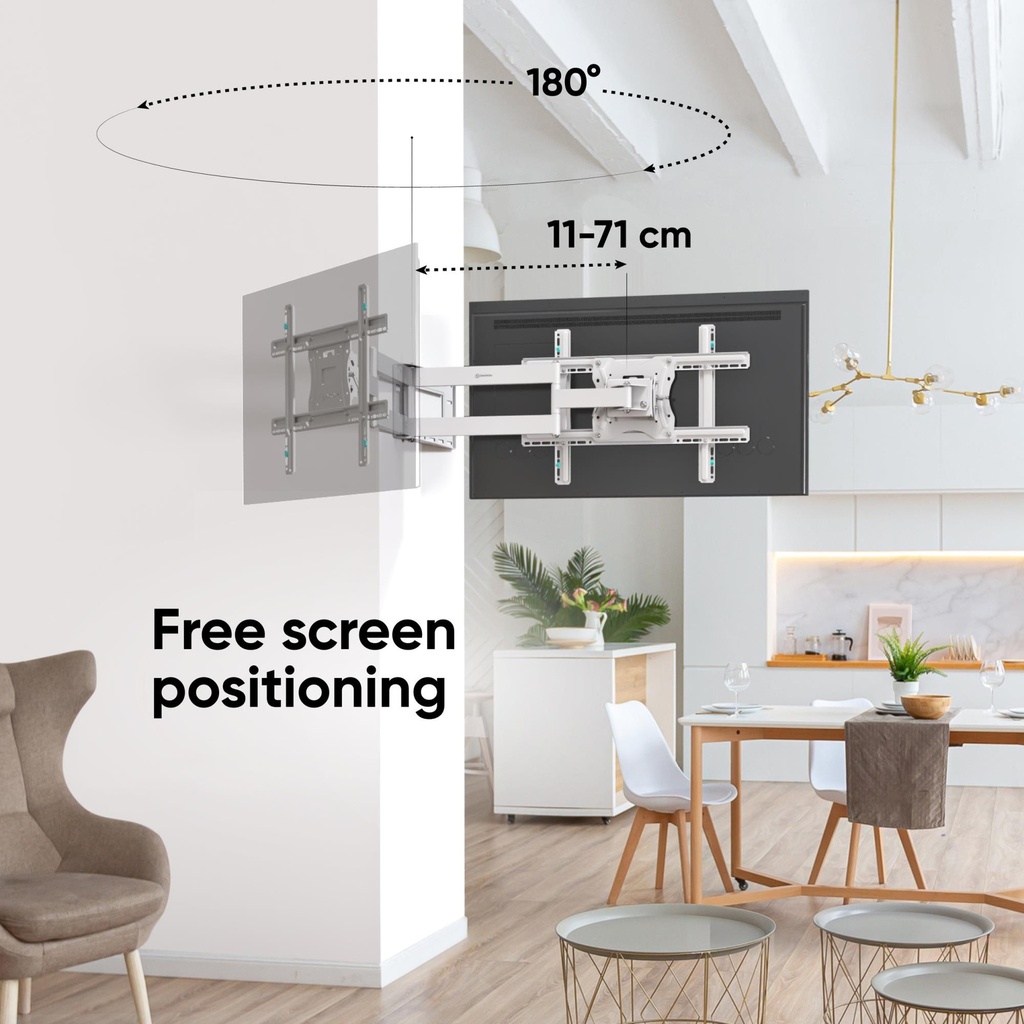

- Extension from wall: 110–711 mm

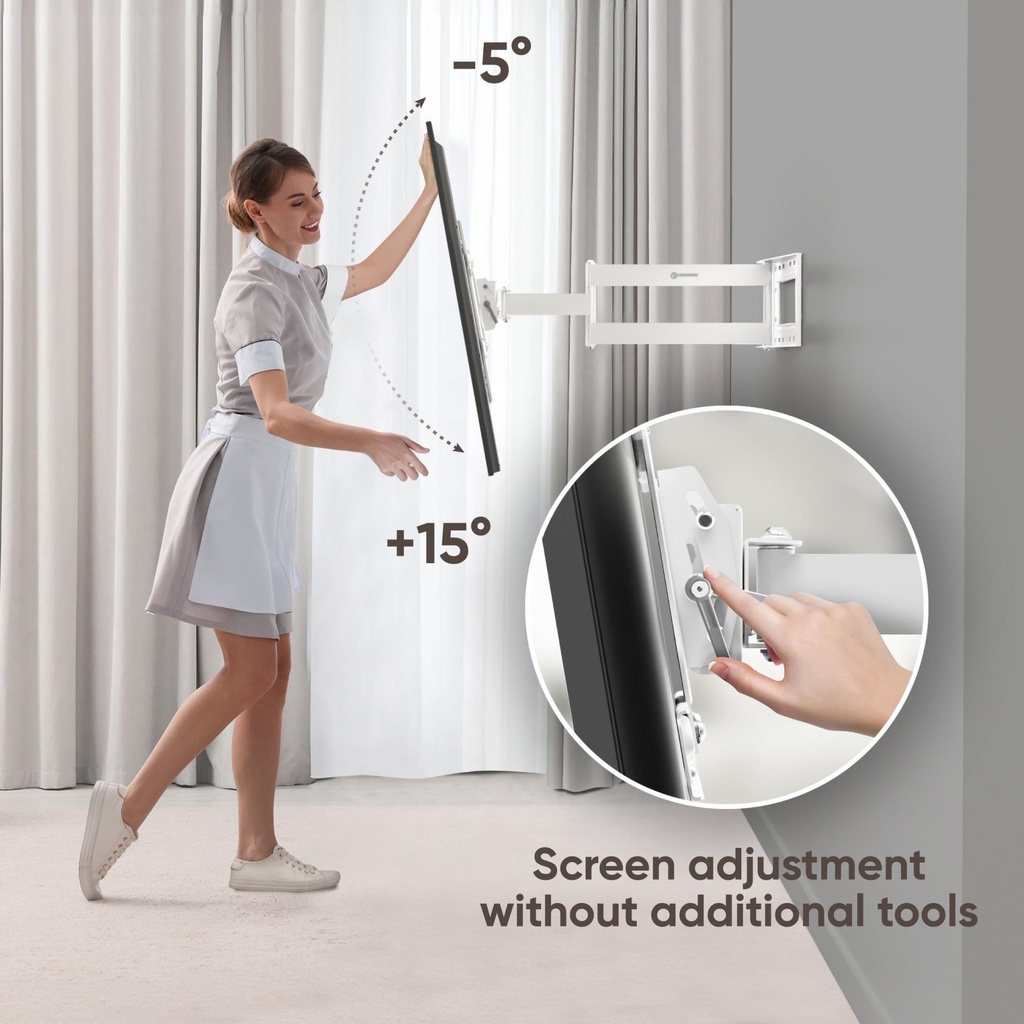

- Tilt: -5° ~ +15°

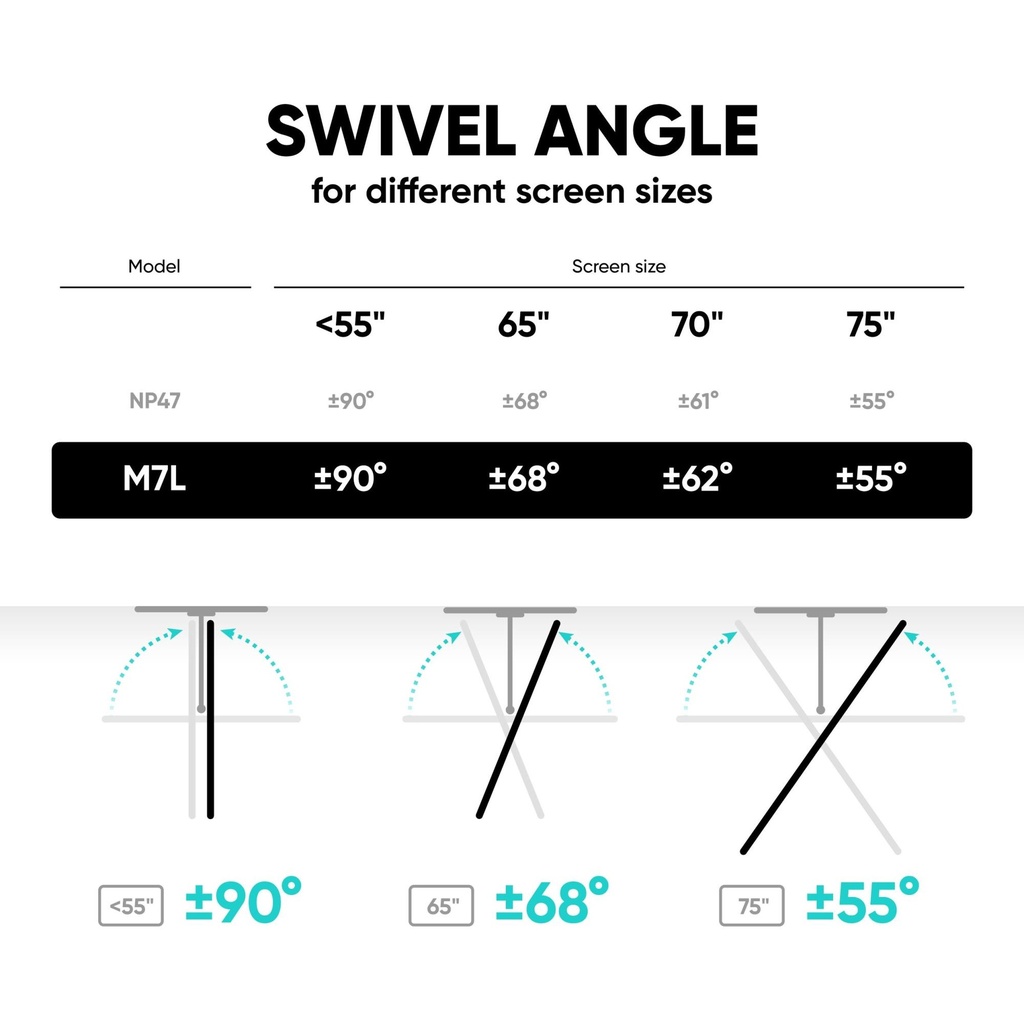

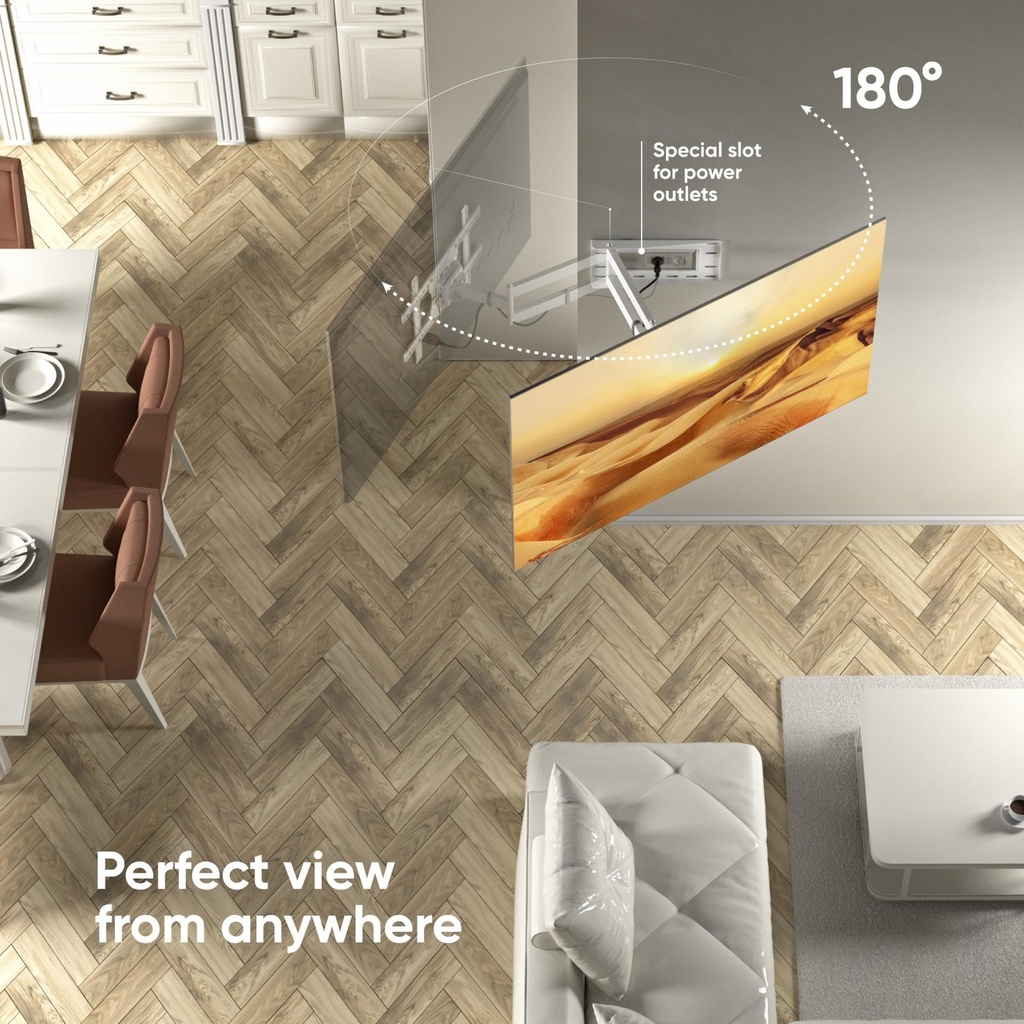

- Swivel: 180°
- Horizontal adjustment: ±4°

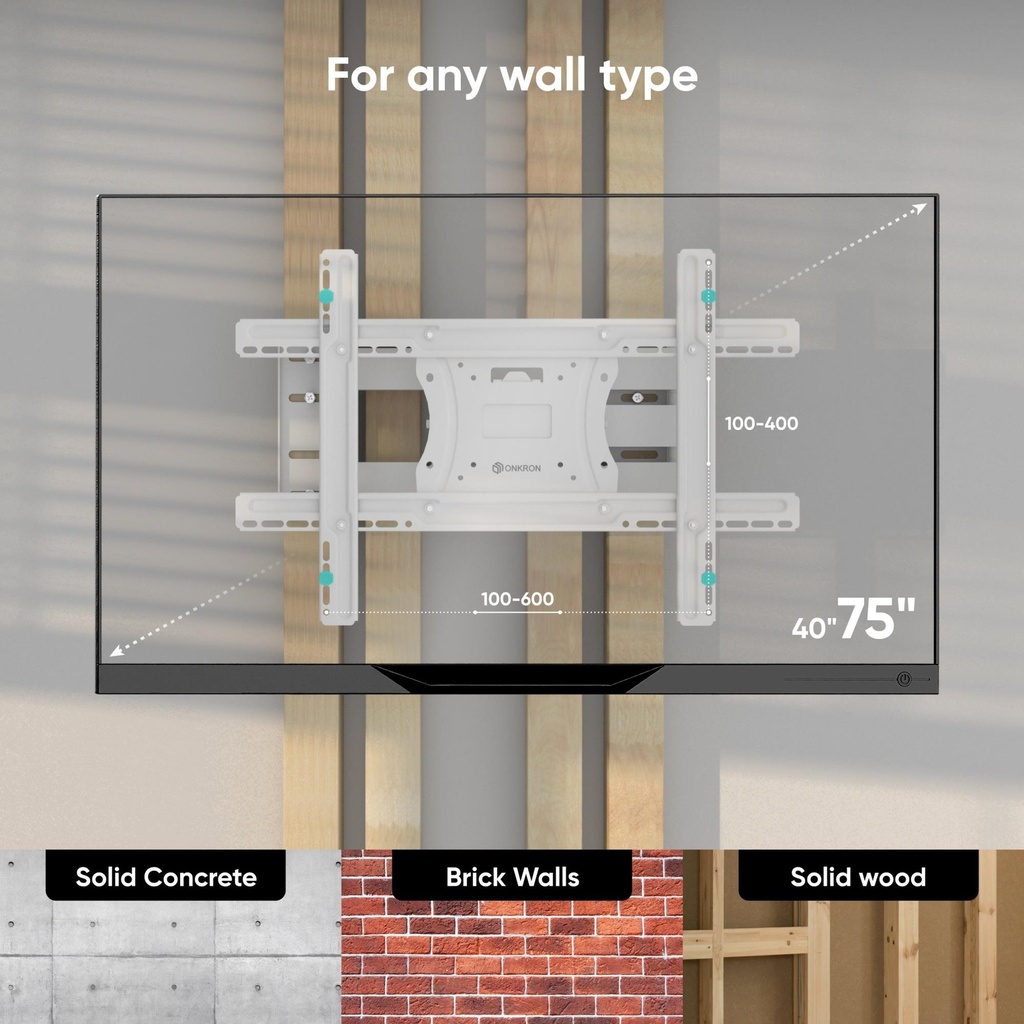

- VESA: 100x100, 200x100, 200x200, 200x300, 200x400, 300x100, 300x200, 300x300, 300x400, 400x200, 400x300, 400x400, 500x200, 500x400, 600x200, 600x300, 600x400 mm
- Material: cold-rolled steel
General
| Unit Calculated Weight | 9 kg |
| Unit Calculated Volume | 0.01617 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |

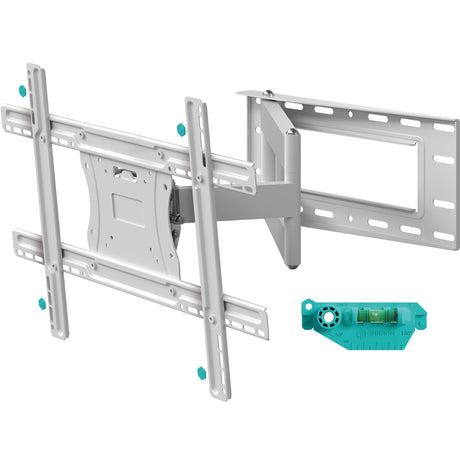

| Summary | ONKRON M7L-W. Maximum weight capacity: 68 kg, Minimum screen size: 101.6 cm (40"), Maximum screen size: 190.5 cm (75"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 600 x 400 mm. Angle of rotation: 4°, Distance to the wall (min): 11 cm, Distance to the wall (max): 71.1 cm. Product colour: White |
| Unit Box Height | 0.1 |
| Unit Box Length | 0.66 |
| Unit Box Width | 0.245 |
| Model | M7L |
Mounting
| Maximum screen size | 75 " |
| Maximum VESA mount | 600 x 400 mm |
| Maximum weight capacity | 68 kg |
| Maximum weight capacity (per display) | 68 kg |
| Minimum screen size | 40 " |
| Minimum VESA mount | 100 x 100 mm |
| Mounting type | Wall |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/200 x 100/200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/300 x 400/400 x 200/400 x 300/400 x 400/500 x 200/500 x 400/600 x 200/600 x 300/600 x 400 mm |
Ergonomics
| Angle of rotation | 4 ° |
| Distance to the wall (max) | 711 mm |
| Distance to the wall (min) | 110 mm |
| Swivel angle | 180 ° |
| Swivelling | Yes |
| Tilt angle | 15 ° |
Design
| Housing material | Steel |
| Product colour | White |
Packaging data
| Package depth | 250 mm |
| Package height | 105 mm |
| Package weight | 9100 g |
| Package width | 663 mm |
| Quantity per pack | 1 pair(s) |
