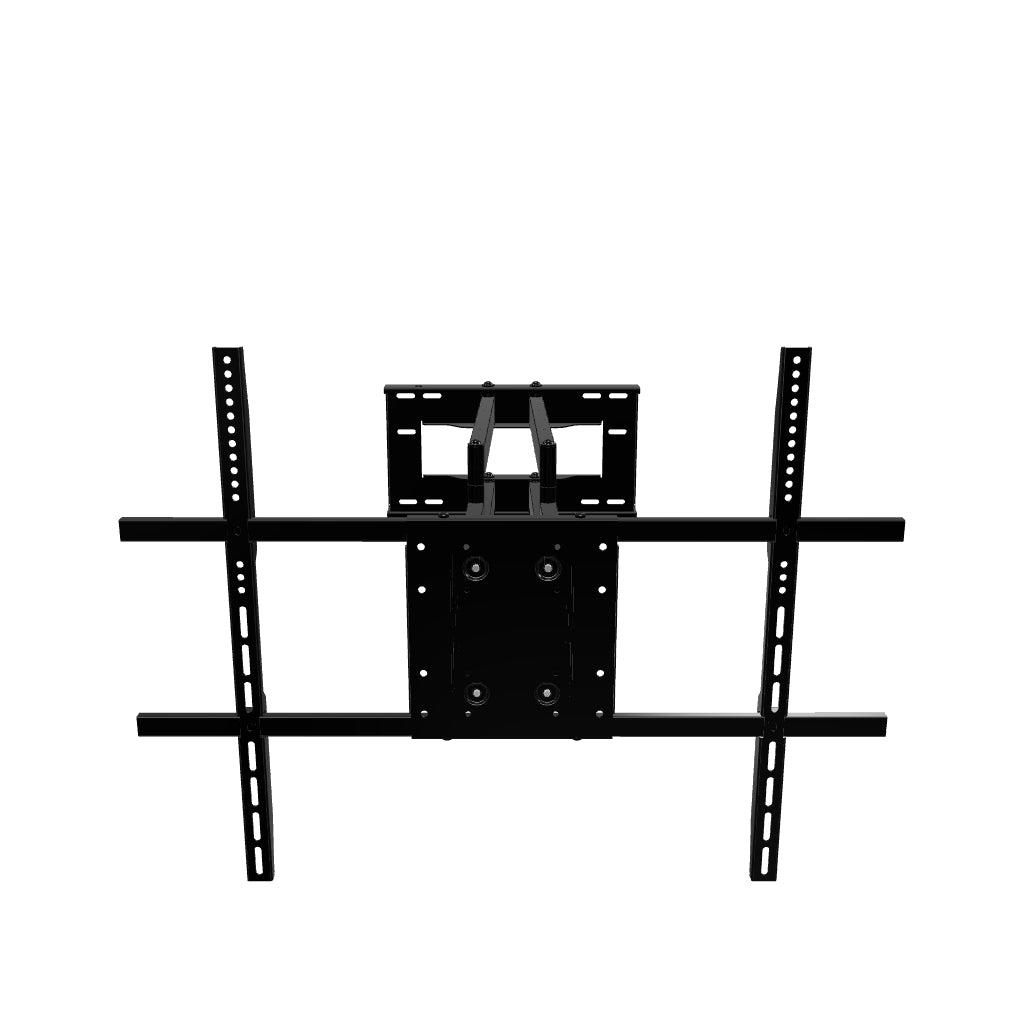

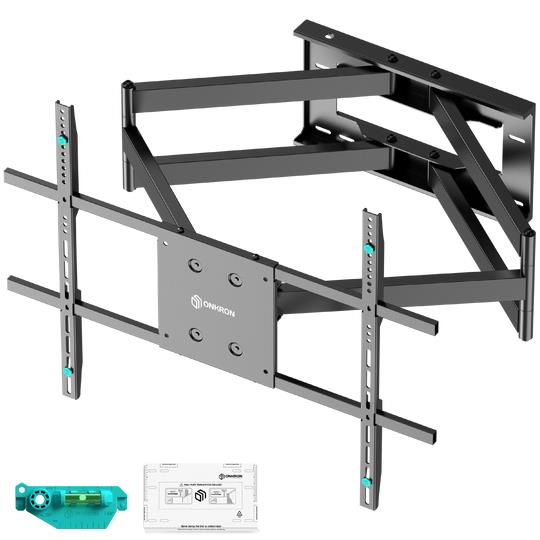

TV SET ACC WALL MOUNT/42-110"/BLACK M8L-B ONKRON

Kainos tik partneriams Prisijungti B2B

ONKRON

Garantija: 60 mėn.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Gamintojas: ONKRON

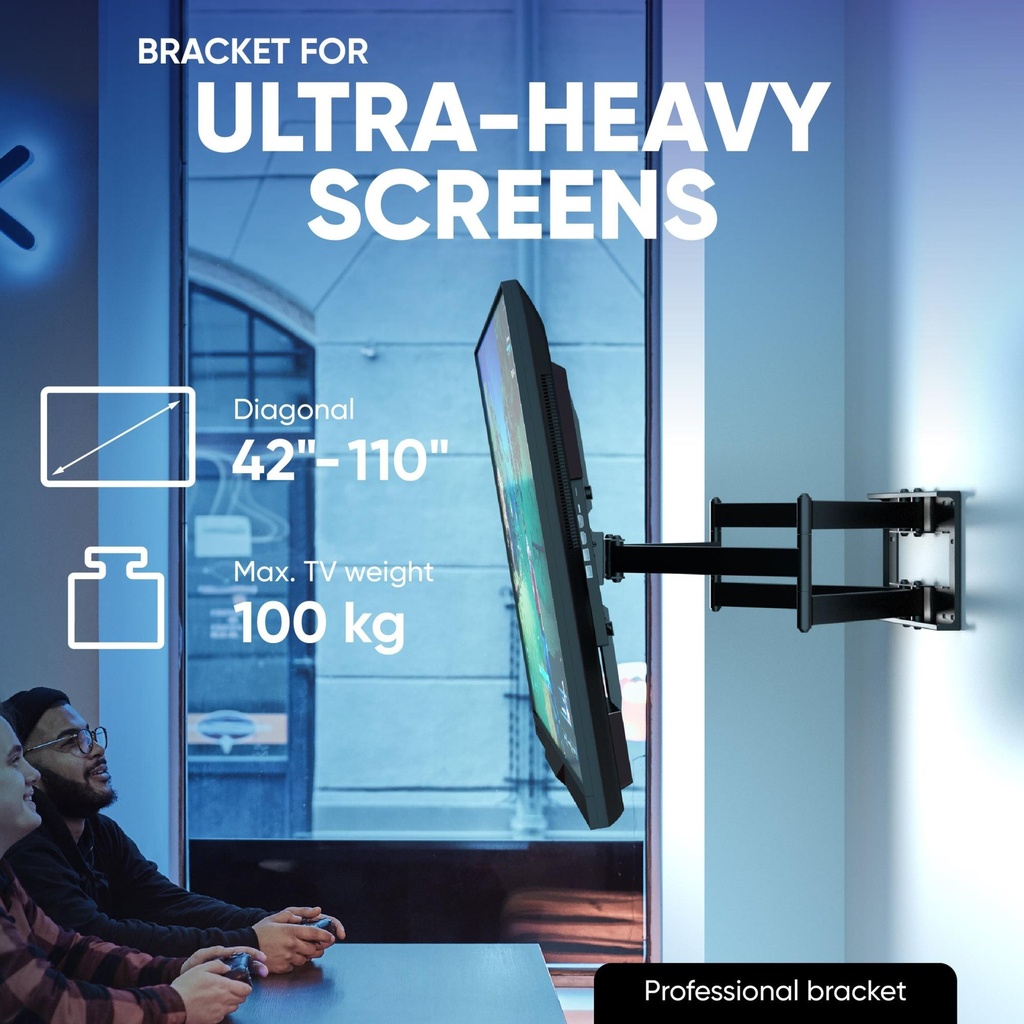

For TVs 42"–110"
Max load: 100 kg

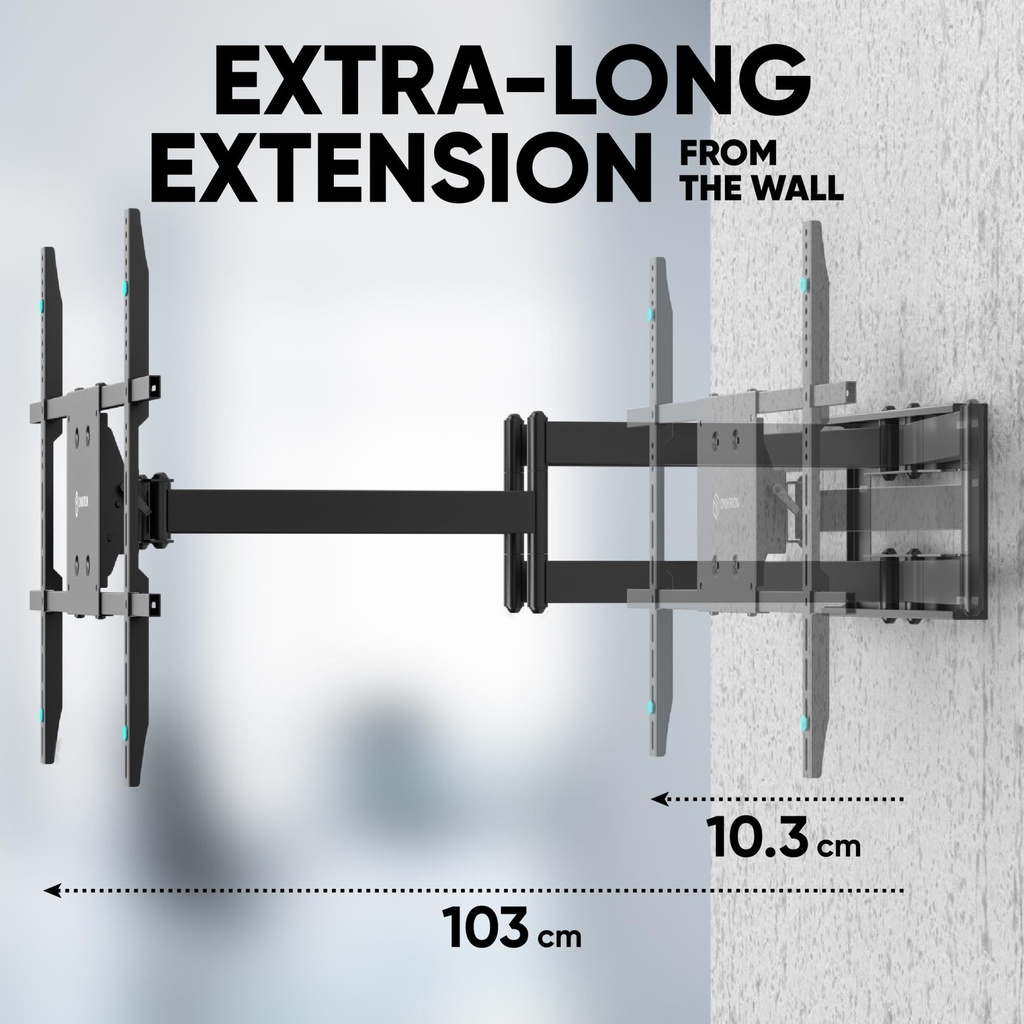

Extension from wall: 103–1030 mm

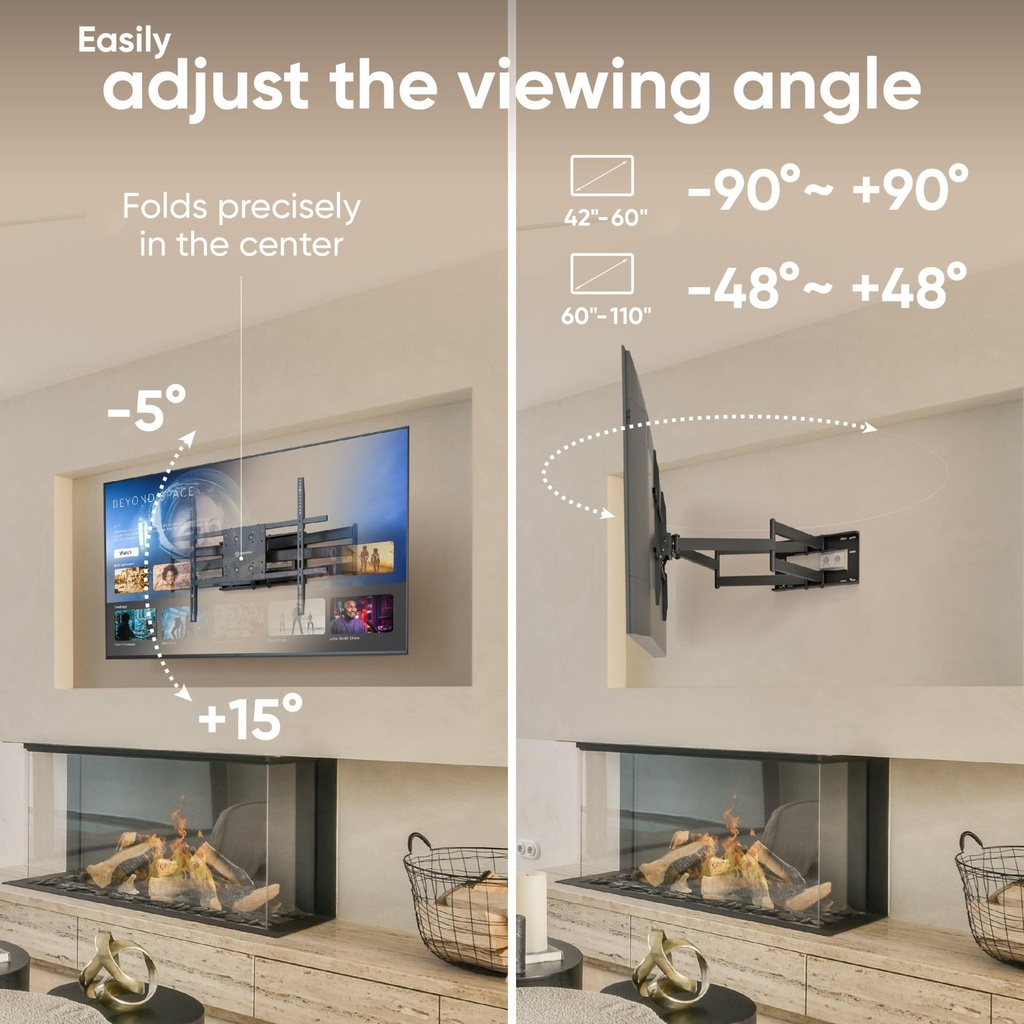

Tilt: -5° ~ +15°

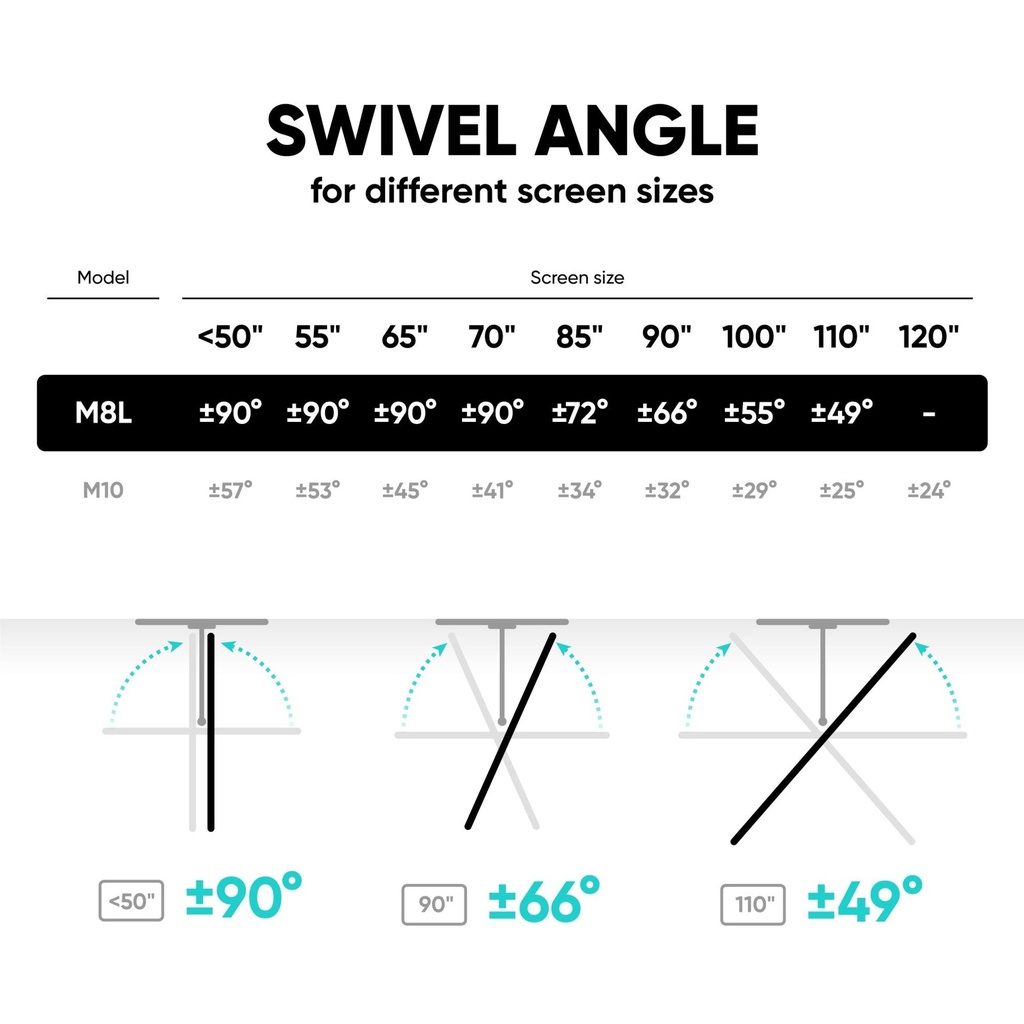

Swivel: 180°

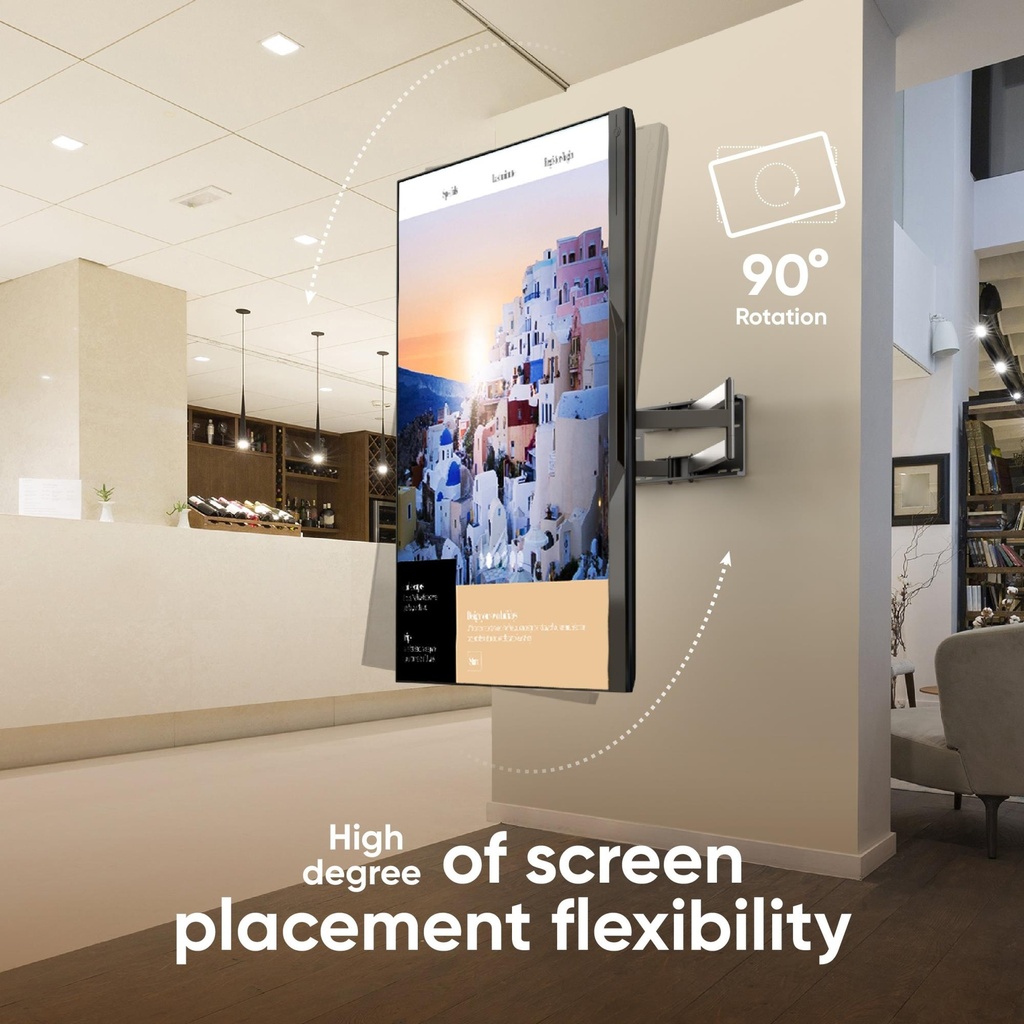

Rotation: 90°
Includes removable level, drilling template, and anchors
VESA: 100x100, 100x200, 200x100, 200x200, 200x300, 200x400, 200x500, 200x600, 300x100, 300x200, 300x300, 300x400, 300x500, 300x600, 400x100, 400x200, 400x300, 400x400, 400x500, 400x600, 500x200, 500x300, 500x400, 500x500, 500x600, 600x200, 600x300, 600x400, 600x500, 600x600, 700x400, 700x500, 800x600 mm
Material: cold-rolled steel

Unit Calculated Weight	18.2 kg
Unit Calculated Volume	0.05141 cubm
Units per Shipping Box	1
Units per Pallet	0
Summary	ONKRON M8L-B. Maximum weight capacity: 100 kg, Minimum screen size: 106.7 cm (42"), Maximum screen size: 2.54 m (100"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 800 x 600 mm. Tilt angle range: -5 - 15°, Angle of rotation: 90°, Distance to the wall (min): 10.3 cm, Distance to the wall (max): 103 cm. Product colour: Black
Unit Box Height	0.14
Unit Box Length	1.08
Unit Box Width	0.34
Model	M8L

Maximum screen size	100 "
Maximum VESA mount	800 x 600 mm
Maximum weight capacity	100 kg
Maximum weight capacity (per display)	100 kg
Minimum screen size	42 "
Minimum VESA mount	100 x 100 mm
Mounting type	Wall
Number of displays supported	1
Panel mounting interface	100 x 100/100 x 200/200 x 100/200 x 200/200 x 300/200 x 400/200 x 500/200 x 600/300 x 100/300 x 200/300 x 300/300 x 400/300 x 500/300 x 600/400 x 100/400 x 200/400 x 300/400 x 400/400 x 500/400 x 600/500 x 200/500 x 300/500 x 400/500 x 500/500 x 600/600 x mm
