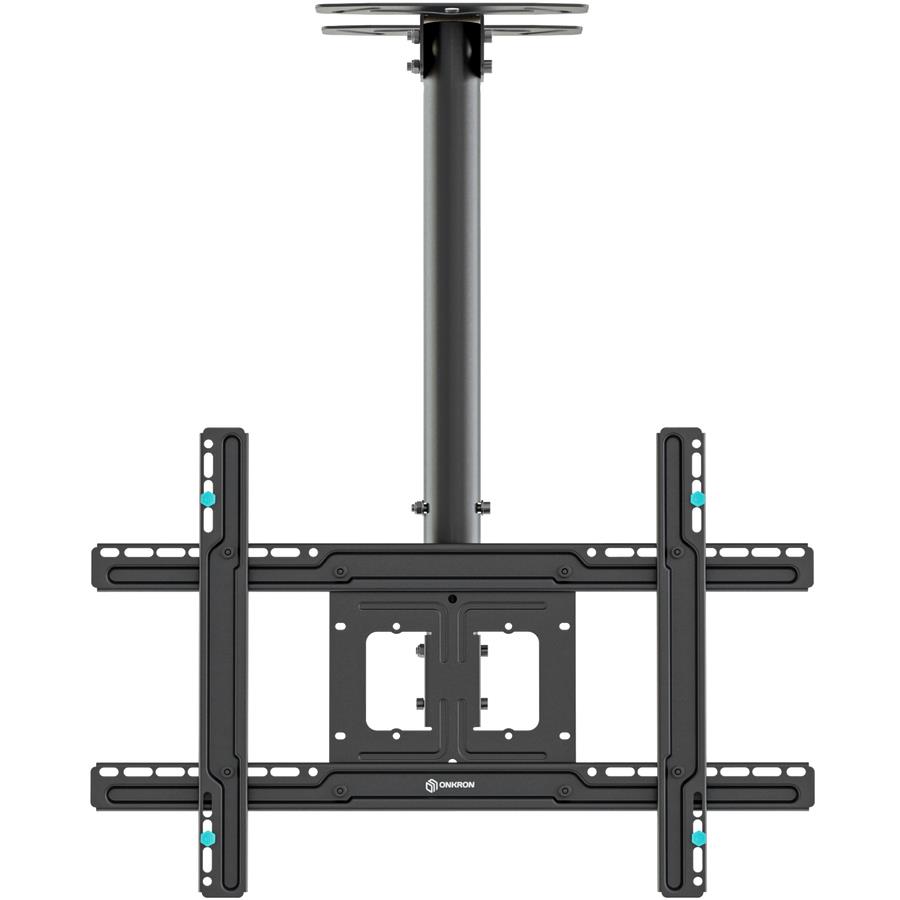

TV SET ACC CEILING MOUNT/32-80" BLACK N1L-B ONKRON
General
| Unit Calculated Weight | 5.55 kg |
| Unit Calculated Volume | 0.01127 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | ONKRON Ceiling mount for TV 32"-80" max 68 kg, tilt-swivel, black. Maximum weight capacity: 68.2 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 2.03 m (80"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -5 - 15°, Swivel angle range: -30 - 30°. Product colour: Black |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.7 |
| Unit Box Width | 0.23 |
| Model | N1L |
Mounting
| Maximum screen size | 80 " |
| Maximum VESA mount | 600 x 400 mm |
| Maximum weight capacity | 68.2 kg |
| Maximum weight capacity (per display) | 68.2 kg |
| Minimum screen size | 32 " |
| Minimum VESA mount | 100 x 100 mm |

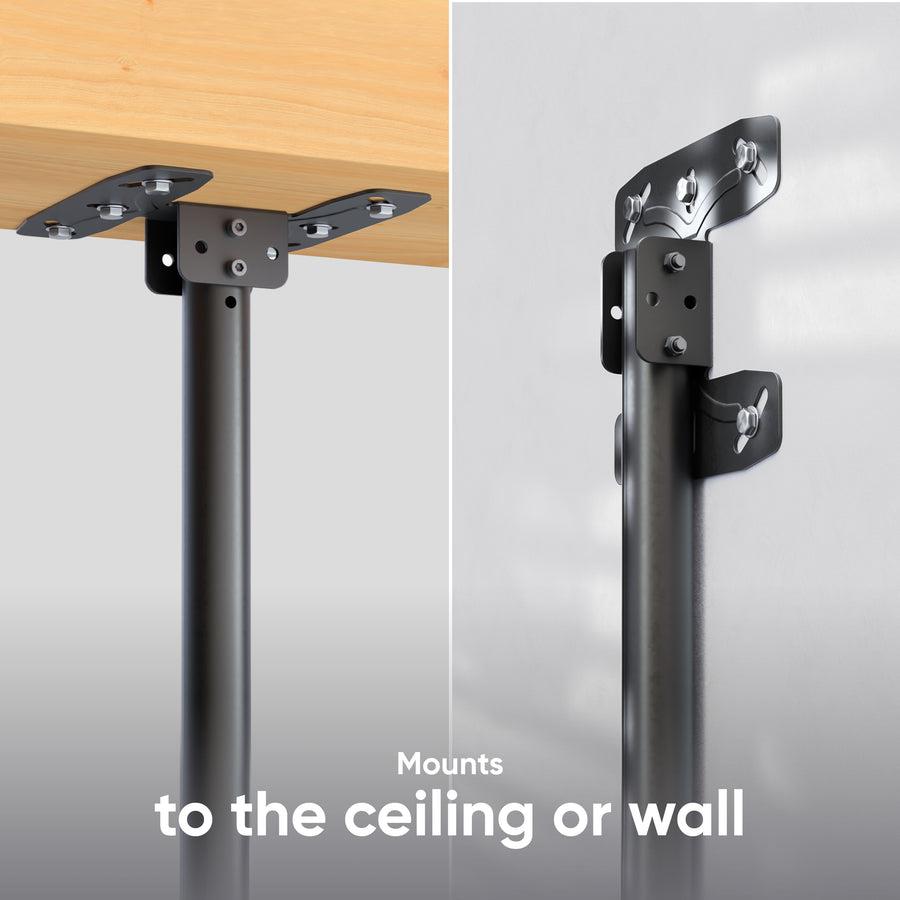

| Mounting type | Ceiling |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/100 x 200/200 x 100/200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/300 x 400/400 x 200/400 x 300/400 x 400/500 x 200/500 x 400/600 x 200/600 x 400 mm |
Ergonomics
| Cable management | Yes |
| Easy to adjust | Yes |
| Height adjustment | Yes |

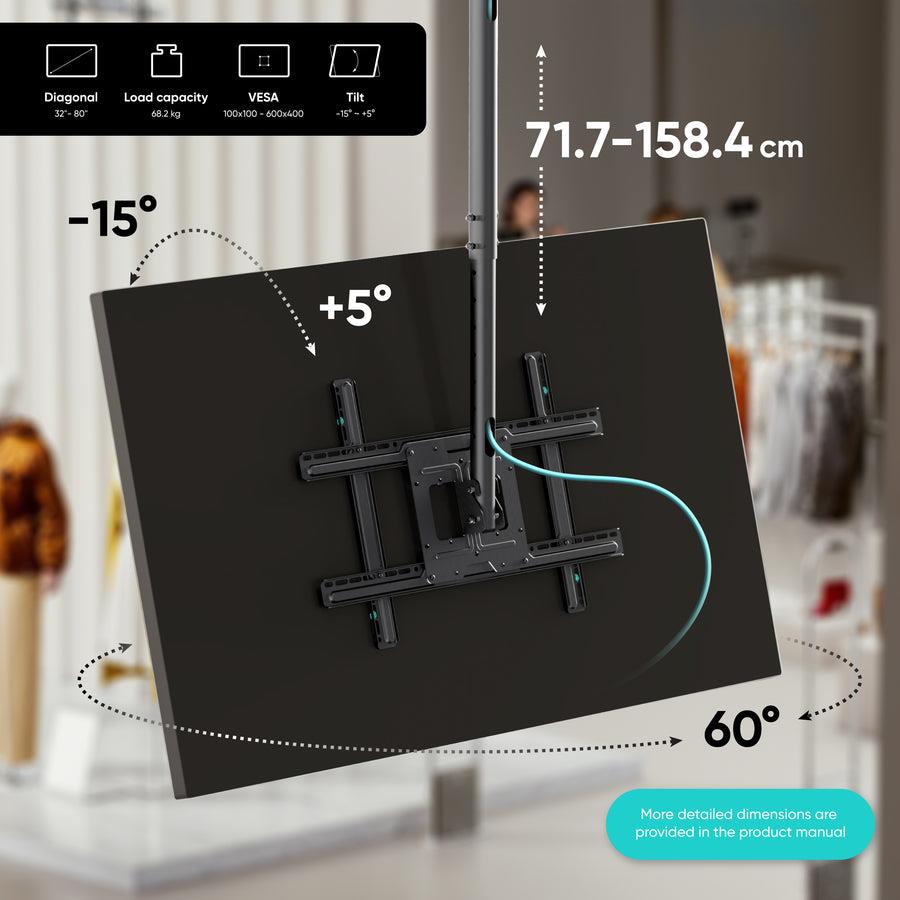

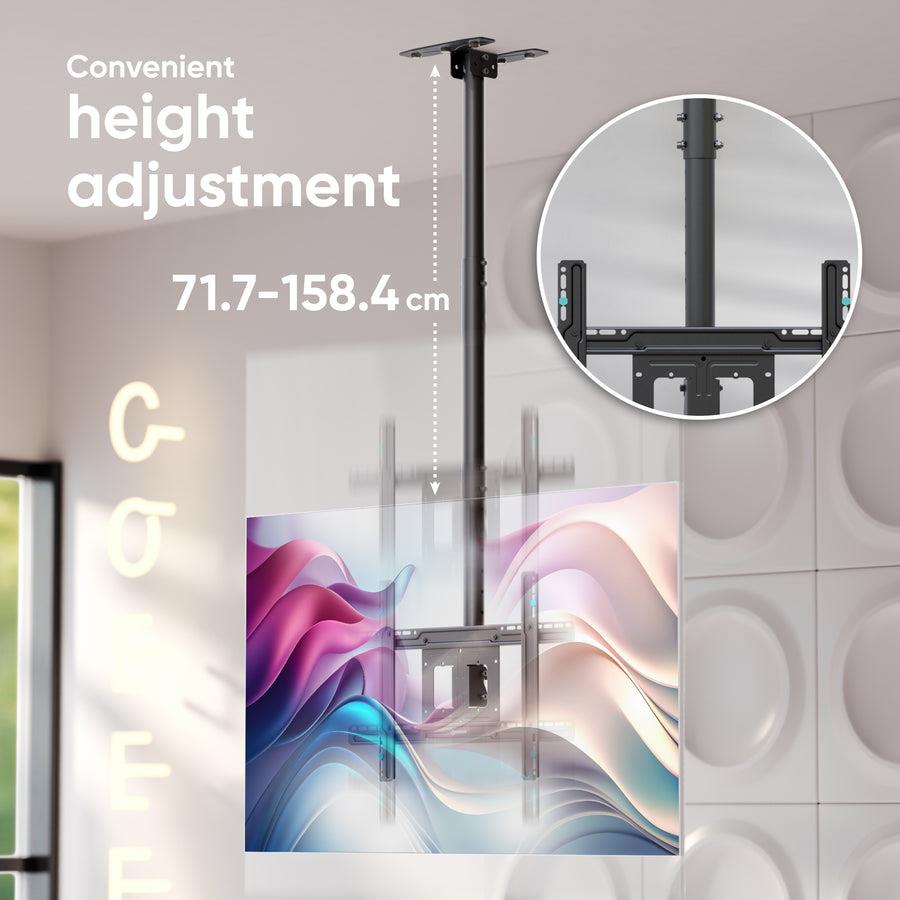

| Height adjustment | 867 mm |
| Maximum distance to ceiling | 1584 mm |
| Swivel angle | 60 ° |
| Swivel angle range | -30 - 30 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle | 20 ° |
| Tilt angle range | -5 - 15 ° |
| Type | Full motion |
Design
| Housing material | SPCC |
| Product colour | Black |

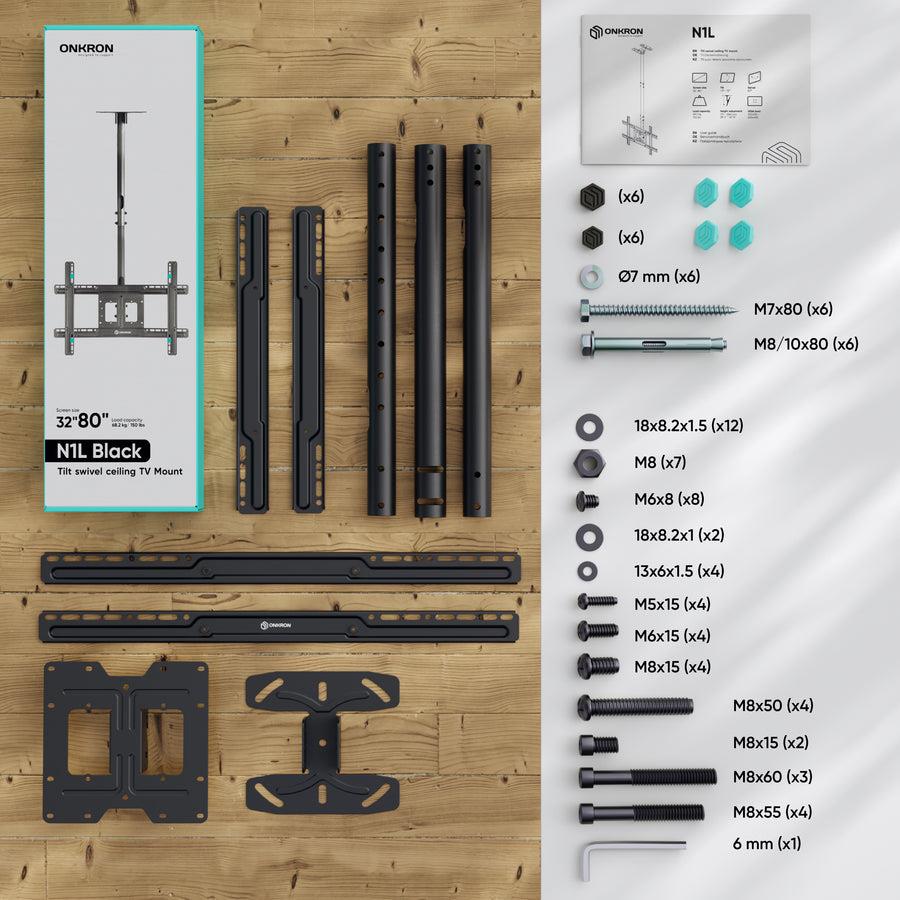

Packaging content
| Manual | Yes |

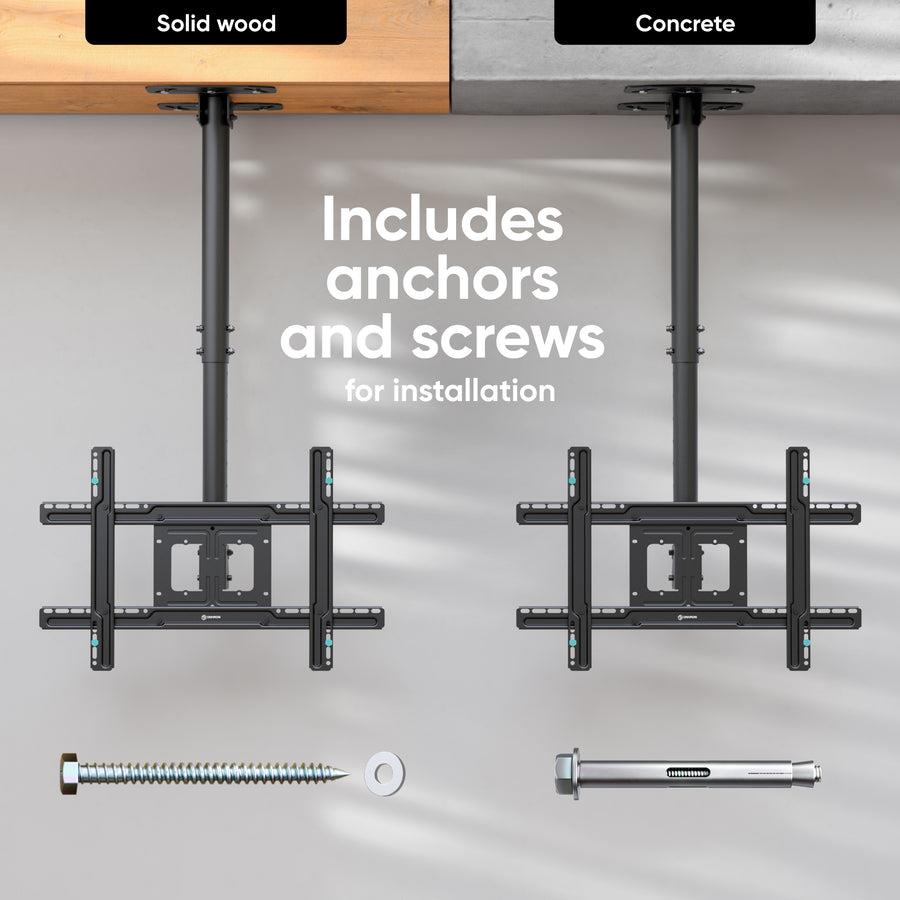

| Mounting kit | Yes |
Features
| Minimum distance to ceiling | 717 mm |
Technical details
| Warranty period | 5 year(s) |
Packaging data
| Package depth | 235 mm |
| Package height | 75 mm |
| Package type | Box |
| Package weight | 5600 g |
| Package width | 710 mm |
