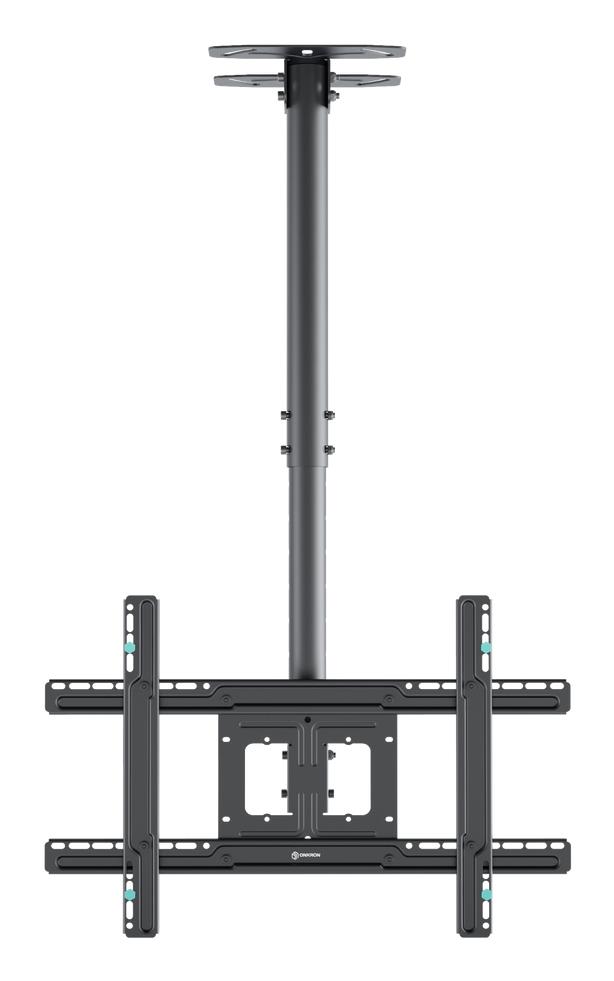

TV SET ACC CEILING MOUNT/32-80" BLACK N2L-B ONKRON
General
| Unit Calculated Weight | 7.55 kg |
| Unit Calculated Volume | 0.01127 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | ONKRON Ceiling mount for TV 32"-80" max 68 kg, tilt-swivel, black. Maximum weight capacity: 68.2 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 2.03 m (80"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 600 x 200 mm. Tilt angle range: -15 - 5°, Angle of rotation: 60°. Product colour: Black |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.7 |
| Unit Box Width | 0.23 |
| Model | N2L |
Mounting
| Maximum screen size | 80 " |
| Maximum VESA mount | 600 x 200 mm |
| Maximum weight capacity | 68.2 kg |
| Maximum weight capacity (per display) | 68.2 kg |
| Minimum screen size | 32 " |
| Minimum VESA mount | 100 x 100 mm |

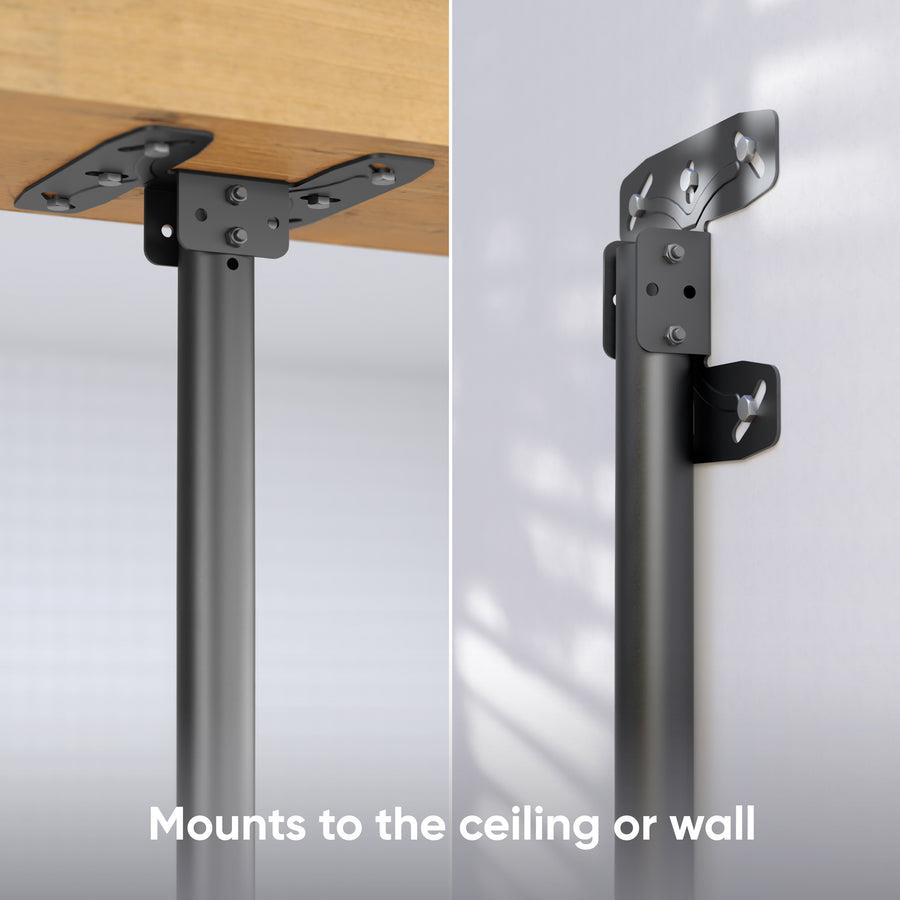

| Mounting type | Ceiling |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/100 x 200/200 x 100/200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/300 x 400/400 x 200/400 x 300/400 x 400/500 x 200/500 x 400/600 x 200 mm |
Ergonomics

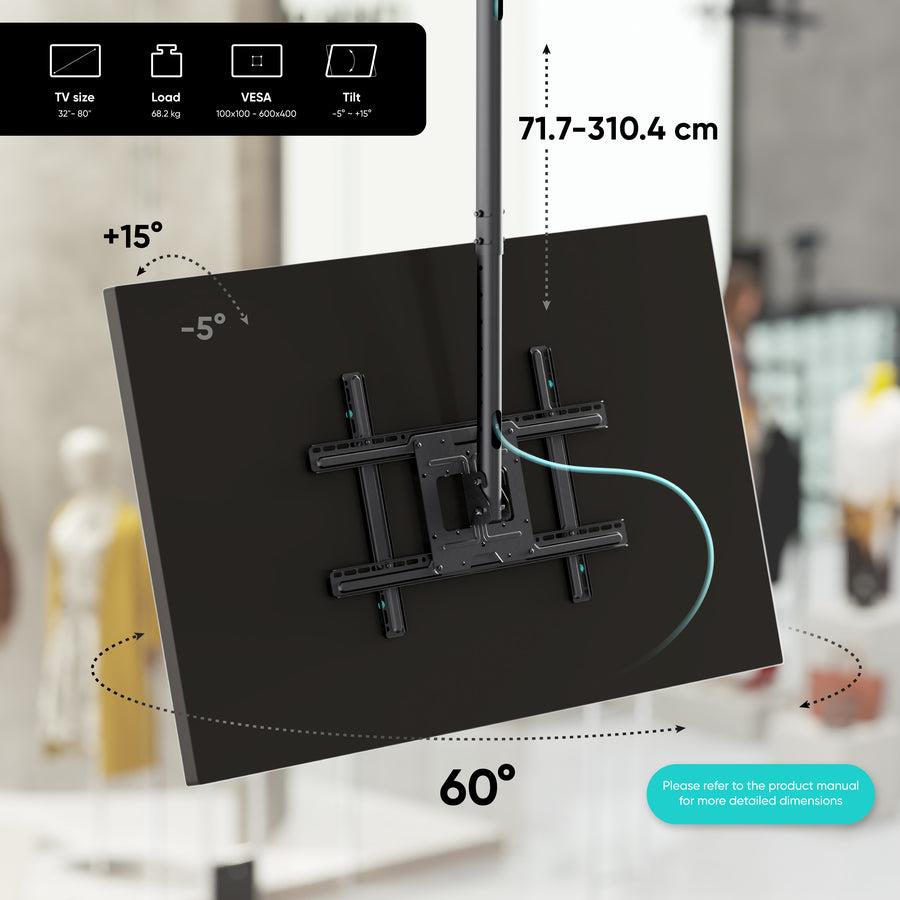

| Angle of rotation | 60 ° |
| Cable management | Yes |
| Height adjustment | Yes |

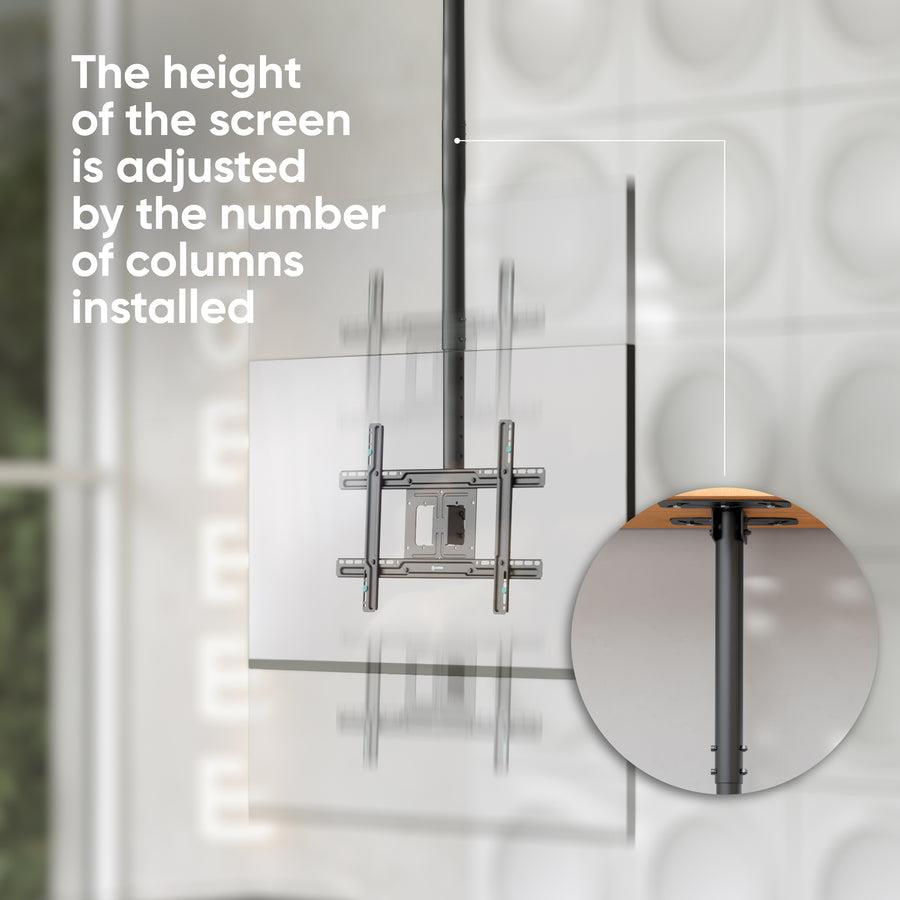

| Height adjustment | 2387 mm |
| Maximum distance to ceiling | 3104 mm |
| Rotating | Yes |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -15 - 5 ° |
| Type | Full motion |
Design
| Housing material | Plastic/SPCC |
| Product colour | Black |
Packaging content
| Manual | Yes |

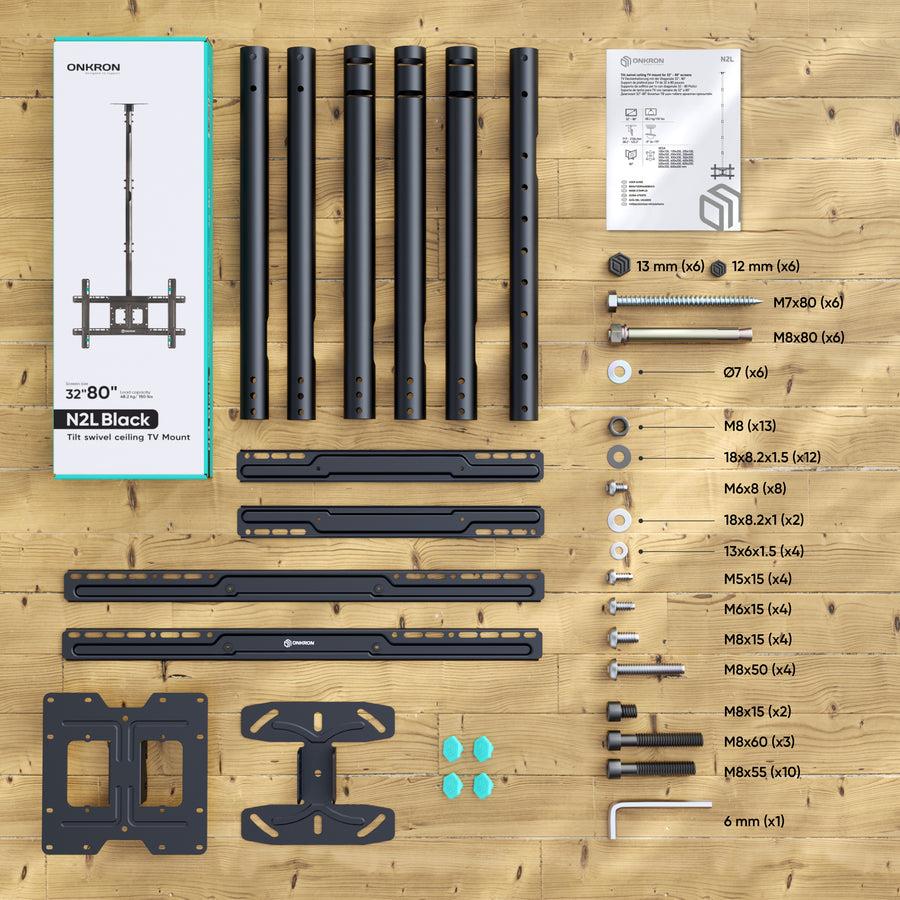

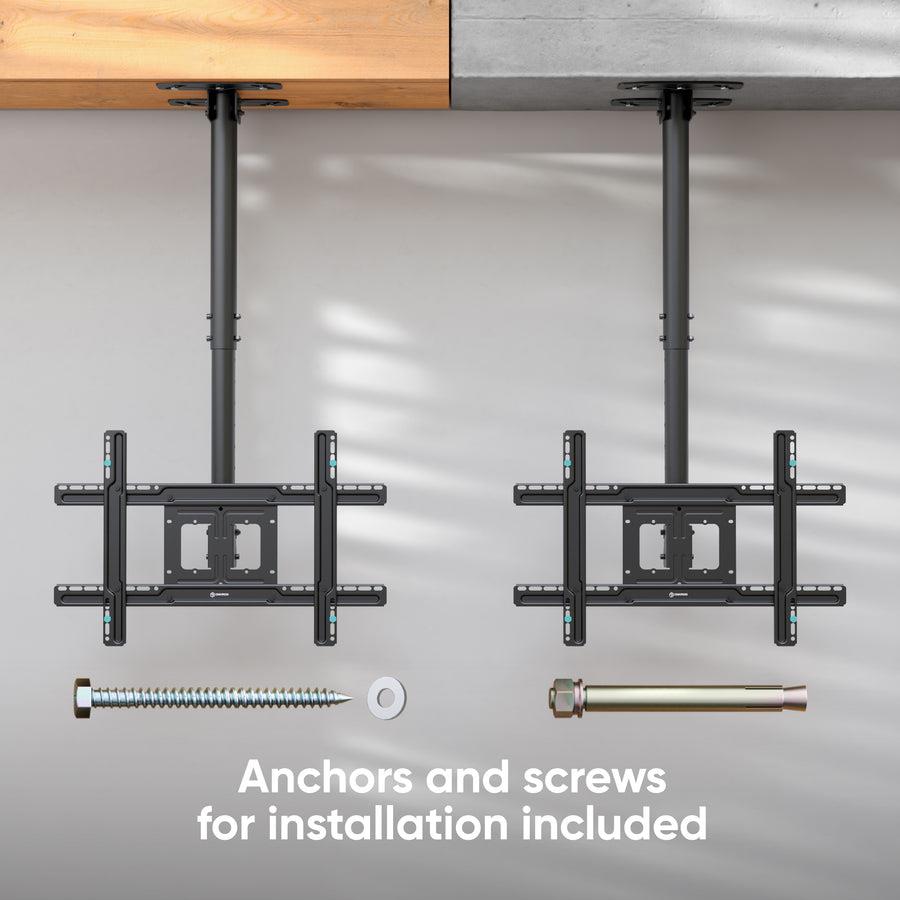

| Mounting kit | Yes |
Features
| Minimum distance to ceiling | 717 mm |
Technical details
| Warranty period | 5 year(s) |
Packaging data
| Package depth | 233 mm |
| Package height | 73 mm |
| Package type | Box |
| Package weight | 7600 g |
| Package width | 705 mm |
| Quantity per pack | 1 pair(s) |
