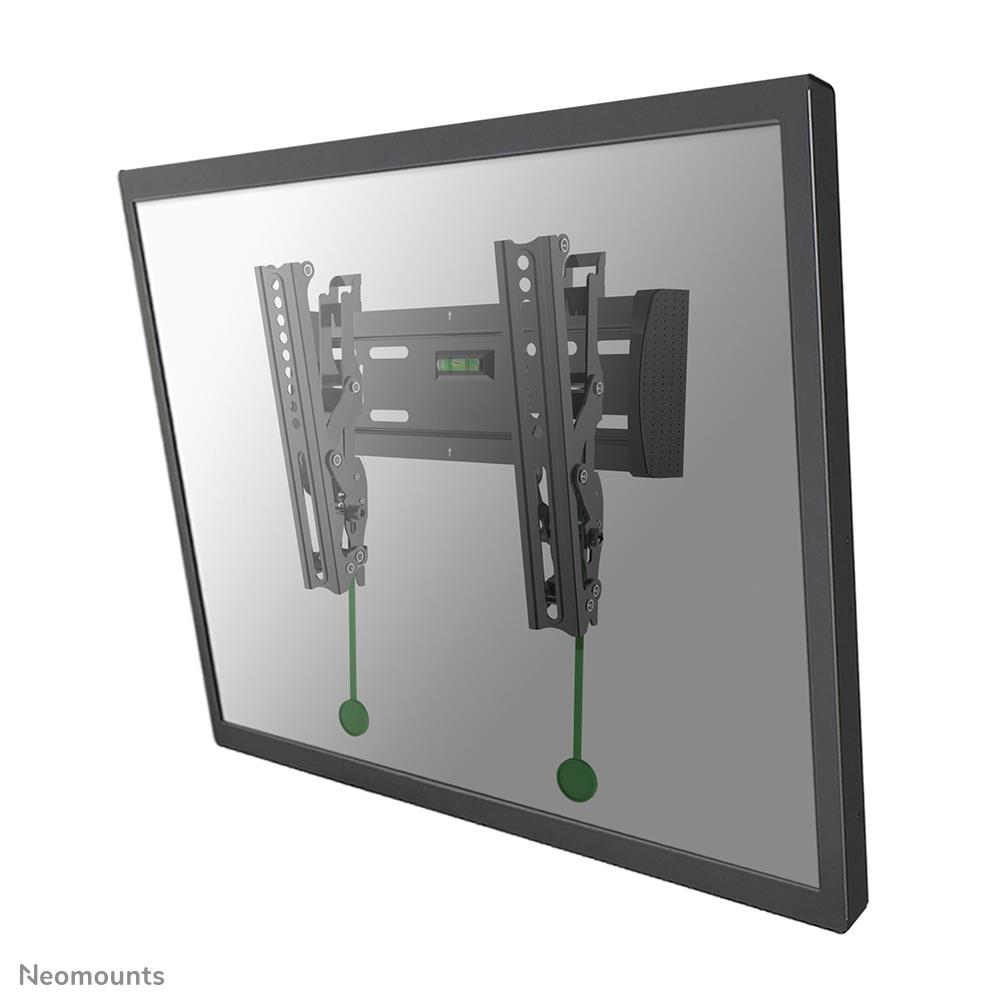

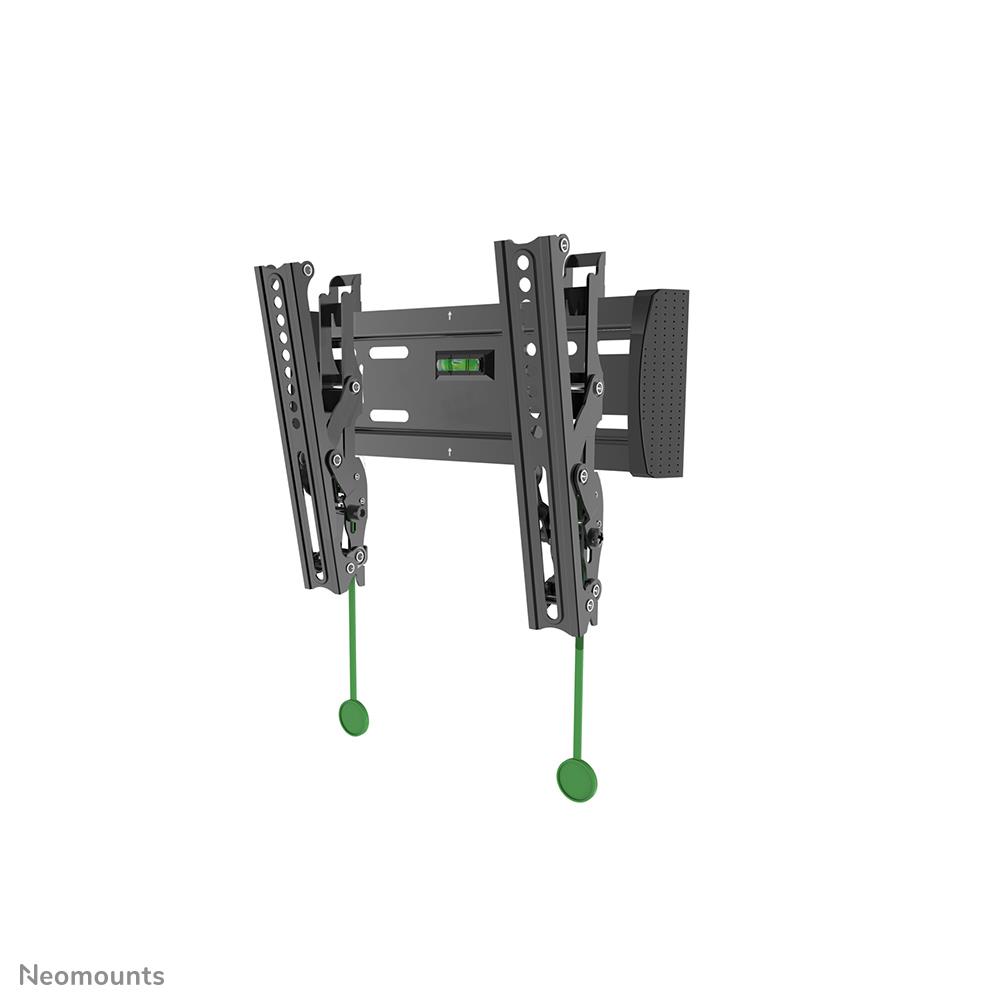

The Neomounts wall mount, model NM-W125BLACK is a tiltable wall mount for flat screens up to 40". This mount is a great choice when you want the ultimate viewing flexibility with your flat screen.
Neomounts' tilt (15°) technology allows the mount to change to a viewing angle to fully benefit from the capabilities of the flat screen. Ideal for flat screens that are mounted higher on the wall. The depth of this mount is 3,5 centimetres.
Neomounts NM-W125BLACK is suitable for screens up to 40" (100 cm). The weight capacity of this product is 20 kg. The wall mount is suitable for screens that meet VESA hole pattern 75x75 to 200x200 mm.
Create a clean design ambiance for your flat screen TV in a living room, bedroom or public environment.
All installation material is included with the product.
General
| Unit Calculated Weight | 1.53 kg |
| Unit Calculated Volume | 0.002277 cubm |
| Units per Shipping Box | 1 |
| Summary | Neomounts NM-W125BLACK TV mount wall 10-40" - tiltable. Maximum weight capacity: 20 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 101.6 cm (40"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 200 x 200 mm. Tilt angle range: 0 - 15°, Distance to the wall (max): 3.5 cm. Product colour: Black |
| Unit Box Height | 0.12 |
| Unit Box Length | 0.345 |
| Unit Box Width | 0.055 |
Mounting
| Maximum screen size | 40 " |
| Maximum VESA mount | 200 x 200 mm |
| Maximum weight capacity | 20 kg |
| Maximum weight capacity (per display) | 20 kg |
| Minimum screen size | 10 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting type | Wall |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/100 x 200/200 x 100/200 x 200/75 x 75 mm |
Ergonomics
| Distance to the wall (max) | 35 mm |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 15 ° |
Design
| Housing material | Steel |
| Product colour | Black |
Technical details
| Country of origin | China |
| Package net weight | 1300 g |
Weight & dimensions
| Weight | 1470 g |
Packaging data
| Package depth | 350 mm |
| Package height | 55 mm |
| Package weight | 1300 g |
| Package width | 110 mm |
Logistics data
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 14100 g |
| Master (outer) case height | 260 mm |
| Master (outer) case length | 345 mm |
| Master (outer) case net weight | 13000 g |
| Master (outer) case width | 245 mm |
| Products per master (outer) case | 10 pc(s) |
| Products per pallet (EU) | 330 pc(s) |
