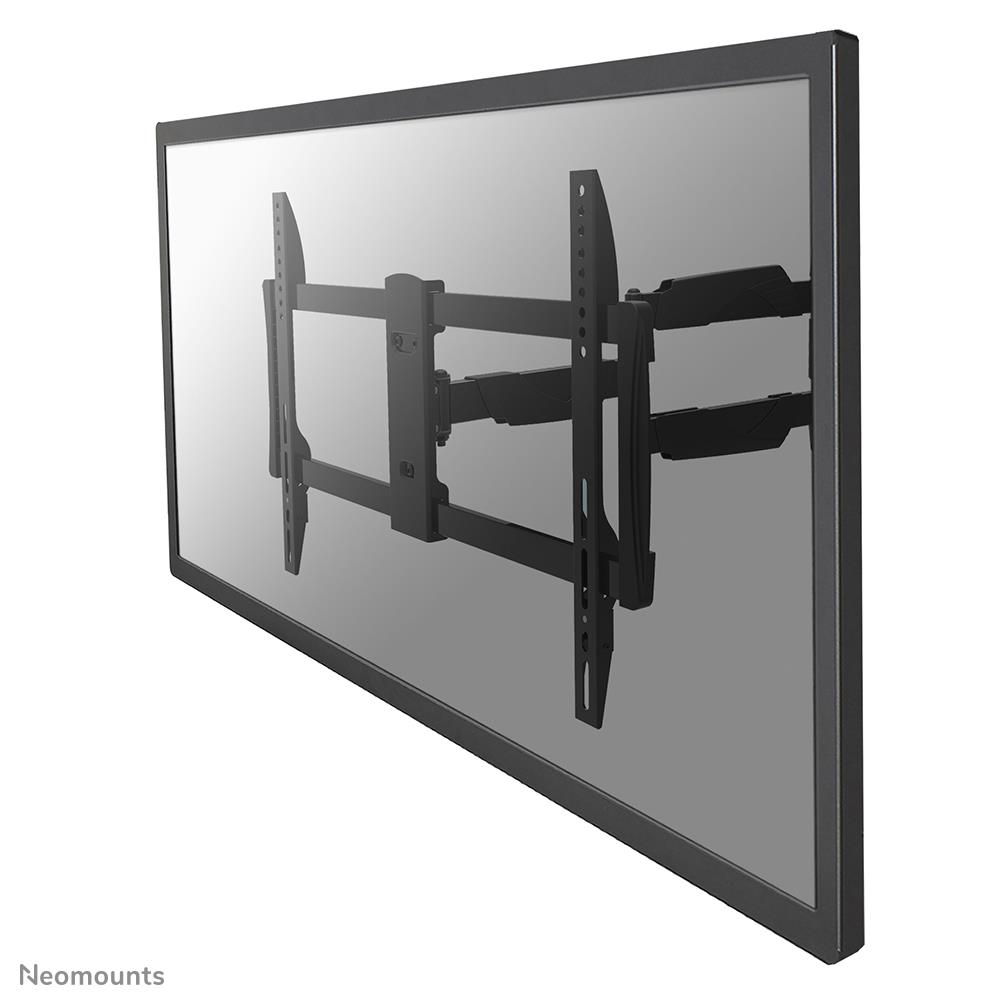

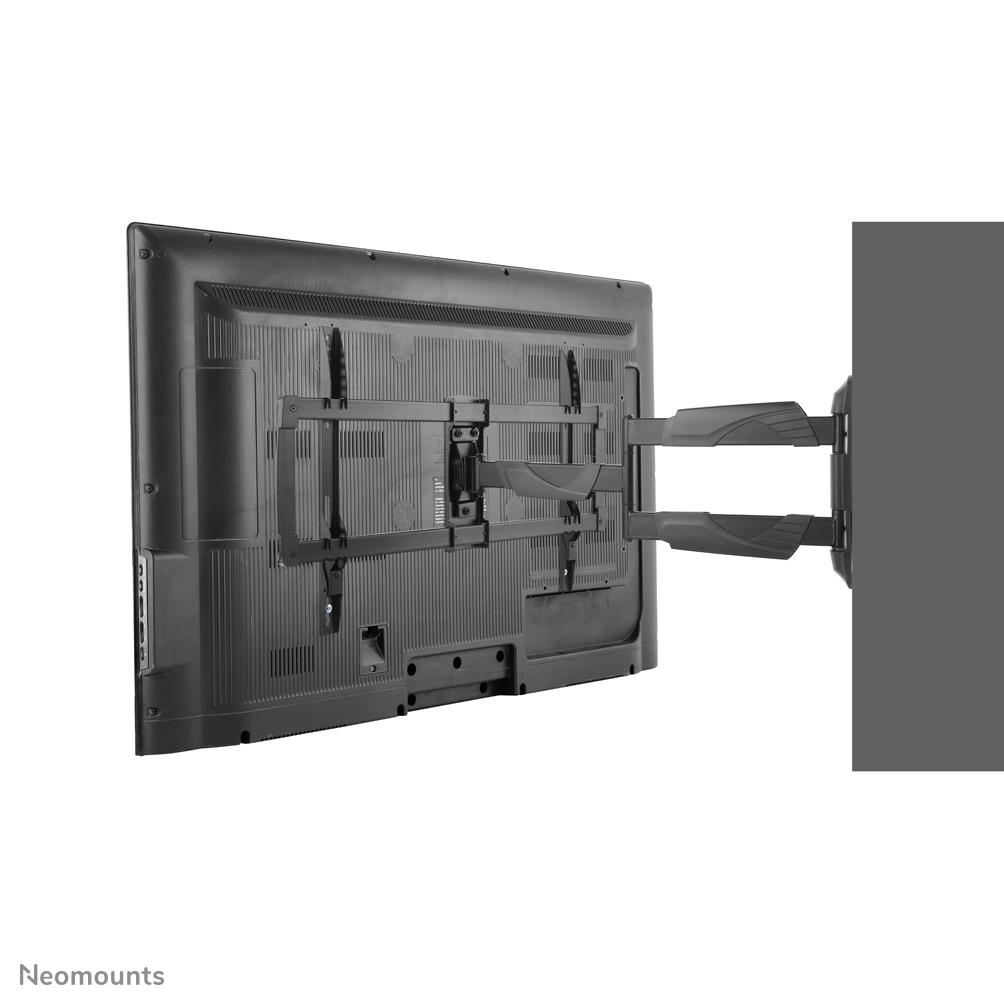

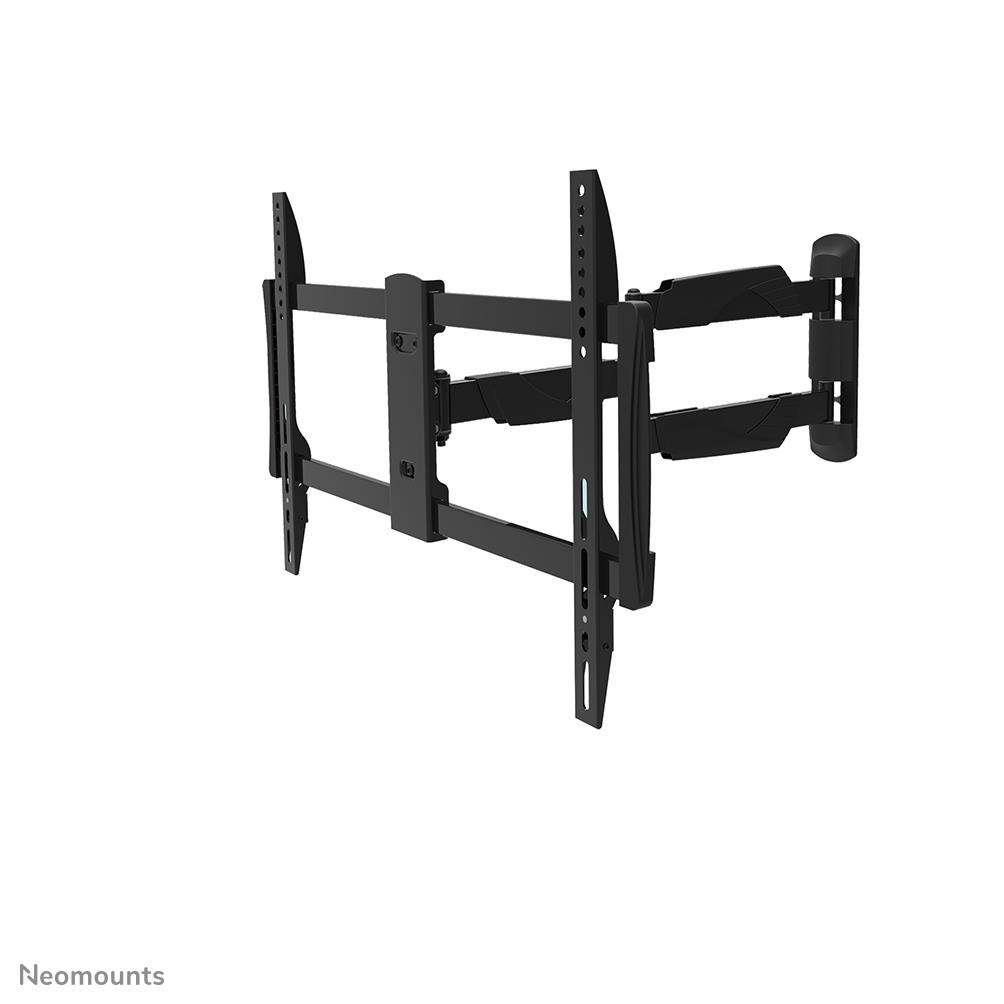

The Neomounts wall mount, model NM-W460BLACK is a full swing tilt- and swivel wall mount for flat screens up to 60". This mount is a great choice when you want the ultimate viewing flexibility with your flat screen TV. Effortless pull the display out from the wall, position it in almost any direction, turn it around corners and then smoothly return it to the wall when finished.

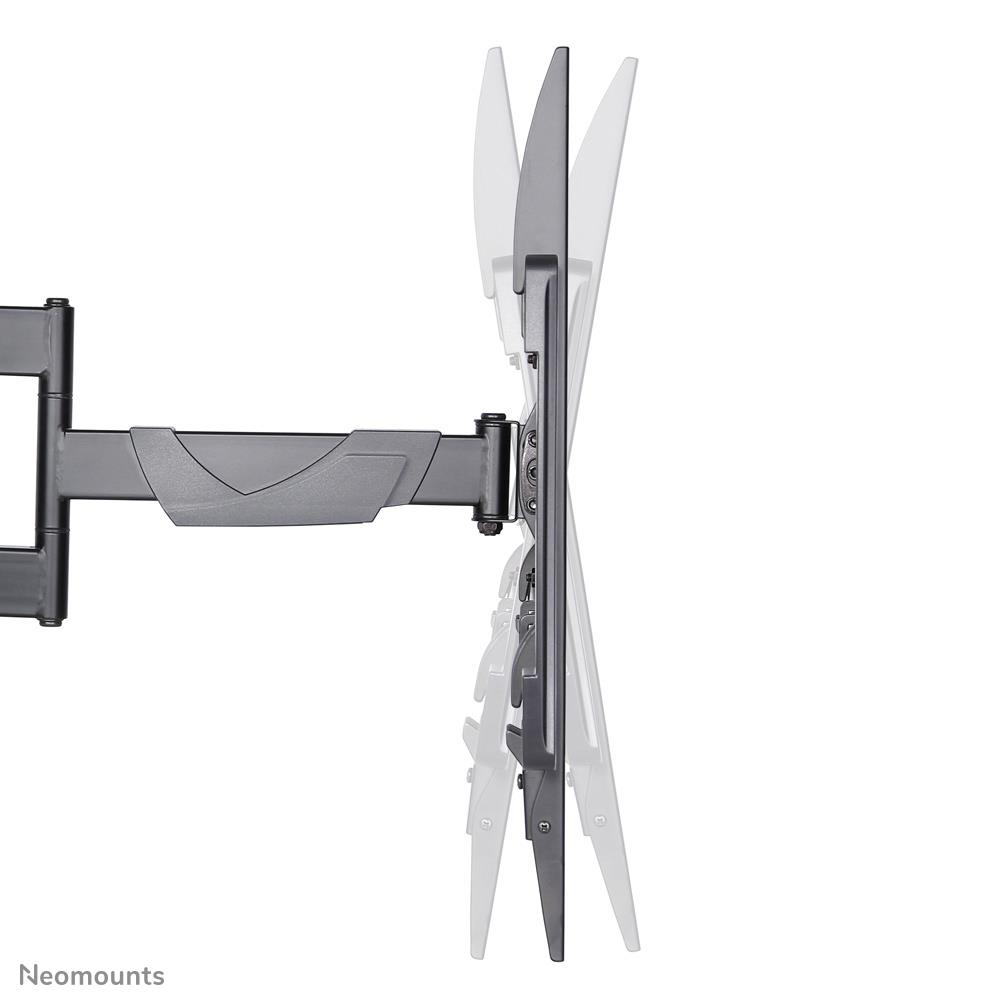

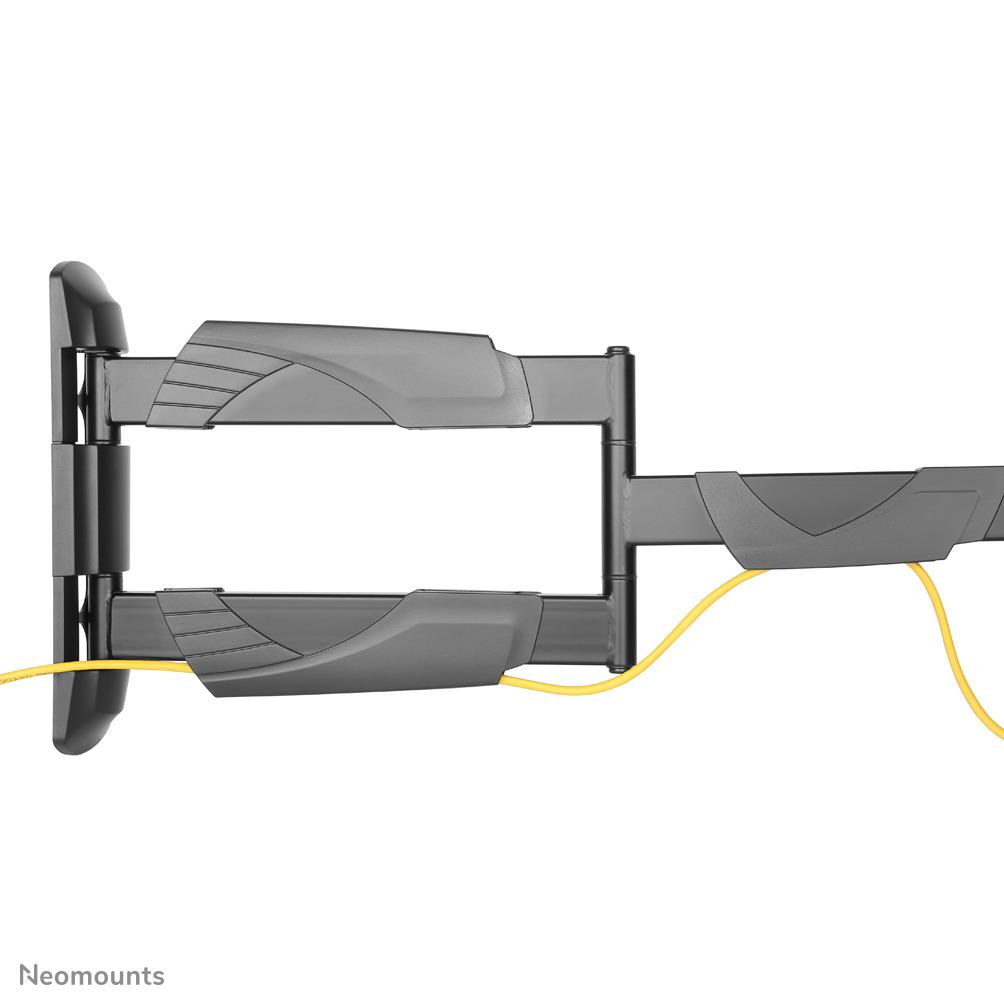

Neomounts' tilt (25°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily depth adjustable from 5 to 61 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep living room, bedroom or home cinema installation nice and tidy.
Neomounts NM-W460BLACK has three pivot points and is suitable for screens up to 60" (150 cm). The weight capacity of this product is 30 kg. The wall mount is suitable for screens that meet VESA hole pattern 200x200 to 600x400mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
Create a clean design ambiance for your flat screen TV in a living room, bedroom or public environment.
All installation material is included with the product.
General
| Unit Calculated Weight | 6.33 kg |
| Unit Calculated Volume | 0.02952 cubm |
| Units per Shipping Box | 3 |
| Units per Pallet | 0 |

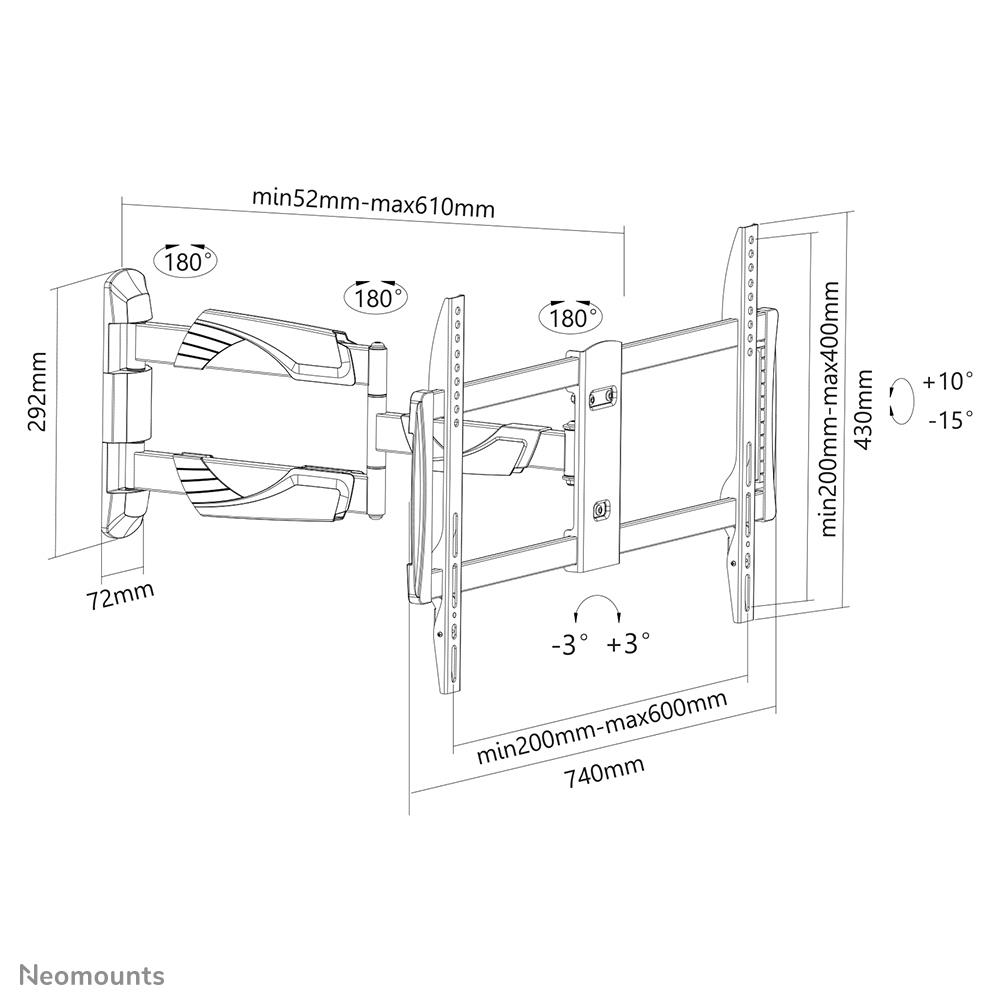

| Summary | Neomounts NM-W460BLACK TV mount wall 32-60" - full motion. Maximum weight capacity: 30 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 152.4 cm (60"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: 0 - 25°, Swivel angle range: 0 - 180°, Angle of rotation: 6°, Distance to the wall (min): 5 cm, Distance to the wall (max): 61 cm. Product colour: Black |
| Unit Box Height | 0.085 |
| Unit Box Length | 0.805 |
| Unit Box Width | 0.38 |
Mounting
| Maximum screen size | 60 " |
| Maximum VESA mount | 600 x 400 mm |
| Maximum weight capacity | 30 kg |
| Maximum weight capacity (per display) | 30 kg |
| Minimum screen size | 32 " |
| Minimum VESA mount | 200 x 200 mm |
| Mounting type | Wall |
| Number of displays supported | 1 |
| Panel mounting interface | 200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/350 x 350/400 x 200/400 x 300/400 x 400/400 x 600/440 x 400/500 x 400/600 x 200/600 x 300/600 x 400 mm |
Ergonomics
| Angle of rotation | 6 ° |
| Distance to the wall (max) | 610 mm |
| Distance to the wall (min) | 50 mm |
| Rotating | Yes |
| Swivel angle | 180 ° |
| Swivel angle range | 0 - 180 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 25 ° |
| Type | Full motion |
Design
| Housing material | Steel |
| Product colour | Black |
Technical details
| Country of origin | China |
| Package net weight | 4900 g |
Weight & dimensions
| Weight | 4850 g |
Packaging data
| Package depth | 82 mm |
| Package height | 800 mm |
| Package weight | 4900 g |
| Package width | 376 mm |
Logistics data
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 18600 g |
| Master (outer) case height | 280 mm |
| Master (outer) case length | 400 mm |
| Master (outer) case net weight | 14800 g |
| Master (outer) case width | 820 mm |
| Products per master (outer) case | 3 pc(s) |
| Products per pallet (EU) | 54 pc(s) |
