>5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
>Outputs max. 5 MP (2960 × 1668) @25/30 fps.
>Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 50 m.
>ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
>Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
>Powered by the Xinghan Large-Scale AI Models-Vision, the camera outstandingly delivers on its object detection, recognition, and scene adaptation functions.
>With deep learning algorithm, it supports: AcuPick, video metadata, IVS, face detection, and people counting, etc.
>Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card; built-in Mic
>12 VDC/PoE power supply; ePoE
>IP67 and IK10 protection.
> Field of View: 108.4°
General
| Unit Calculated Weight | 0.723 kg |
| Unit Calculated Volume | 0.002835 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| CnCode | 85258900 |
| Unit Box Height | 0.135 |
| Unit Box Length | 0.15 |
| Unit Box Width | 0.14 |

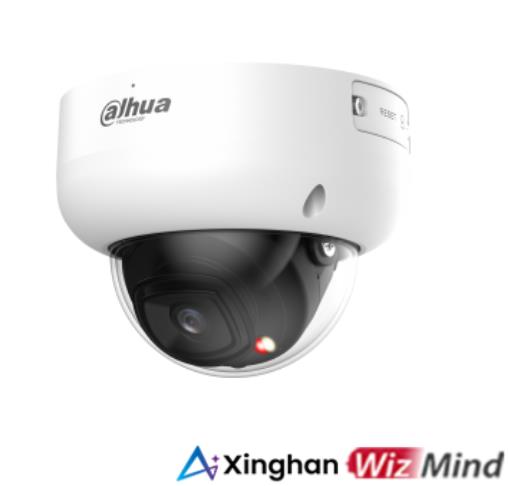

| Model | IPC-HDBW5559R-ASE-IL-0280B |
Design
| Form factor | Dome |
| Product colour | White |
Camera
| Adjustment shutter speed | Auto/Manual |
| Camera shutter speed | 1/3 s–1/100,000 s s |
Image sensor
| Number of effective pixels (H x V) | 2960 (H) × 1668 (V) pixels |
| Optical sensor size | 1/2.7" " |
| Sensor type | CMOS |
Lens system
| Fixed focal length | 2.8 mm |
| Focal length range | 2.8 mm; 3.6 mm; 6 mm mm |
Night vision
| LED type | IR/White |
Video
| Total megapixels | 5 MP |
Audio
| Built-in microphone | Yes |
Storage
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 1000 GB |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Alarm input channels | 1 |
| Alarm output channels | 1 |
Operational conditions
| Operating temperature (T-T) | –40 °C to +60 °C °C |
Weight & dimensions
| Diameter | 122 mm |
| Weight | 713 g |
| Width | 94 mm |
Technical details
| Audio input | 1 |
| Lens mount interface | M12 |
| Power source | 12 VDC (±30%); PoE+ (802.3at); ePoE |
Other features
| Audio output | 1 |
