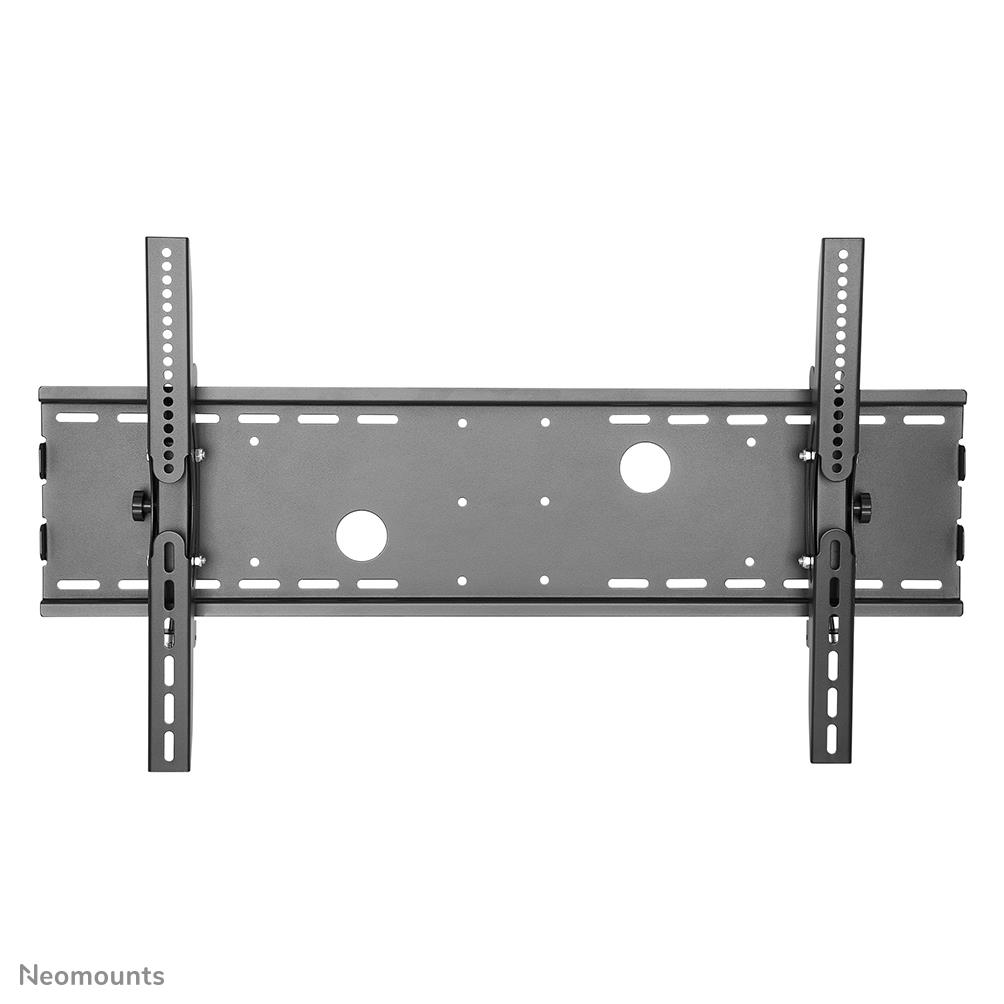

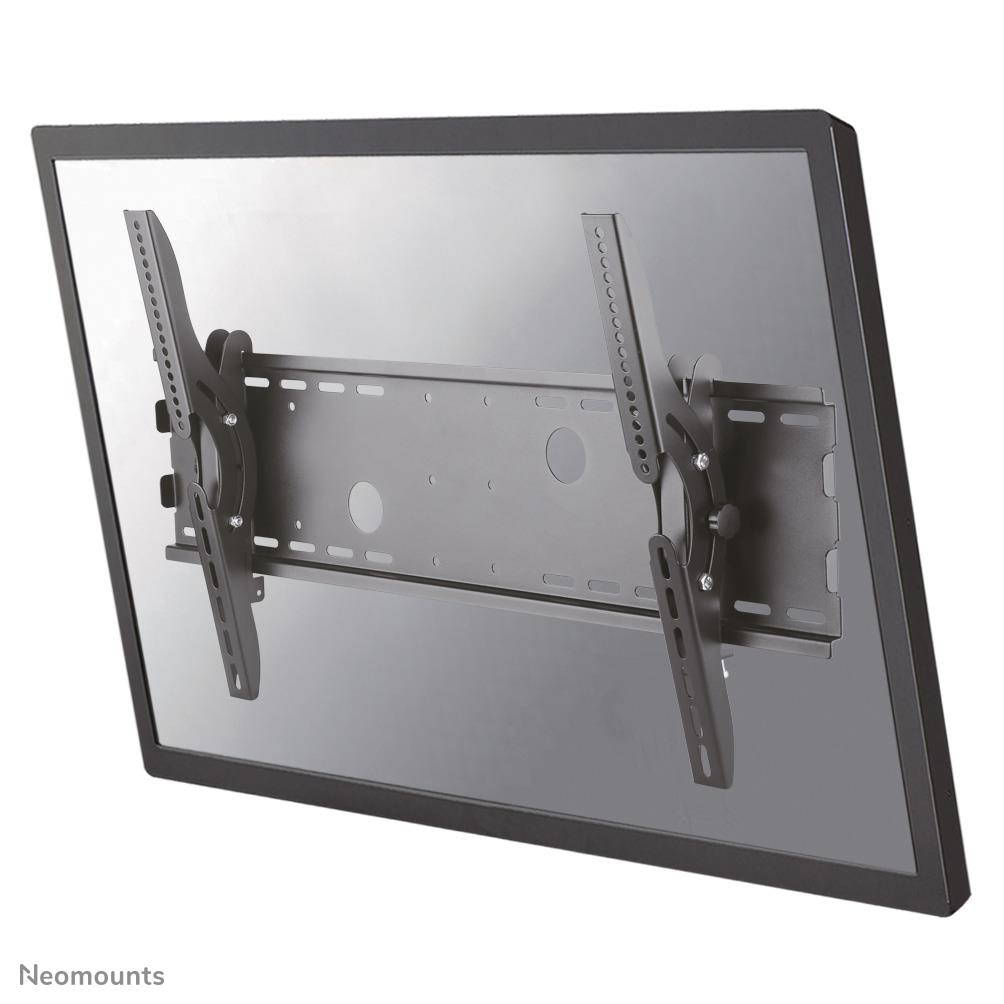

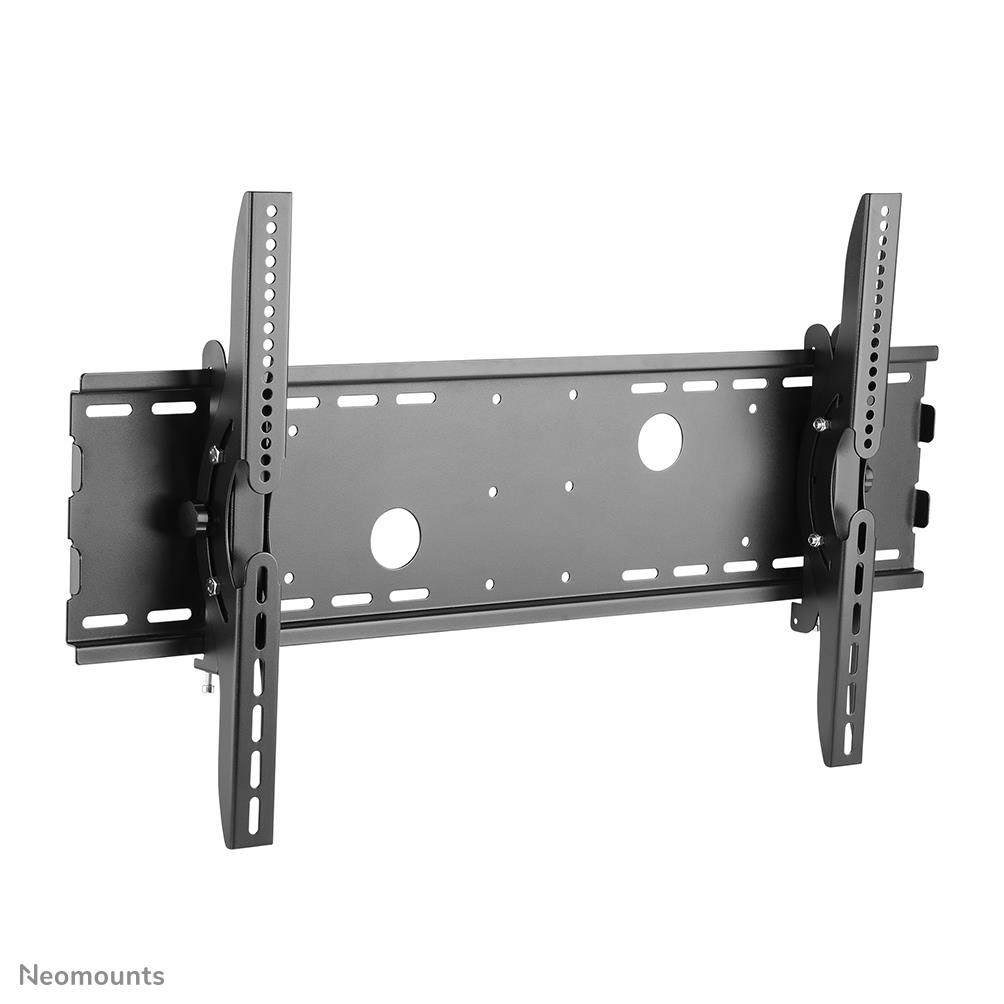

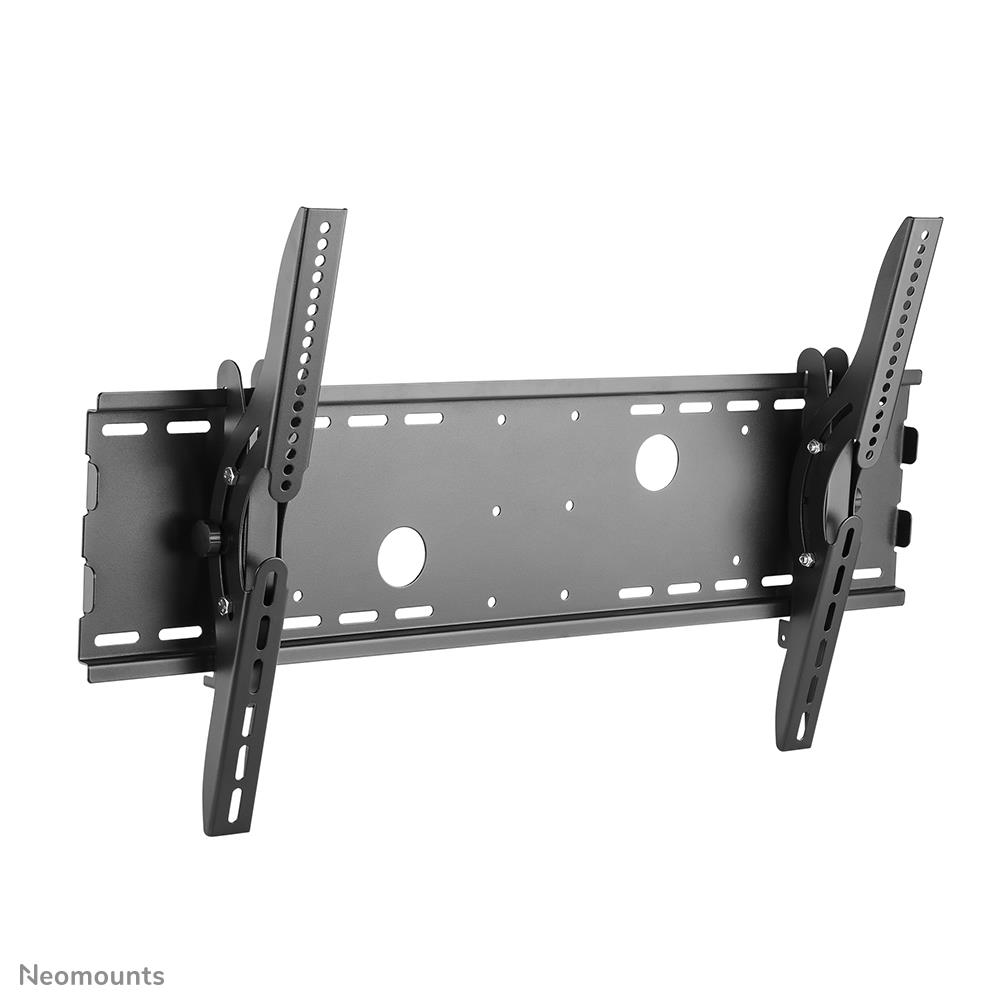

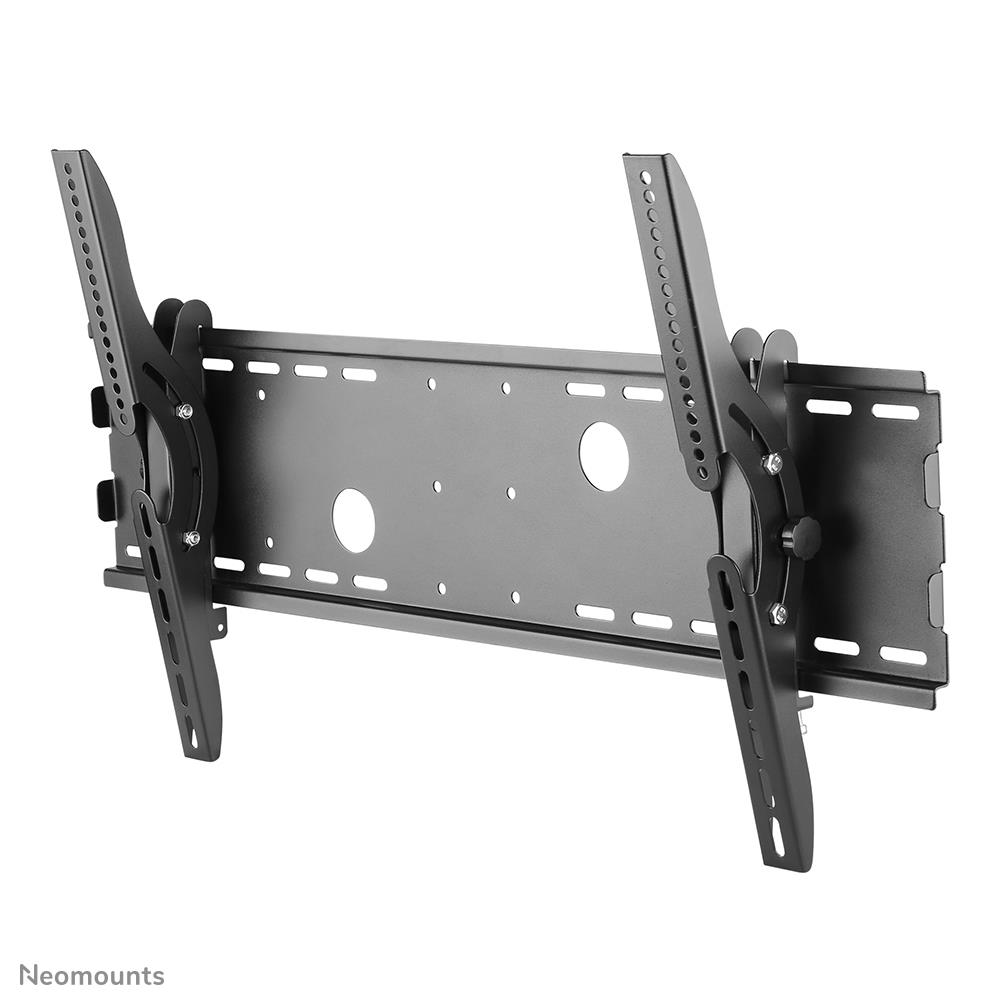

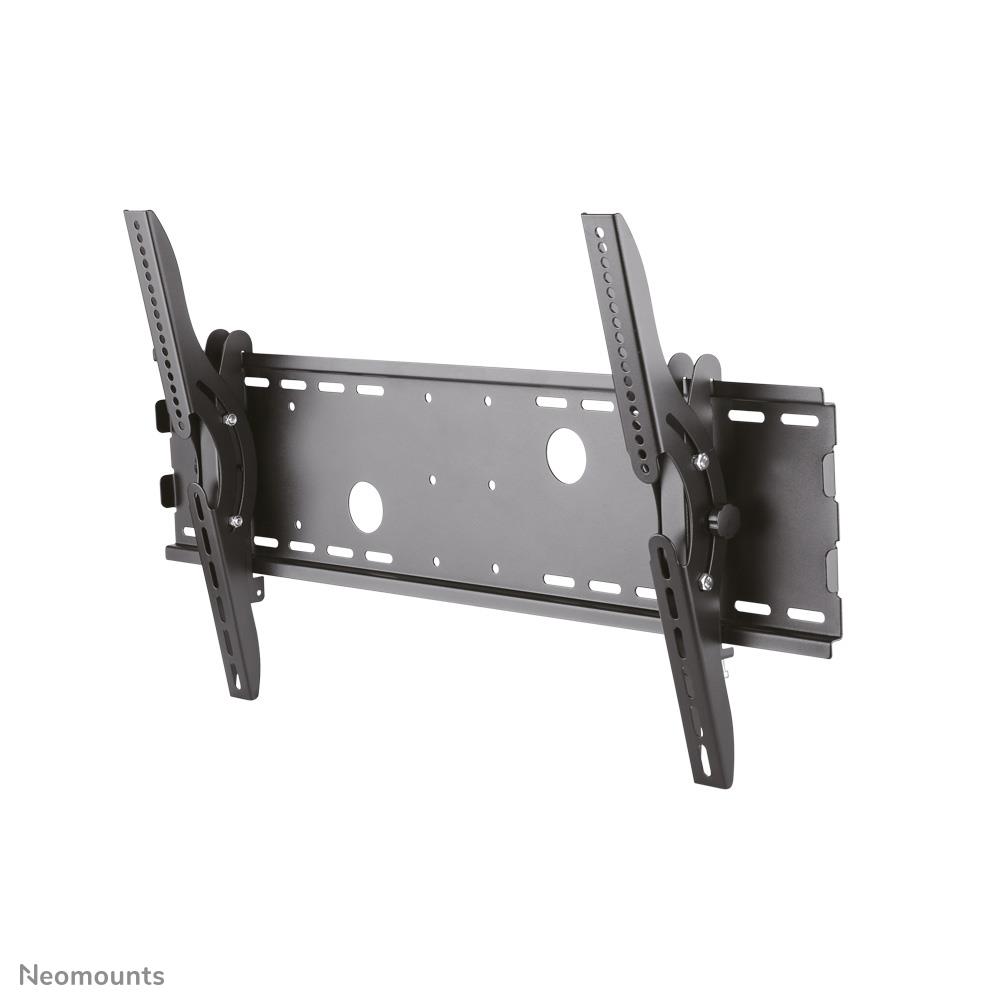

The Neomounts wall mount, model PLASMA-W200BLACK is a tiltable wall mount for flat screens up to 85" (216 cm). This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Depth of this mount is 8,3 centimetres.

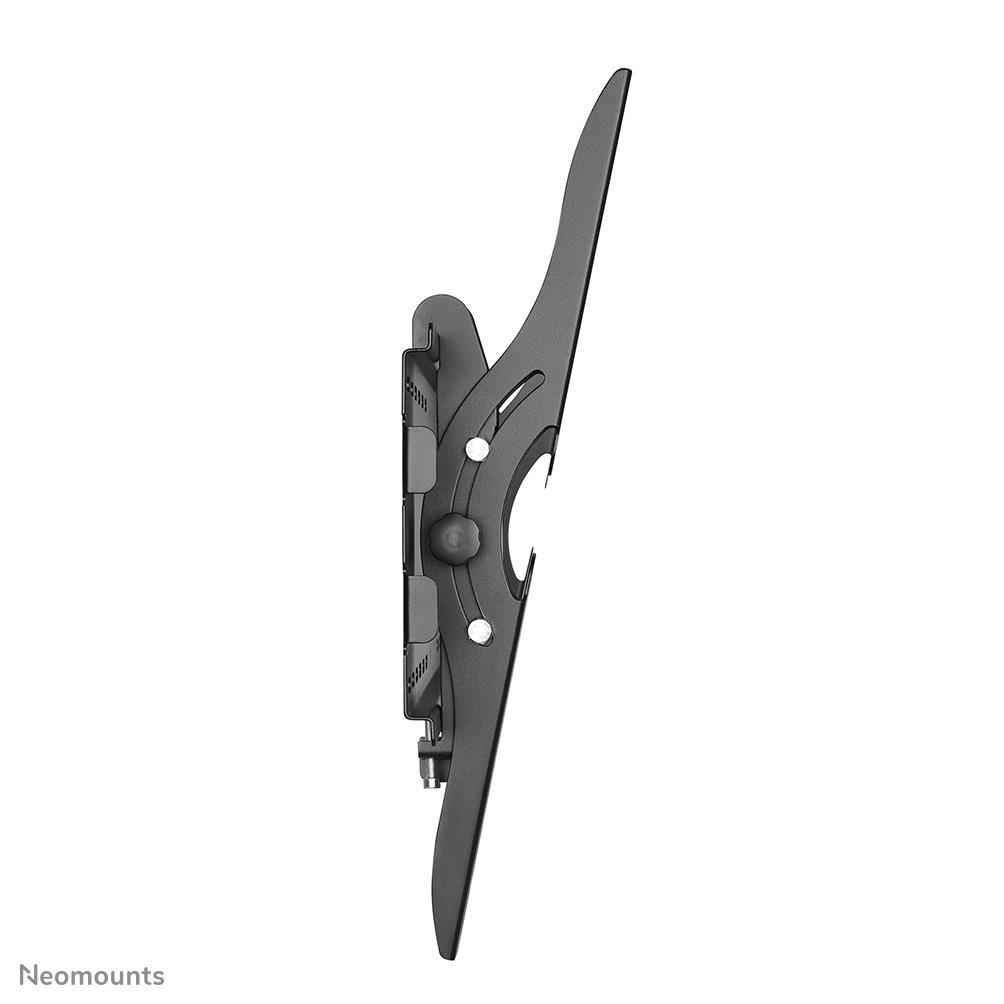

Neomounts' tilt (30°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. Depth of this mount is 7 centimetres.
Neomounts PLASMA-W200BLACK is suitable for screens up to 85" (216 cm). The weight capacity of this product is 100 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 200x200 to 865x480mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
Create a clean design ambiance for your flat screen TV in the living room, bedroom or home cinema.
All installation material is included with the product.
General
| Unit Calculated Weight | 6.6 kg |
| Unit Calculated Volume | 0.01897 cubm |
| Units per Shipping Box | 1 |
| Summary | Neomounts PLASMA-W200BLACK TV mount wall 37-85" - tiltable. Maximum weight capacity: 100 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 2.16 m (85"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 865 x 480 mm. Tilt angle range: 0 - 30°, Distance to the wall (max): 8.3 cm. Product colour: Black |
| Unit Box Height | 0.24 |
| Unit Box Length | 0.93 |
| Unit Box Width | 0.085 |
Mounting
| Maximum screen size | 85 " |
| Maximum VESA mount | 865 x 480 mm |
| Maximum weight capacity | 100 kg |
| Maximum weight capacity (per display) | 100 kg |
| Minimum screen size | 37 " |
| Minimum VESA mount | 200 x 200 mm |
| Mounting type | Wall |
| Number of displays supported | 1 |
| Panel mounting interface | 200 x 200/200 x 300/200 x 400/300 x 200/300 x 300/350 x 350/400 x 200/400 x 300/400 x 400/400 x 600/440 x 400/500 x 400/600 x 200/600 x 300/600 x 400/800 x 200/800 x 400 mm |
Ergonomics
| Distance to the wall (max) | 83 mm |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 30 ° |
Design
| Housing material | Steel |
| Product colour | Black |
Technical details
| Country of origin | China |
| Lockable | Padlock not included |
| Package net weight | 6250 g |

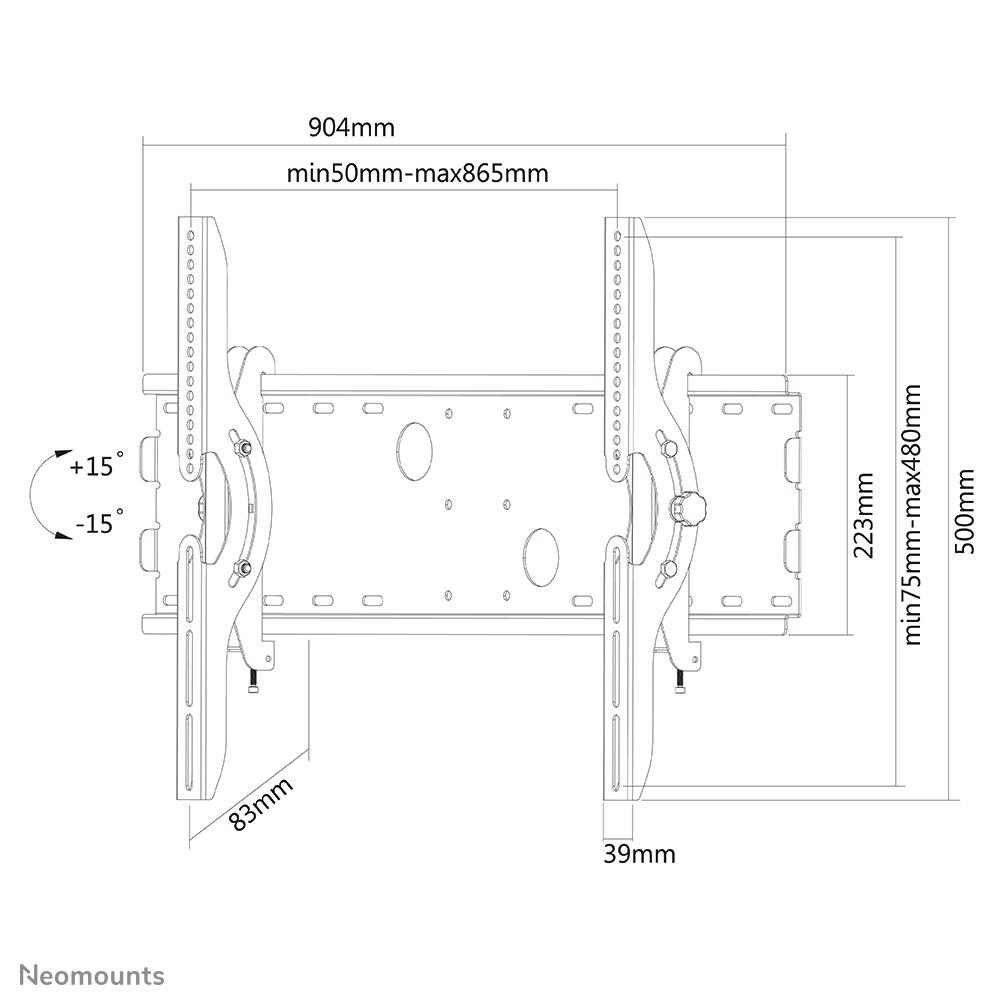

Weight & dimensions
| Depth | 83 mm |
| Height | 500 mm |
| Weight | 5390 g |
| Width | 904 mm |
Packaging data
| Package depth | 85 mm |
| Package height | 930 mm |
| Package weight | 6300 g |
| Package width | 235 mm |
Logistics data
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 13500 g |
| Master (outer) case height | 250 mm |
| Master (outer) case length | 185 mm |
| Master (outer) case net weight | 12500 g |
| Master (outer) case width | 960 mm |
| Products per master (outer) case | 2 pc(s) |
| Products per pallet (EU) | 48 pc(s) |
