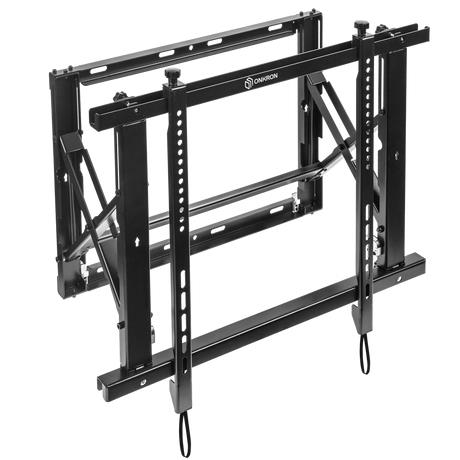

TV/VIDEO ACC WALL MOUNT/PRO7M-B ONKRON
General
| Unit Calculated Weight | 9 kg |
| Unit Calculated Volume | 0.03097 cubm |
| Units per Shipping Box | 2 |
| Units per Pallet | 0 |
| Summary | ONKRON PRO7M-B. Maximum weight capacity: 45 kg, Minimum screen size: 101.6 cm (40"), Maximum screen size: 177.8 cm (70"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 600 x 400 mm. Distance to the wall (min): 8 cm, Distance to the wall (max): 26.8 cm. Product colour: Black |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.73 |
| Unit Box Width | 0.51 |
| Model | PRO7M-B |
Mounting
| Maximum screen size | 70 " |
| Maximum VESA mount | 600 x 400 mm |
| Maximum weight capacity | 45 kg |
| Maximum weight capacity (per display) | 45 kg |
| Minimum screen size | 40 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting type | Wall |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/200 x 200/200 x 300/300 x 200/300 x 300/300 x 400/400 x 200/400 x 300/400 x 400/600 x 400/75 x 75 mm |
Ergonomics

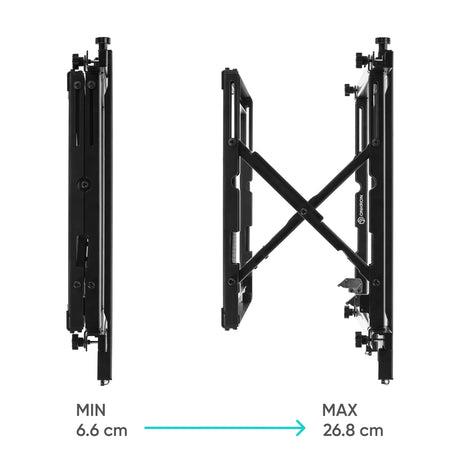

| Distance to the wall (max) | 268 mm |
| Distance to the wall (min) | 80 mm |
Design
| Housing material | Steel |
| Product colour | Black |
Packaging data
| Package depth | 510 mm |
| Package height | 75 mm |
| Package weight | 8500 g |
| Package width | 725 mm |
