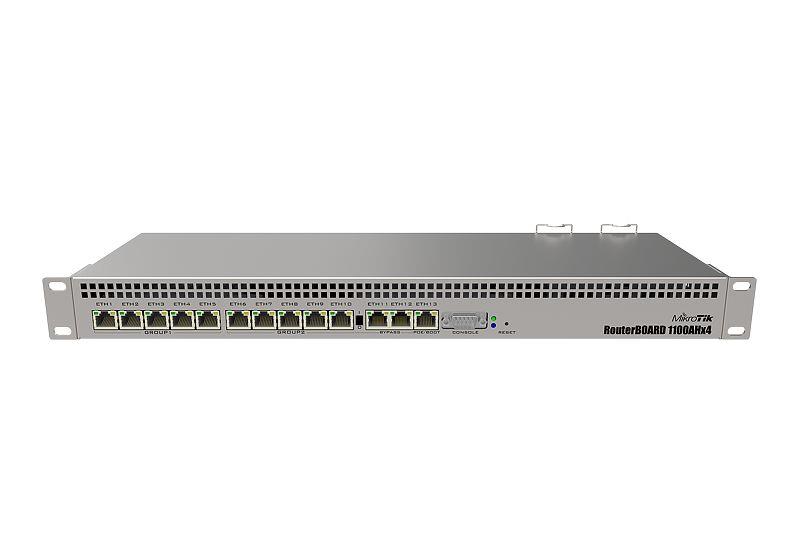

Introducing RB1100AHx4, 13x Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128).

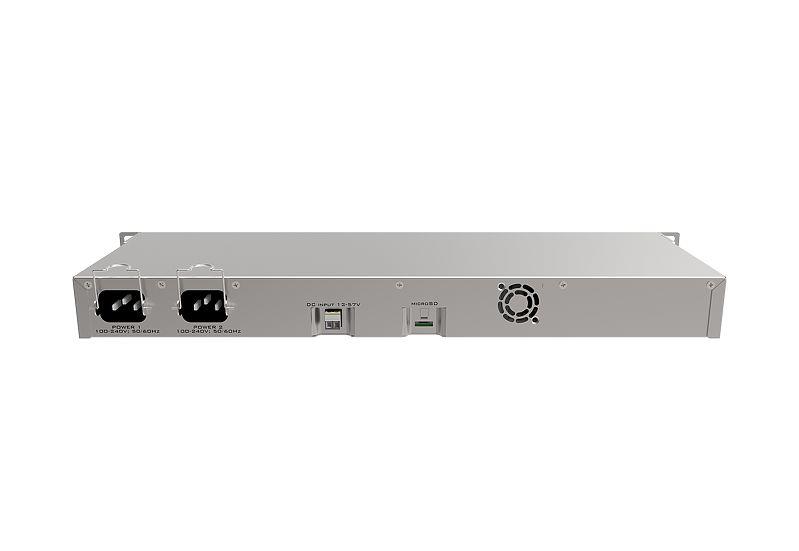

Unit comes with 1U rackmount case, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support).
General
| Unit Calculated Weight | 1.8 kg |
| Unit Calculated Volume | 0.006486 cubm |
| Units per Shipping Box | 1 |
| Summary | Mikrotik RB1100AHx4. Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X), Ethernet LAN data rates: 10,100,1000 Mbit/s. Cables included: AC. Processor model: Annapurna Labs Alpine AL21400, Processor frequency: 1400 MHz, Storage media: Flash. Product colour: Stainless steel, Rack capacity: 1U, LED indicators: Activity, Fault. Power consumption (typical): 20 W, Power source type: AC, DC, PoE, AC input voltage: 100 - 240 V |
| Unit Box Height | 0.06 |
| Unit Box Length | 0.47 |
| Unit Box Width | 0.23 |
| Product model code | RB1100AHx4 |
WAN connection
| 3G/4G USB modem compatibility | No |
| DSL WAN | No |
| Ethernet WAN | Yes |
| SIM card slot | No |
Network
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Throughput | 7.5 Gbit/s |
Management features
| Firmware upgradeable | Yes |
| Web-based management | Yes |
Ports & interfaces
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 13 |
| RS-232 ports | 1 |
Security
| IP address filtering | Yes |
Packaging content
| Cables included | AC |
Features
| Built-in processor | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Flash memory | 128 MB |
| Internal memory | 1000 MB |
| Operating system installed | RouterOS |
| Processor cores | 4 |
| Processor frequency | 1400 MHz |
| Processor model | Annapurna Labs Alpine AL21400 |
| Storage media | Flash |
| Temperature monitoring | Yes |
| Voltage monitoring | Yes |
Design
| LED indicators | Activity/Fault |
| Product colour | Stainless steel |
| Rack capacity | 1U |
| Rack mounting | Yes |
Antenna
| Antenna type | Not supported |
Power
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 20 W |
| Power over Ethernet (PoE) | Yes |
| Power source type | AC,DC,PoE |
Operational conditions
| Operating temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Depth | 148 mm |
| Height | 47 mm |
| Width | 444 mm |
Logistics data
| Harmonized System (HS) code | 85176990 |
