Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more!

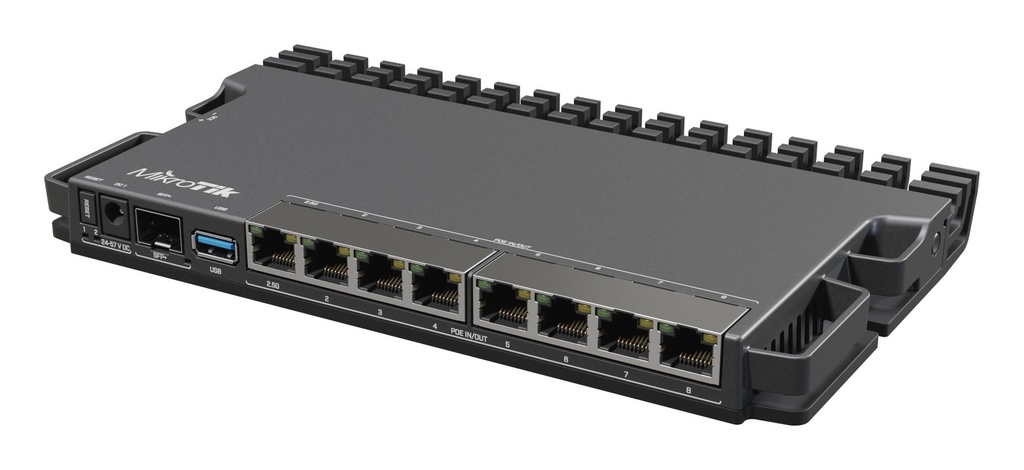

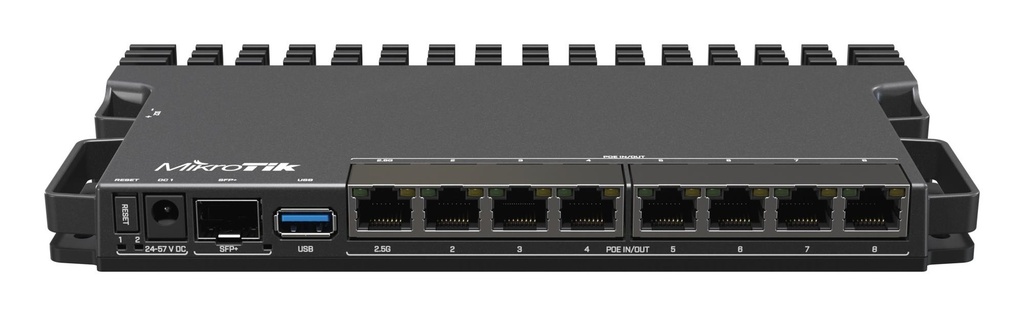

The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink!
RB5009UG+S+IN can be powered in 3 different ways:
a) PoE-in from Ethernet port #1
b) DC Jack

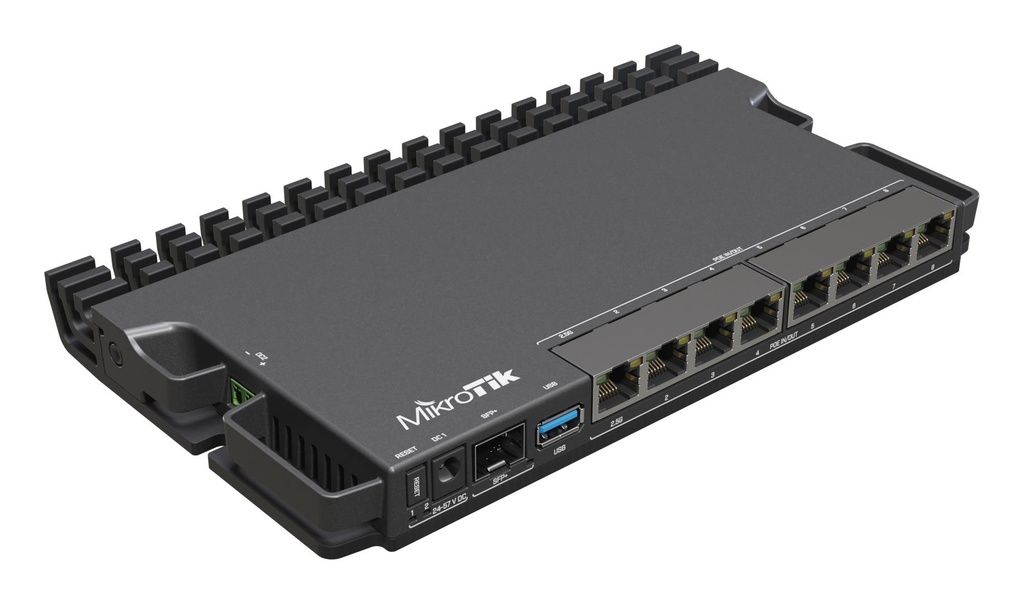

c) 2-pin terminal on the side
Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.
With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity.
General
| Unit Calculated Weight | 0.902 kg |
| Unit Calculated Volume | 0.00256 cubm |
| Units per Shipping Box | 20 |
| Units per Pallet | 0 |
| Summary | Mikrotik RB5009UG+S+IN. Networking standards: IEEE 802.3af, IEEE 802.3at, Ethernet interface type: 2.5 Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. USB version: 3.2 Gen 1 (3.1 Gen 1). Compliance certificates: RoHS. Mean time between failures (MTBF): 200000 h, Certification: CE, EAC, ROHS. Product colour: Black |
| CnCode | 85176200 |
| Unit Box Height | 0.05 |
| Unit Box Length | 0.315 |
| Unit Box Width | 0.135 |
| Product model code | RB5009UG+S+IN |
WAN connection
| Ethernet WAN | Yes |
Network
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
Mobile network
| Mobile network generation | Not supported |
Ports & interfaces
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Gigabit Ethernet (copper) ports quantity | 7 |
| Installed SFP+ modules quantity | 1 |
| Power over Ethernet (PoE) ports quantity | 1 |
| USB ports quantity | 1 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
Certificates
| Compliance certificates | RoHS |
Features
| Certification | CE, EAC, ROHS |
| Mean time between failures (MTBF) | 200000 h |
Design
| Product colour | Black |
Power
| Power consumption (typical) | 20 W |
| Power over Ethernet (PoE) | Yes |
| Power source type | DC |
Operational conditions
| Storage temperature (T-T) | -40 - 60 °C |
Logistics data
| Harmonized System (HS) code | 85176990 |
