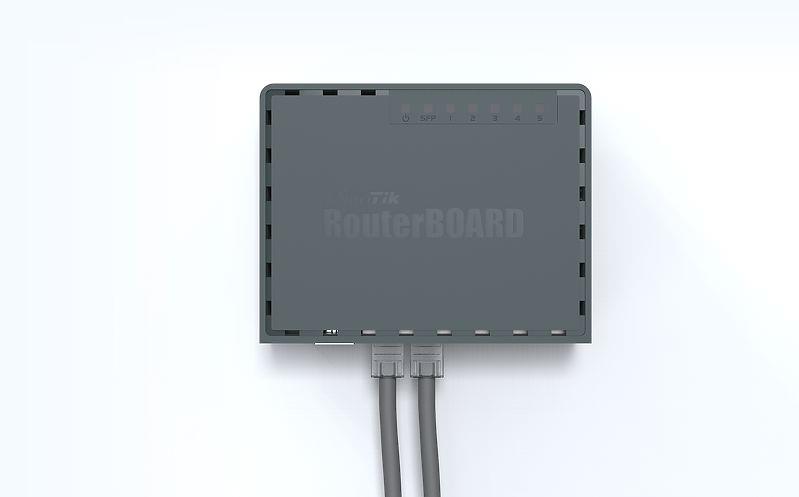

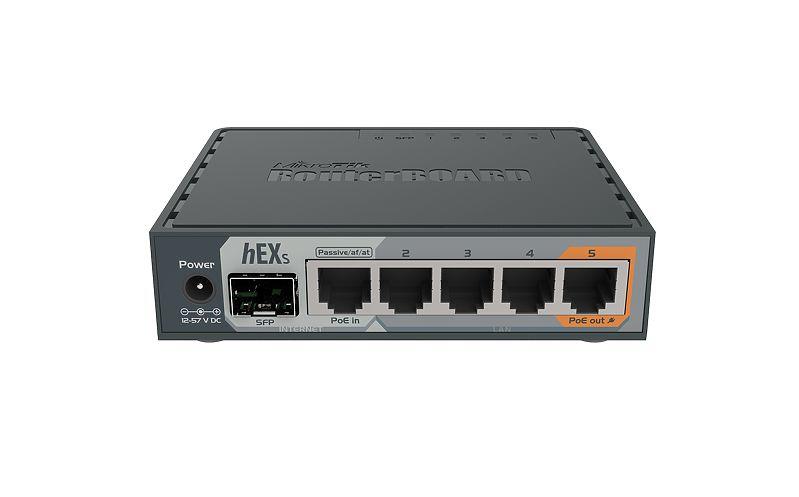

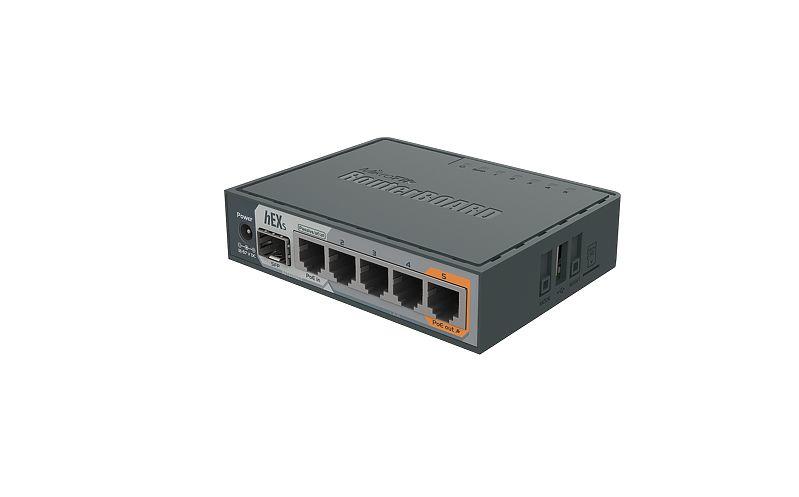

hEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port.
It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage.
IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.
General
| Unit Calculated Weight | 0.35 kg |
| Unit Calculated Volume | 0.001529 cubm |
| Units per Shipping Box | 40 |
| Summary | Mikrotik hEX S. Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X), Ethernet LAN data rates: 10,100,1000 Mbit/s. Internal memory: 256 MB. Product colour: Black. Power consumption (typical): 11 W, Power source type: DC. Width: 113 mm, Depth: 89 mm, Height: 28 mm |
| CnCode | 85176200 |
| Unit Box Height | 0.12 |
| Unit Box Length | 0.18 |
| Unit Box Width | 0.05 |
WAN connection
| Ethernet WAN | Yes |
Network
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
Ports & interfaces
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 5 |
| Installed SFP modules quantity | 1 |
| Power over Ethernet (PoE) ports quantity | 1 |
| USB ports quantity | 1 |
Features
| Internal memory | 256 MB |
Design
| Product colour | Black |
Antenna
| Antenna type | Not supported |
Power
| Power consumption (typical) | 11 W |
| Power source type | DC |
Weight & dimensions
| Depth | 89 mm |
| Height | 28 mm |
| Width | 113 mm |
Logistics data
| Harmonized System (HS) code | 85176990 |
