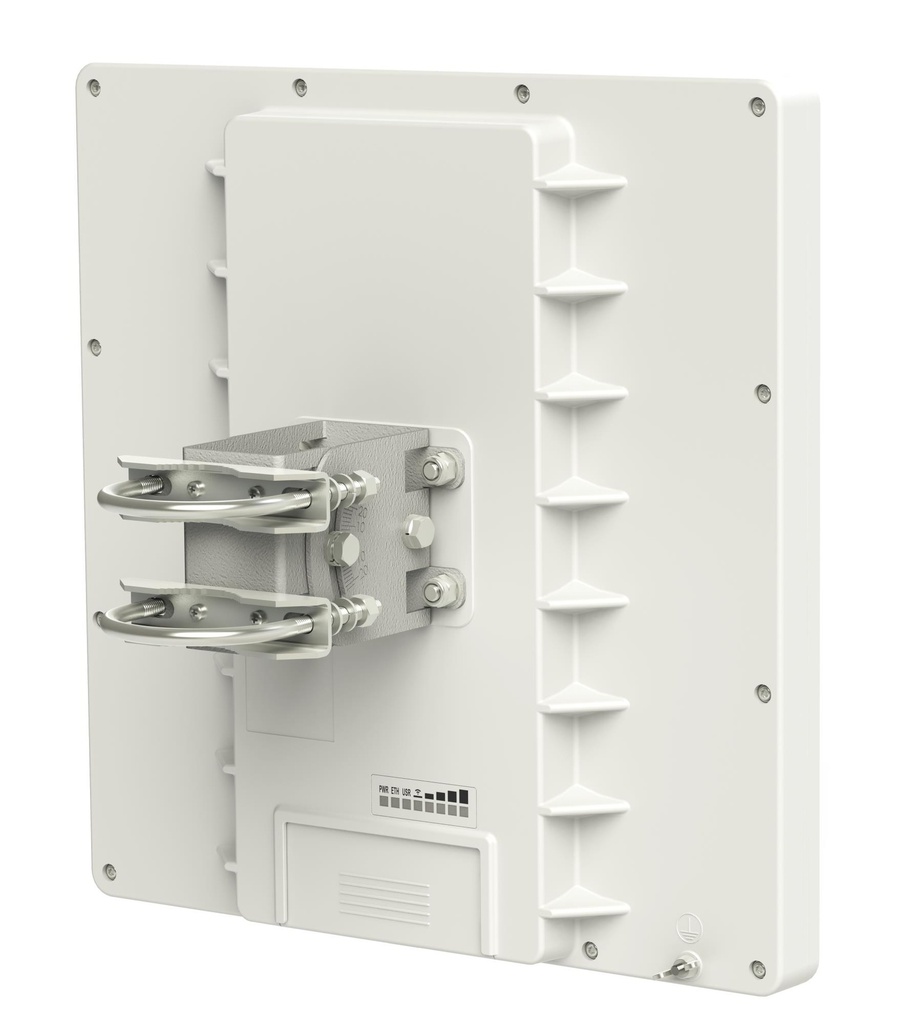

The QRT 5 is a rugged outdoor flat panel antenna, with a built in RouterBOARD. The device has a 24dBi antenna and a high power 5GHz wireless transmitter.
Inside is the high power RB911 dual chain wireless device (see separate brochure), with high performance, high output power wireless transmitter. It has a Gigabit Ethernet port, to fully utilise the benefit of 802.11n high speed wireless.
Easy to use and quick to deploy, QRT is ideal for point to point links.
General
| Unit Calculated Weight | 2.5 kg |
| Unit Calculated Volume | 0.01247 cubm |
| Units per Shipping Box | 1 |
| Summary | Mikrotik QRT 5. 5 GHz, Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 11 W |
| Unit Box Height | 0.33 |
| Unit Box Length | 0.42 |
| Unit Box Width | 0.09 |
| Model name | QRT 5 // RB911G-5HPND-QRT |
Features
| 5 GHz | Yes |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Frequency band | 4.9 - 5.875 GHz |
| Networking standards | IEEE 802.11a/IEEE 802.11n |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
| WAN connection | Ethernet (RJ-45)/Wi-Fi |
Power
| Output voltage | 30 V |
| Power consumption (max) | 11 W |
| Power over Ethernet (PoE) | Yes |
Design
| LED indicators | Yes |
| Product colour | White |
Antenna
| Antenna features | Integrated antenna |
| Antenna gain level (max) | 24 dBi |
| Antennas quantity | 1 |
| Polarization | Dual polarization |
Performance
| Built-in processor | Yes |
| Compatible operating systems | RouterOS |
| Flash memory | 128 MB |
| Internal memory | 64 MB |
| Processor model | Qualcomm Atheros AR9342 |
Weight & dimensions
| Depth | 320 mm |
| Height | 50 mm |
| Width | 309 mm |
Packaging content
| Mounting kit | Yes |
Other features
| Horizontal beam width | 10.5 ° |
| Vertical beam width | 10.5 ° |
