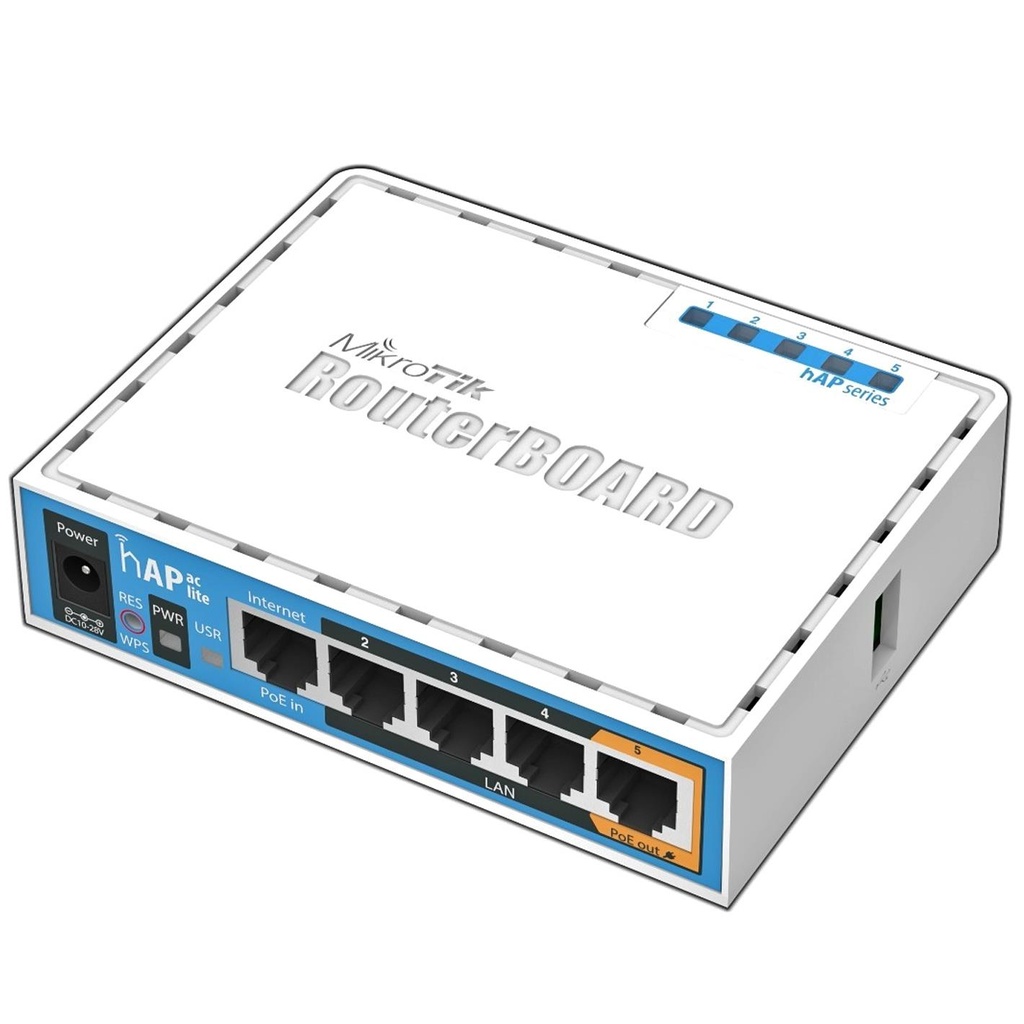

The hAP ac lite is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4GHz and 5GHz frequencies at the same time.
Unit is equipped with a 650MHz CPU, 64MB RAM, five 10/100Mbps Ethernet ports (PoE output on port #5), dual-chain 802.11b/g/n 2.4GHz wireless, single chain 802.11ac 5GHz wireless, USB port for 3G/4G modem and a RouterOS L4 license.
General
| Unit Calculated Weight | 0.5 kg |
| Unit Calculated Volume | 0.001225 cubm |
| Units per Shipping Box | 20 |
| Summary | Mikrotik HAP ac lite. 2.4 GHz, 5 GHz, Maximum data transfer rate: 733 Mbit/s, Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 8 W |
| CnCode | 85176200 |
| Unit Box Height | 0.13 |
| Unit Box Length | 0.05 |
| Unit Box Width | 0.18 |
| Model name | hAP ac lite // RB952Ui-5ac2nD |
Features
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Ethernet LAN data rates | 10/100 Mbit/s |
| Maximum data transfer rate | 733 Mbit/s |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n |
Ports & interfaces
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 5 |
| USB 2.0 ports quantity | 1 |
Power
| AC input voltage | 10 V |
| Power consumption (max) | 8 W |
| Power over Ethernet (PoE) | Yes |
Design
| Internal | No |
| Placement | Table,Wall |
| Product colour | White |
Antenna
| Antenna gain level (max) | 2 dBi |
Performance
| Flash memory | 16 MB |
| Internal memory | 64 MB |
Weight & dimensions
| Depth | 28 mm |
| Height | 89 mm |
| Width | 113 mm |
Packaging content
| AC adapter included | Yes |
Operational conditions
| Operating temperature (T-T) | -30 - 70 °C |
Logistics data
| Harmonized System (HS) code | 85176990 |
