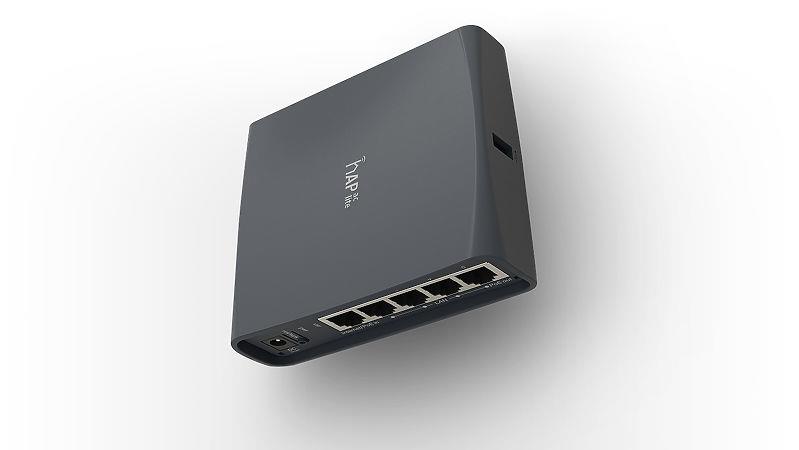

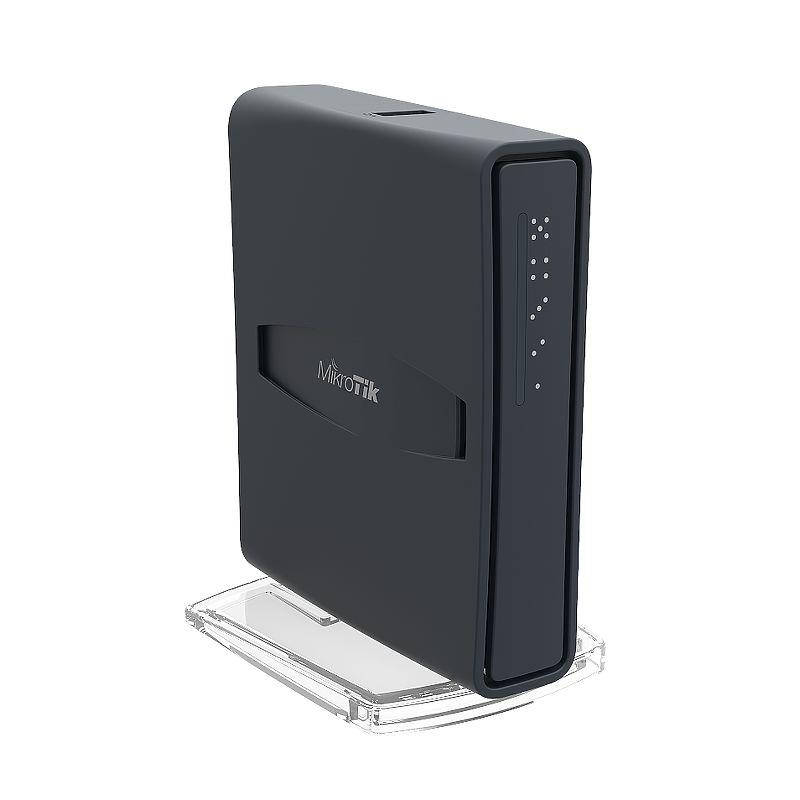

The hAP ac lite is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4GHz and 5GHz frequencies at the same time.

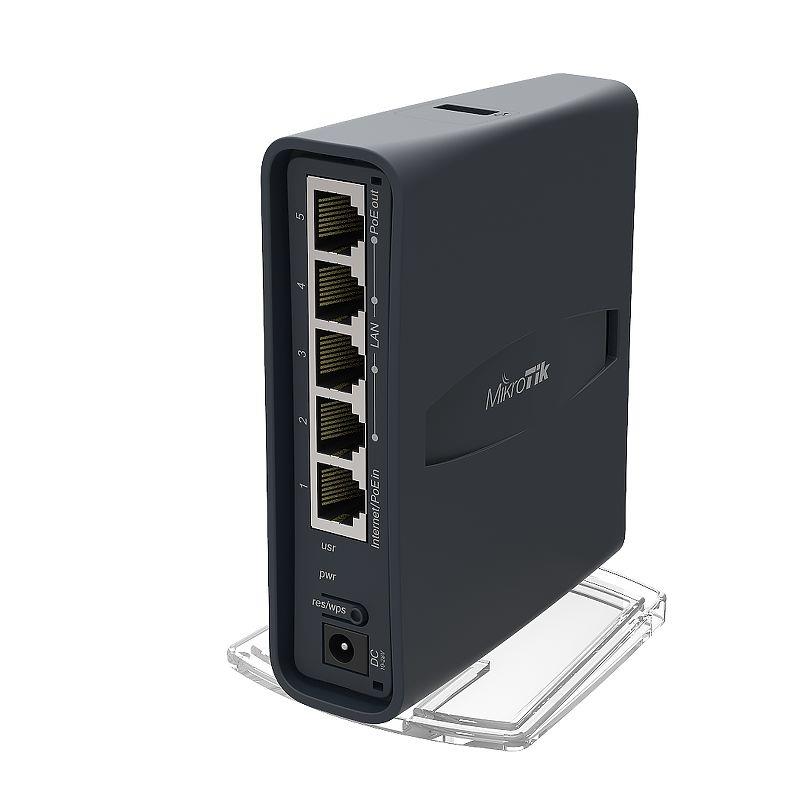

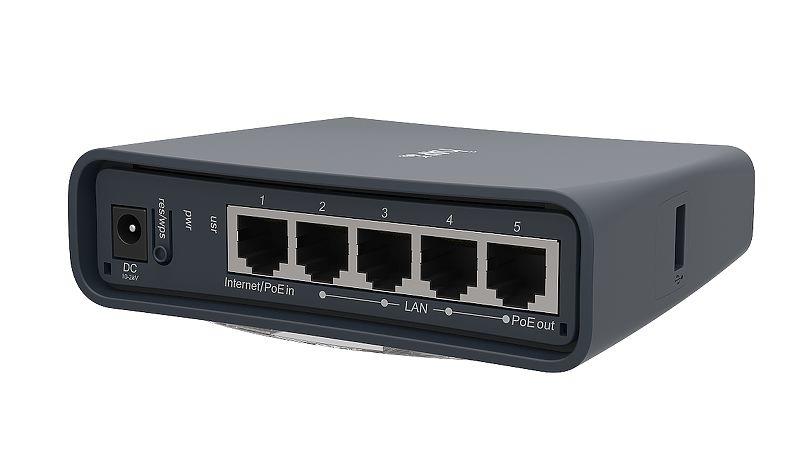

Unit is equipped with a 650MHz CPU, 64MB RAM, five 10/100Mbps Ethernet ports (PoE output on port #5), dual-chain 802.11b/g/n 2.4GHz wireless, single chain 802.11ac 5GHz wireless, USB port for 3G/4G modem and a RouterOS L4 license.

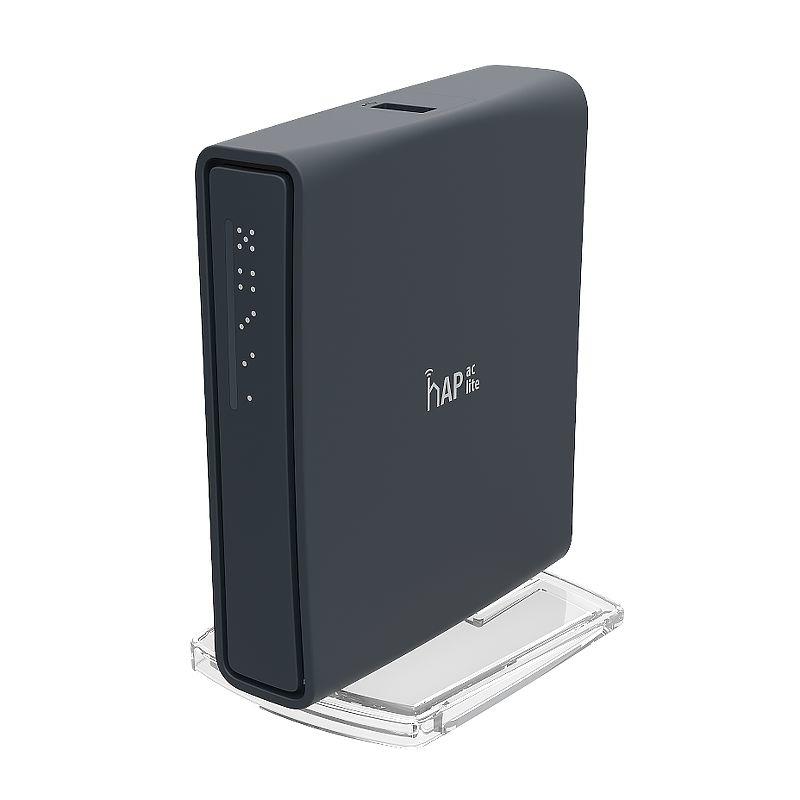

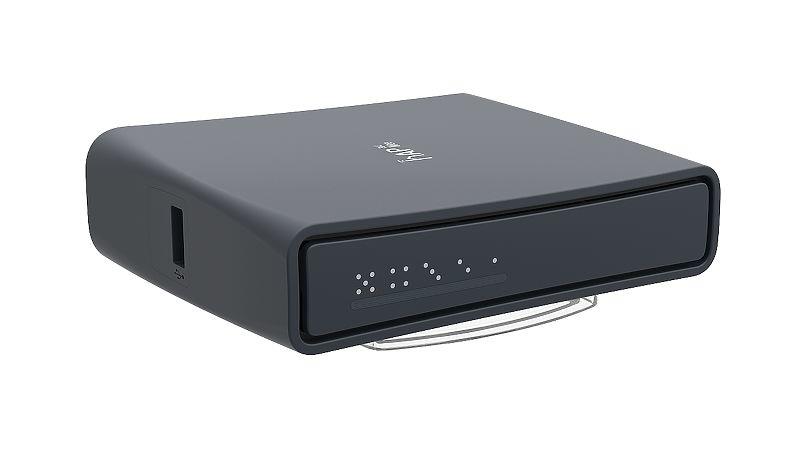

New design universal case allows unit to be positioned either horizontally (desktop) or vertically (tower case). Wall anchored mounting kit is provided.
We have two versions available - RB952Ui-5ac2nD-TC (International) and RB952Ui-5ac2nD-TC-US (USA). RB952Ui-5ac2nD-TC-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed. RB952Ui-5ac2nD-TC (International) supports 2412-2484MHz and 5150MHz - 5875MHz range.
General
| Unit Calculated Weight | 0.44 kg |
| Unit Calculated Volume | 0.001519 cubm |
| Units per Shipping Box | 20 |
| Units per Pallet | 0 |
| Summary | Mikrotik hAP ac lite tower. 2.4 GHz, 5 GHz, Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE). Product colour: Black. Power consumption (max): 7 W |
| Unit Box Height | 0.045 |
| Unit Box Length | 0.19 |
| Unit Box Width | 0.125 |
| Model name | hAP ac lite TC // RB952Ui-5ac2nD-TC |
Features
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Ethernet LAN data rates | 10/100 Mbit/s |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 5 |
| USB 2.0 ports quantity | 1 |
| USB connector type | USB Type-A |
Power
| AC input voltage | 8 - 30 V |
| Power consumption (max) | 7 W |
| Power over Ethernet (PoE) | Yes |
Design
| Internal | No |
| LED indicators | Yes |
| Placement | Table |
| Product colour | Black |
Antenna
| Antenna gain level (max) | 15 dBi |
Performance
| Flash memory | 16 MB |
Weight & dimensions
| Depth | 98 mm |
| Height | 34 mm |
| Width | 119 mm |
Logistics data
| Harmonized System (HS) code | 85176990 |
