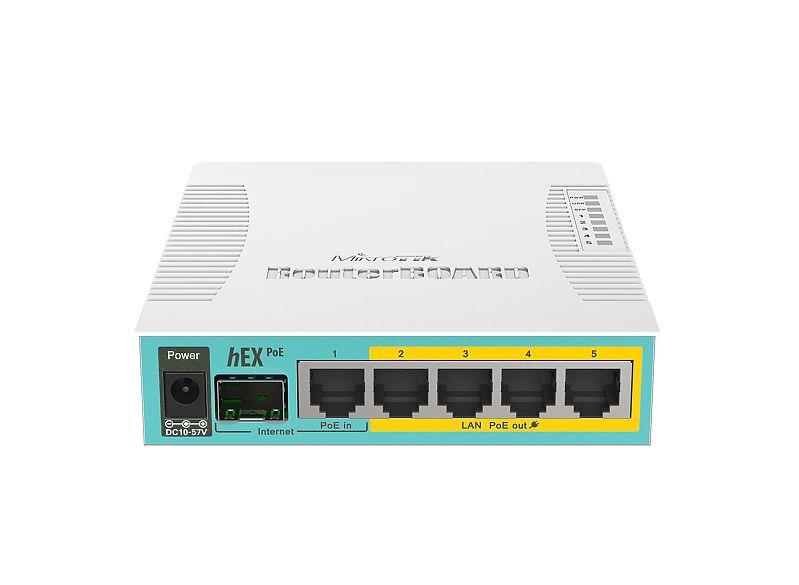

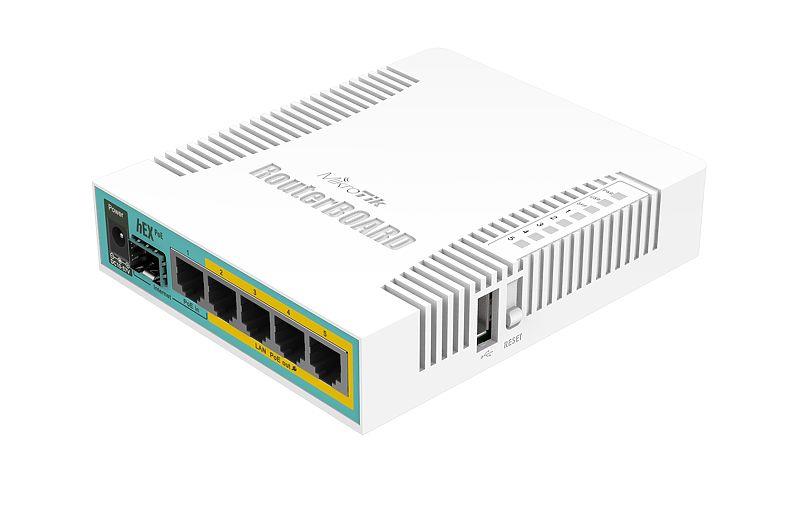

hEX PoE is a five port gigabit ethernet router for locations where wireless connectivity is not required. The device has a USB 2.0 port and a SFP port for adding optical fiber connectivity. The ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit.
It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports. Less power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.
General
| Unit Calculated Weight | 0.8 kg |
| Unit Calculated Volume | 0.002936 cubm |
| Units per Shipping Box | 20 |
| Units per Pallet | 60 |
| Summary | Mikrotik hEX PoE. Networking standards: IEEE 802.3at, Ethernet LAN data rates: 10,100,1000 Mbit/s. Processor frequency: 800 MHz, Flash memory: 16 MB, Internal memory: 128 MB. Product colour: White. Power supply: 9 W, Power source type: DC, Output current: 1 A. Width: 114 mm, Depth: 137 mm, Height: 29 mm |
| Unit Box Height | 0.22 |
| Unit Box Length | 0.145 |
| Unit Box Width | 0.075 |
Network
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Networking standards | IEEE 802.3at |
Management features
| Web-based management | Yes |
Ports & interfaces
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 5 |
| USB ports quantity | 1 |
| USB version | 2.0 |
Protocols
| DHCP client | Yes |
| DHCP server | Yes |
Security
| Firewall | Yes |
Packaging content

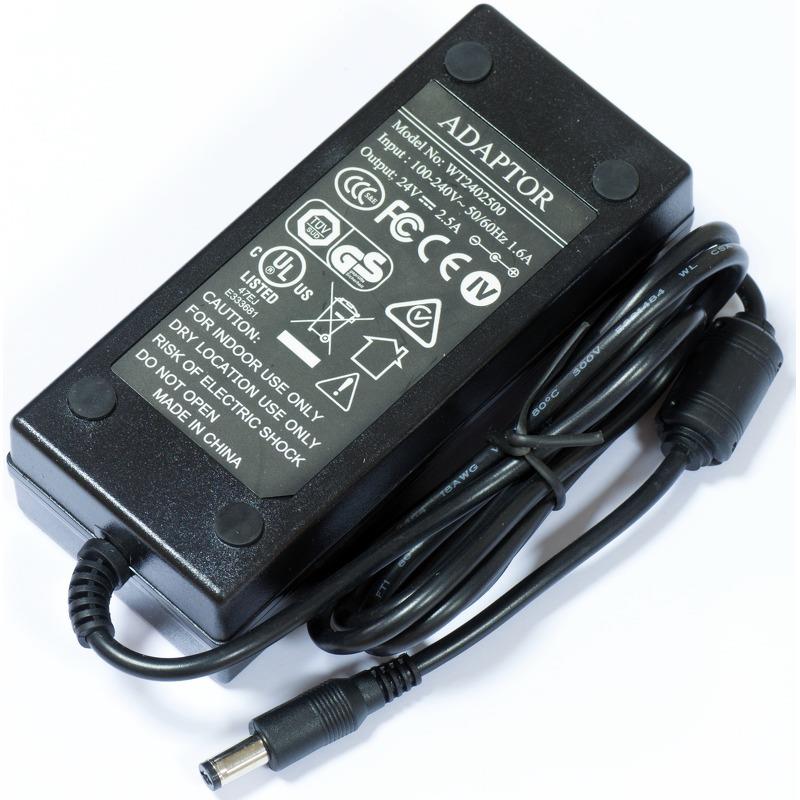

| AC adapter included | Yes |
Features
| Built-in processor | Yes |
| Flash memory | 16 MB |
| Internal memory | 128 MB |
| Processor cores | 1 |
| Processor frequency | 800 MHz |
Design
| Product colour | White |
Power
| Output current | 1 A |
| Power source type | DC |
| Power supply | 9 W |
Weight & dimensions
| Depth | 137 mm |
| Height | 29 mm |
| Width | 114 mm |
Logistics data
| Harmonized System (HS) code | 85176990 |
