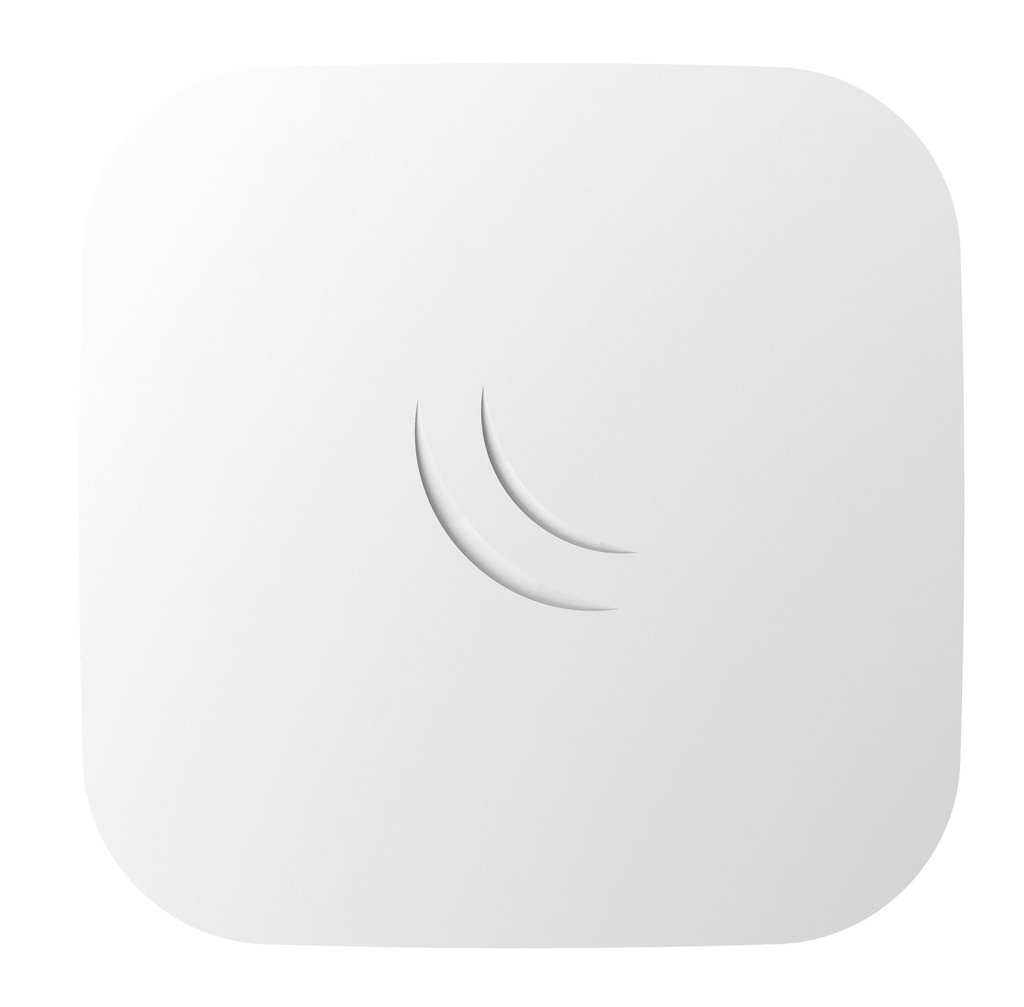

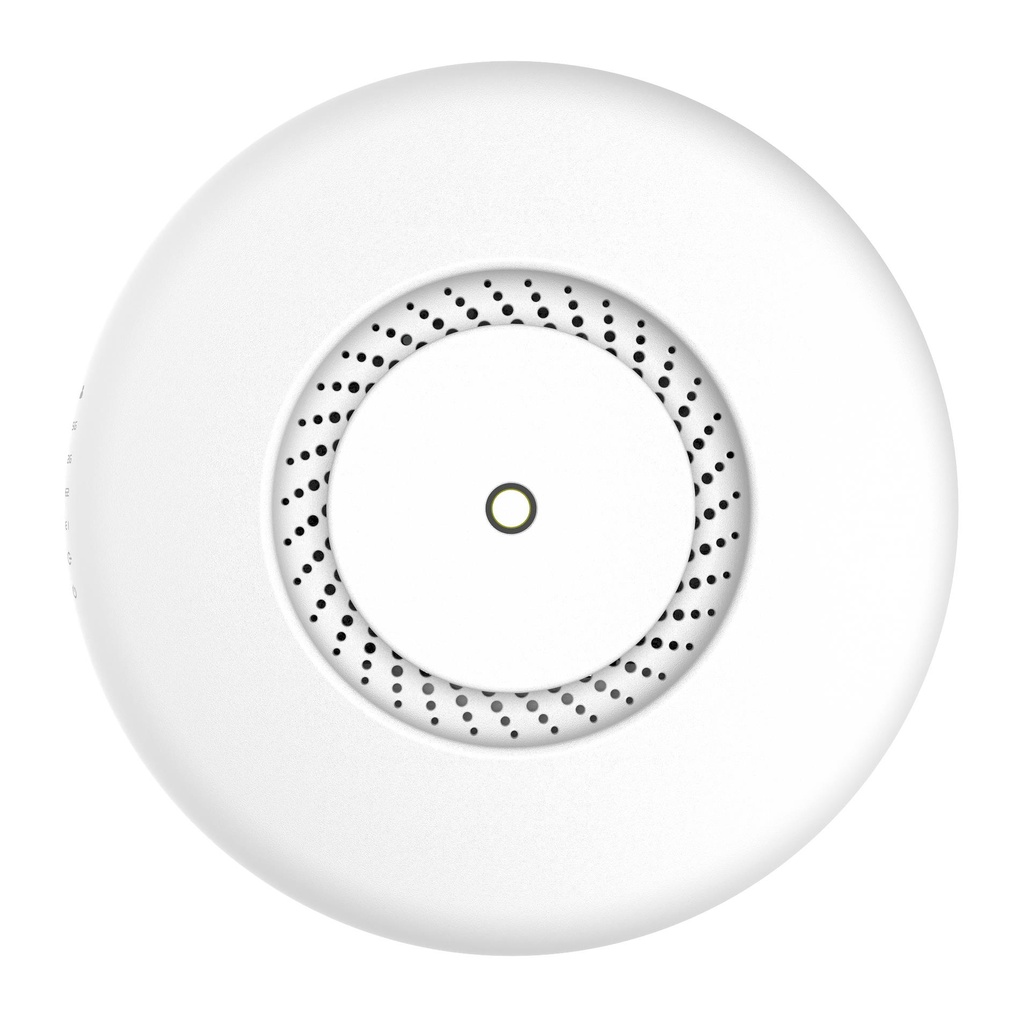

The cAP ac is a very capable and powerful wireless access point that looks beautiful on both walls and ceilings. The concurrent dual band wireless radio supports dual chain 2 GHz 802.11b/g/n and 5 GHz in a/n/ас standards, and will provide coverage in 360 degrees around it.
Even though the radio supports repeater mode, the two Ethernet ports give you the ability to extend your network with cables, even if PoE power is required, since the cAP ac supports 802.3af/at PoE input on the first port, and passive PoE output on the second port. Device supports IPsec hardware acceleration too.
The cAP ac is a feature packed device with a sleek enclosure, that can become inconspicuous with
the push of a button - the customizable mode button in the device center will turn off all lights and
sounds at it’s default configuration, but can be reconfigured to launch any RouterOS script.
General
| Unit Calculated Weight | 0.718 kg |
| Unit Calculated Volume | 0.003386 cubm |
| Units per Shipping Box | 20 |
| Units per Pallet | 0 |
| Summary | Mikrotik cAP ac. 2.4 GHz, 5 GHz, Maximum data transfer rate: 867 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 13 W |
| CnCode | 85176200 |
| Unit Box Height | 0.265 |
| Unit Box Length | 0.06 |
| Unit Box Width | 0.18 |
| Model name | cAP ac // RBcAPGi-5acD2nD |
Features
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Frequency band | 2.412 - 2.484, 5.15 - 5.875 GHz |
| Maximum data transfer rate | 867 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.3af/IEEE 802.3at |
| Receiver sensitivity | 2.4GHz: 1MBit/s: -100 @ 26dBm Tx 11MBit/s: -94 @ 26dBm Tx 6MBit/s: -96 @ 26dBm Tx 54MBit/s: -78 @ 23dBm Tx MCS0: -96 @ 26dBm Tx MCS7: -73 @ 22dBm Tx 5GHz: 6MBit/s: -96 @ 26dBm Tx 54MBit/s: -80 @ 21dBm Tx MCS0: -96 @ 26dBm Tx MCS7: -75 @ 20dBm Tx MCS9: -7 |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 2 |
Power
| DC voltage range | 17 - 57 V |
| Output voltage | 57 V |
| Power consumption (max) | 13 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE/Passive PoE |
Design
| Internal | No |
| LED indicators | Yes |

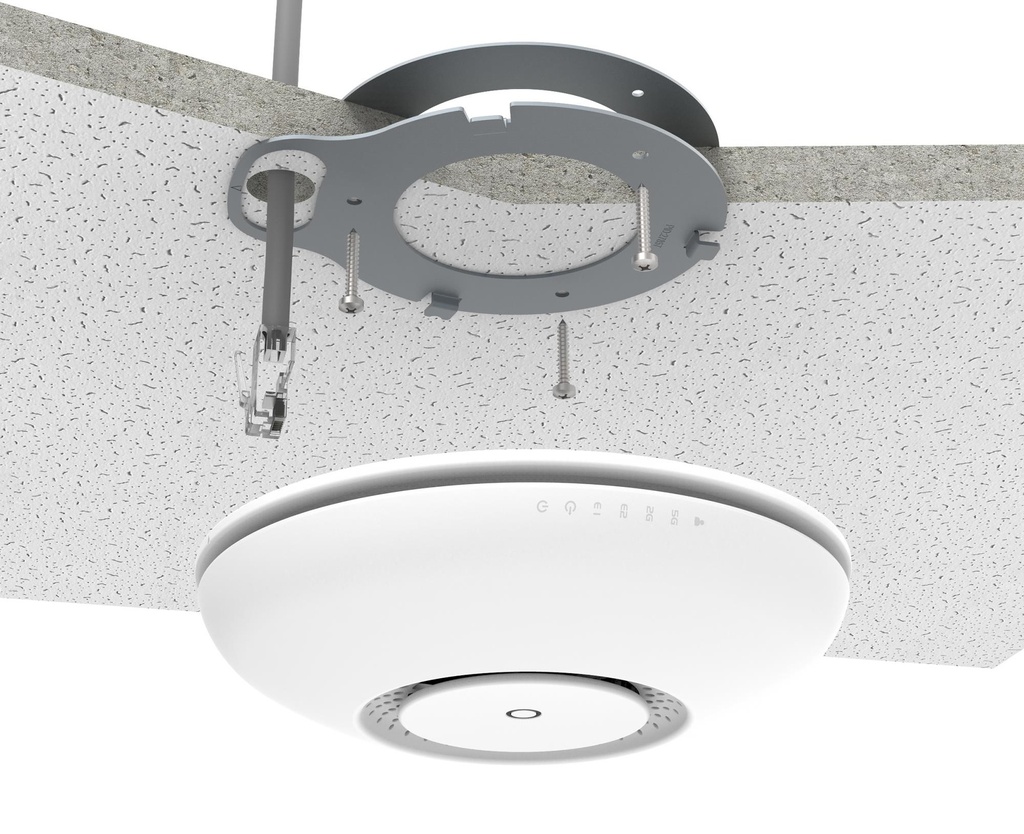

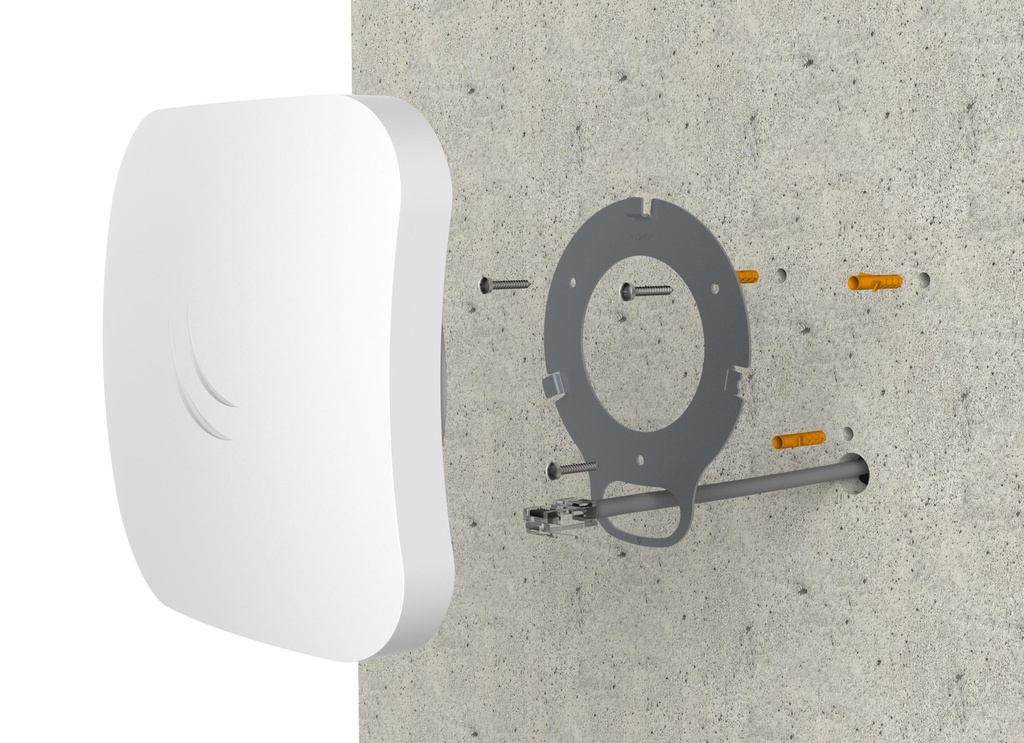

| Placement | Ceiling,Wall |
| Product colour | White |
Antenna
| Antenna features | Integrated antenna |
| Antenna gain level (max) | 2.5 dBi |
| Antenna type | Internal |
| Antennas quantity | 4 |
Performance
| Built-in processor | Yes |
| Flash memory | 16 MB |
| Internal memory | 128 MB |
| Operating system installed | RouterOS |
| Processor frequency | 716 MHz |
| Processor model | IPQ4018 |
Certificates
| Certification | CE, FCC, IC, EAC, ROHS |
Weight & dimensions
| Depth | 30 mm |
| Height | 136 mm |
| Width | 136 mm |
Packaging content
| AC adapter included | Yes |
| Mounting kit | Yes |
| PoE adapter included | Yes |
Operational conditions
| Operating temperature (T-T) | -40 - 50 °C |
Logistics data
| Harmonized System (HS) code | 85176990 |
