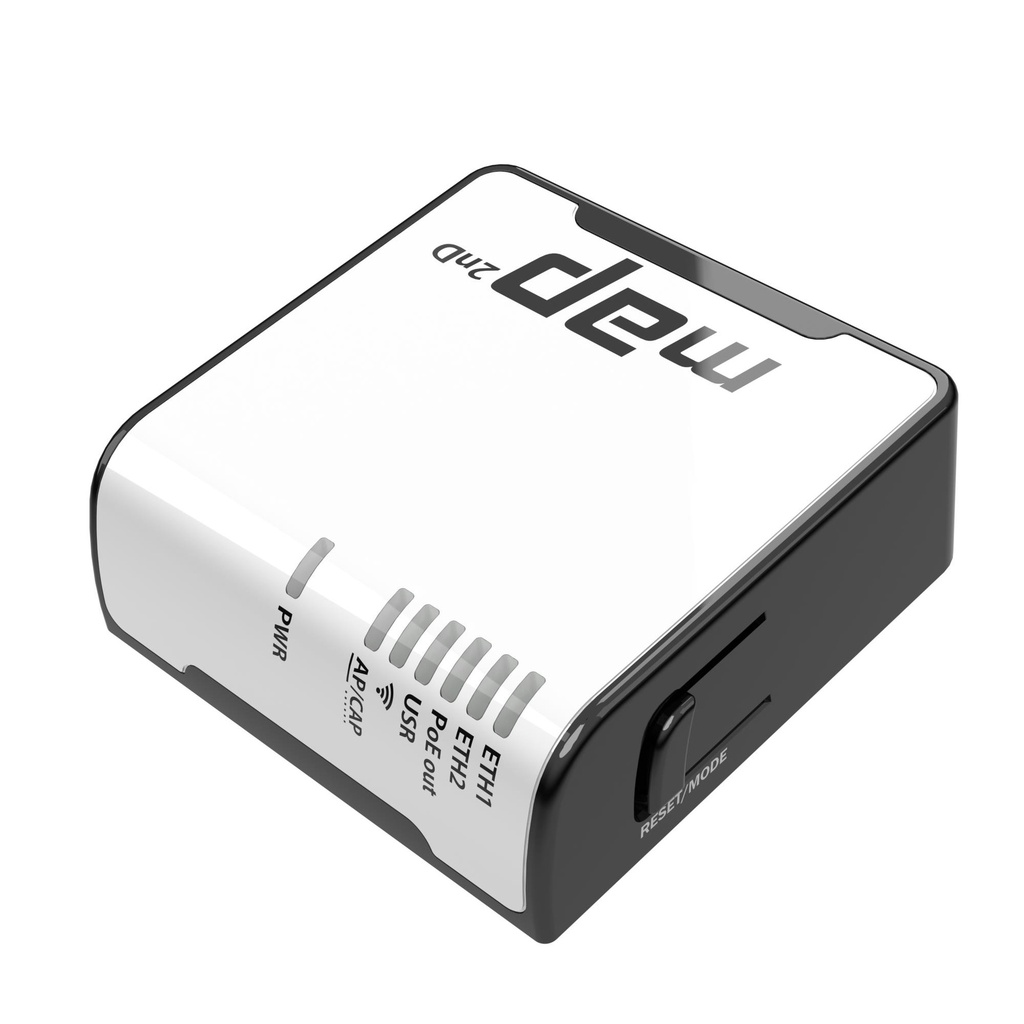

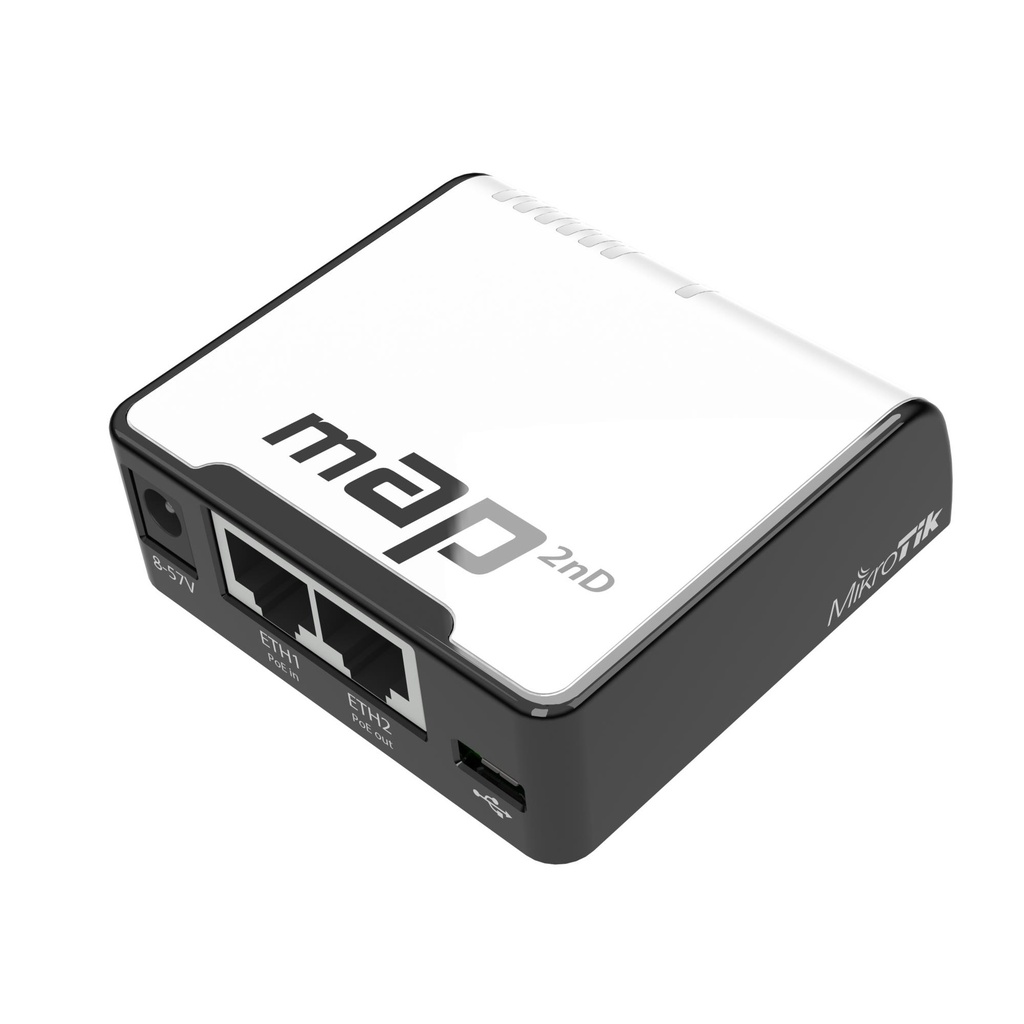

The mAP (micro Access Point) is a tiny size wireless Dual-Chain 2.4GHz Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, Passive PoE and power jack. It also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it.
General
| Unit Calculated Weight | 0.267 kg |
| Unit Calculated Volume | 0.001057 cubm |
| Units per Shipping Box | 20 |
| Units per Pallet | 0 |
| Summary | Mikrotik mAP. 2.4 GHz, Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE). Product colour: Black, White |
| Unit Box Height | 0.055 |
| Unit Box Length | 0.175 |
| Unit Box Width | 0.075 |
| Model name | mAP // RBmAP2nD |
Features
| 2.4 GHz | Yes |
| 5 GHz | No |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10/100 Mbit/s |
| Networking standards | IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.3af/IEEE 802.3at |
Ports & interfaces
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 1 |
| USB connector type | USB Type-B |
Power
| Output current | 0.8 A |
| Output voltage | 24 V |
| Power over Ethernet (PoE) | Yes |
Design
| Internal | No |
| LED indicators | Yes |
| Placement | Table |
| Product colour | Black/White |
Antenna
| Antenna gain level (max) | 1.2 dBi |
Performance
| Built-in processor | Yes |
| Flash memory | 16 MB |
| Internal memory | 64 MB |
| Operating system installed | Linux |
Weight & dimensions
| Depth | 68 mm |
| Height | 19 mm |
| Width | 68 mm |
Packaging content

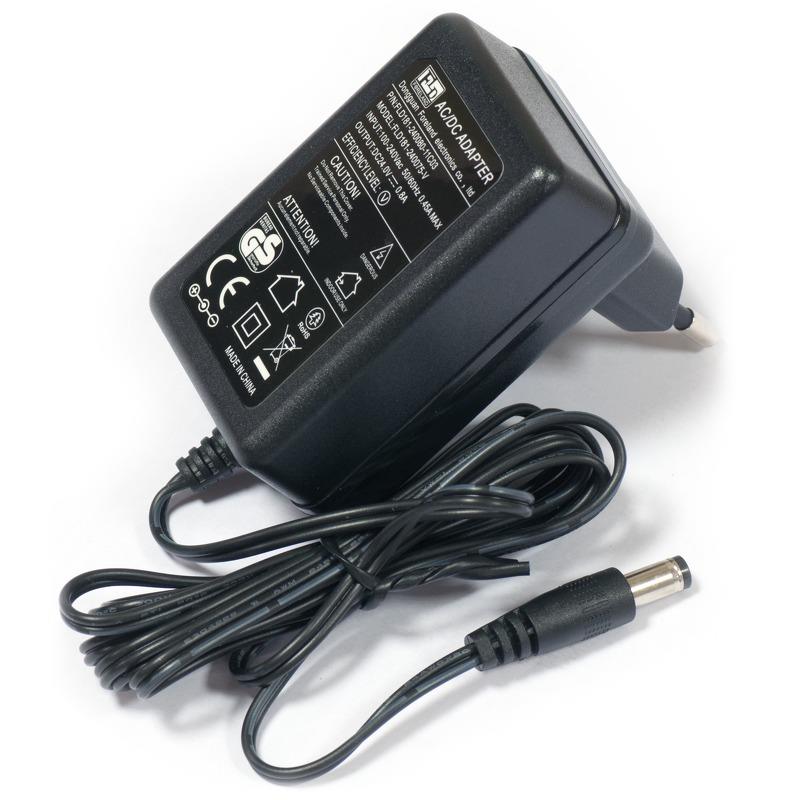

| AC adapter included | Yes |

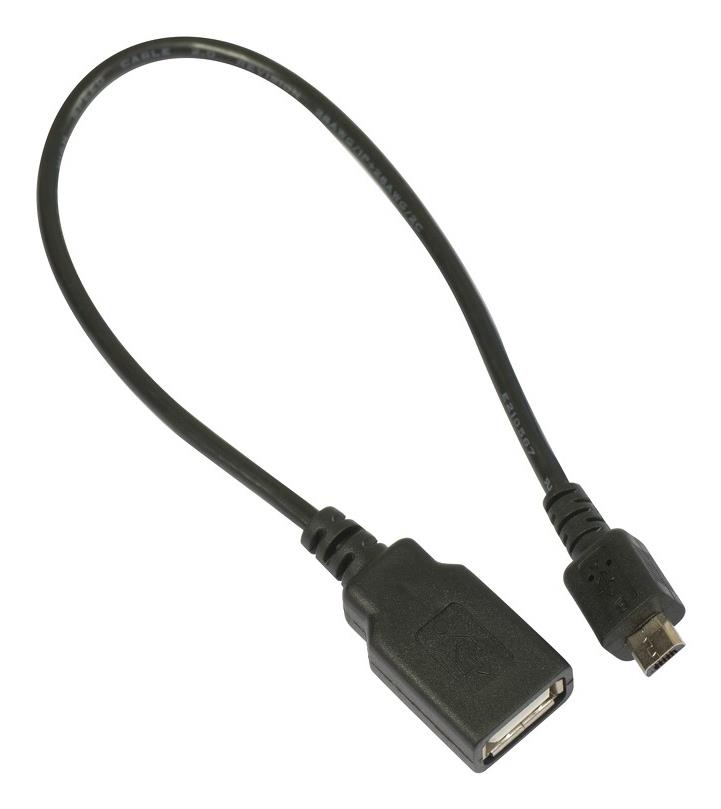

| Cables included | USB |
Operational conditions
| Operating relative humidity (H-H) | -10 - 70 % |
Logistics data
| Harmonized System (HS) code | 85176990 |
