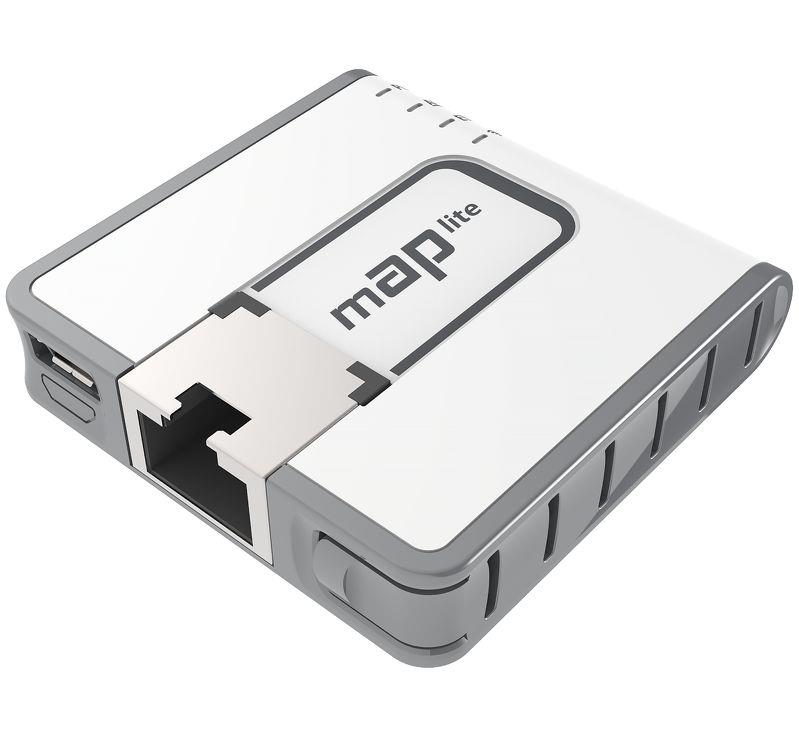

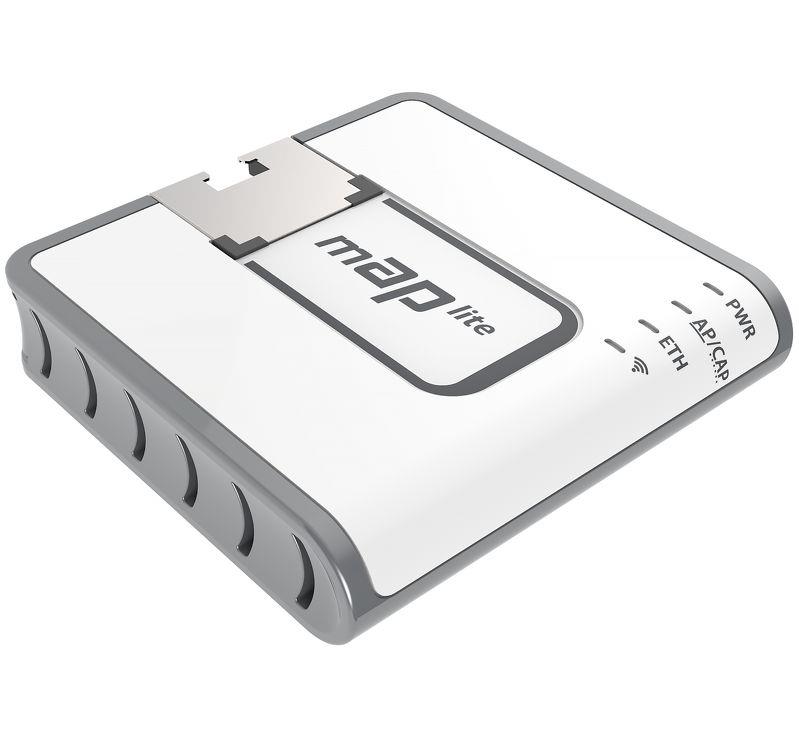

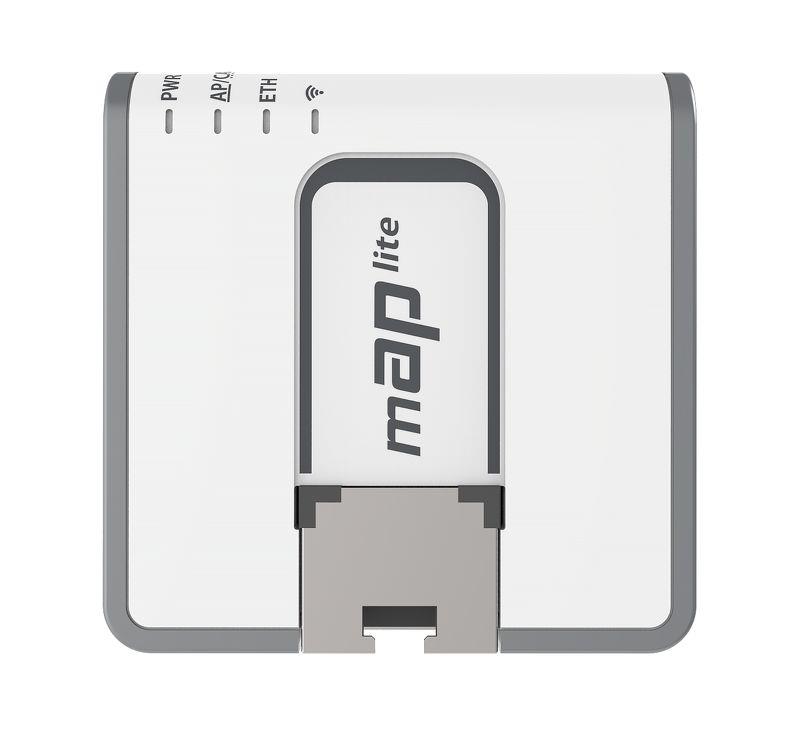

mAP lite

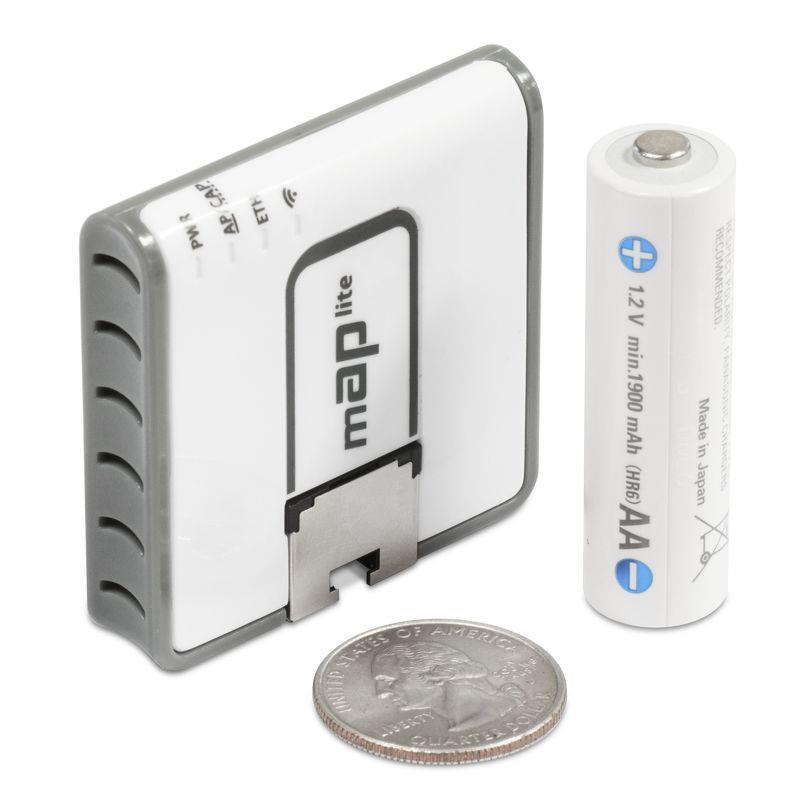

The mAP lite is our smallest wireless access point. It is barely larger than a matchbox, we even had to use a special Ethernet port to match it’s slim profile.
You can carry it anywhere: use as a travel router to extend that hotel internet to all your devices, or as a client device to improve your laptop signal range, the tiny mAP lite will be always with you.
It can also serve as a simple configuration tool for your servers, if there is no ethernet on your mobile device.
The mAP lite is a dual chain 802.11 b/g/n device and operates in 2GHz.
General
| Unit Calculated Weight | 0.12 kg |
| Unit Calculated Volume | 0.0004064 cubm |
| Units per Shipping Box | 1 |
| Summary | Mikrotik mAP lite. 2.4 GHz, Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 3.5 W |
| Unit Box Height | 0.08 |
| Unit Box Length | 0.127 |
| Unit Box Width | 0.04 |
| Model name | mAP lite // RBmAPL-2nD |
Features
| 2.4 GHz | Yes |
| 5 GHz | No |
| Bandwidth | 2.4 GHz |
| Ethernet LAN data rates | 10/100 Mbit/s |
| Networking standards | IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.3af/IEEE 802.3at |
| Receiver sensitivity | 1MBit/s -96 11MBit/s -89 6MBit/s -93 54MBit/s -74 MCS0 -93 MCS7 -71 |
Ports & interfaces

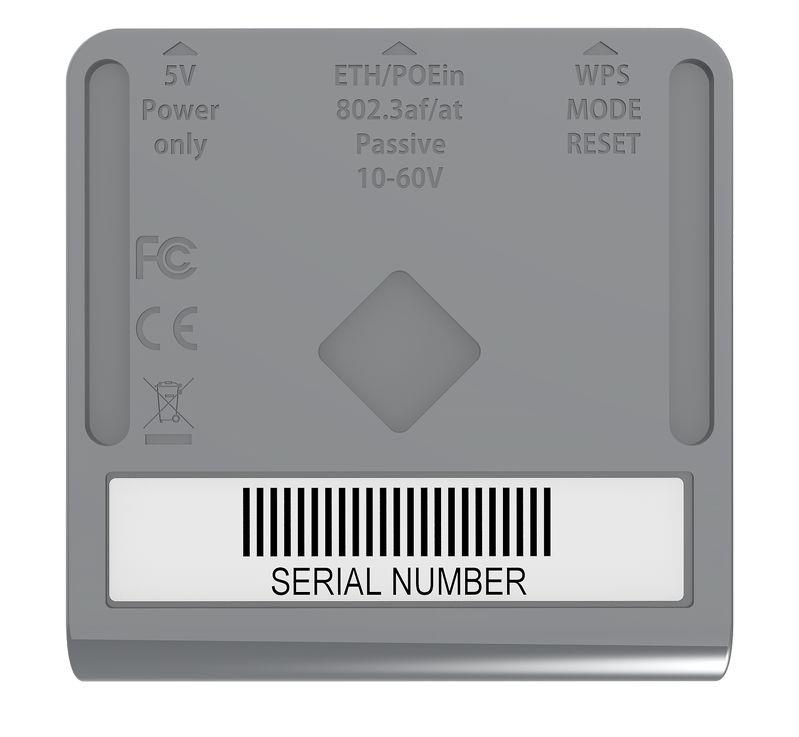

| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Power consumption (max) | 3.5 W |
| Power over Ethernet (PoE) | Yes |
Design
| Internal | No |
| Product colour | White |
Antenna
| Antenna gain level (max) | 1.5 dBi |
Performance
| Built-in processor | Yes |
| Flash memory | 16 MB |
| Internal memory | 64 MB |
| Operating system installed | RouterOS |
Weight & dimensions
| Depth | 11 mm |
| Height | 48 mm |
| Width | 49 mm |
Packaging content

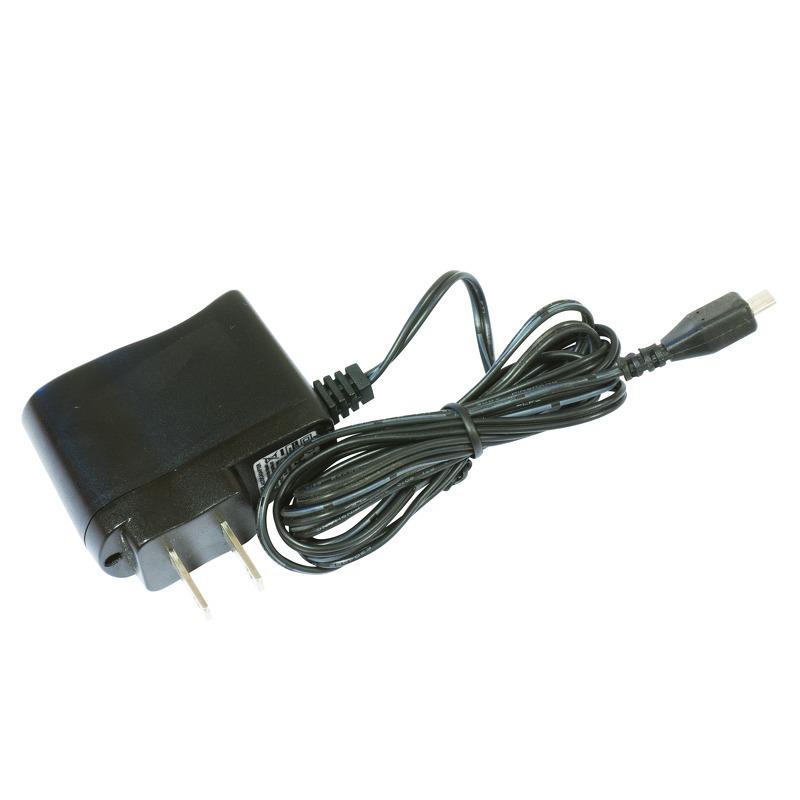

| AC adapter included | Yes |
Operational conditions
| Operating temperature (T-T) | -30 - 70 °C |
Logistics data
| Harmonized System (HS) code | 85176990 |
