We are glad to introduce a significant upgrade to our popular OmniTik 5GHz access points!

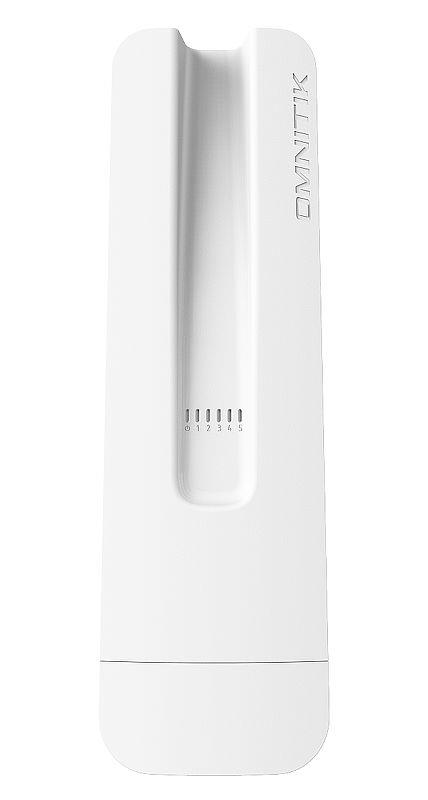

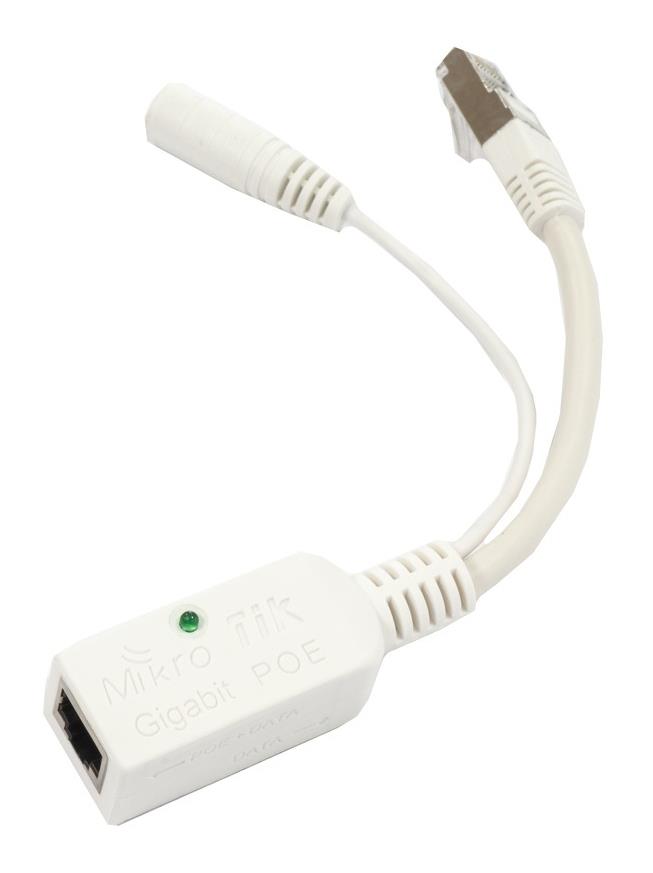

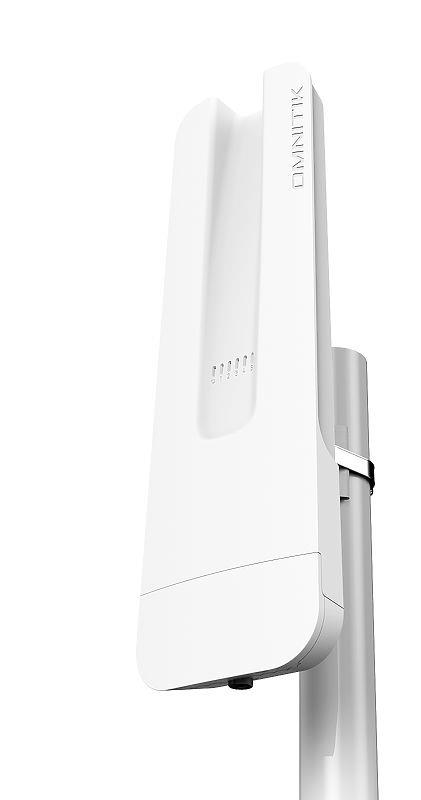

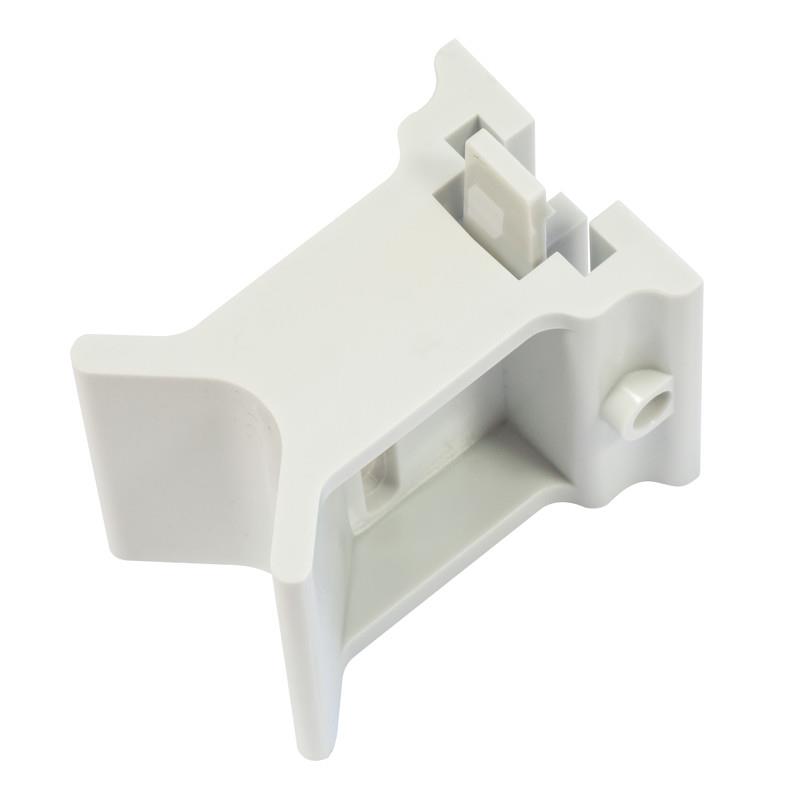

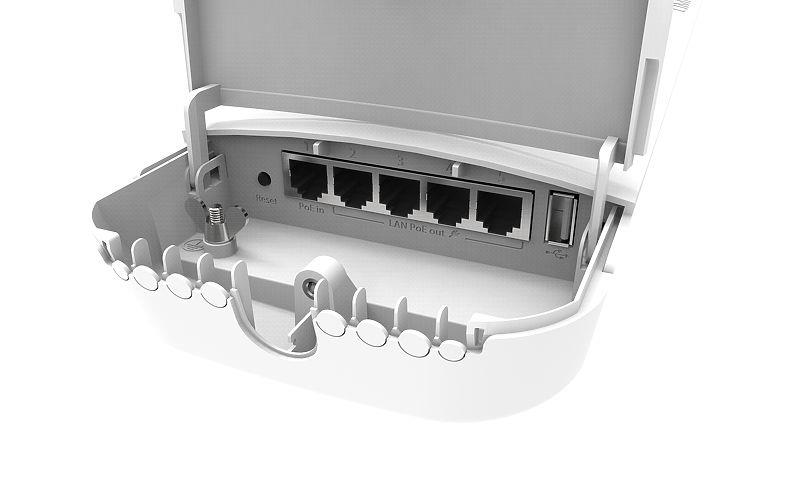

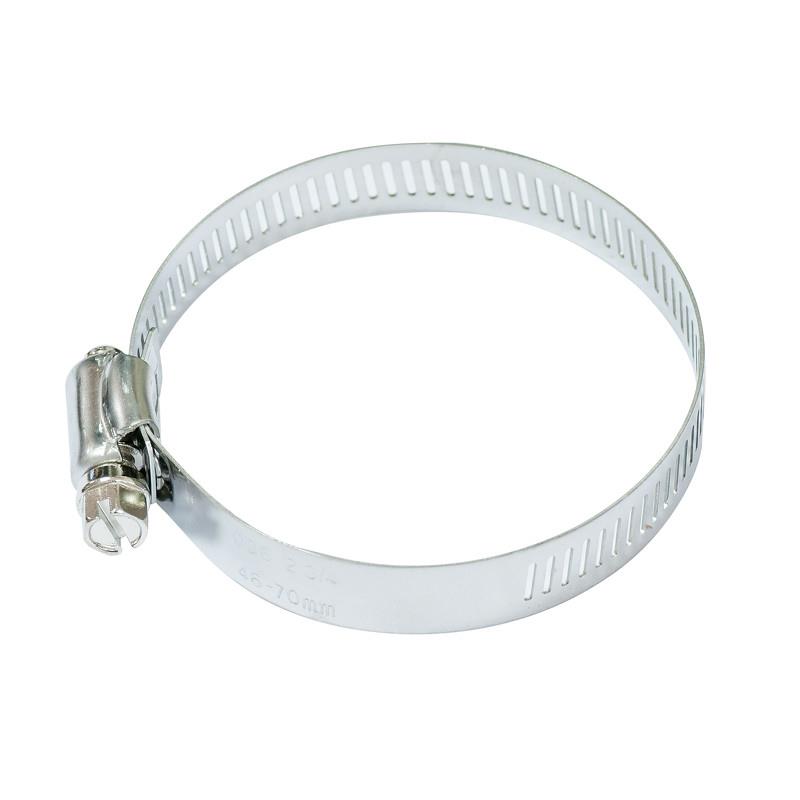

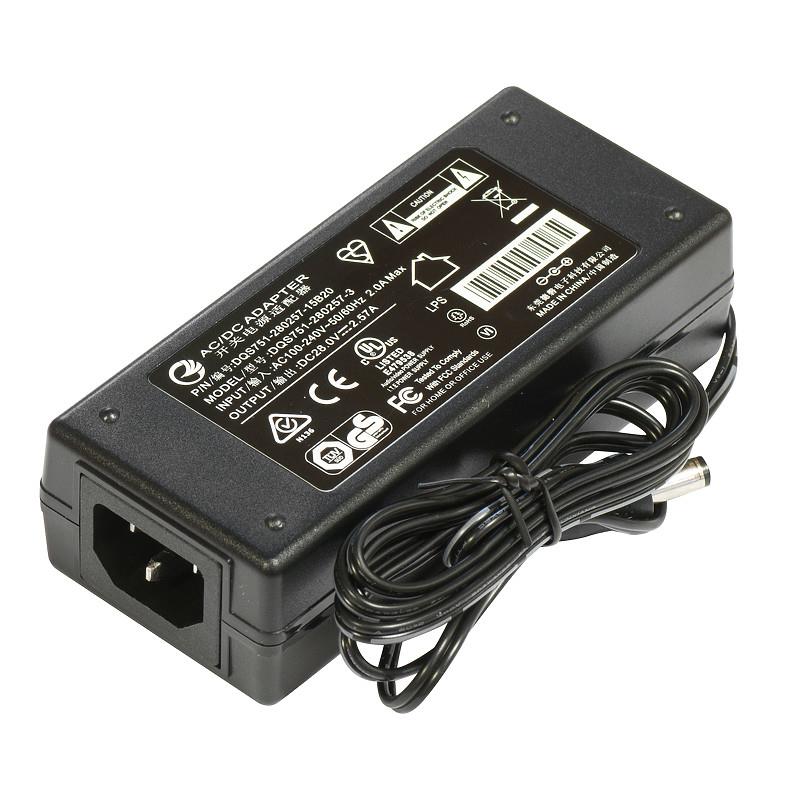

OmniTik 5 PoE ac features five Gigabit Ethernet ports and support for 802.11ac. It’s equipped with a powerful 720MHz CPU, 128MB RAM, high power 802.11a/n/ac Dual Chain wireless (support for AC as well as backwards compatible with regular 802.11a/n CPE) and comes with a new design weatherproof outdoor enclosure, two integrated 7.5dBi 5GHz omni antennas, a power supply, a PoE injector and a mounting kit.
It also supports passive or standard 802.3at/af PoE input/output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power af/at mode B (4,5+)(7,8-) compatible devices, if 48-57 input voltage is used.
General
| Unit Calculated Weight | 1.45 kg |
| Unit Calculated Volume | 0.006721 cubm |
| Units per Shipping Box | 10 |
| Units per Pallet | 0 |
| Summary | Mikrotik OmniTIK 5 PoE ac. 5 GHz, Maximum data transfer rate: 54 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE), Power consumption (max): 18 W |
| Unit Box Height | 0.06 |
| Unit Box Length | 0.21 |
| Unit Box Width | 0.43 |
| Model name | OmniTIK 5 PoE ac // RBOmniTikPG-5HacD |
| Model | RBOmniTikPG-5HacD |
Features
| 5 GHz | Yes |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Maximum data transfer rate | 54 Mbit/s |
| Networking standards | IEEE 802.11ac/IEEE 802.3af/IEEE 802.3at |
Ports & interfaces
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 5 |
| USB 2.0 ports quantity | 1 |
| USB connector type | USB Type-A |
Power
| AC input voltage | 12 - 57 V |
| Power consumption (max) | 18 W |
| Power over Ethernet (PoE) | Yes |
Design
| Internal | No |
| Placement | Pole |
Antenna
| Antenna gain level (max) | 7.5 dBi |
Performance
| Built-in processor | Yes |
| Flash memory | 16 MB |
| Internal memory | 128 MB |
Weight & dimensions
| Depth | 58 mm |
| Height | 416 mm |
| Width | 129 mm |
Packaging content
| AC adapter included | Yes |
| Cables included | AC |
| Mounting kit | Yes |
| PoE adapter included | Yes |
Logistics data
| Harmonized System (HS) code | 85176990 |
