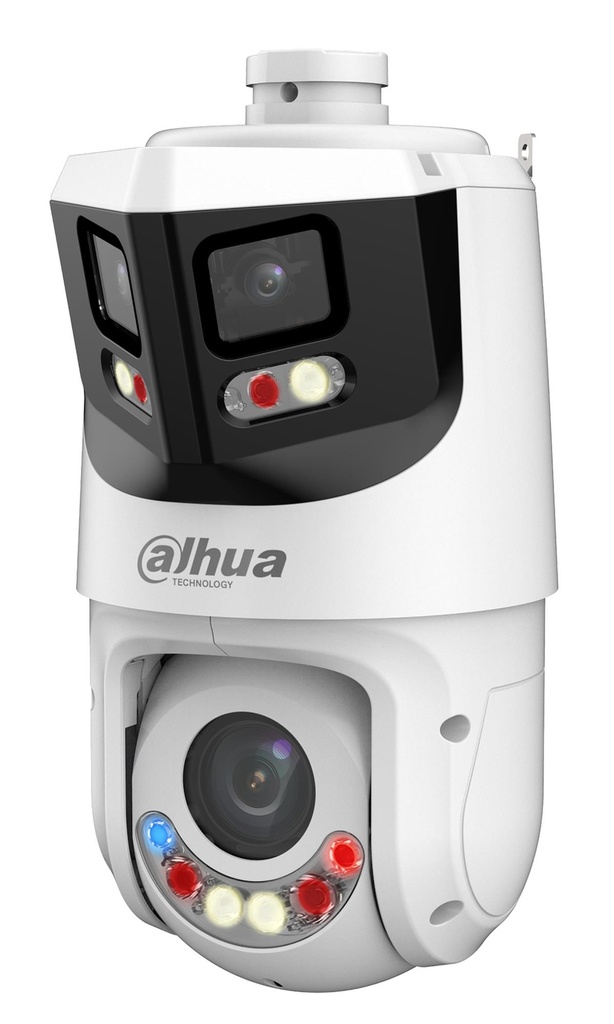

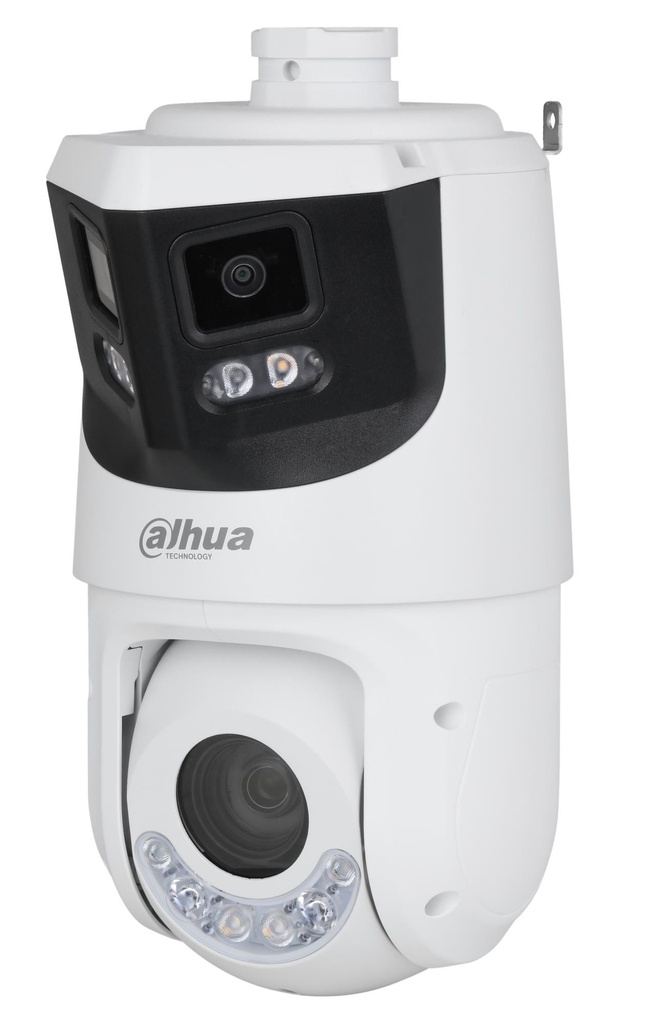

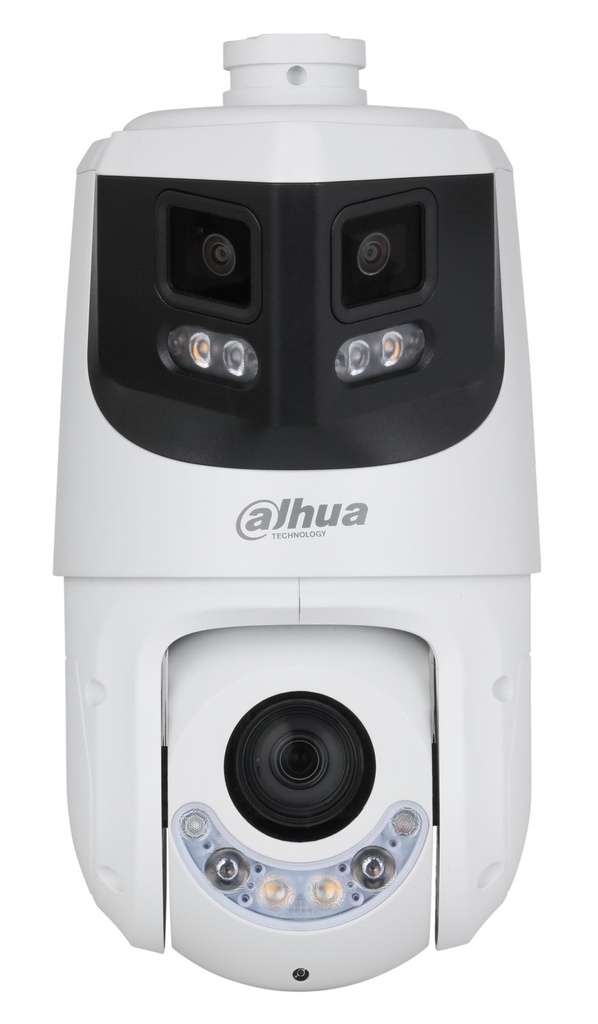

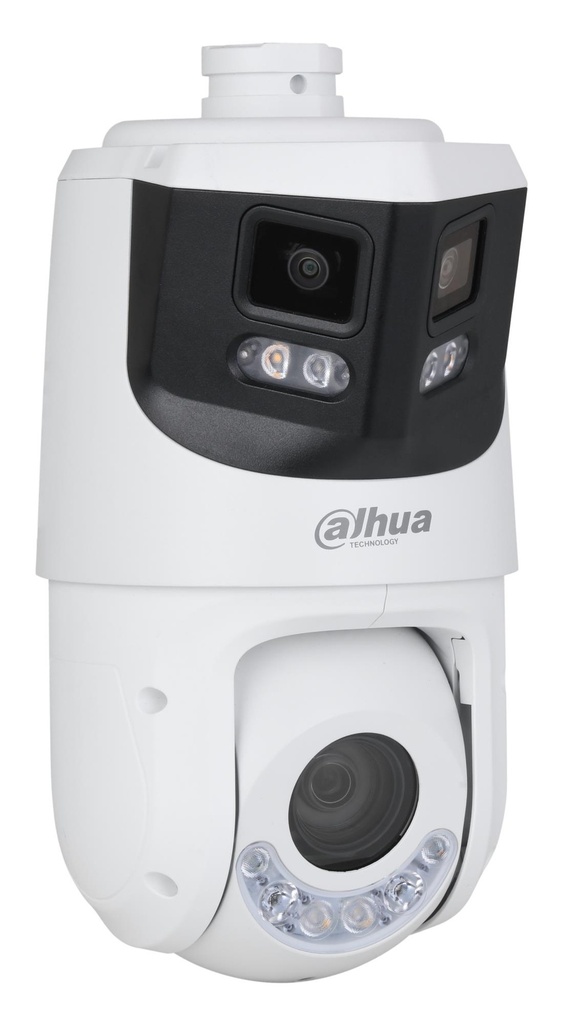

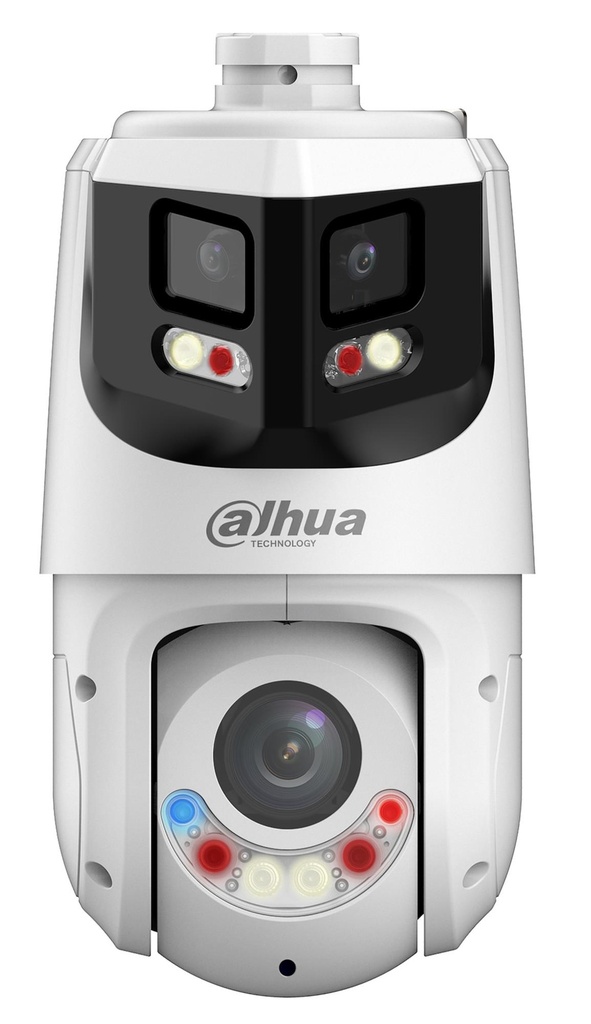

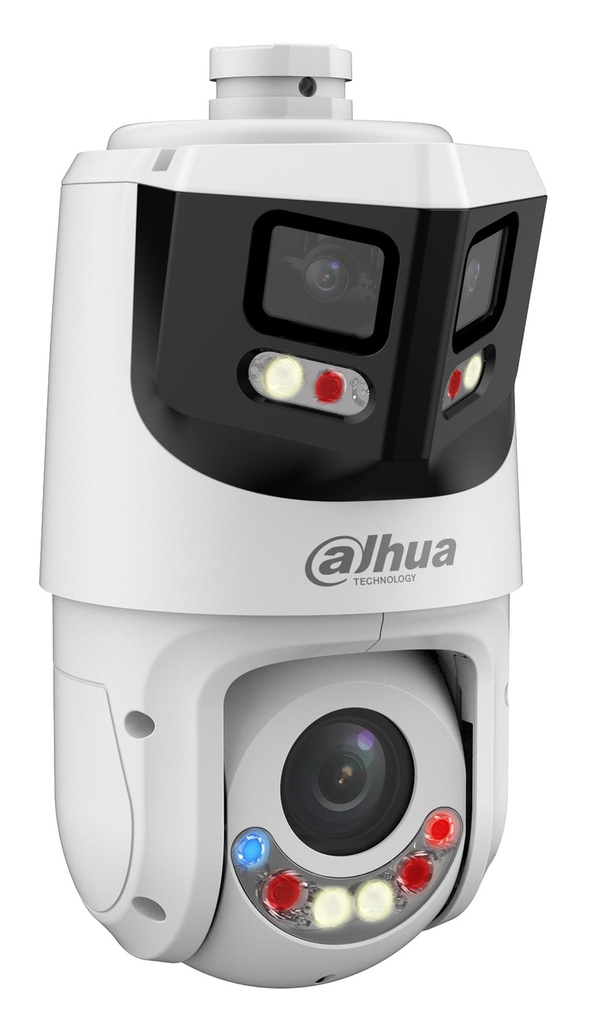

8+4MP 25x TiOC Network Panoramic PTZ Camera
- Overview channel: Outputs 180° wide angle splicing image
- Detail channel: 1/2.8"4Megapixel STARVIS™ CMOS
- 25x optical zoom
- Max. 25/30 fps@8M
- IR distance up to 100 m
- Auto tracking 3.0
- Smart tracking
- Perimeter protection
- Active deterrence
- Smart dual light +
General
| Unit Calculated Weight | 5.25 kg |
| Unit Calculated Volume | 0.03863 cubm |
| Units per Shipping Box | 2 |
| Units per Pallet | 0 |
| Summary | Dahua Technology WizSense SDT4E425-8P-GB-APV1. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Tilt preset speed: 90 °/sec, Tilt manual speed: 0.1 - 90 °/sec, Pan preset speed: 180 °/sec. Sensor type: CMOS. Digital zoom: 16x, Detect distance: 56 m, Observe distance: 24.4 m |
| Unit Box Height | 0.24 |
| Unit Box Length | 0.49 |
| Unit Box Width | 0.26 |
Design
| Form factor | Dome |
| International Protection (IP) code | IP66 |
| Mounting type | Ceiling/wall |
| Product colour | White |
Performance
| Alarm input/output | Yes |
| Built-in light | Yes |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Placement supported | Indoor & outdoor |
| Preset points | Yes |
| PTZ control | Yes |
| PTZ modes | Preset point |
| Remote viewing | Yes |
| Tour recording | Yes |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
Camera
| Camera pan control | Yes |
| Camera shutter speed | 1 - 1/30000 s |
| Camera shutter type | Electronic |
| Camera tilt control | Yes |
| Pan manual speed | 0.1 - 180 °/sec |
| Pan preset speed | 180 °/sec |
| Tilt manual speed | 0.1 - 90 °/sec |
| Tilt preset speed | 90 °/sec |
Image sensor
| Sensor type | CMOS |
Lens system
| Detect distance | 56 m |
| Detect distance (tele) | 2500 m |
| Detect distance (wide) | 100 m |
| Digital zoom | 16 x |
| Identify distance (tele) | 250 m |
| Identify distance (wide) | 10 m |
| Observe distance | 24.4 m |
| Observe distance (tele) | 1000 m |
| Observe distance (wide) | 40 m |
| Recognize distance | 11.2 m |
| Recognize distance (tele) | 500 m |
| Recognize distance (wide) | 20 m |
Night vision
| Night vision | Yes |
Video
| Back Light Compensation (BLC) | Yes |
| Bit rate | H265: 51 kbps-13,312 kbps |
| Bit rate control | Constant Bit Rate (CBR),Variable Bit Rate (VBR) |
| Frame rate | 30 fps |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 4096 x 1860 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction,3D noise reduction |
| Region of Interest (ROI) encoding | Yes |
| Total megapixels | 8 MP |
Audio
| Built-in microphone | Yes |
| Signal-to-Noise Ratio (SNR) | 55 dB |
Network
| Bluetooth | No |
| Ethernet LAN | Yes |
| Wi-Fi | No |
Storage
| Built-in HDD | No |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Alarm input channels | 2 |
| Alarm output channels | 1 |
| Mirror | Yes |
| Video motion detection | Yes |
Power
| DC output voltage | 12 |
| Power source type | DC,PoE |
Weight & dimensions
| Depth | 160 mm |
| Height | 311 mm |
| Weight | 3100 g |
| Width | 194.2 mm |
Packaging content
| Manual | Yes |
| Number of cameras | 1 |
