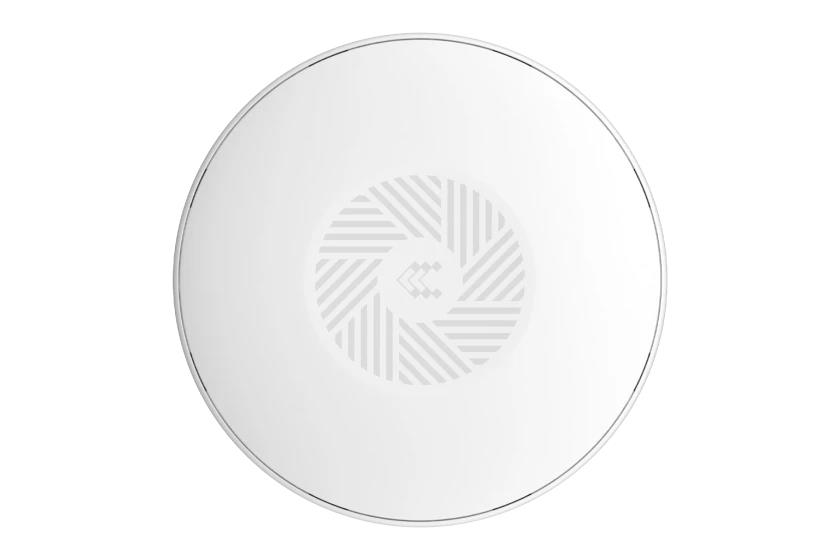

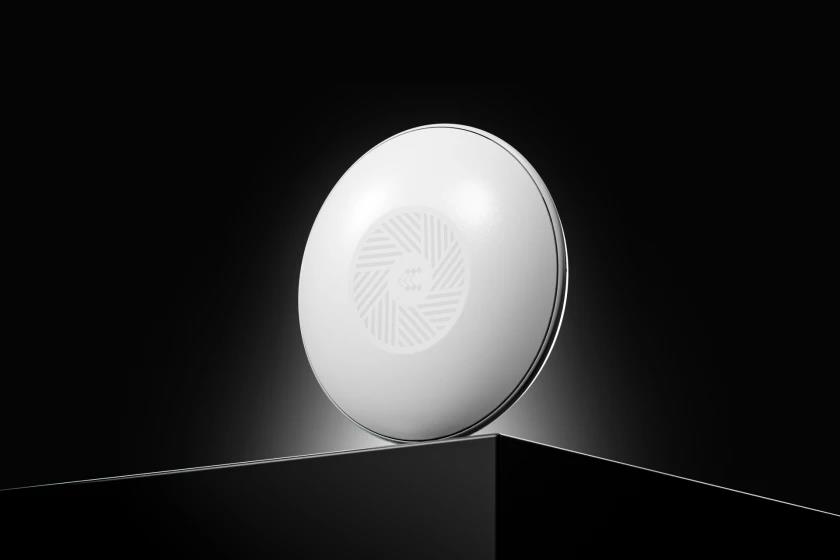

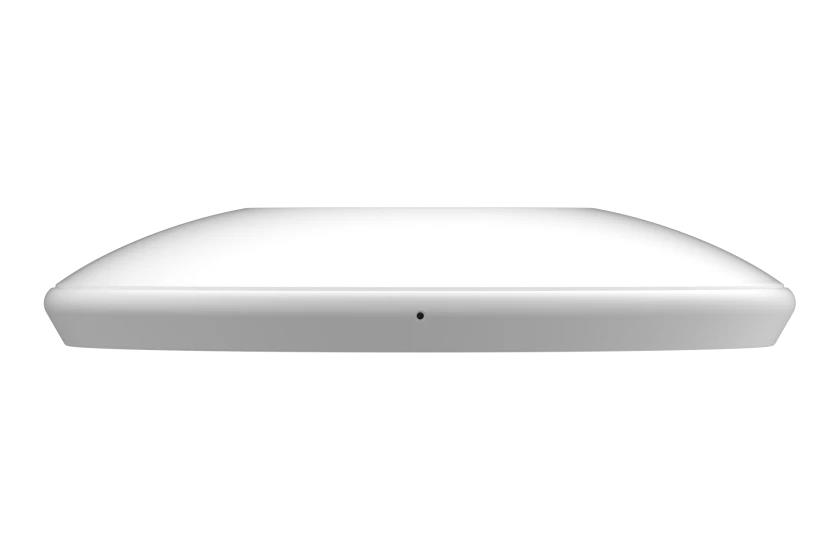

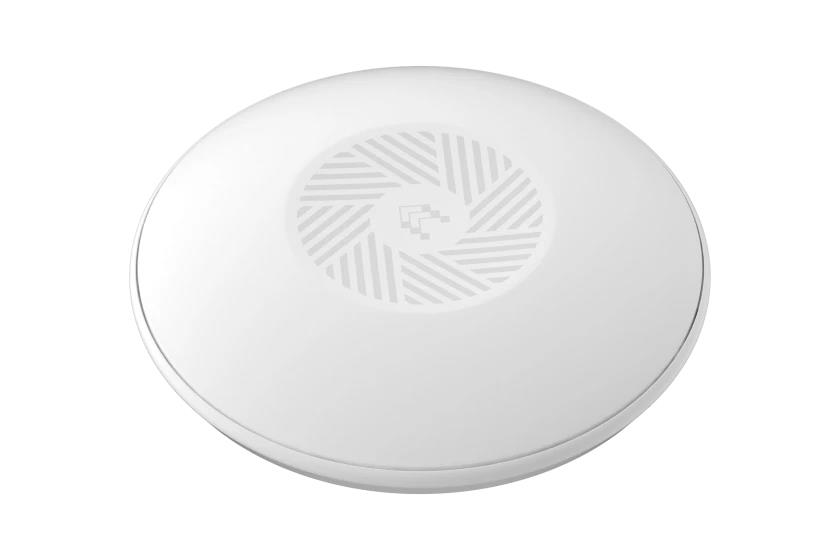

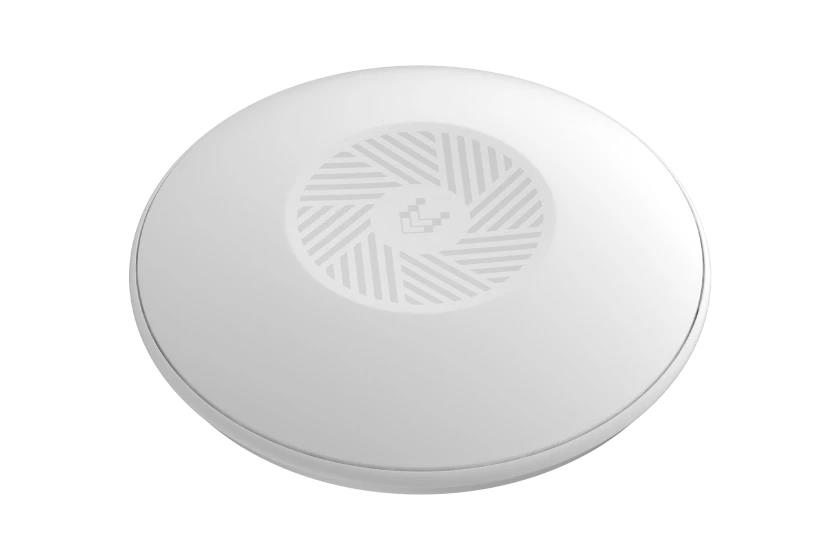

Wi-Fi 5 ACCESS POINT
Equipped with dual-band technology, fast roaming, and an RJ45 port with PoE-in functionality, the Teltonika Networks TAP200 is a Wi-Fi 5 wireless access point designed to enhance Wi-Fi coverage in medium-density spaces where high network performance is essential. The TAP200 features an integrated mounting bracket for quick and easy installation, and a sleek design to seamlessly blend into retail, enterprise, or any other environment.
- WI-FI 5 Wave-2 802.11 b/g/n/ac Dual Band Wi-Fi

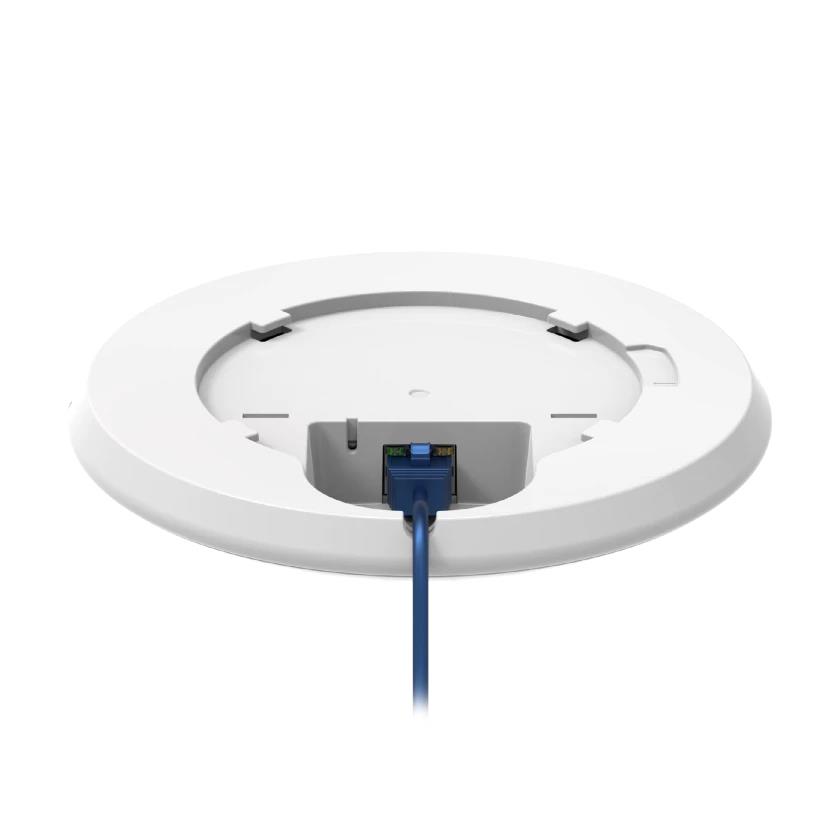

- RJ45 & POE-IN Supporting speeds of up to 1000 Mbps and PoE-in functionality

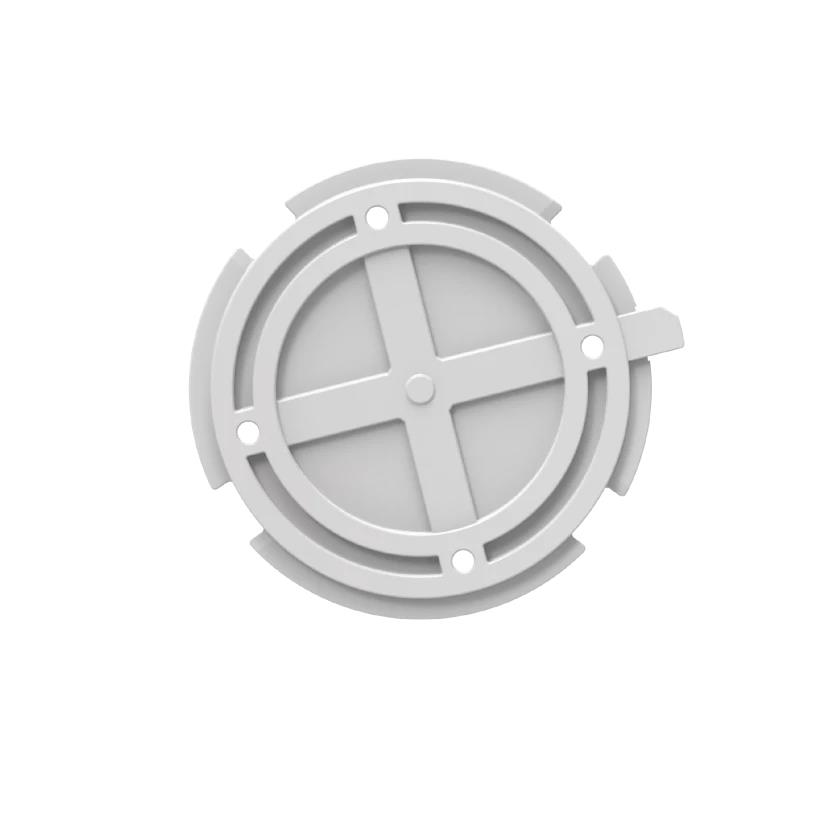

- RESILIENT & EASY TO INSTALL UV-stabilised housing for lasting colour with a mounting bracket for quick setup
- RMS MANAGEMENT Free RMS Management access for 24 months
General
| Unit Calculated Weight | 0.23 kg |
| Unit Calculated Volume | 0.0009874 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | Teltonika TAP200. 2.4 GHz, 5 GHz, Maximum data transfer rate: 867 Mbit/s. Security algorithms: AES-CCMP, EAP-TLS, HTTPS, OWE, PEAP, SSH, TKIP, WPA-EAP, WPA-PSK, WPA2-EAP, WPA2-PSK, WPA3-EAP,.... Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White |
| Unit Box Height | 0.034 |
| Unit Box Length | 0.176 |
| Unit Box Width | 0.165 |
| Model name | TAP200000000 |
| Model | TAP200 |
Features
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Maximum data transfer rate | 867 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Networking standards | IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.11r/IEEE 802.3/IEEE 802.3az/IEEE 802.3u |
| Number of users | 100 user(s) |
| VLAN support | Yes |
| Wi-Fi roaming | Yes |
Security
| MAC address filtering | Yes |
| Security algorithms | AES-CCMP/EAP-TLS/HTTPS/OWE/PEAP/SSH/TKIP/WPA2-EAP/WPA2-PSK/WPA3-EAP/WPA3-SAE/WPA-EAP/WPA-PSK |
Protocols
| Supported network protocols | TCP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, SSL v3, TLS, ARP, SSH |
Management features
| Command-line interface (CLI) | Yes |
| Firmware upgradeable | Yes |
| Web-based management | Yes |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
| WAN connection | Ethernet (RJ-45) |
Power
| DC voltage range | 44 - 57 V |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE |
Design
| Housing material | Plastic |
| International Protection (IP) code | IP30 |
| LED indicators | Power |
| Placement | Ceiling,Wall |
| Product colour | White |
| Reset button | Yes |
Antenna
| Antenna type | Internal |
| Antennas quantity | 2 |
Performance
| Built-in processor | Yes |
| Flash memory | 16 MB |
| Internal memory | 256 MB |
| Operating system installed | RutOS |
| Processor frequency | 880 MHz |
Certificates
| Certification | CE, UKCA, FCC, IC, RCM, CB, EAC, UCRF, WEEE |
Weight & dimensions
| Depth | 158 mm |
| Height | 30 mm |
| Weight | 190 g |
| Width | 158 mm |
Packaging content
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -40 - 75 °C |
