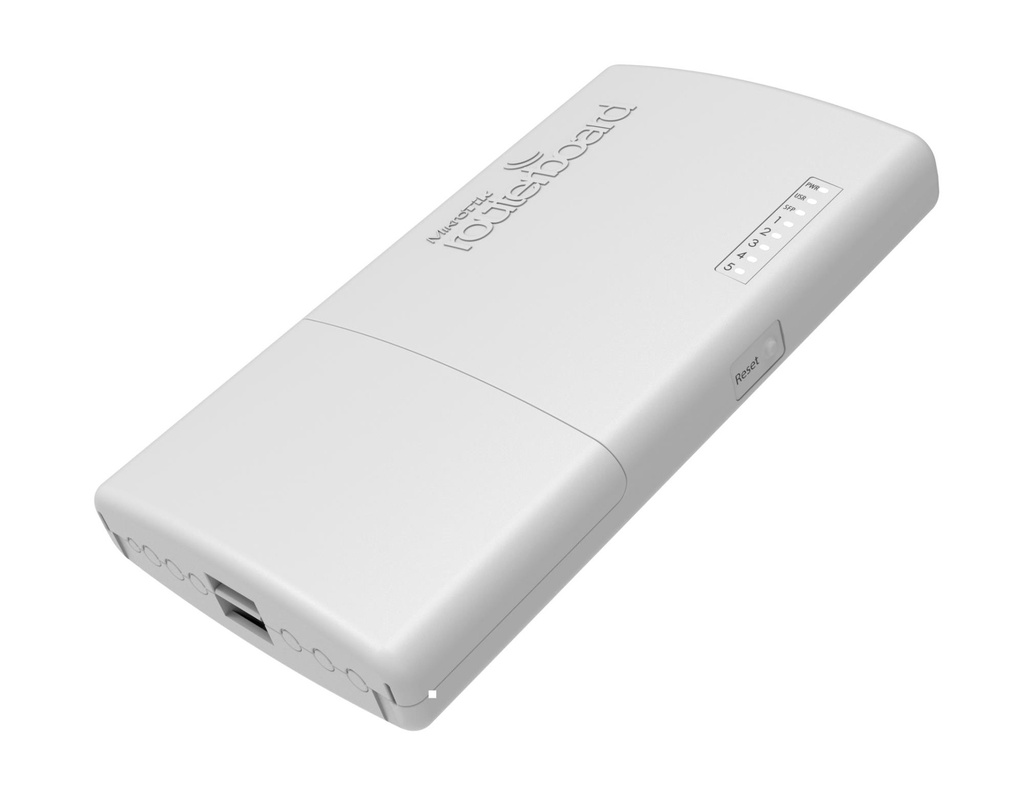

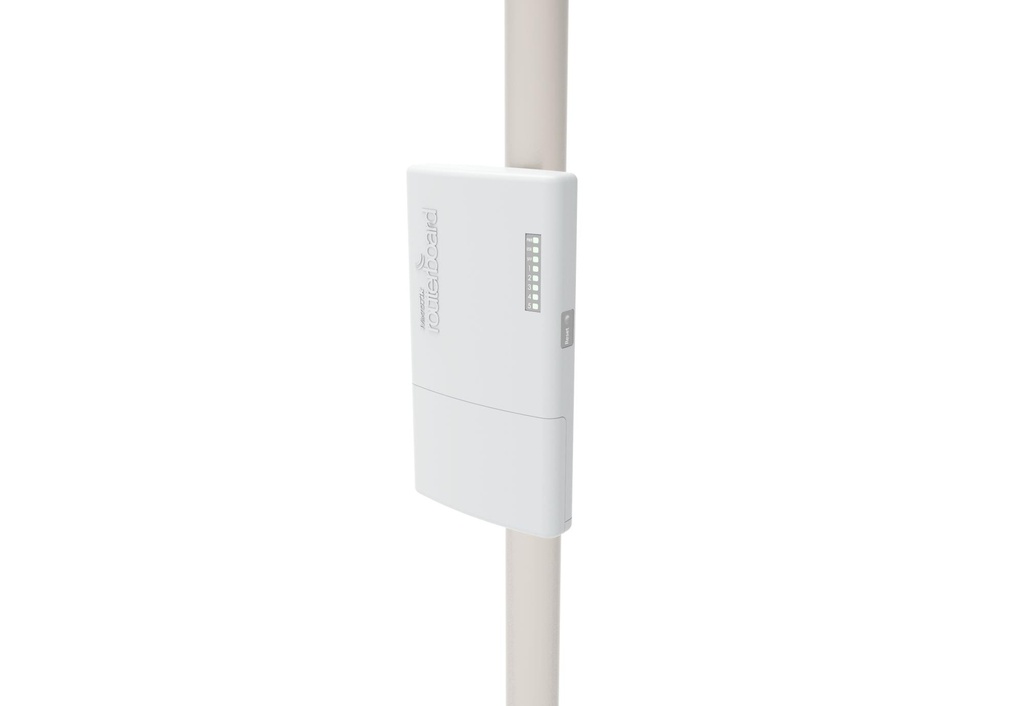

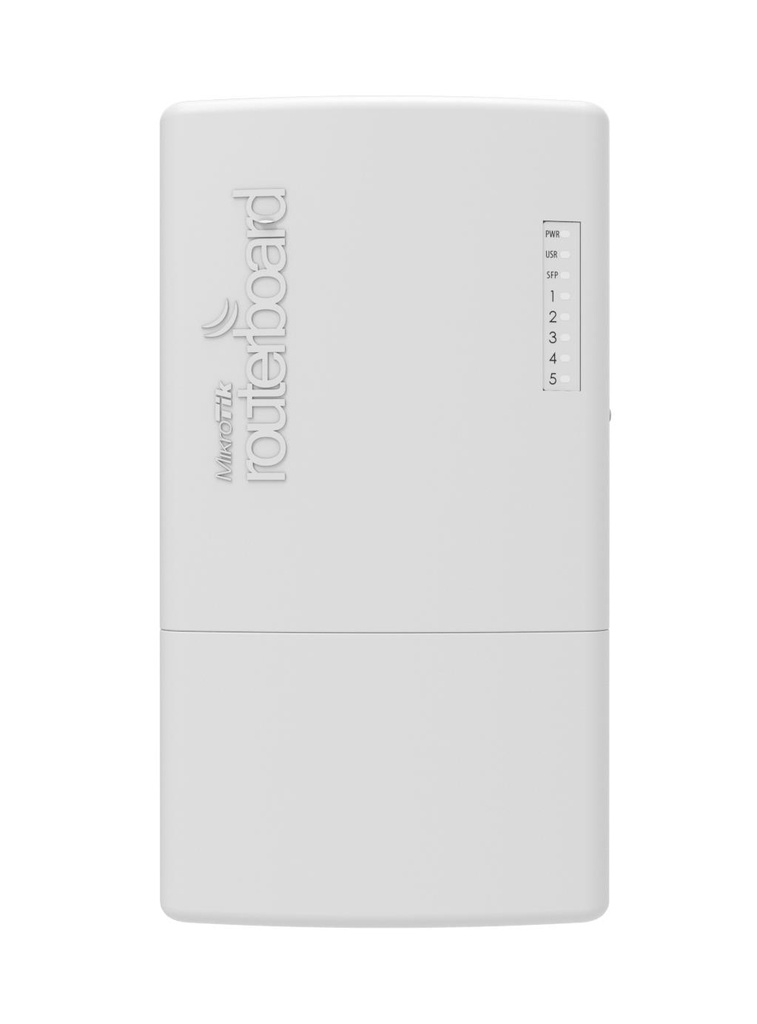

The PowerBox Pro is an outdoor five gigabit ethernet port router with PoE output on four ports. Since the device has a waterproof outdoor case, you can mount it on a tower, or in other outdoor locations.
It also supports passive or standard 802.3at/af PoE input/output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power 802.3at and af mode B compatible devices, if 48-57 input voltage is used.
The device has a SFP port for adding optical fiber connectivity. It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports.
General
| Unit Calculated Weight | 1.12 kg |
| Unit Calculated Volume | 0.004185 cubm |
| Units per Shipping Box | 10 |
| Units per Pallet | 0 |
| Summary | Mikrotik PowerBox Pro. Networking standards: IEEE 802.3af, IEEE 802.3at, Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). Processor frequency: 800 MHz, Storage media: Flash, Flash memory: 16 MB. Product colour: White. Power supply: 9 W, Power source type: DC, PoE. Width: 125 mm, Depth: 52 mm, Height: 225 mm |
| CnCode | 85176200 |
| Unit Box Height | 0.11 |
| Unit Box Length | 0.245 |
| Unit Box Width | 0.13 |
Network
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
Ports & interfaces
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 5 |
Features
| Built-in processor | Yes |
| Flash memory | 16 MB |
| Internal memory | 128 MB |
| License level | 4 |
| Operating system installed | RouterOS |
| Processor cores | 1 |
| Processor frequency | 800 MHz |
| Storage media | Flash |
| Voltage monitoring | Yes |
Design
| LED indicators | Yes |
| Product colour | White |
Power
| Power over Ethernet (PoE) | Yes |
| Power source type | DC,PoE |
| Power supply | 9 W |
Operational conditions
| Operating temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Depth | 52 mm |
| Height | 225 mm |
| Width | 125 mm |
Logistics data
| Harmonized System (HS) code | 85176990 |
