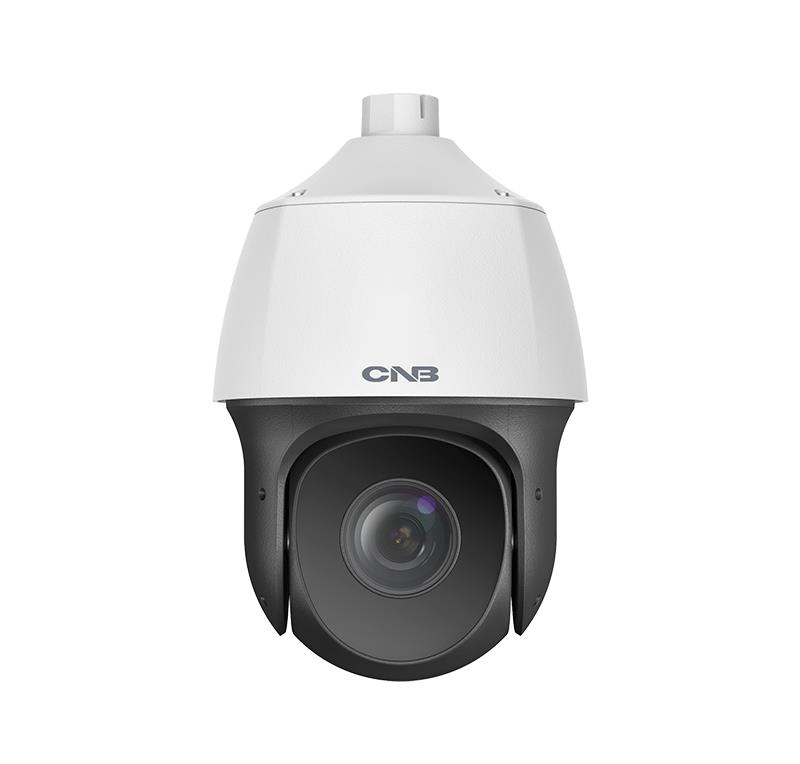

TPU24R-X33SW
CNB New Line-up Network Camera
- 1/2.8" 2Mega-Pixels CMOS Sensor
- H.265+, H.265, H.264, MJPEG
- 33X Optical Zoom
- Wide Dynamic Range 120dB
- Up to 150m IR distance
- 2D/3D Digital Noise Reduction
- Supports 256GB Micro SD card
- Wide temperature range: -40°C to 70°C
- Support PoE+(IEEE 802.3at) power supply
- Support DC 12V±10%
- 6KV surge protection designed
- IP66
General
| Unit Calculated Weight | 5.17 kg |
| Unit Calculated Volume | 0.04305 cubm |
| Units per Shipping Box | 1 |
| Unit Box Height | 0.53 |
| Unit Box Length | 0.285 |
| Unit Box Width | 0.285 |
| Model | TPU24R-X33SW |
Design
| Form factor | Dome |
| Product colour | White |
Image sensor
| Effective sensor resolution | 2 pixels |
| Optical sensor size | 1/2.8" " |
| Sensor type | CMOS |
Lens system
| Focal length range | 4.5 ~ 148.5mm mm |
| Optical zoom | 33 x |
Night vision
| B/W night vision distance | 150 m |
| Night vision | Yes |
Storage
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
Power
| Power consumption (max) | 25 W |
| Power over Ethernet (PoE) | Yes |
