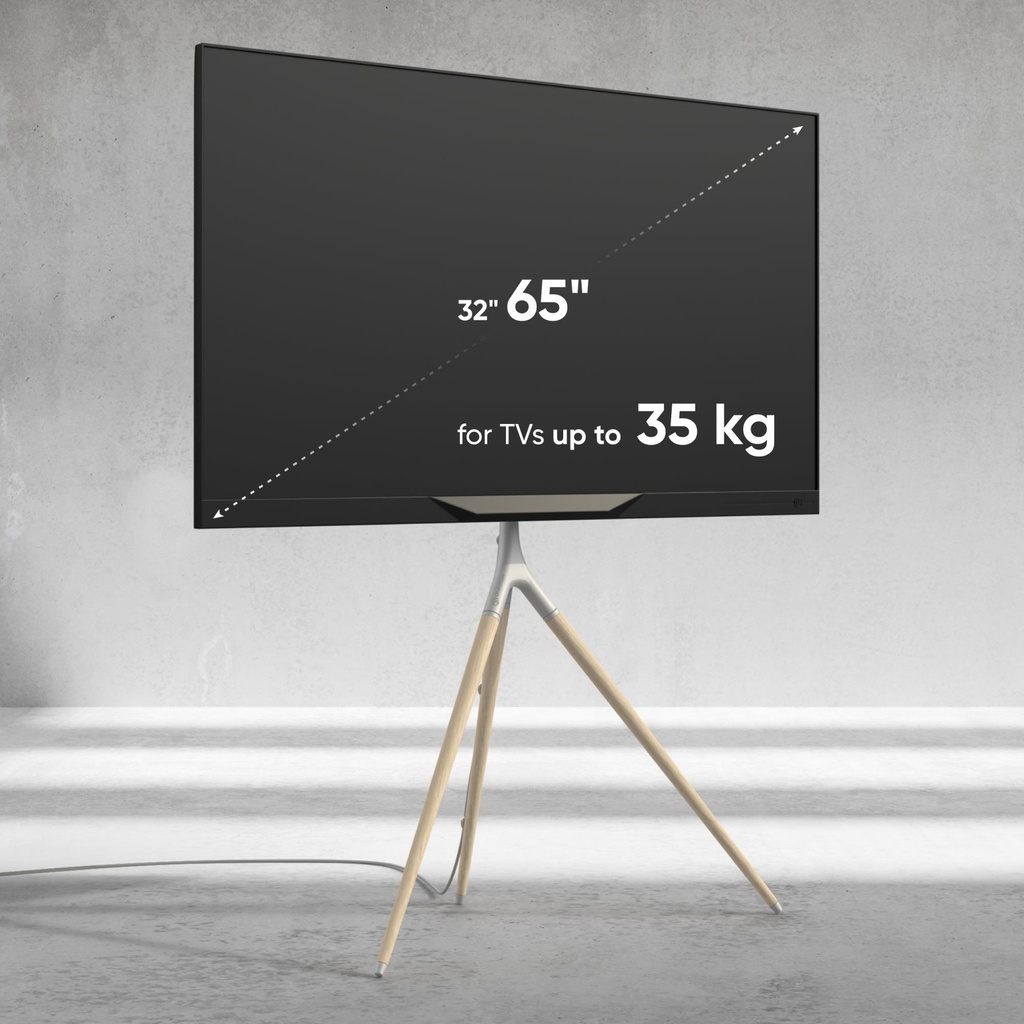

- For TVs 32''–65''
- Max TV weight: 35 kg

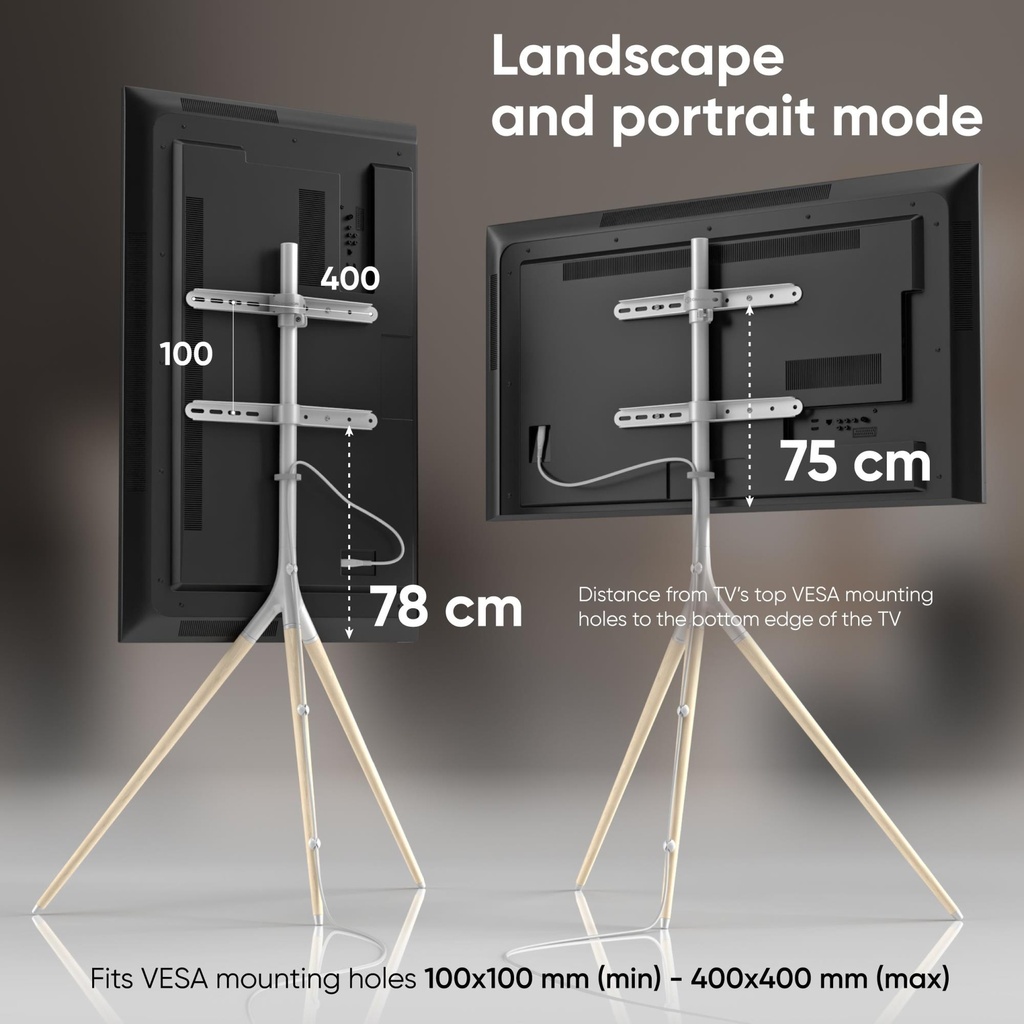

- VESA: 100x100, 100x200, 200x100, 200x200, 200x300, 200x400, 300x100, 300x200, 300x300, 300x400, 400x200, 400x300, 400x400 mm
- Height adjustment: 700–1200 mm
- Swivel: 360°

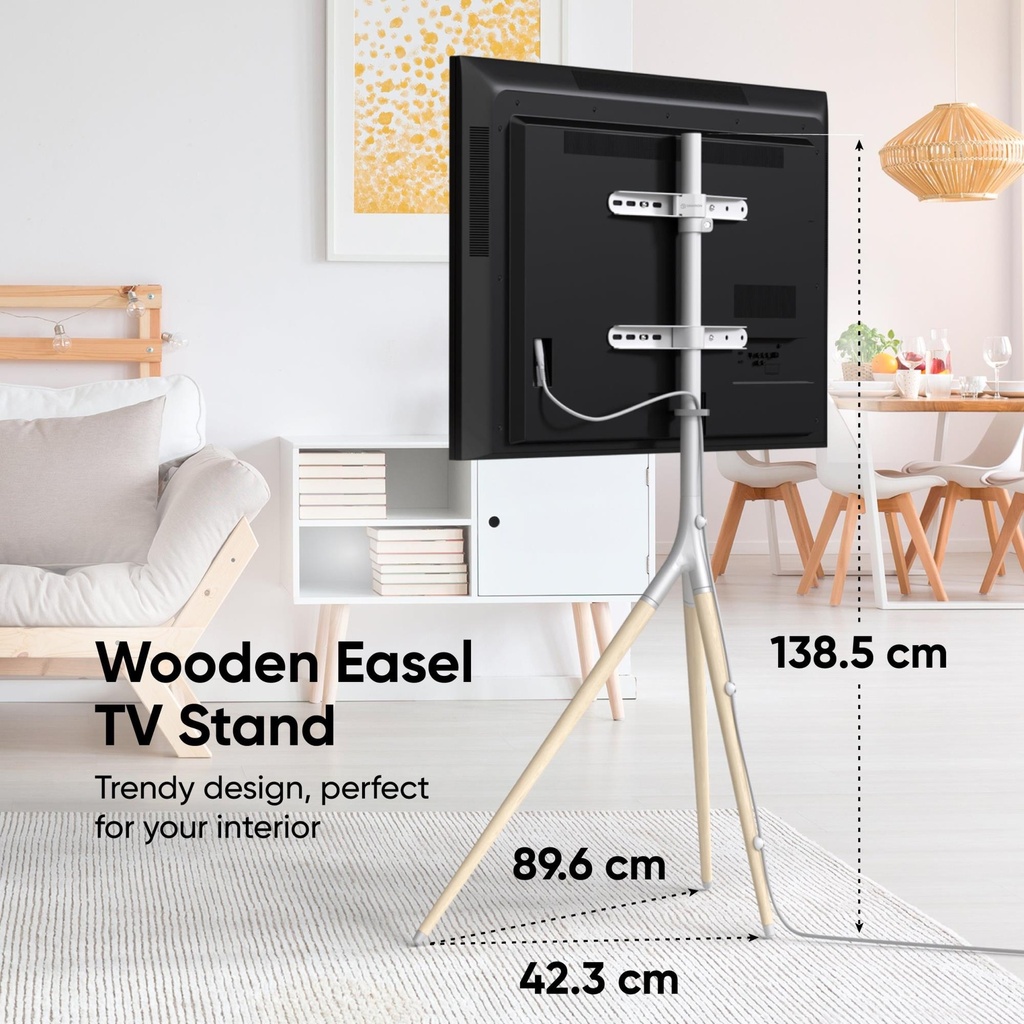

- Total height: 1385 mm
- Base size: 885×425 mm
- Column diameter: 35 mm
- Equipped with non-slip rubber feet
- Additional wall mount included
- Materials: solid beech wood, steel
General
| Unit Calculated Weight | 5.5 kg |
| Unit Calculated Volume | 0.02777 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |

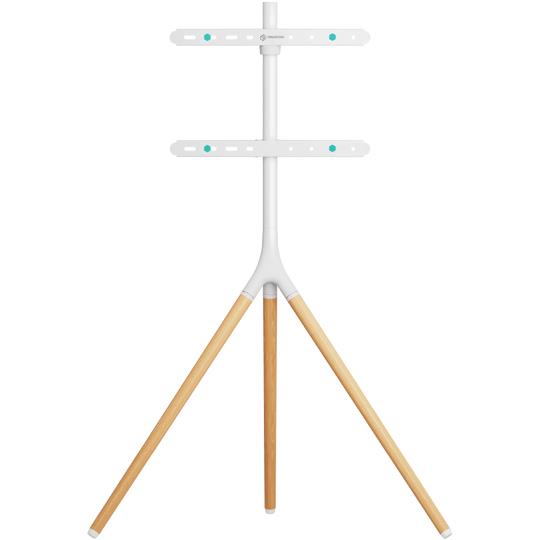

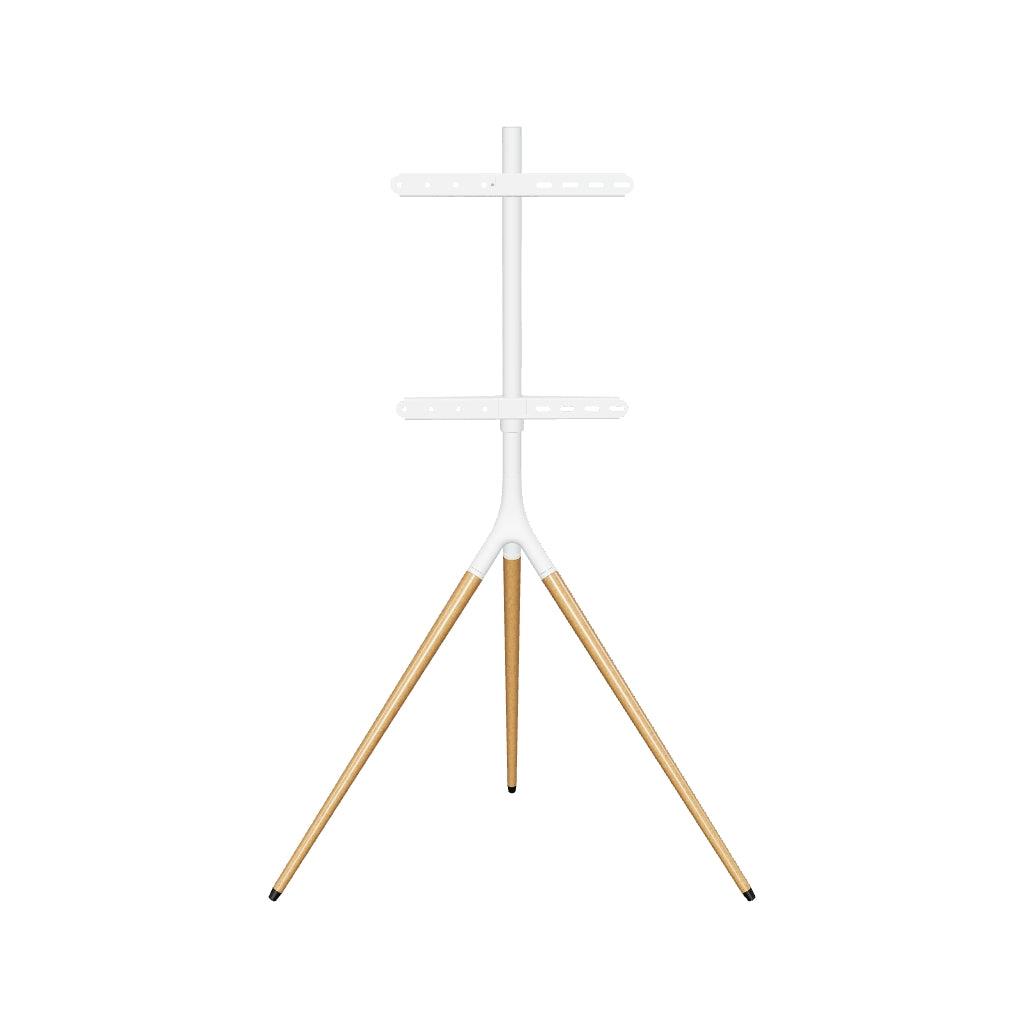

| Summary | ONKRON TS1220-W. Maximum weight capacity: 35 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 165.1 cm (65"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 400 x 400 mm. Height adjustment range: 700 - 1200 mm. Product colour: White, Wood |
| Unit Box Height | 0.13 |
| Unit Box Length | 0.89 |
| Unit Box Width | 0.24 |
| Model | TS1220 |
Mounting
| Maximum screen size | 65 " |
| Maximum VESA mount | 400 x 400 mm |
| Maximum weight capacity | 35 kg |
| Maximum weight capacity (per display) | 35 kg |
| Minimum screen size | 32 " |
| Minimum VESA mount | 100 x 100 mm |
| Mounting type | Floor |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/100 x 200/200 x 100/200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/300 x 400/400 x 200/400 x 300/400 x 400 mm |
Ergonomics
| Height adjustment | Yes |
| Height adjustment range | 700 - 1200 mm |
| Height adjustment type | Manual |
| Swivel angle | 360 ° |
| Swivelling | Yes |
Design
| Housing material | Steel/Wood |
| Product colour | White/Wood |
Packaging data
| Package depth | 245 mm |
| Package height | 130 mm |
| Package weight | 5800 g |
| Package width | 895 mm |
