- For TV Screen 40"-70"
- Max. TV weight: 45.5 kg
- Max. total load: 60.5 kg

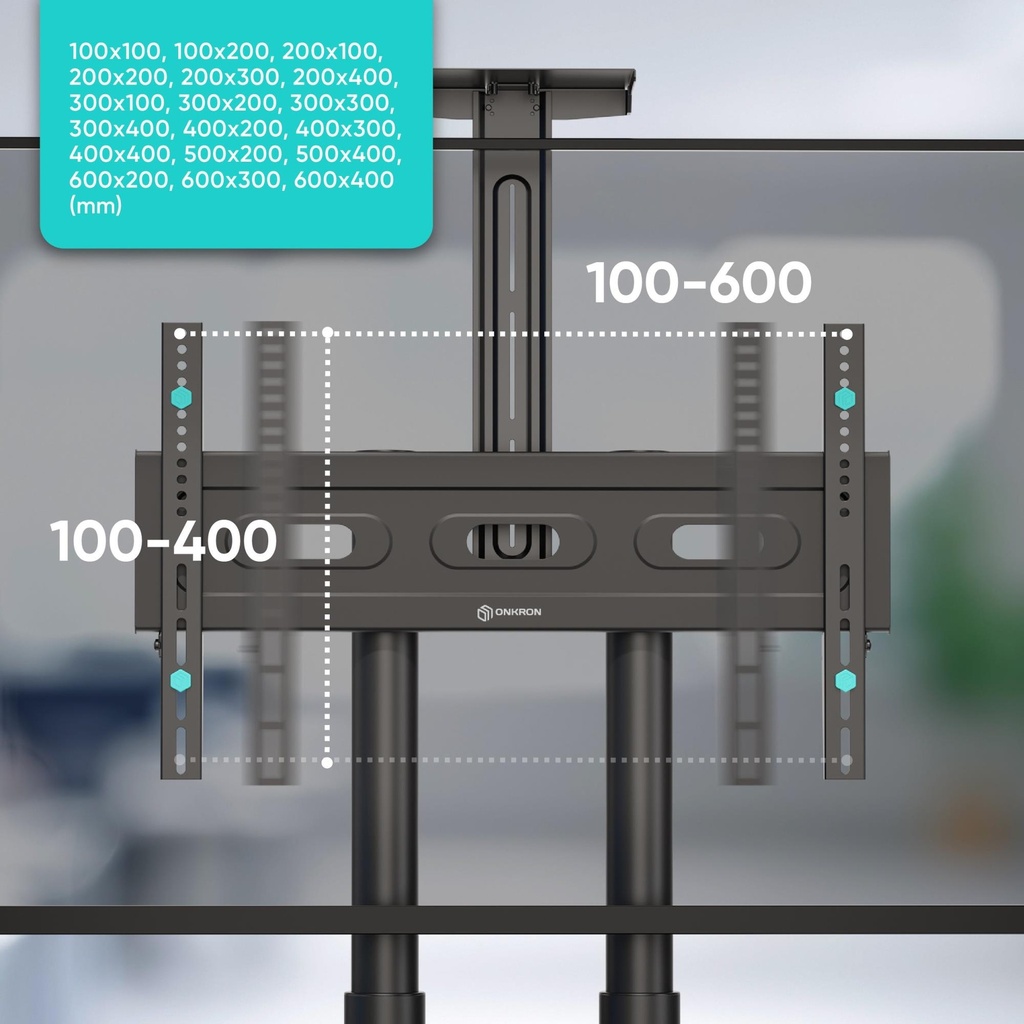

- VESA: 100x100, 100x200, 200x100, 200x200, 200x300, 200x400, 300x100, 300x200, 300x300, 300x400, 400x200, 400x300, 400x400, 500x200, 500x400, 600x200, 600x300, 600x400 mm
- Height adjustment: 1200~1500 mm
- Cable management inside the columns

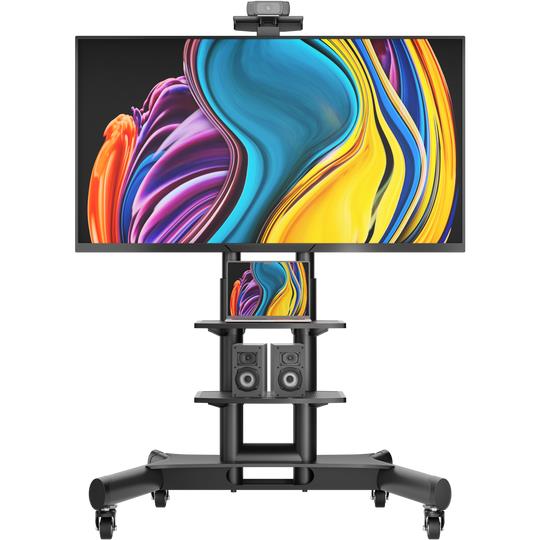

- 2 AV shelves included

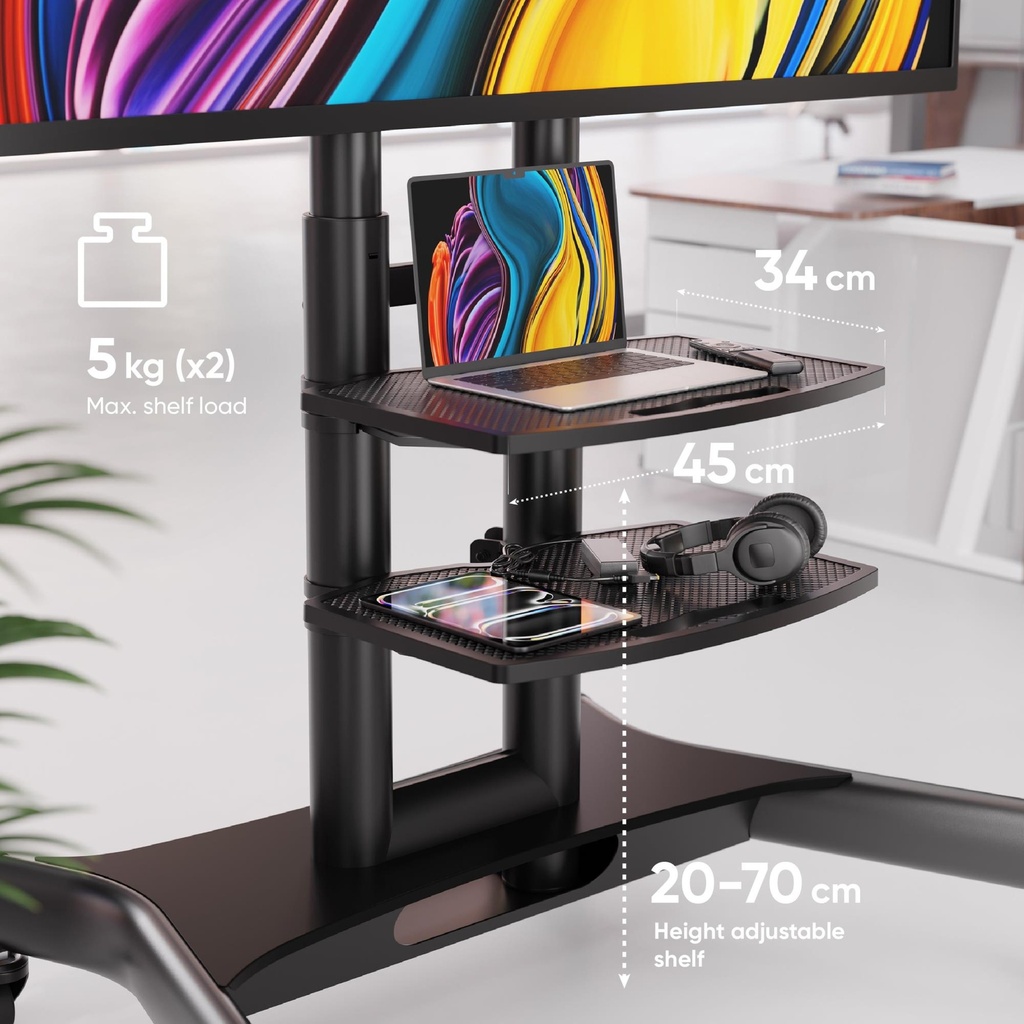

- Adjustable shelf height
- Caster wheels with locking mechanism
- Material: base, columns, VESA panel - steel; shelf - plastic
General
| Unit Calculated Weight | 21.8 kg |
| Unit Calculated Volume | 0.08817 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |

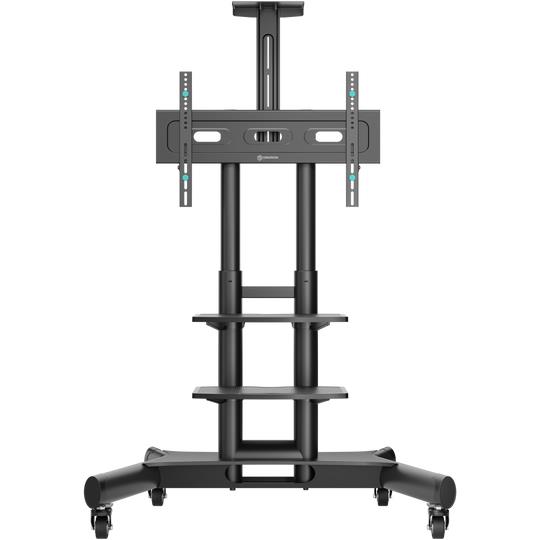

| Summary | ONKRON TS1552-B. Maximum weight capacity: 60.5 kg, Minimum screen size: 101.6 cm (40"), Maximum screen size: 177.8 cm (70"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 600 x 400 mm. Height adjustment range: 1200 - 1500 mm. Product colour: Black |
| Unit Box Height | 0.14 |
| Unit Box Length | 0.94 |
| Unit Box Width | 0.67 |
| Model | TS1552 |
Mounting
| Maximum screen size | 70 " |
| Maximum VESA mount | 600 x 400 mm |
| Maximum weight capacity | 60.5 kg |
| Maximum weight capacity (per display) | 45.5 kg |
| Minimum screen size | 40 " |
| Minimum VESA mount | 100 x 100 mm |
| Mounting type | Floor |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/100 x 200/200 x 100/200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/300 x 400/400 x 200/400 x 300/400 x 400/500 x 200/500 x 400/600 x 200/600 x 300/600 x 400 mm |
Ergonomics
| Height adjustment | Yes |
| Height adjustment range | 1200 - 1500 mm |
| Height adjustment type | Manual |
Design
| Housing material | Plastic/Steel |
| Product colour | Black |
Packaging data
| Package depth | 675 mm |
| Package height | 140 mm |
| Package weight | 21800 g |
| Package width | 945 mm |
