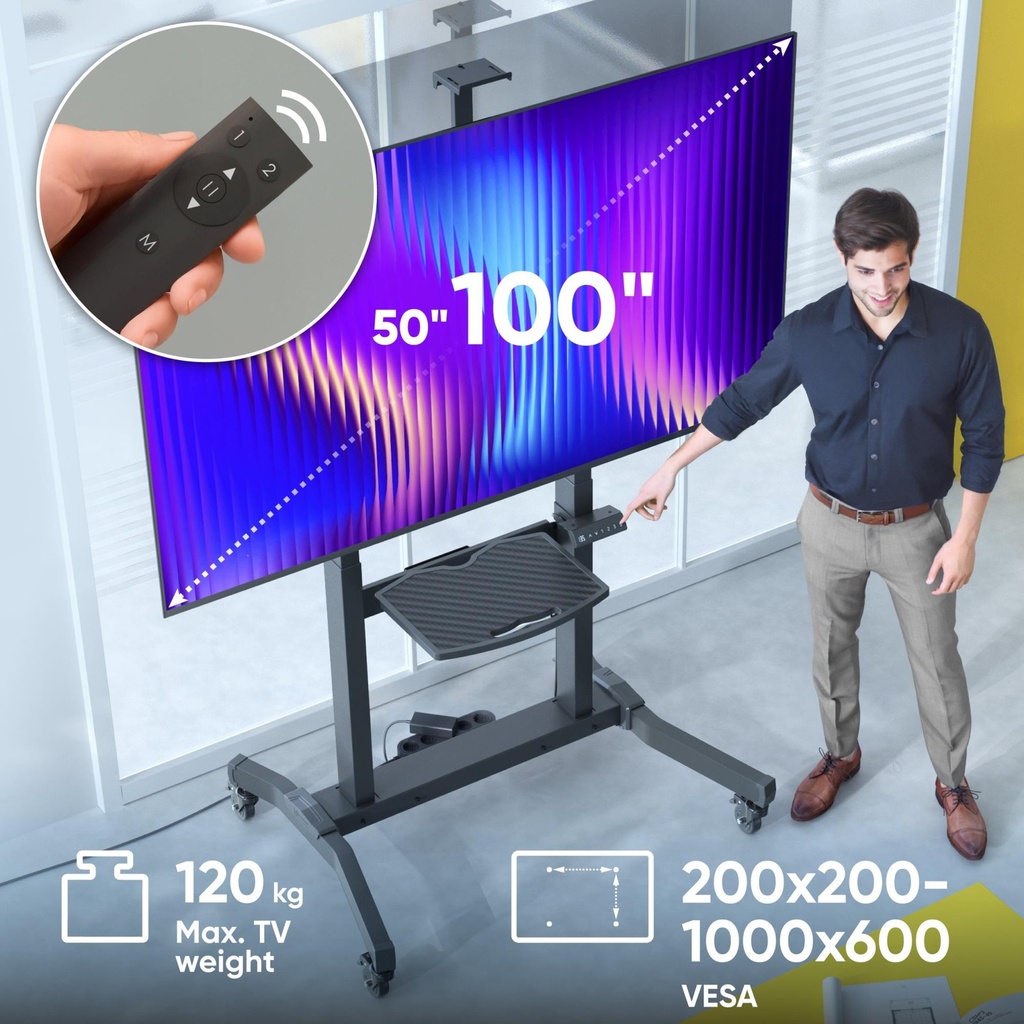

- For TV Screen 50"-100"
- Max. TV weight: 120 kg
- Max. total load: 130 kg
- VESA: 200x200, 200x300, 200x400, 200x500, 300x200, 300x300, 300x400, 300x500, 400x200, 400x300, 400x400, 400x500, 500x200, 500x400, 500x500, 600x200, 600x300, 600x400, 700x400, 700x500, 800x200, 800x400, 800x500, 1000х600 mm
- Tilt angle: -5° ~ +5°

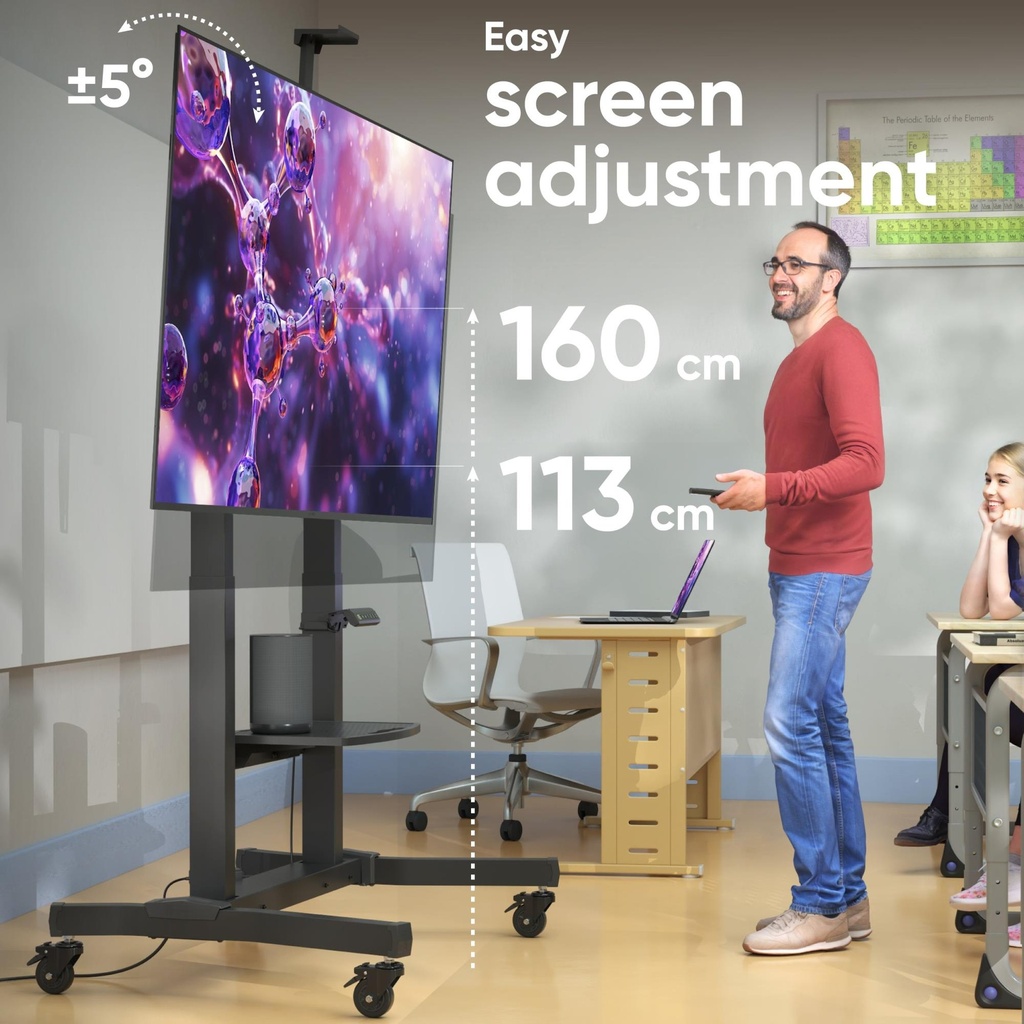

- Height adjustment: 1130-1600 mm

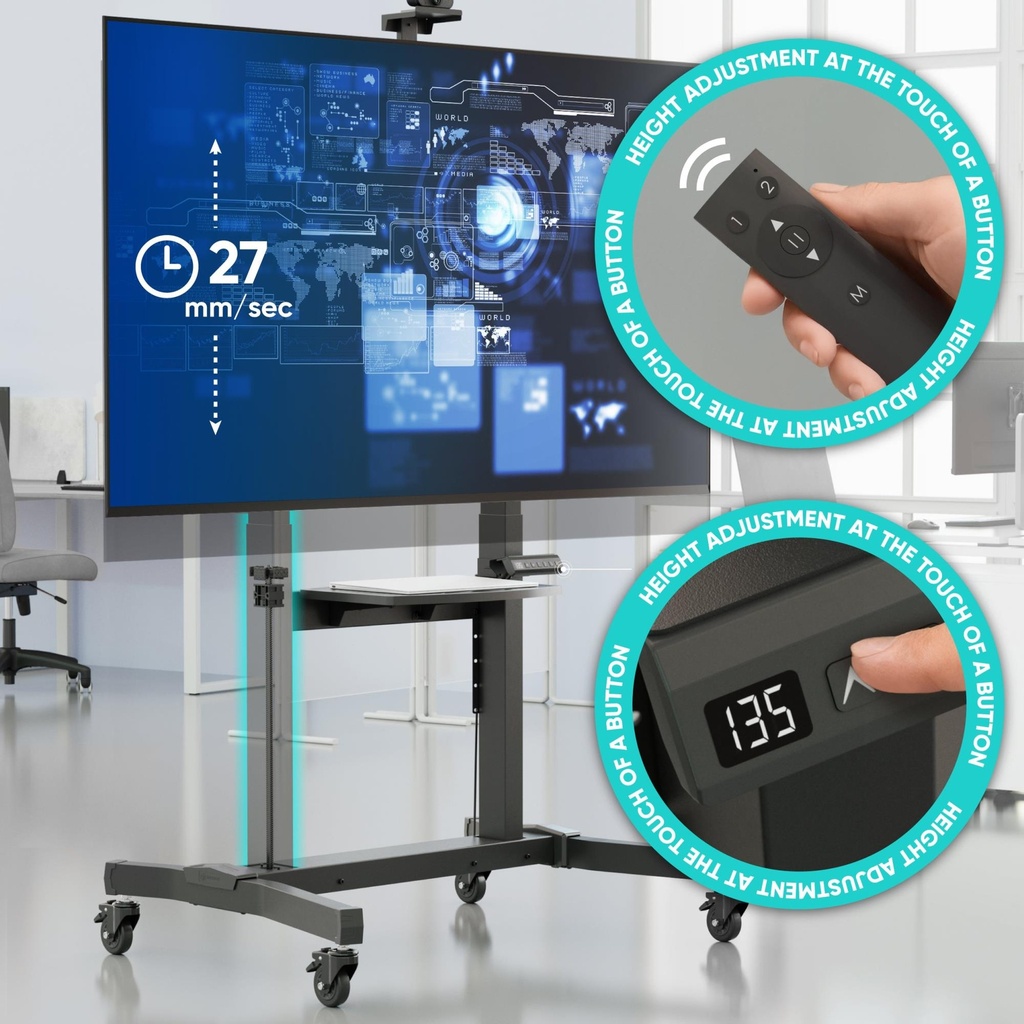

- Speed of movement: 27 mm/s
- Motor power: 52W

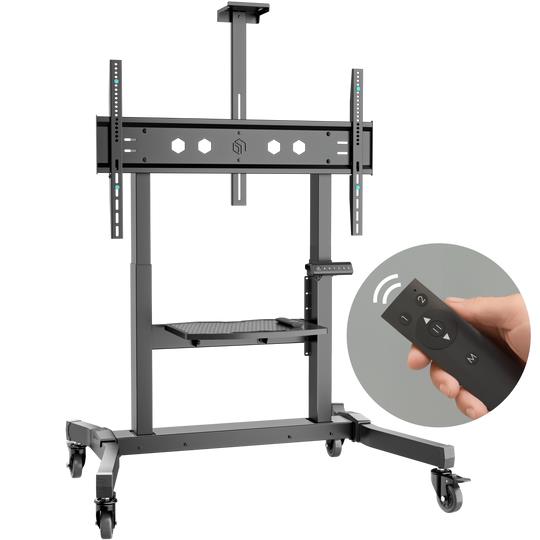

- Remote control range: 5m
- Protection class: IP20
- AV shelf included

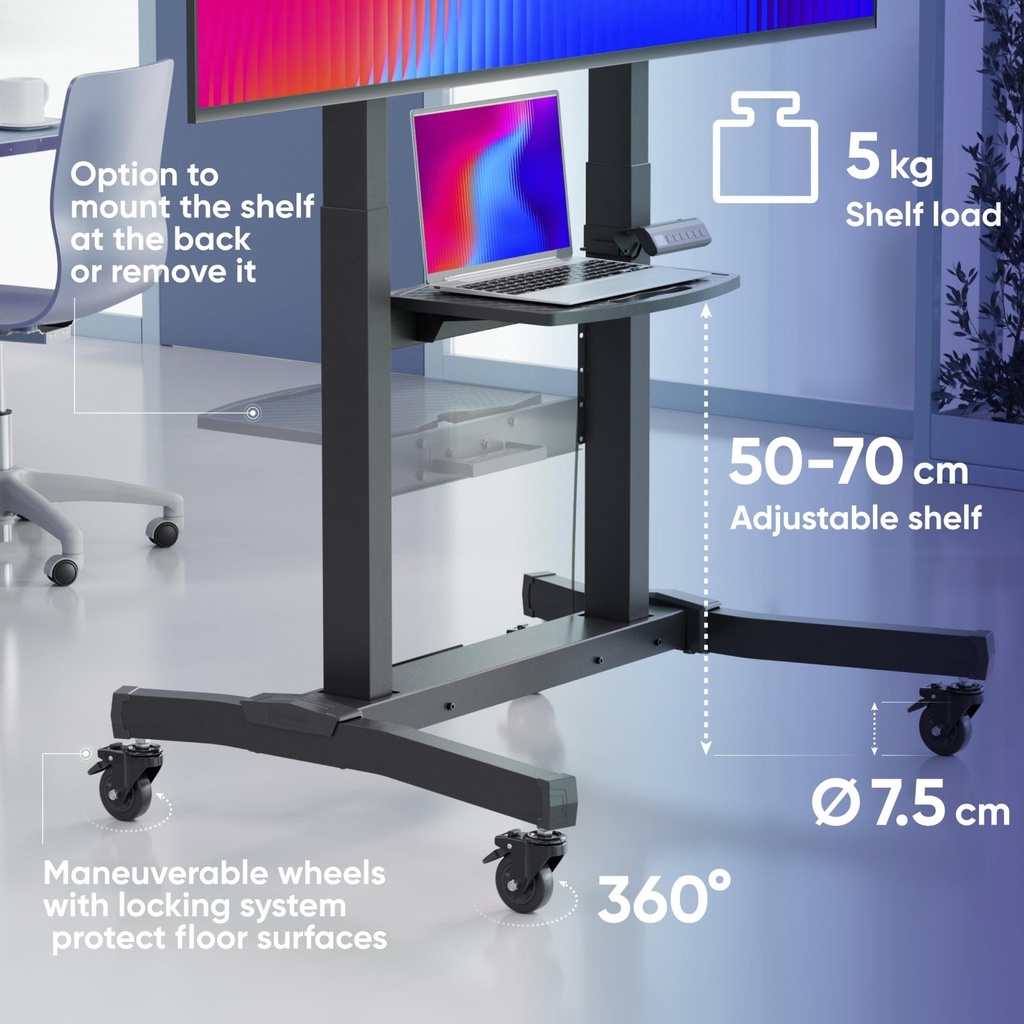

- Adjustable shelf height
- Caster wheels with locking mechanism
- Materials: steel, plastic
General
| Unit Calculated Weight | 35 kg |
| Unit Calculated Volume | 0.1212 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | ONKRON TS1991E-B. Maximum weight capacity: 130 kg, Minimum screen size: 127 cm (50"), Maximum screen size: 2.54 m (100"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 1000 x 600 mm. Height adjustment range: 1130 - 1600 mm, Tilt angle range: -5 - 5°. Product colour: Black |
| Unit Box Height | 0.17 |
| Unit Box Length | 1.15 |
| Unit Box Width | 0.62 |
| Model | TS1991E |
Mounting
| Maximum screen size | 100 " |
| Maximum VESA mount | 1000 x 600 mm |
| Maximum weight capacity | 130 kg |
| Maximum weight capacity (per display) | 120 kg |
| Minimum screen size | 50 " |
| Minimum VESA mount | 200 x 200 mm |
| Mounting type | Floor |
| Number of displays supported | 1 |
| Panel mounting interface | 200 x 200/200 x 300/200 x 400/200 x 500/300 x 200/300 x 300/300 x 400/300 x 500/400 x 200/400 x 300/400 x 400/400 x 500/500 x 200/500 x 400/500 x 500/600 x 200/600 x 300/600 x 400/700 x 400 mm |
Ergonomics
| Height adjustment | Yes |
| Height adjustment range | 1130 - 1600 mm |
| Height adjustment type | Electric |
| Lockable wheels | Yes |
| Number of wheels | 4 wheel(s) |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 5 ° |
| Wheels | Yes |
Design
| Housing material | Plastic/Steel |
| Product colour | Black |
Packaging data
| Package depth | 605 mm |
| Package height | 165 mm |
| Package weight | 35000 g |
| Package width | 1140 mm |
