- For TV Screens 60"-120"
- Max. TV weight: 120 kg
- Max. total load: 150 kg
- VESA: 200x200, 200x300, 200x400, 200x500, 300x200, 300x300, 300x400, 300x500, 400x200, 400x300, 400x400, 400x500, 500x200, 500x400, 500x500, 600x200, 600x300, 600x400, 700x400, 700x500, 800x200, 800x400, 800x500, 1000х600 mm

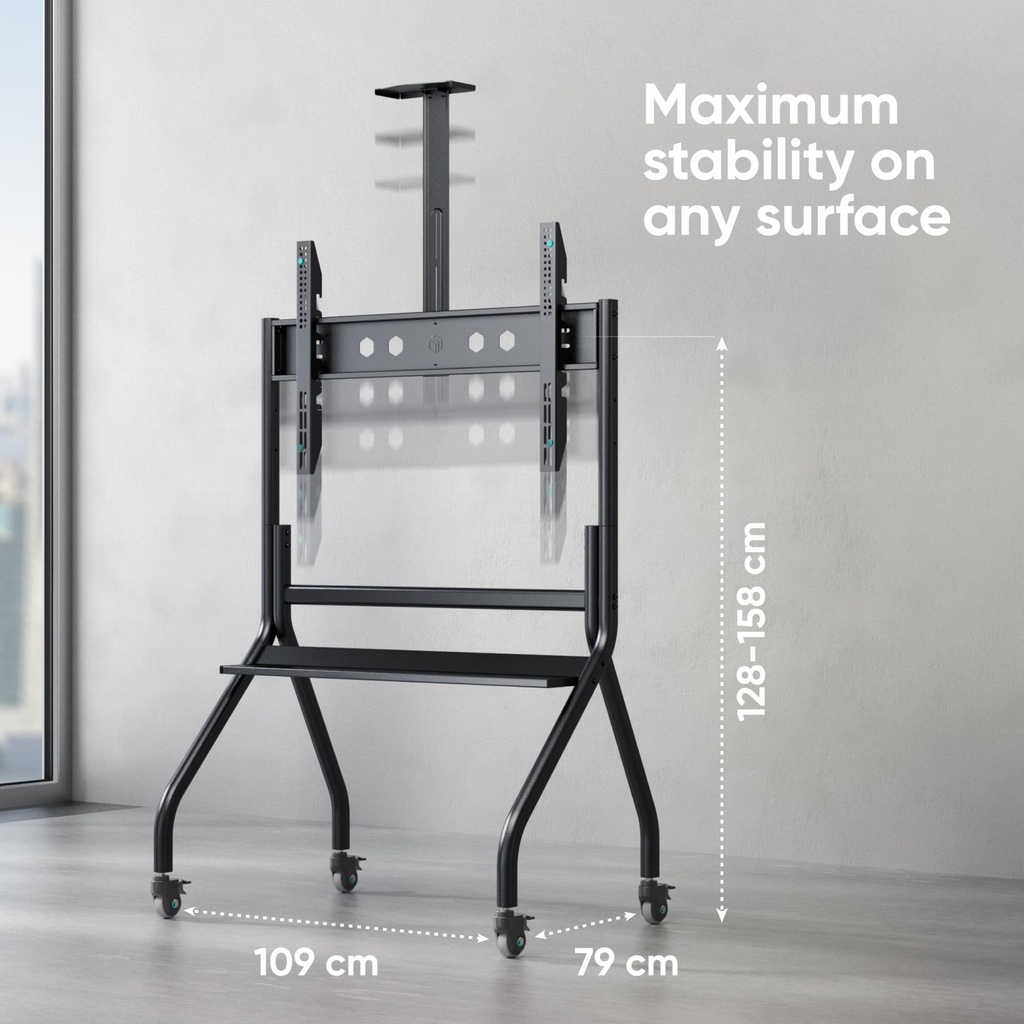

- Height adjustment: 1280-1580 mm
- AV and WEB/PTZ shelf included
- Caster wheels with locking mechanism
- Material: steel
General
| Unit Calculated Weight | 23.1 kg |
| Unit Calculated Volume | 0.08316 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | ONKRON TS2080-B. Maximum weight capacity: 150 kg, Minimum screen size: 152.4 cm (60"), Maximum screen size: 3.05 m (120"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 1000 x 600 mm. Height adjustment range: 1280 - 1580 mm. Product colour: Black |
| Unit Box Height | 0.165 |
| Unit Box Length | 1.2 |
| Unit Box Width | 0.42 |
Mounting
| Maximum screen size | 120 " |
| Maximum VESA mount | 1000 x 600 mm |
| Maximum weight capacity | 150 kg |
| Maximum weight capacity (per display) | 120 kg |
| Minimum screen size | 60 " |
| Minimum VESA mount | 200 x 200 mm |
| Mounting type | Floor |
| Number of displays supported | 1 |
| Panel mounting interface | 1000 x 600/200 x 200/200 x 300/200 x 400/200 x 500/300 x 200/300 x 300/300 x 400/300 x 500/400 x 200/400 x 300/400 x 400/400 x 500/500 x 200/500 x 400/500 x 500/600 x 200/600 x 300/600 x 400/700 x 400/700 x 500/800 x 200/800 x 400/800 x 500 mm |
Ergonomics
| Height adjustment | Yes |
| Height adjustment range | 1280 - 1580 mm |
| Height adjustment type | Manual |
| Lockable wheels | Yes |
| Number of wheels | 4 wheel(s) |
| Wheels | Yes |
Design
| Housing material | Plastic/Steel |
| Product colour | Black |
Packaging data
| Package depth | 425 mm |
| Package height | 165 mm |
| Package weight | 24100 g |
| Package width | 1215 mm |
