- WiFi 6 support (2.4/5 GHz bands)
- 5.3 Gbps aggregate throughput rate

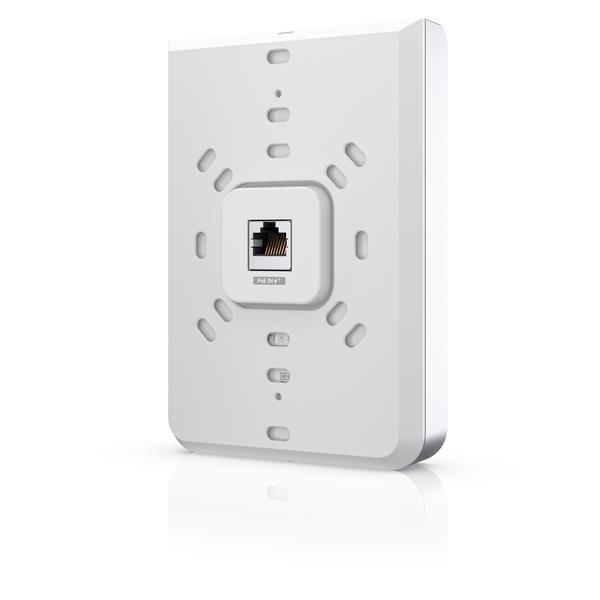

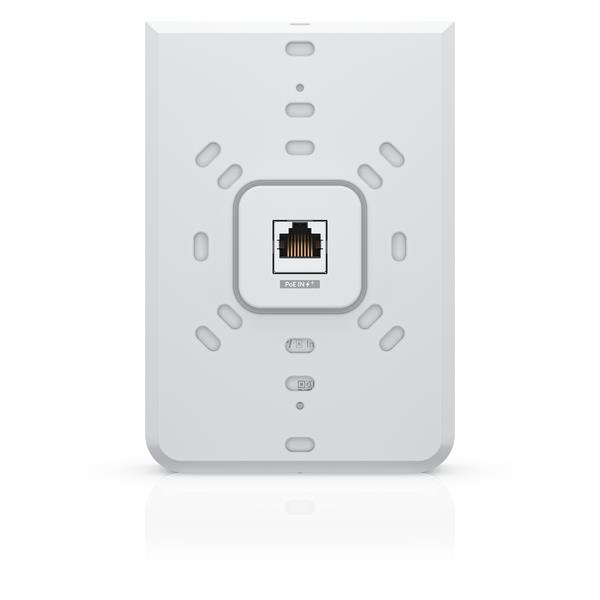

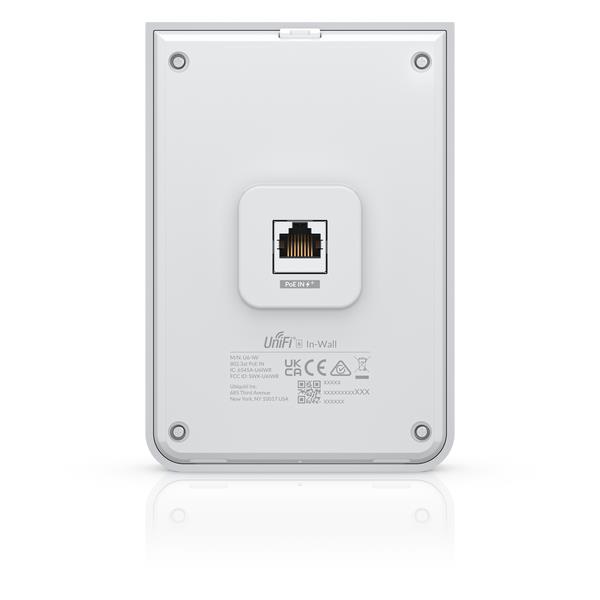

- (1) GbE RJ45 port (PoE In)

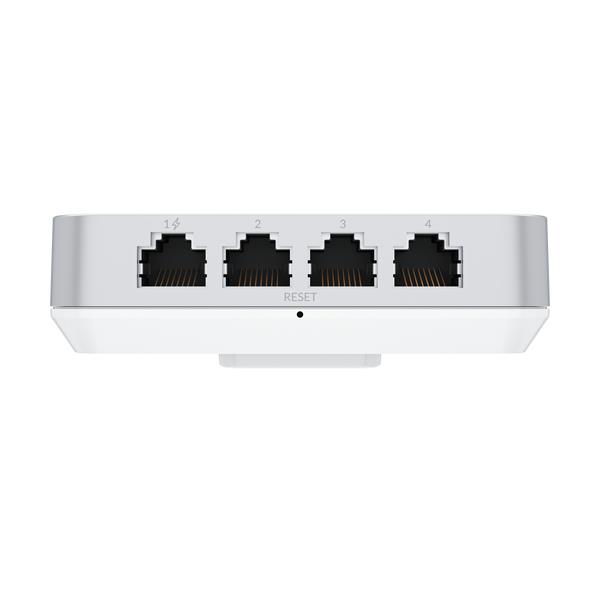

- (4) GbE RJ45 ports, including one that supports PoE output
General
| Unit Calculated Weight | 0.725 kg |
| Unit Calculated Volume | 0.003498 cubm |
| Units per Shipping Box | 10 |
| Units per Pallet | 0 |
| Summary | Ubiquiti Unifi 6 In-Wall. 2.4 GHz, 5 GHz, Maximum data transfer rate: 4800 Mbit/s. Security algorithms: WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 15.4 W |
| Unit Box Height | 0.046 |
| Unit Box Length | 0.165 |
| Unit Box Width | 0.12 |
| Model name | Unifi 6 In-Wall |
| Model | U6-IW |
Features
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Bluetooth | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Maximum data transfer rate | 4800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 573.5 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4800 Mbit/s |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n |
| Quality of Service (QoS) support | Yes |
| VLAN support | Yes |
Security
| Security algorithms | WPA/WPA2/WPA3/WPA-Enterprise/WPA-PSK |
Protocols
| Supported network protocols | 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax, 802.1Q |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 5 |
| Internal RJ-45 ports quantity | 4 |
| WAN connection | Ethernet (RJ-45) |
Power
| DC voltage range | 48 V |
| Input current | 0.5 A |
| Power consumption (max) | 15.4 W |
| Power consumption (typical) | 13.5 W |
| Power over Ethernet (PoE) | Yes |
Design
| Housing material | Aluminium,Plastic |
| LED indicators | Yes |
| Placement | Wall |
| Product colour | White |
| Reset button | Yes |
Antenna
| Antenna gain level (max) | 5.9 dBi |
| Antenna type | Internal |
Certificates
| Certification | CE, FCC, IC |
Weight & dimensions
| Depth | 31.19 mm |
| Height | 139.66 mm |
| Weight | 460 g |
| Width | 96 mm |
Packaging content
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -30 - 60 °C |
