Indoor/outdoor WiFi 6 AP with 4 spatial streams, an integrated super antenna, and a gigabit passthrough port.
- WiFi 6
- 4 spatial streams
- 185 m² (2,000 ft²) coverage with the integrated omnidirectional super antenna
- 350+ connected devices
- Powered using PoE
- GbE uplink with (1) GbE passthrough port
- Versatile wall and pole mounting
- Weatherproof (outdoor exposed)
General
| Unit Calculated Weight | 2.5 kg |
| Unit Calculated Volume | 0.01817 cubm |
| Units per Shipping Box | 3 |
| Units per Pallet | 0 |
| Summary | Ubiquiti U6 Mesh Pro. 2.4 GHz, 5 GHz, Maximum data transfer rate: 2400 Mbit/s. Security algorithms: WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 9 W |
| CnCode | 85176200 |
| Unit Box Height | 0.11 |
| Unit Box Length | 0.4 |
| Unit Box Width | 0.24 |
| Model name | U6 Mesh Pro |
| Model | U6-MESH-PRO |
Features
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Maximum data transfer rate | 2400 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 573.5 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2400 Mbit/s |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.1Q |
| Quality of Service (QoS) support | Yes |
| VLAN support | Yes |
Security
| Security algorithms | WPA/WPA2/WPA3/WPA-Enterprise/WPA-PSK |
Ports & interfaces

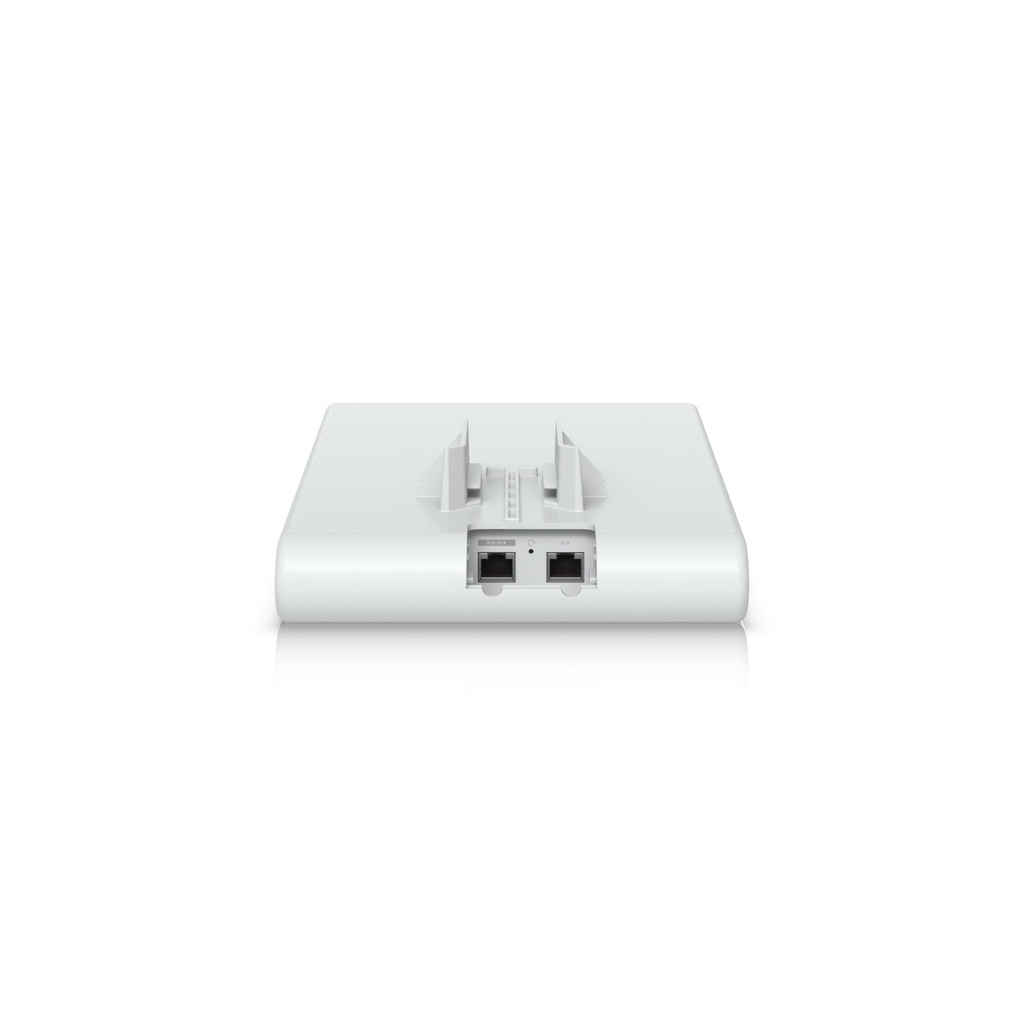

| Ethernet LAN (RJ-45) ports | 2 |
Power
| DC voltage range | 42.5 - 57 V |
| Power consumption (max) | 9 W |
| Power over Ethernet (PoE) | Yes |
Design
| Housing material | Polycarbonate (PC) |
| International Protection (IP) code | IPX6 |
| LED indicators | Yes |
| Placement | Pole,Wall |
| Product colour | White |
| Recommended usage | Indoor/outdoor |
| Reset button | Yes |
Antenna
| Antenna direction type | Omni-directional |
| Antenna gain level (max) | 8 dBi |
| Antenna type | Internal |
Weight & dimensions
| Depth | 60.2 mm |
| Height | 343.2 mm |
| Weight | 819 g |
| Width | 181.2 mm |
Packaging content
| AC adapter included | Yes |
| Mounting kit | Yes |
| PoE adapter included | Yes |
| Quantity per pack | 1 pc(s) |
| Quick start guide | Yes |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -30 - 60 °C |
Sustainability
| Sustainability compliance | Yes |
