WRL ACCESS POINT/U6+ UBIQUITI
- 1,500 ft² coverage
- 300+ connected devices
- WiFi6 (2x2 MIMO)
- Powered using PoE
General
| Unit Calculated Weight | 0.65 kg |
| Unit Calculated Volume | 0.002911 cubm |
| Units per Shipping Box | 20 |
| Units per Pallet | 0 |
| Summary | Ubiquiti U6+. 2.4 GHz, 5 GHz, Maximum data transfer rate: 2402 Mbit/s. Security algorithms: WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA3-Enterprise. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 9 W |
| Unit Box Height | 0.055 |
| Unit Box Length | 0.185 |
| Unit Box Width | 0.18 |
| Model name | U6+ |
Features
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 2402 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 573.5 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Maximum indoor range | 139.35 m |
| MIMO | Yes |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.1Q |
| Number of users | 300 user(s) |
| Quality of Service (QoS) support | Yes |
| Transmitting power | 23 dBmW |
| VLAN support | Yes |
Security
| Security algorithms | WPA2-Enterprise/WPA3-Enterprise/WPA-Enterprise/WPA-PSK |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
| Internal RJ-45 ports quantity | 1 |
Power
| DC voltage range | 44 - 57 V |
| Power consumption (max) | 9 W |
| Power over Ethernet (PoE) | Yes |
Design
| Housing material | Aluminium,Polycarbonate (PC) |
| LED indicators | Yes |

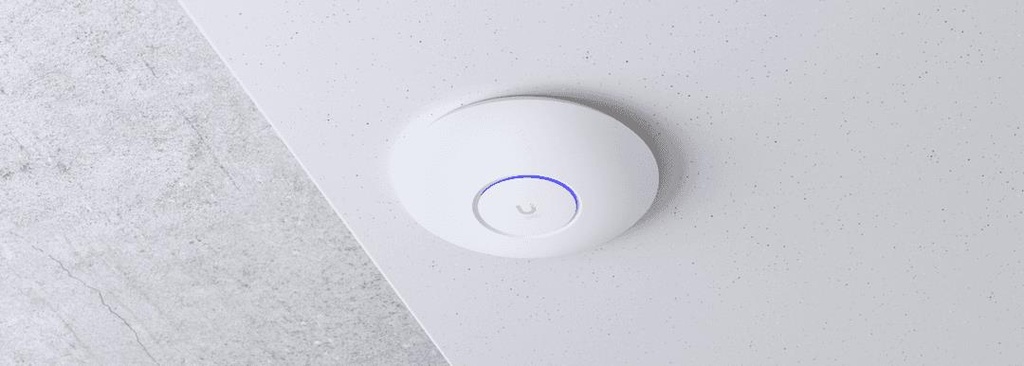

| Placement | Ceiling |
| Product colour | White |
| Reset button | Yes |
Antenna
| Antenna gain level (max) | 5.4 dBi |
| Antenna type | Internal |
Certificates
| Certification | IC |
| Compliance certificates | CE/Federal Communications Commission (FCC) |
Weight & dimensions
| Depth | 160 mm |
| Height | 33 mm |
| Weight | 338 g |
| Width | 160 mm |
Packaging content
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -30 - 60 °C |
