Wall-mounted WiFi 7 AP with 4 spatial streams and an integrated 2.5 GbE PoE switch designed for hospitality environments.
General
| Unit Calculated Weight | 0.667 kg |
| Unit Calculated Volume | 0.003699 cubm |
| Units per Shipping Box | 12 |
| Units per Pallet | 0 |
| Summary | Ubiquiti U7 In-Wall. 2.4 GHz, 5 GHz, Maximum data transfer rate: 4300 Mbit/s. Security algorithms: PPSK. Ethernet LAN data rates: 2500 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 13 W |
| CnCode | 85176200 |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.2 |
| Unit Box Width | 0.15 |
| Model name | U7 In-Wall |
| Model | U7-IW |
Features
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Band steering | Yes |
| Coverage area | 115 m² |
| Ethernet LAN data rates | 2500 Mbit/s |
| Fast roaming | Yes |
| Fit AP mode features | Hotspot 2.0 |
| Frequency band | 2.4 - 5 GHz |
| Maximum data transfer rate | 4300 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 688 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4300 Mbit/s |
| Maximum Tx power (2.4 GHz) | 23 dBmW |
| Maximum Tx power (5 GHz) | 24 dBmW |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Networking standards | IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11be/IEEE 802.11k/IEEE 802.11n/IEEE 802.11r/IEEE 802.11v |
| Number of users | 200 user(s) |
| Spatial streams | 4 |
| VLAN support | Yes |
| Wireless meshing | Yes |
Security
| Security algorithms | PPSK |
Management features
| Access point management | Wi-Fi schedule |
Ports & interfaces

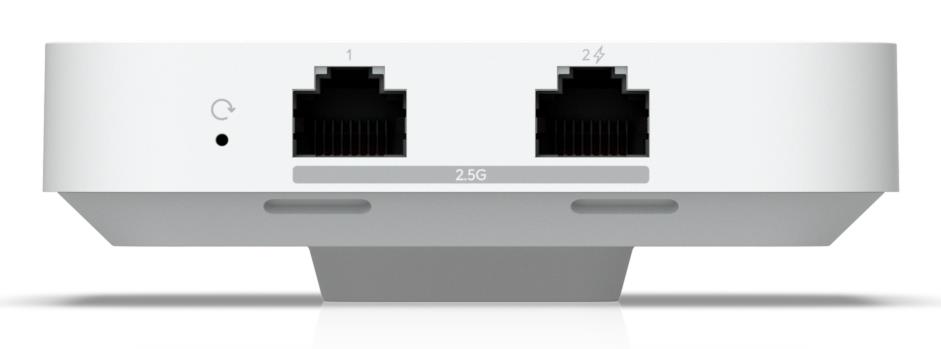

| Ethernet LAN (RJ-45) ports | 3 |
Power
| DC voltage range | 42.5 - 57 V |
| Power consumption (max) | 13 W |
| Power over Ethernet (PoE) | Yes |
Design
| Housing material | Aluminium,Polycarbonate (PC) |
| LED indicators | Status |
| Placement | Wall |
| Product colour | White |
| Reset button | Yes |
Antenna
| Antenna gain level (max) | 8 dBi |
| Antenna type | Internal |
| Antennas quantity | 4 |
Certificates
| Compliance certificates | CE/Federal Communications Commission (FCC)/Industry Canada (IC) |
Weight & dimensions
| Depth | 30.2 mm |
| Height | 137 mm |
| Weight | 400 g |
| Width | 98.7 mm |
Packaging content

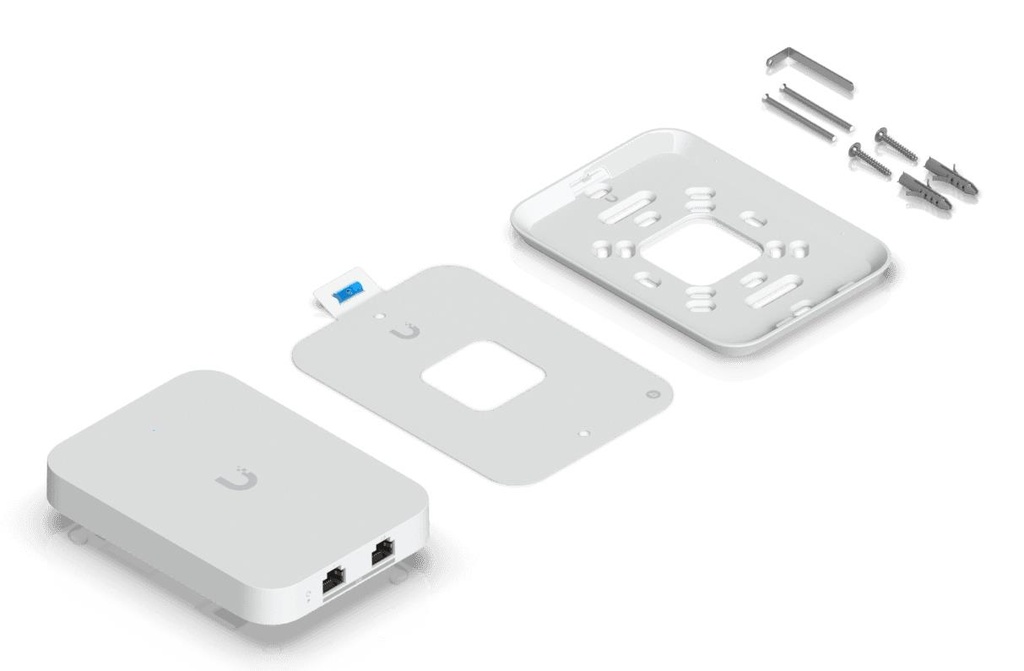

| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -30 - 40 °C |
