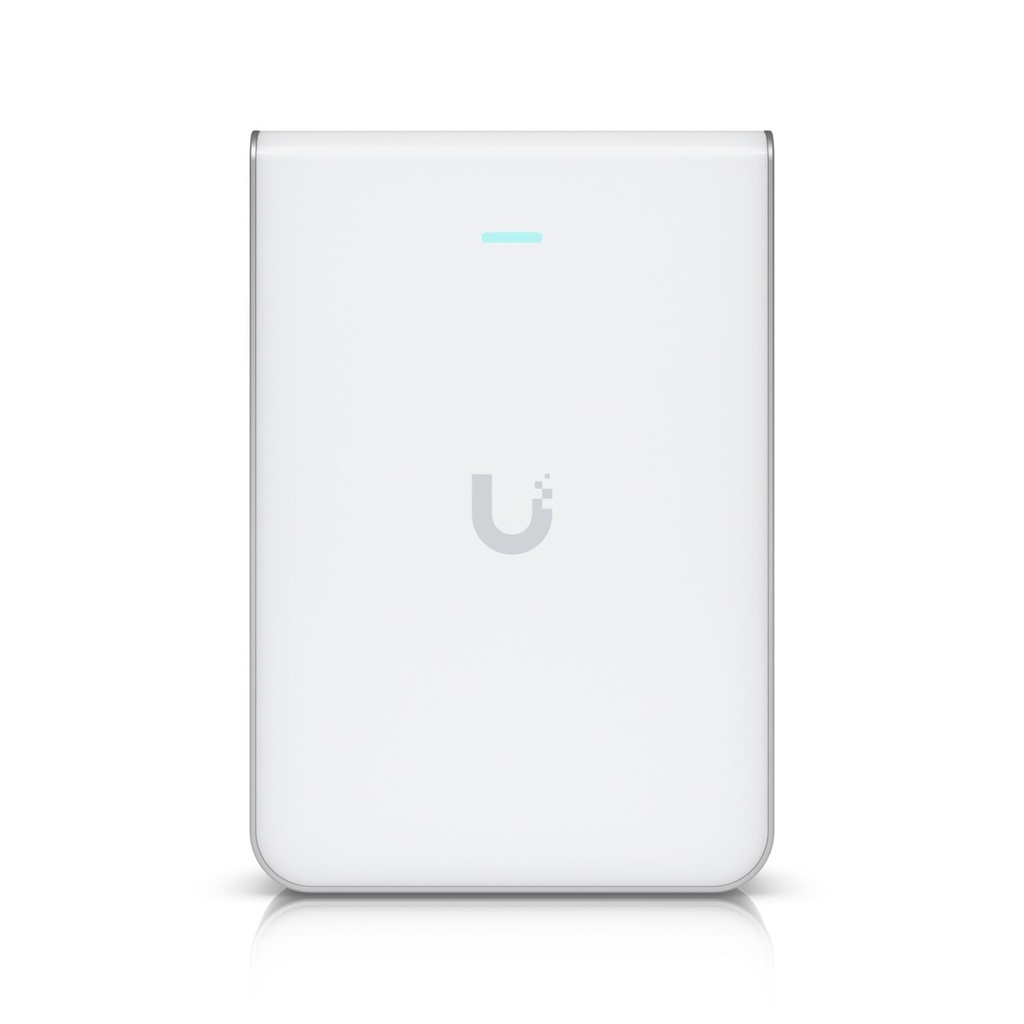

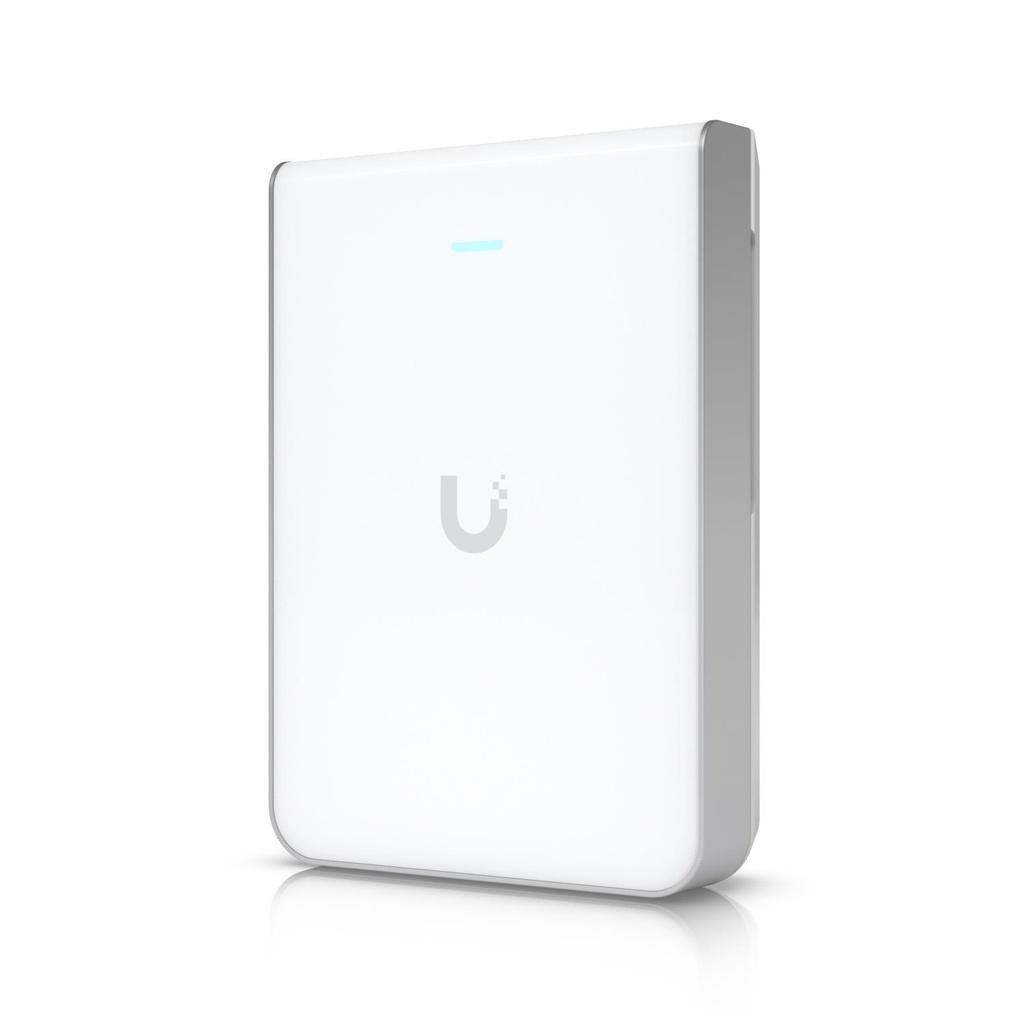

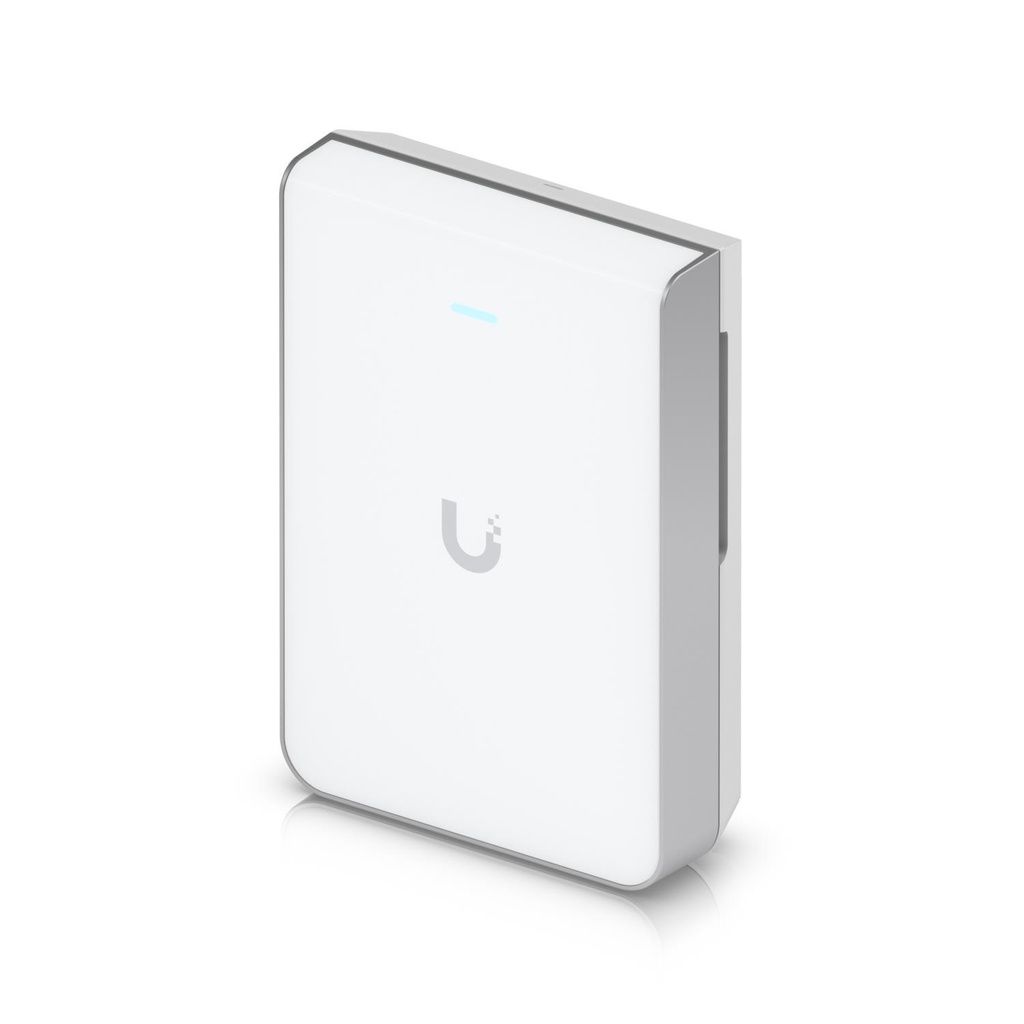

Wall-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support tailored for home builders with seamless installation options.
- WiFi 7 with 6 GHz support
- 6 spatial streams
- 140 m² (1,500 ft²) coverage
- 300+ connected devices
- Powered using PoE+
- 2.5 GbE uplink
- Versatile deployment with optional Flush Mount and Table Stand accessories
General
| Unit Calculated Weight | 0.875 kg |
| Unit Calculated Volume | 0.004131 cubm |
| Units per Shipping Box | 12 |
| Units per Pallet | 0 |
| Summary | Ubiquiti U7 Pro Wall. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 5700 Mbit/s. Security algorithms: PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3. Ethernet LAN data rates: 2500 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 22 W |
| Unit Box Height | 0.075 |
| Unit Box Length | 0.205 |
| Unit Box Width | 0.15 |
| Model name | UBIQUITI U7 Pro Wall |
| Model | U7-PRO-WALL |
Features
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | Yes |
| Ethernet LAN data rates | 2500 Mbit/s |
| Frequency band | 2.4 - 6 GHz |
| Maximum data transfer rate | 5700 Mbit/s |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11be/IEEE 802.11g/IEEE 802.11n/IEEE 802.1Q/IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Rate limiting | Yes |
| Spatial streams | 6 |
| Throughput data rate | 5764 Mbit/s |
| VLAN support | Yes |
Security
| Security algorithms | PPSK/WPA/WPA2/WPA3/WPA-Enterprise/WPA-PSK |
Ports & interfaces

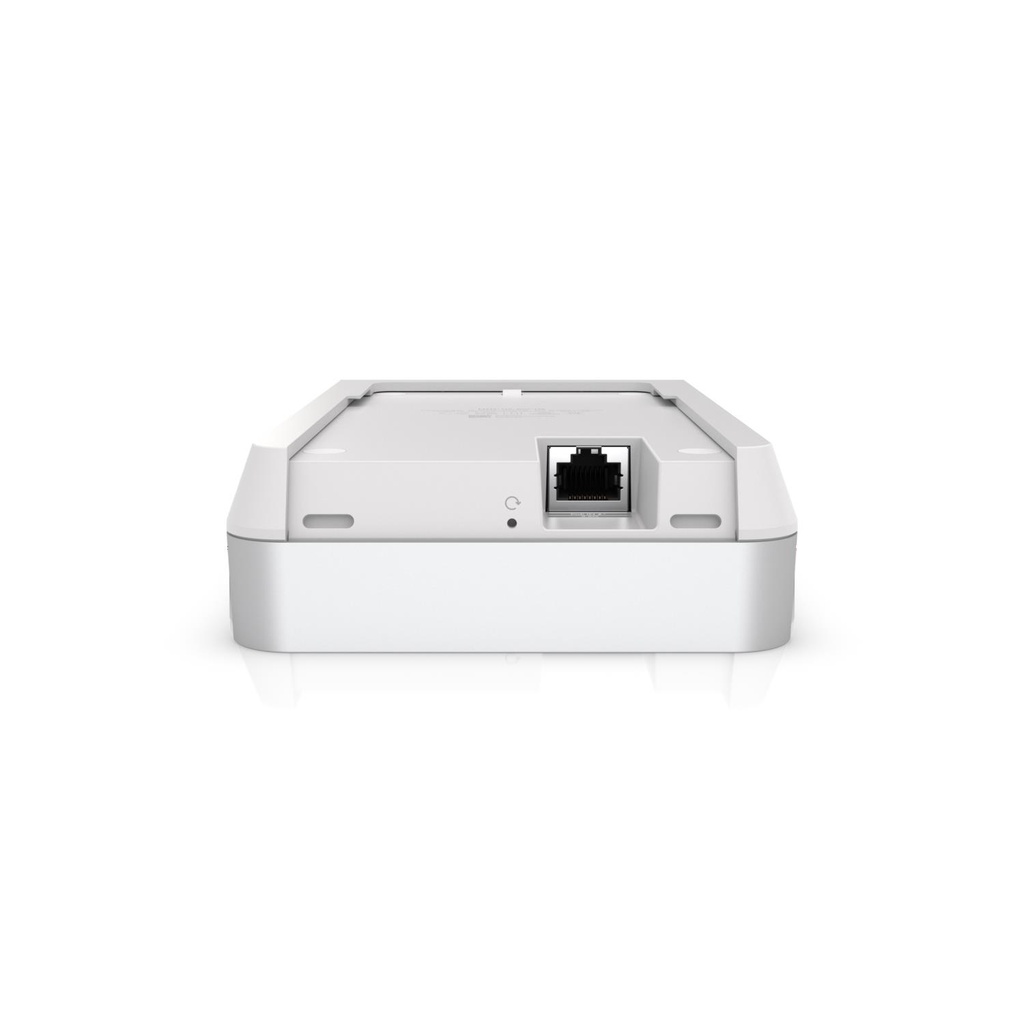

| Ethernet LAN (RJ-45) ports | 1 |
Power
| DC voltage range | 44 - 57 V |
| Power consumption (max) | 22 W |
| Power over Ethernet (PoE) | Yes |
Design
| Housing material | Aluminium,Polycarbonate (PC) |
| LED indicators | Yes |
| Placement | Wall |
| Product colour | White |
| Recommended usage | Indoor |
| Reset button | Yes |
Antenna
| Antenna gain level (max) | 6 dBi |
| Antenna type | Internal |
Certificates
| Compliance certificates | CE/Federal Communications Commission (FCC)/Industry Canada (IC) |
Weight & dimensions
| Depth | 150 mm |
| Height | 36 mm |
| Weight | 580 g |
| Width | 103 mm |
Packaging content
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -30 - 60 °C |
Sustainability
| Sustainability compliance | Yes |
