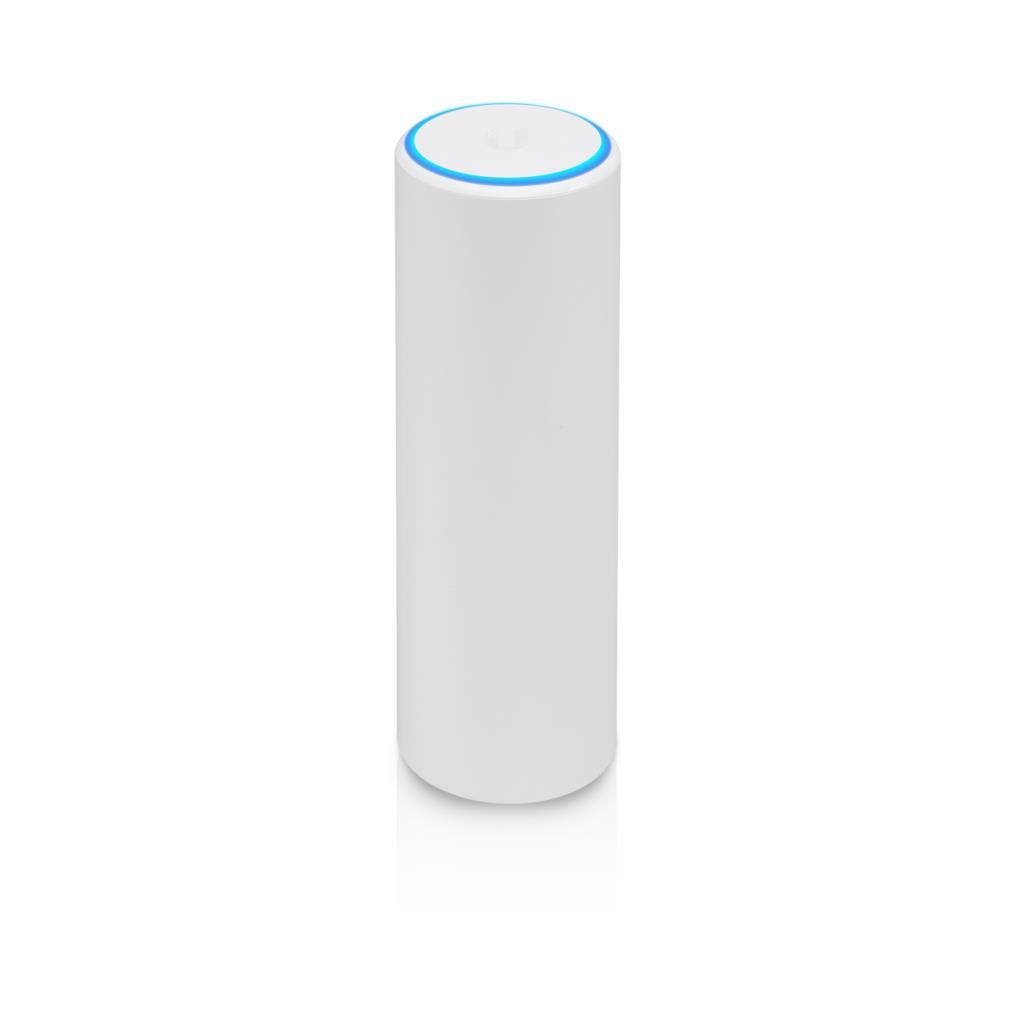

Small and sleek, yet powerful, the 802.11ac 4×4 AP is ideal for enterprises, businesses, and homes. The modern yet discreet design allows placement near users for optimal performance
- 802.11ac Wave 2 Technology
- 5 GHz Radio: 802.11ac Wave 2, 4×4 MU-MIMO with Radio Rate of 1.733 Gbps
- 2.4 GHz Radio 802.11ac: 2×2 MIMO with Radio Rate of 300 Mbps
- Indoor and Outdoor Use

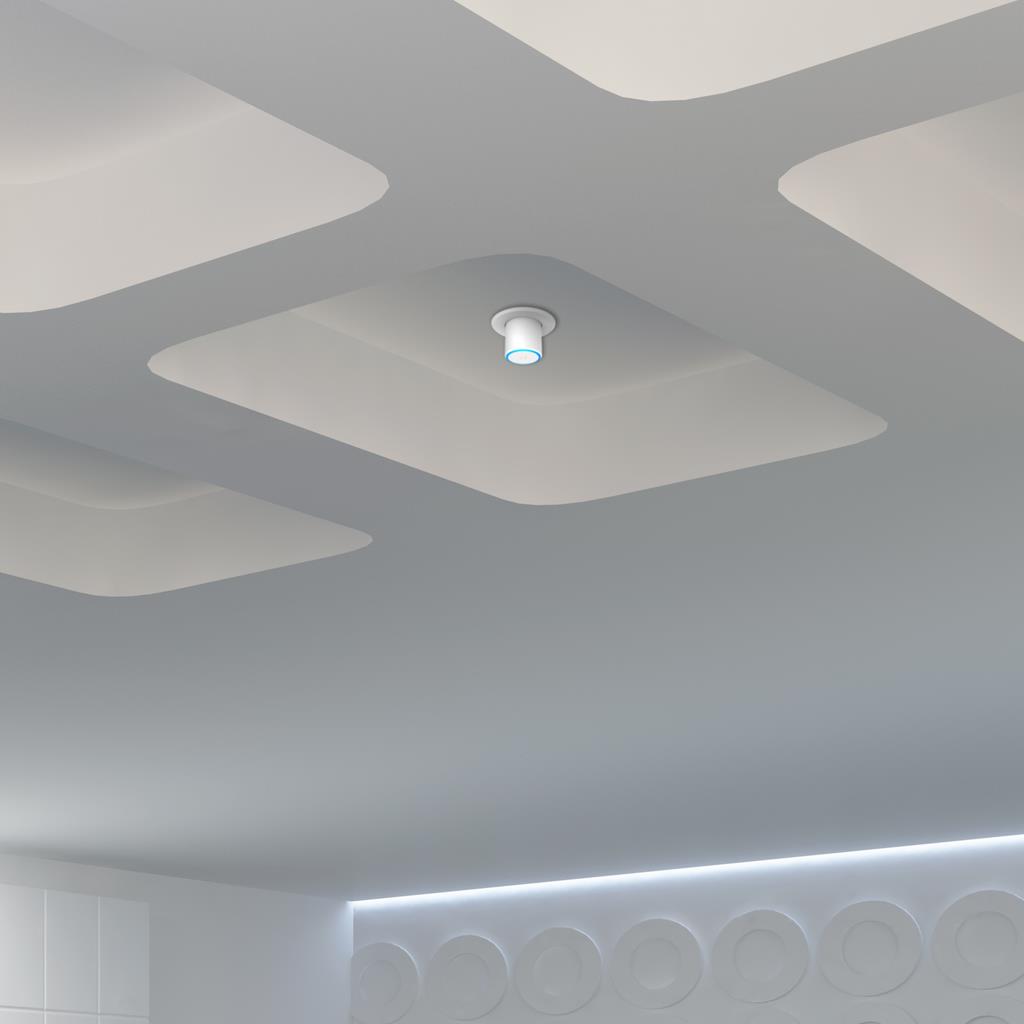

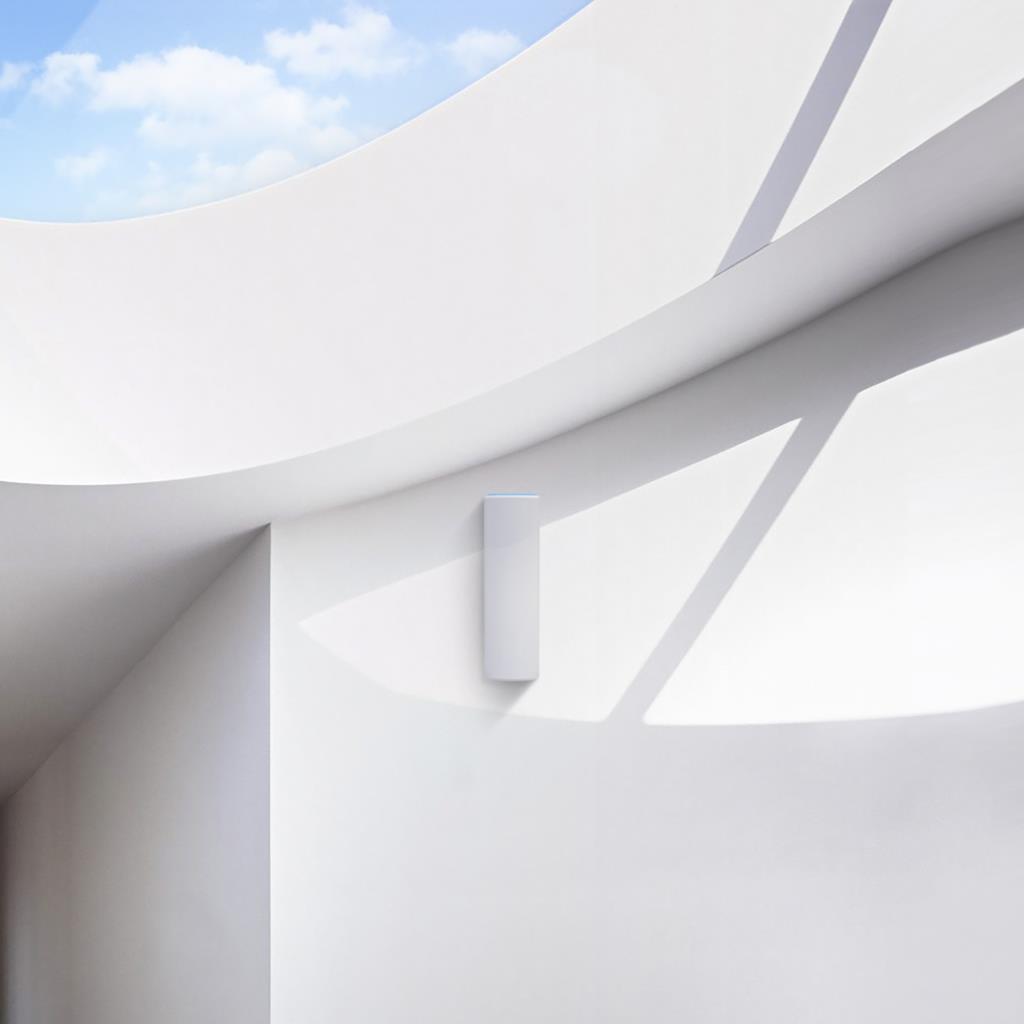

- Tabletop, Wall, and Pole Mounting Brackets Included
- Seamless Integration and Management with UniFi Network Solution
General
| Unit Calculated Weight | 0.95 kg |
| Unit Calculated Volume | 0.002127 cubm |
| Units per Shipping Box | 1 |
| Summary | Ubiquiti FlexHD. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1733 Mbit/s. Security algorithms: AES, TKIP, WEP, WPA-Enterprise, WPA-PSK, WPA2. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 10.5 W |
| Unit Box Height | 0.095 |
| Unit Box Length | 0.185 |
| Unit Box Width | 0.121 |
| Model name | FlexHD |
Features
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Frequency band | 2.4/5 GHz |
| Maximum data transfer rate | 1733 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1733 Mbit/s |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n |
| Virtual LAN features | Tagged VLAN |
| VLAN support | Yes |
Security
| Security algorithms | AES/TKIP/WEP/WPA2/WPA-Enterprise/WPA-PSK |
Ports & interfaces

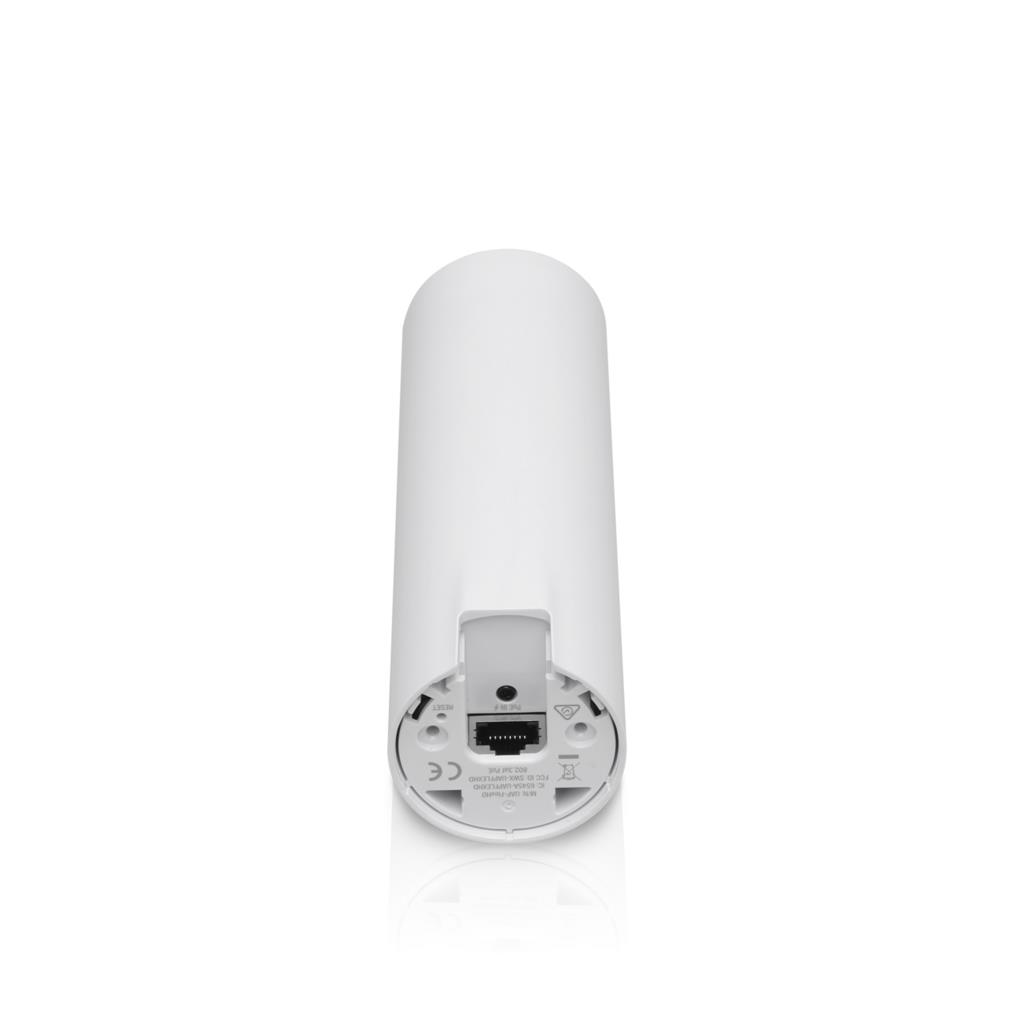

| Ethernet LAN (RJ-45) ports | 1 |
Power
| AC input voltage | 44 - 57 V |
| Input current | 0.32 A |
| Power consumption (max) | 10.5 W |
| Power over Ethernet (PoE) | Yes |
Design
| LED indicators | Status/System |
| Placement | Ceiling,Pole,Table,Wall |
| Product colour | White |
| Reset button | Yes |
Antenna
| Antenna type | Internal |
Certificates
| Certification | CE, FCC, IC |
Weight & dimensions
| Depth | 48.5 mm |
| Height | 159.49 mm |
| Weight | 315 g |
| Width | 48.5 mm |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -30 - 70 °C |
Logistics data
| Harmonized System (HS) code | 85176990 |
