Compact, easy-to-deploy cameras with incredibly flexible mounting options.
- 2K (4MP) video resolution

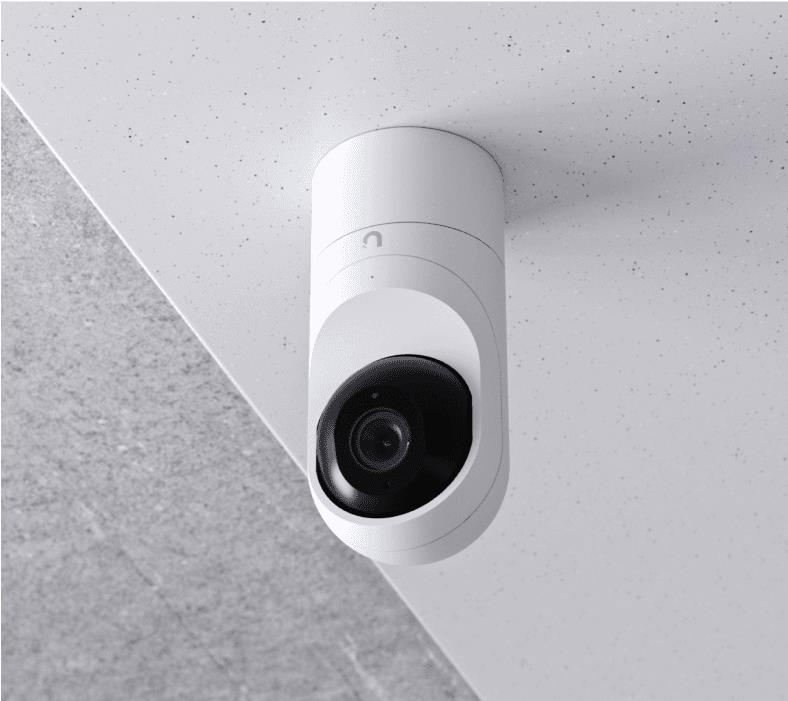

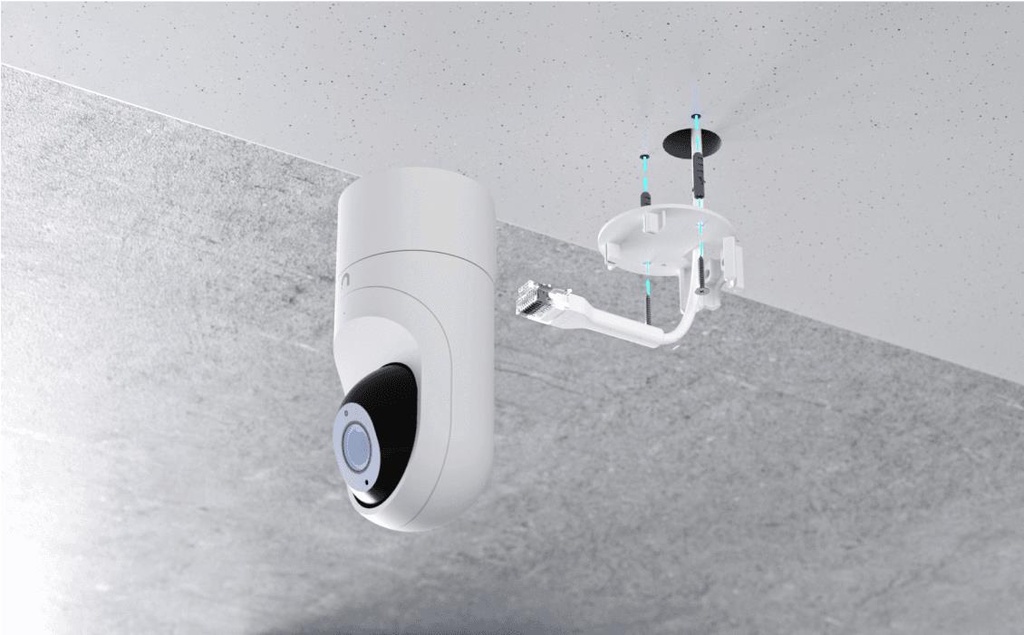

- Versatile table or ceiling mounting
- 20 ft IR night vision
- AI event detections
- Connect and power using PoE
- Record audio with an integrated microphone
- Weatherproof (outdoor exposed)
General
| Unit Calculated Weight | 0.4 kg |
| Unit Calculated Volume | 0.003142 cubm |
| Units per Shipping Box | 18 |
| Summary | Ubiquiti G5 Flex. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Desk, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 102.4°, Lens viewing angle, vertical: 54.9°, Lens viewing angle, diagonal: 120.6°. Sensor type: CMOS. Night vision distance: 6 m, LED type: IR |
| Unit Box Height | 0.08 |
| Unit Box Length | 0.15 |
| Unit Box Width | 0.15 |
| Model | G5 Flex |
Design
| Fog proof | Yes |
| Form factor | Dome |
| Housing material | Polycarbonate (PC) |
| IK code | IK04 |
| International Protection (IP) code | IPX4 |
| LED indicators | Yes |
| Mounting type | Ceiling/Wall/Desk |
| Product colour | White |
Performance
| Built-in processor | Yes |
| Certification | FCC, IC, CE |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Processor model | ARM Cortex-A7 |
| Type | IP security camera |
Camera
| Lens viewing angle, diagonal | 120.6 ° |
| Lens viewing angle, horizontal | 102.4 ° |
| Lens viewing angle, vertical | 54.9 ° |
| White balance | Manual |
Image sensor
| Sensor type | CMOS |
Lens system
| Fixed focus | Yes |
Night vision
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 6 m |
Video
| Frame rate | 30 fps |
| Image quality adjustment | Brightness/Colour depth/Contrast/DNR/Sharpness |
| Maximum resolution | 2688 x 1512 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction,3D noise reduction |
| Supported graphics resolutions | 2688 x 1512 |
| Total megapixels | 4 MP |
| Video compression formats | H.264 |
| Video formats supported | H.264 |
Audio
| Built-in microphone | Yes |
Network
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
Storage
| Built-in HDD | No |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
Management features
| Reset button | Yes |
Power
| DC output voltage | 57 |
| Power consumption (max) | 4 W |
| Power source type | PoE |
Operational conditions
| Operating relative humidity (H-H) | 0 - 90 % |
| Operating temperature (T-T) | -20 - 40 °C |
Weight & dimensions
| Diameter | 48 mm |
| Height | 107.5 mm |
| Weight | 170 g |

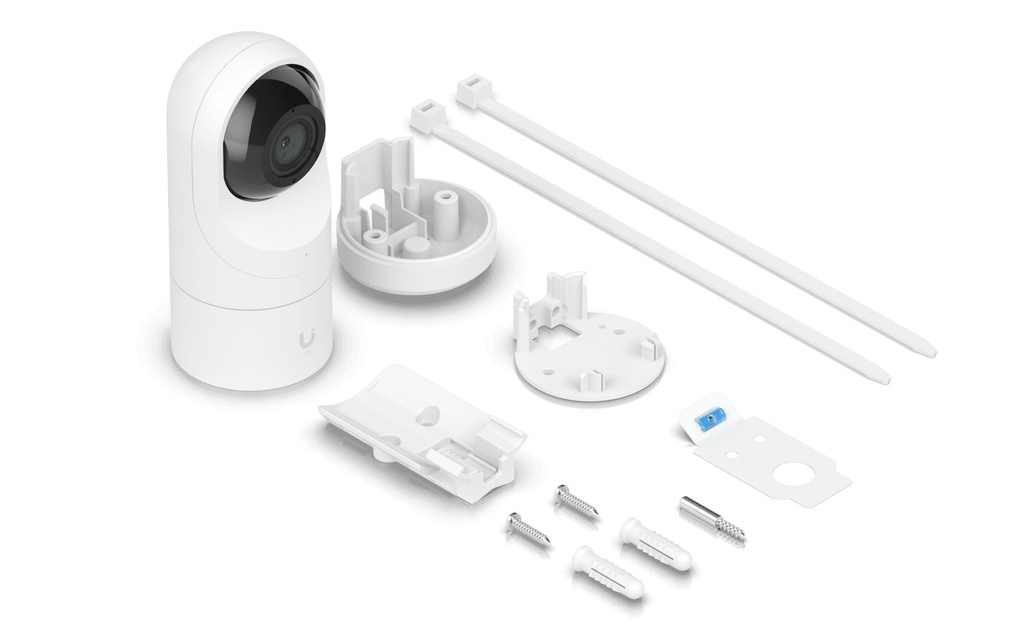

Packaging content
| Mounting kit | Yes |
| Number of cameras | 1 |
| Screws included | Yes |
