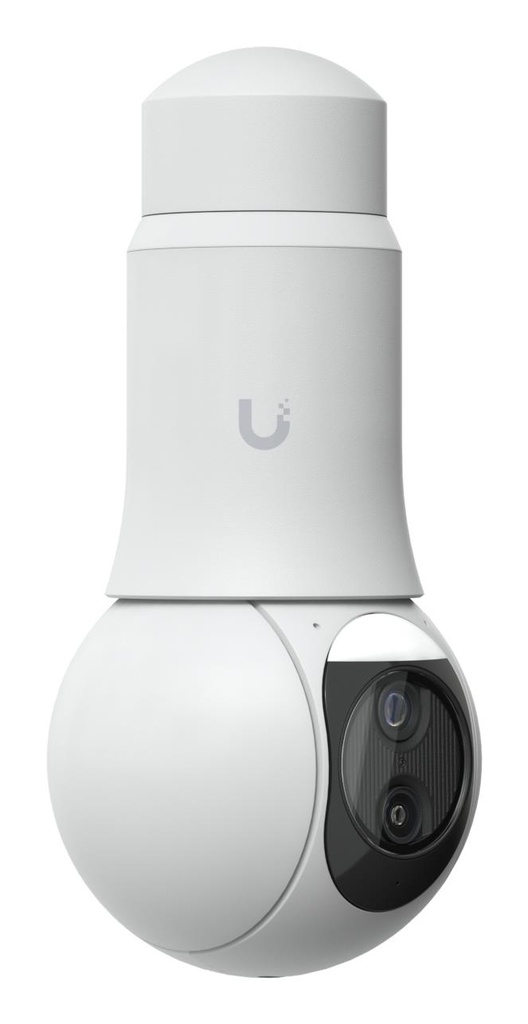

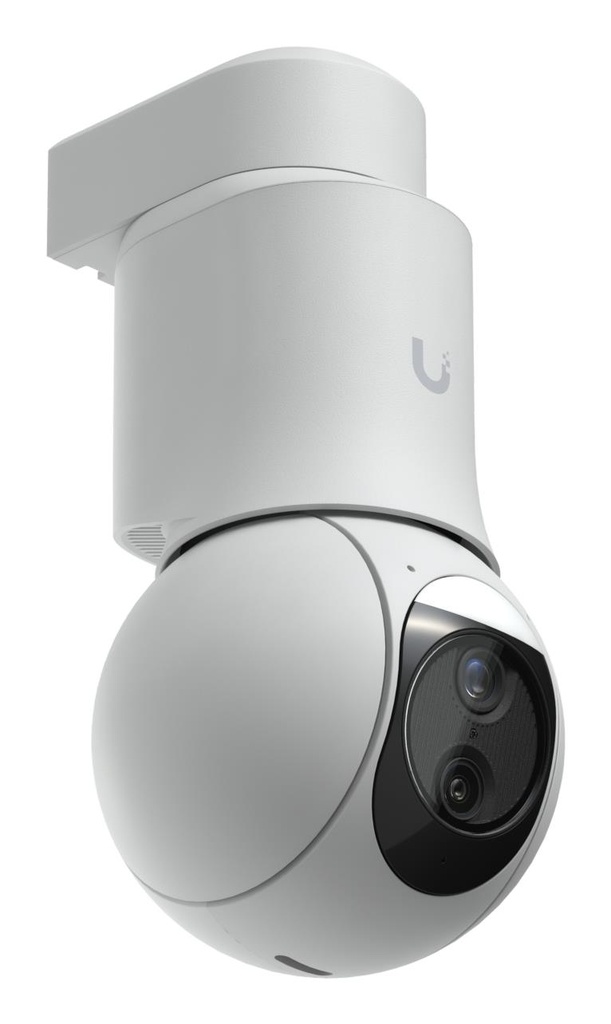

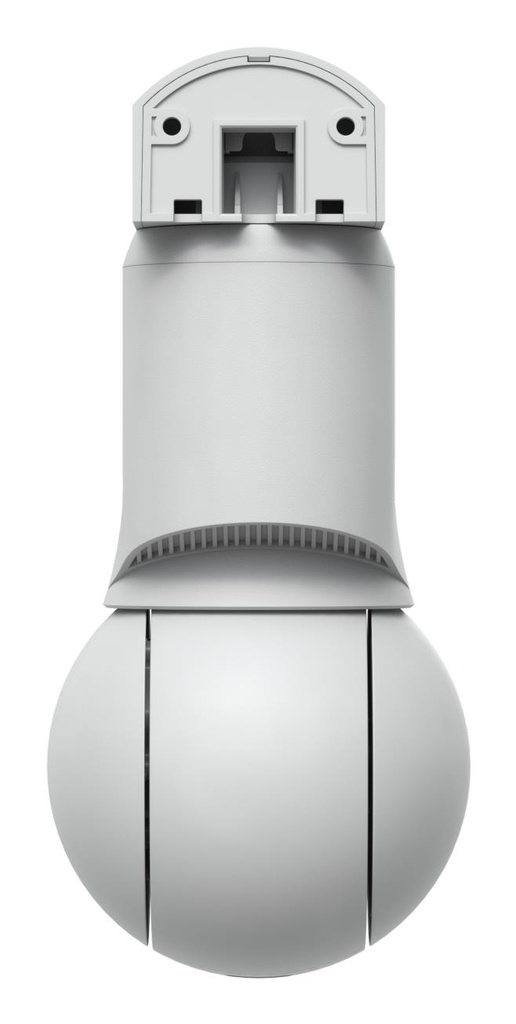

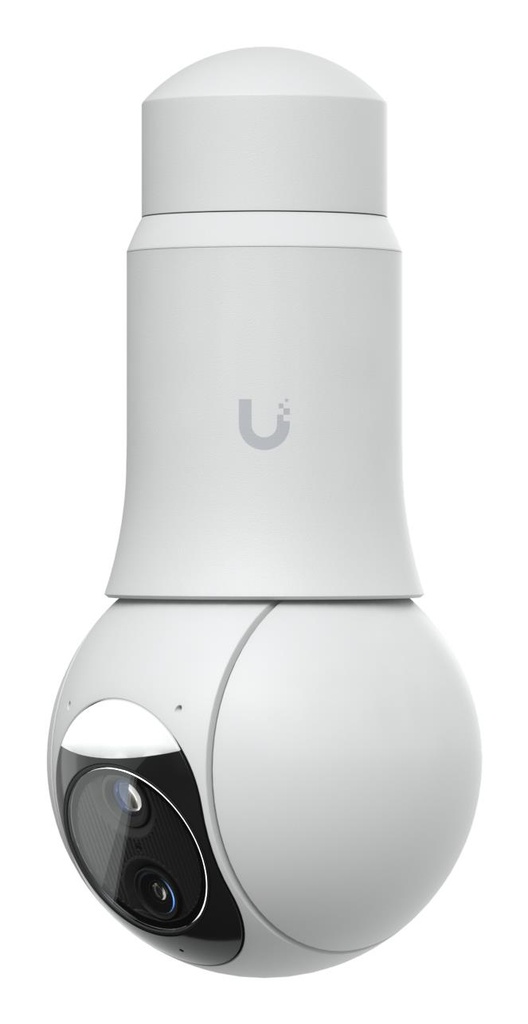

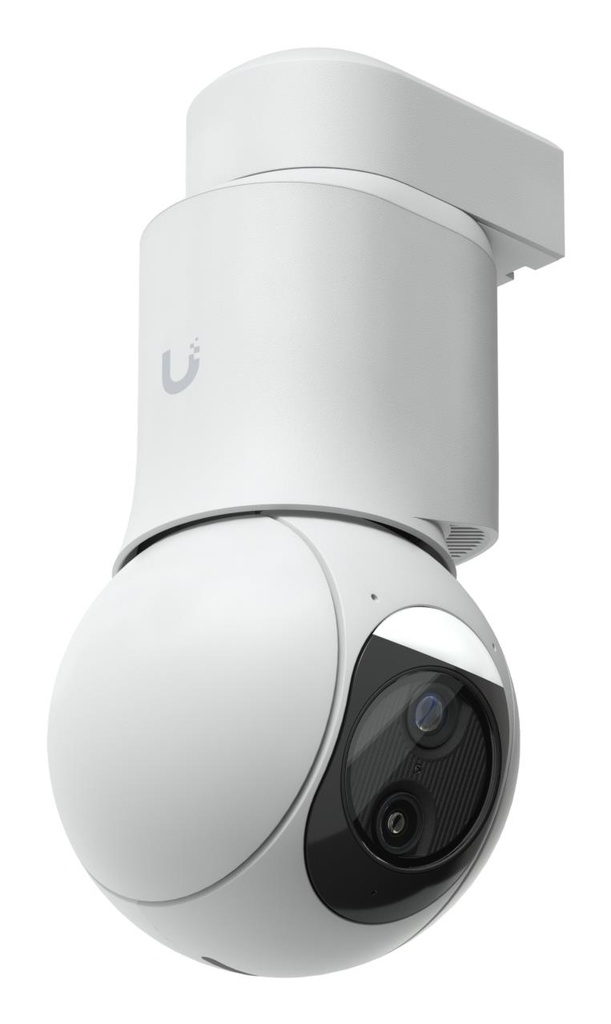

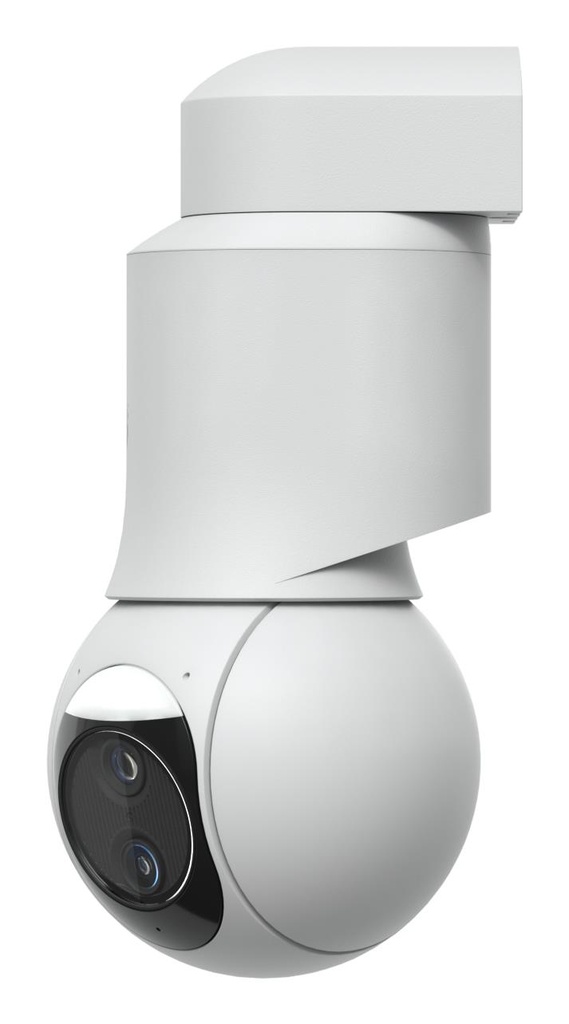

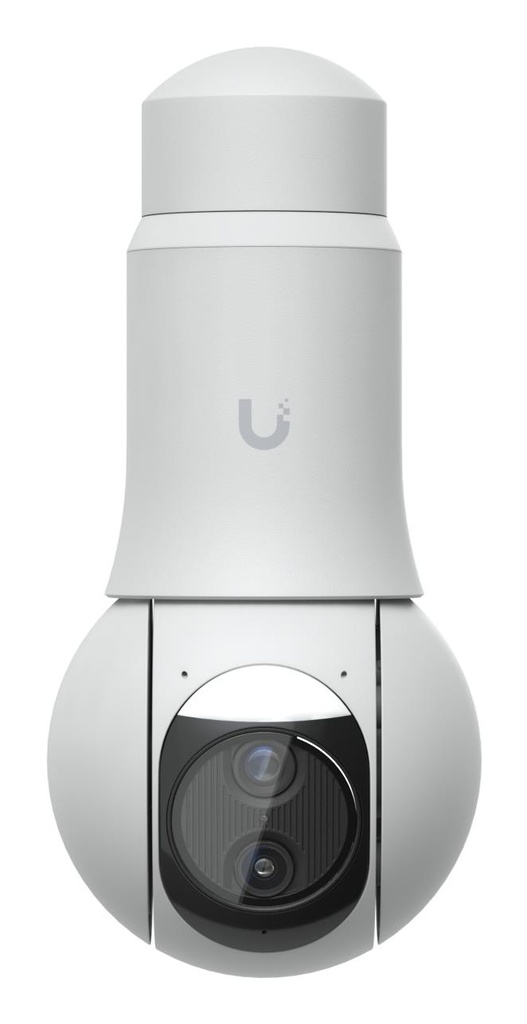

Ubiquiti G6 PTZ (UVC-G6-PTZ-W)
All-weather, 4K dual-lens camera with 10x hybrid zoom, 1/1.8" 8MP image sensor, Multi-TOPS AI Engine, and ultra-low latency pan-tilt-zoom control for motion tracking.
General
| Unit Calculated Weight | 2 kg |
| Unit Calculated Volume | 0.00945 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | Ubiquiti G6 PTZ. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Spherical. Angle of rotation: 350°, Lens viewing angle, horizontal: 109.9°, Lens viewing angle, vertical: 56.7°. Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Night vision distance: 30 m, LED type: IR |
| Unit Box Height | 0.15 |
| Unit Box Length | 0.42 |
| Unit Box Width | 0.15 |
| Model | Ubiquiti G6 PTZ (UVC-G6-PTZ-W) |
Design
| Form factor | Spherical |
| Housing material | Aluminium/Polycarbonate (PC) |
| IK code | IK04 |
| International Protection (IP) code | IP66 |
| LED indicators | Yes |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | White |
| Weatherproof | Yes |
Performance
| Built-in light | Yes |
| Built-in processor | Yes |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Placement supported | Indoor & outdoor |
| Processor model | ARM Cortex-A53 |
| PTZ control | Yes |
| Type | IP security camera |
Camera
| Angle of rotation | 350 ° |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, diagonal | 134.1 ° |
| Lens viewing angle, horizontal | 109.9 ° |
| Lens viewing angle, vertical | 56.7 ° |
Image sensor
| Optical sensor size | 1/1.8 " |
Lens system
| Zoom capability | Yes |
Night vision
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 30 m |
Video
| Frame rate | 30 fps |
| Image quality adjustment | Brightness/Contrast/HDR/Sharpness |
| Maximum resolution | 3864 x 2160 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction,3D noise reduction |
| Privacy masking | Yes |
| Text caption overlay | Yes |
| Total megapixels | 8 MP |
Audio
| Audio system | 2-way |
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
Network
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
Storage
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Ports & interfaces

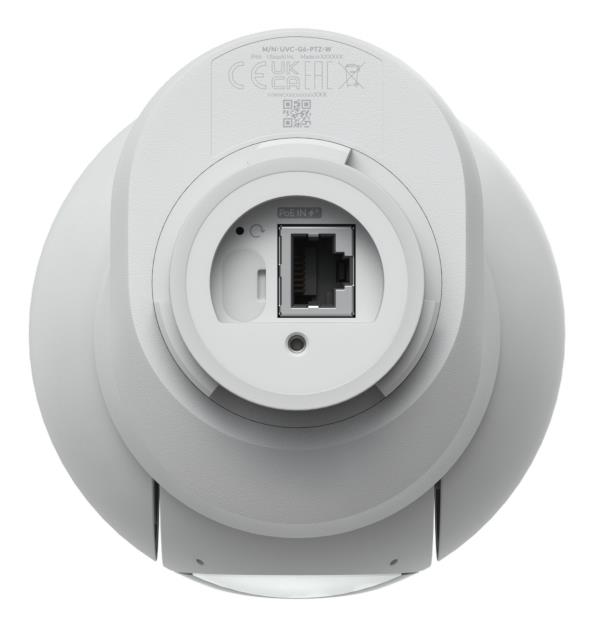

| Ethernet LAN (RJ-45) ports | 1 |
Security
| Human and vehicle targets classification | Yes |
| Intelligent Video Surveillance (IVS) system features | Face detection/Human detection/Pet detection/Vehicle detection |
| Light sensor | Yes |
Management features
| Reset button | Yes |
Power
| DC output voltage | 42.5,57 |
| Power consumption (max) | 24.5 W |
| Power source type | PoE |
Operational conditions
| Operating relative humidity (H-H) | 20 - 90 % |
| Operating temperature (T-T) | -30 - 50 °C |
Weight & dimensions
| Diameter | 107.2 mm |
| Height | 203.2 mm |
| Weight | 1000 g |
Sustainability
| Compliance certificates | CE/Federal Communications Commission (FCC)/Industry Canada (IC)/National Defense Authorization Act (NDAA) |
Features
| License plate recognition | Yes |
Packaging content
| Manual | Yes |
| Mounting kit | Yes |
| Number of cameras | 1 |
| Screws included | Yes |
