Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 3MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
We keep an eye on your business.
Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
No more silent surveillance.
Built-In Microphone
The VIGI camera features a built-in microphone to record anything going on within a 15-ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.

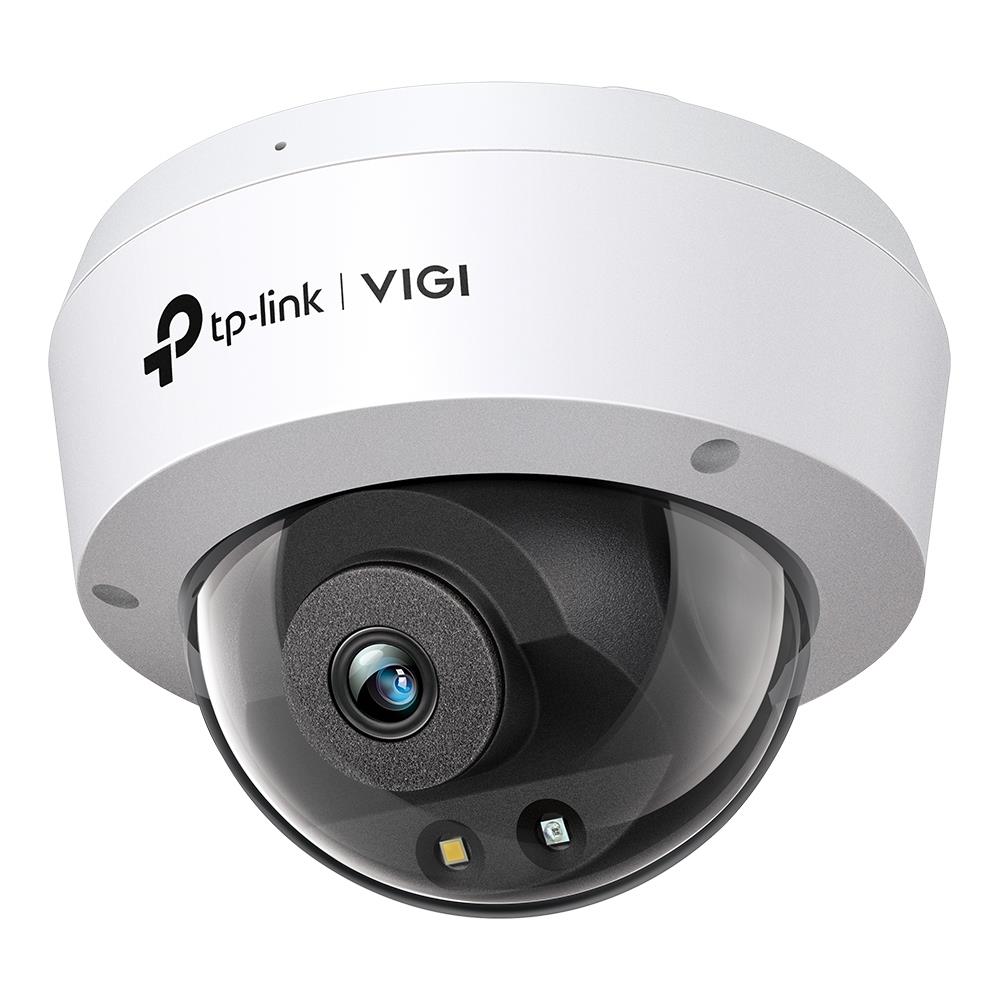

IK10 Vandal-Proof & IP67 Waterproof
With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.
General
| Unit Calculated Weight | 0.47 kg |
| Unit Calculated Volume | 0.00342 cubm |
| Units per Shipping Box | 1 |
| Summary | TP-Link VIGI C230(2.8mm). Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Angle of rotation: 360°, Lens viewing angle, horizontal: 107.5°, Lens viewing angle, vertical: 57.2°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Fixed focal length: 2.8 mm |
| Unit Box Height | 0.12 |
| Unit Box Length | 0.19 |
| Unit Box Width | 0.15 |
| Model | VIGI C230(2.8MM) |
Design
| Form factor | Dome |
| Housing material | Plastic |
| IK code | IK10 |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling |
| Product colour | White |
Performance
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
Camera
| Angle of rotation | 360 ° |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, diagonal | 128.7 ° |
| Lens viewing angle, horizontal | 107.5 ° |
| Lens viewing angle, vertical | 57.2 ° |
| Minimum illumination | 0 lx |
| Pan range | 0 - 360 ° |
| Tilt angle range | 0 - 85 ° |
Image sensor
| Optical sensor size | 1/2.8 " |
| Sensor type | CMOS |
Lens system
| Fixed focal length | 2.8 mm |
Night vision
| Infra-red wavelength | 850 nm |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 30 m |
| Number of illumination LEDs | 1 |
Video
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Image quality adjustment | Brightness/Contrast/Mirror/Saturation/Sharpness |
| Maximum resolution | 2304 x 1296 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Privacy masking | Yes |
| Smart IR | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/320 x 240/352 x 288/640 x 480 (VGA)/704 x 576 |
| Total megapixels | 3 MP |
| Video compression formats | H.264/H.264+/H.265/H.265+ |
| Video streaming | Yes |
Audio
| Built-in microphone | Yes |
Network
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Wi-Fi | No |
Storage
| Built-in HDD | No |
Security
| Active tampering alarm | Yes |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Mirror | Yes |
| Password protection | Yes |
| Password reset via email | Yes |
| Video motion detection | Yes |
Power
| DC output voltage | 12 |
| Power consumption (max) | 4.7 W |
| Power source type | DC |
Operational conditions
| Operating temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Depth | 86 mm |
| Height | 115 mm |
| Width | 115 mm |
Packaging content
| Number of cameras | 1 |
