NET CAMERA 3MP IR DOME/VIGI C230(4MM) TP-LINK

Kainos tik partneriams Prisijungti B2B

TP-LINK
Garantija: 24 mėn.
Pristatymas į terminalą: DPD, InPost, Omniva
  • Gamintojas
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Gamintojas: TP-LINK

All The Colors, All The Time

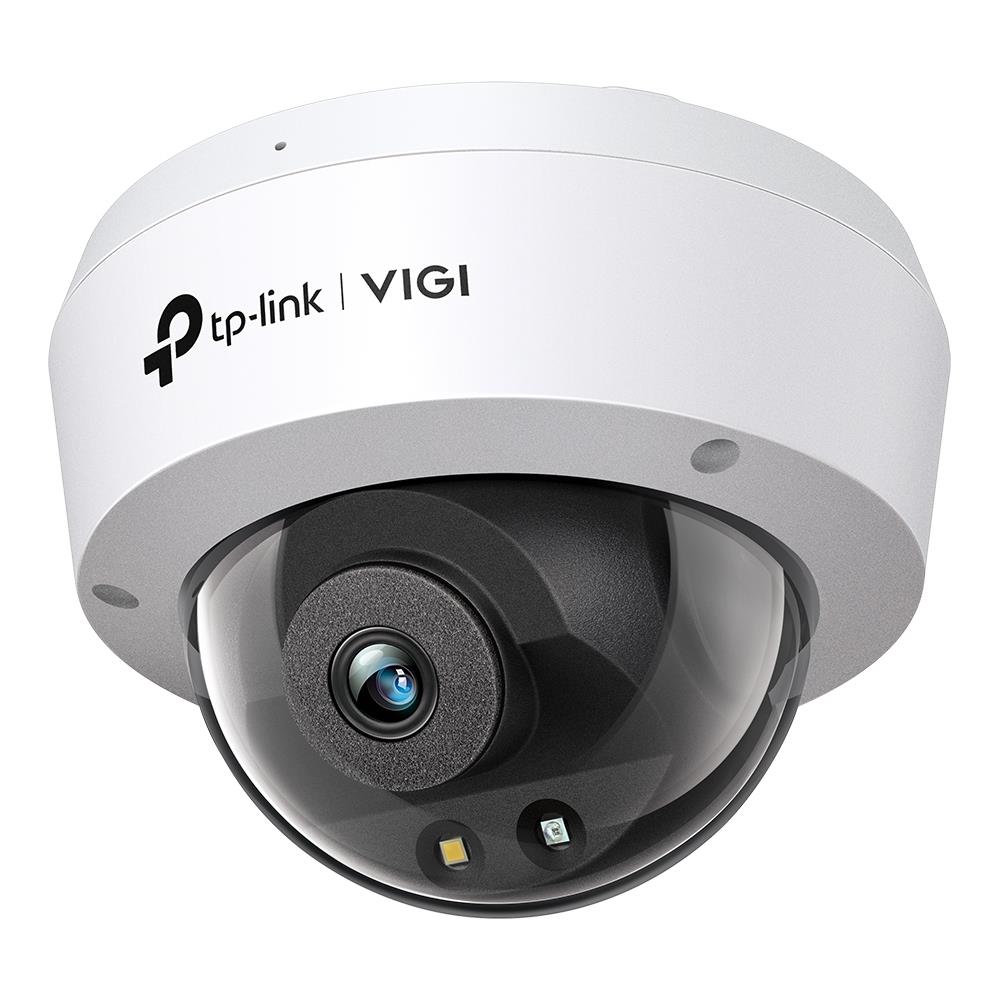

3MP Full-Color Dome Network Camera

Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 3MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

We keep an eye on your business.
Smart Detection

Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

No more silent surveillance.
Built-In Microphone

The VIGI camera features a built-in microphone to record anything going on within a 15-ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.

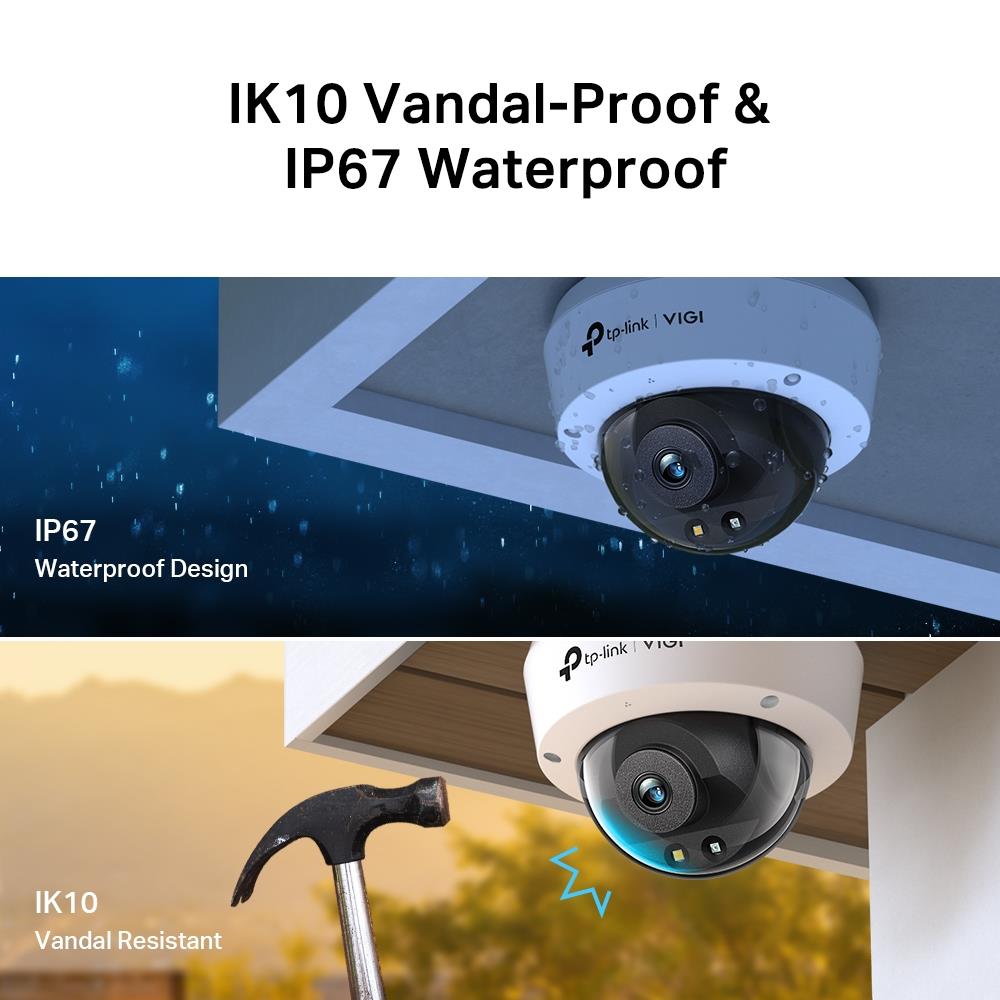

IK10 Vandal-Proof & IP67 Waterproof
With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.

More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Never miss a detail.
SmartVid-Smart Video Enhancement

VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

Discover the best way to power your camera.
PoE/12V DC

Two power supply ways not only give you more convenience but also make your wiring remarkably easy.

Flexible Management
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.

Flexible Installation Gives You More Convenience.
Easily route your camera’s cable into a dropped ceiling or avoid drilling by slotting it through the camera’s side outlet.

One system. Full security.
Run your business with peace of mind.

The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

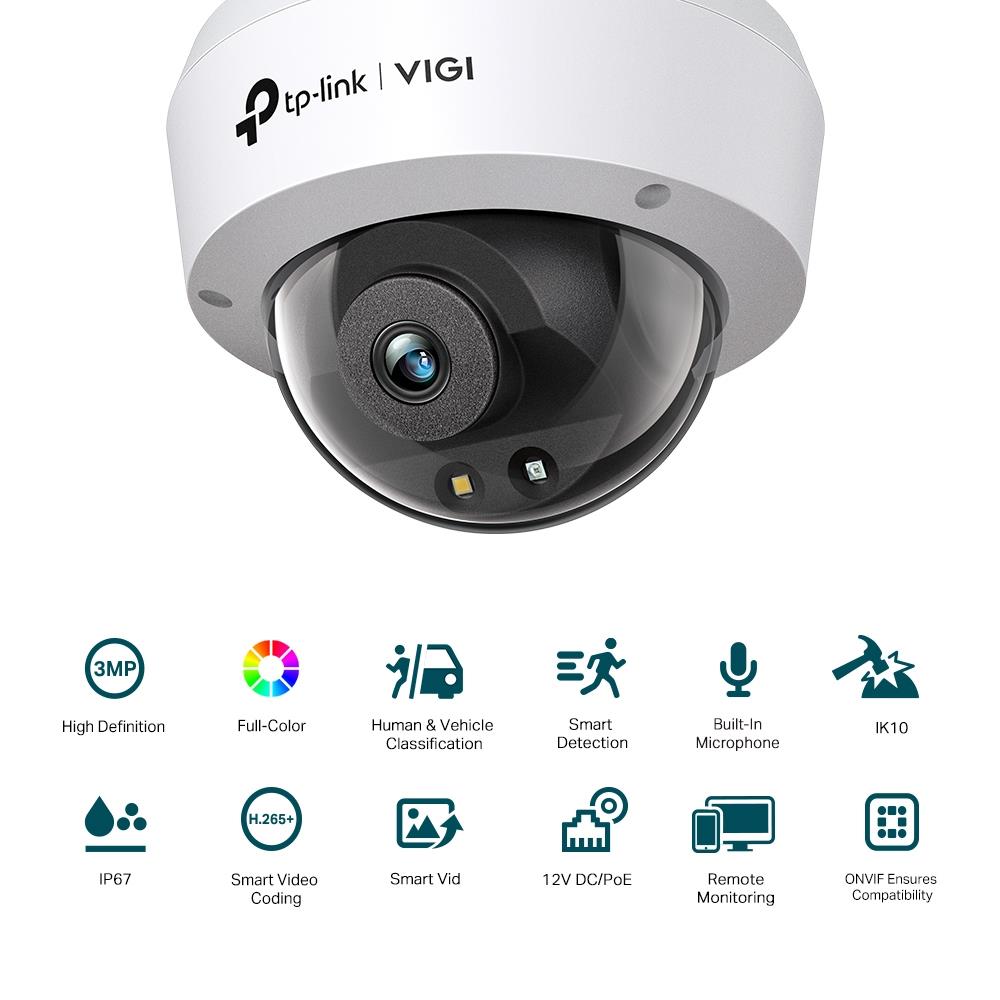

  • 3MP Super-High Definition: The camera comes with 3MP–more than enough pixels to pick up some of the more discrete details
  • 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights
  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications
  • Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects
  • Built-In Microphone: Features a built-in microphone to record anything going on within a 15-ft radius of the camera
  • IK10 Vandal-Proof & IP67 Waterproof: With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime
  • H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality
  • Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision
  • PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy
  • Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger
General
Unit Calculated Weight0.51 kg
Unit Calculated Volume0.003627 cubm
Units per Shipping Box1
SummaryTP-Link VIGI C230. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.005 lx, Lens viewing angle, horizontal: 89.1°, Lens viewing angle, vertical: 45.1°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Lens diameter: 4 mm
Unit Box Height0.12
Unit Box Length0.195
Unit Box Width0.155
ModelVIGI C230(4MM)
Design
Form factorDome
Housing materialPlastic
IK codeIK10
International Protection (IP) codeIP67
Mounting typeCeiling
Product colourWhite
Protection featuresWaterproof
Performance
CertificationCE/BSMI/VCCI/ONVIF
Connectivity technologyWired
Day/night modeYes
Placement supportedIndoor & outdoor
TypeIP security camera
Wide Dynamic Range (WDR)Yes
Camera
Camera pan controlYes
Lens viewing angle, diagonal106.9 °
Lens viewing angle, horizontal89.1 °
Lens viewing angle, vertical45.1 °
Minimum illumination0.005 lx
Pan range0 - 360 °
Panoramic camera
Digital Wide Dynamic Range (DWDR) (panoramic camera)Yes
Image sensor
Number of sensors1
Optical sensor size1/2.8 "
Progressive scanYes
Sensor typeCMOS
Lens system
Lens diameter4 mm
Maximum aperture number1.6
Number of lenses1
Night vision
B/W night vision distance30 m
Infra-red wavelength850 nm
LED typeIR
Night visionYes
Night vision distance30 m
Video
Back Light Compensation (BLC)Yes
Bit rate64 Kbps to 4 Mbps
Highlight Compensation (HLC)Yes
Image quality adjustmentBrightness/Contrast/Mirror/Saturation
Maximum resolution2304 x 1296 pixels
Noise reductionYes
Noise reduction technology3D noise reduction
Privacy maskingYes
Smart IRYes
Total megapixels3 MP
Video compression formatsH.264/H.264+/H.265/H.265+
Video streamingYes
Network
Ethernet interface typeFast Ethernet
Ethernet LANYes
Networking standardsIEEE 802.3af/IEEE 802.3at
Supported network protocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Storage
Built-in HDDNo
Security
Digest authenticationYes
MirrorYes
Password protectionYes
Password reset via emailYes
Power
DC output voltage12
Power source typeDC,PoE
Operational conditions
Operating temperature (T-T)-30 - 60 °C
Weight & dimensions
Depth86 mm
Height115 mm
Width115 mm
Features
Basic eventMotion Detection, Camera Tampering Detection, Exception (Illegal Login)
Packaging content
Number of cameras1
