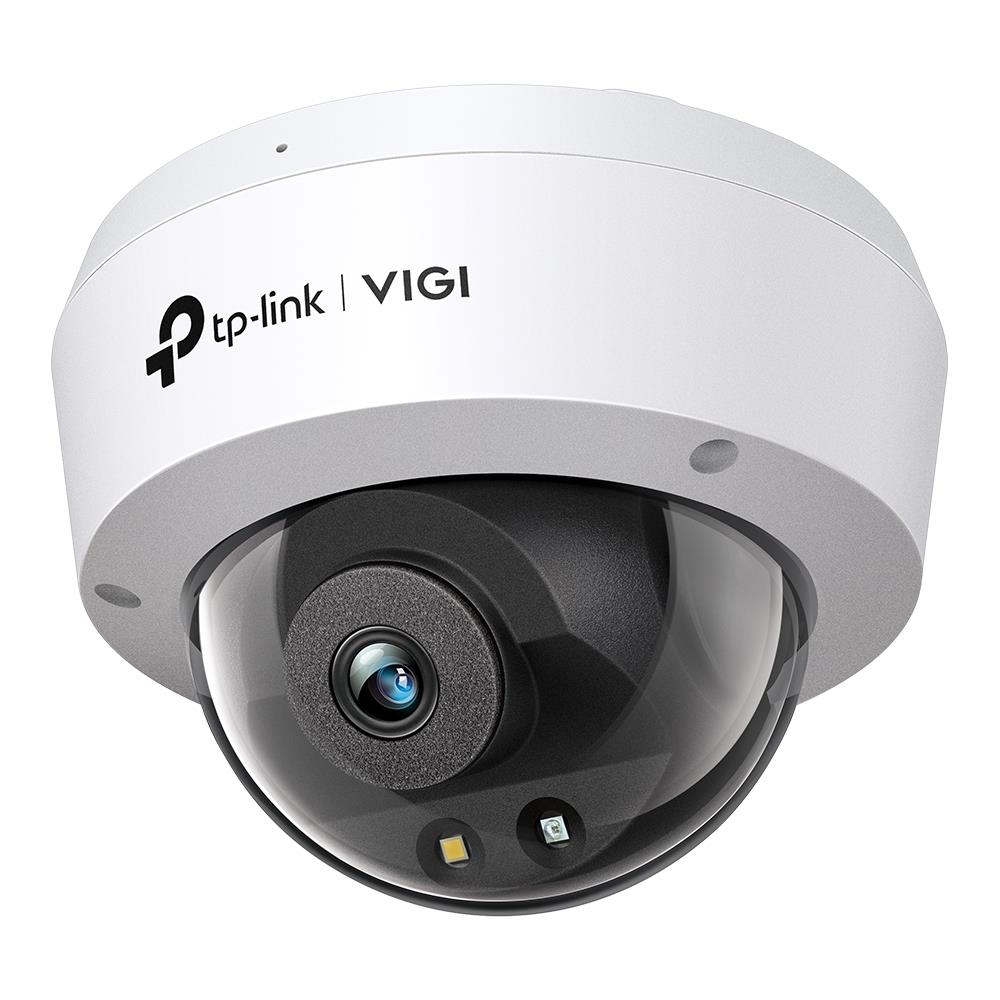

NET CAMERA 4MP IR DOME/VIGI C240(4MM) TP-LINK

Kainos tik partneriams Prisijungti B2B

TP-LINK
Garantija: 24 mėn.
Pristatymas į terminalą: DPD, InPost, Omniva
  • Gamintojas
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Gamintojas: TP-LINK

Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

We keep an eye on your business.
Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

No more silent surveillance.
Built-In Microphone
The VIGI camera features a built-in microphone to record anything going on within a 15-ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.

IK10 Vandal-Proof & IP67 Waterproof
With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.

More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Never miss a detail.
SmartVid-Smart Video Enhancement
VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

Discover the best way to power your camera.
PoE/12V DC
Two power supply ways not only give you more convenience but also make your wiring remarkably easy.

Flexible Management and Storage
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each methods, as well as onboard storage with SD card slot.

One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

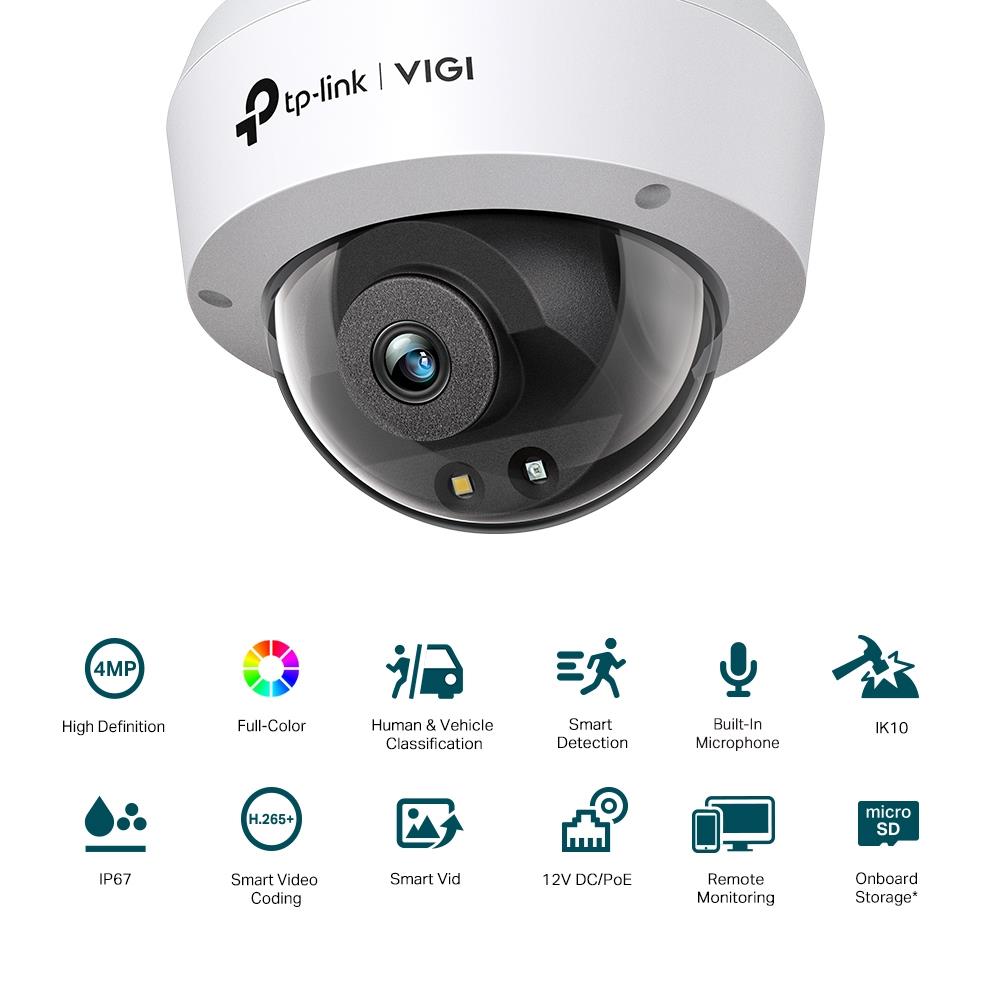

  • 4MP Super-High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details
  • 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights
  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications
  • Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects
  • Built-In Microphone: Features a built-in microphone to record anything going on within a 15-ft radius of the camera
  • IK10 Vandal-Proof & IP67 Waterproof: With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime
  • H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality
  • Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision
  • PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy
  • Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256 GB)
General
Unit Calculated Weight0.47 kg
Unit Calculated Volume0.00342 cubm
Units per Shipping Box1
SummaryTP-Link VIGI 4MP Full-Color Dome Network Camera. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.005 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 79.7°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Lens diameter: 4 mm
Unit Box Height0.12
Unit Box Length0.19
Unit Box Width0.15
ModelVIGI C240 2.8 mm
Design
Form factorDome
Housing materialPlastic
IK codeIK10
International Protection (IP) codeIP67
Mounting typeCeiling/wall
Product colourBlack/White
Performance
CertificationCE, BSMI, VCCI, ONVIF
Connectivity technologyWired
Day/night modeYes
Placement supportedIndoor & outdoor
TypeIP security camera
Camera
Angle of rotation360 °
Camera pan controlYes
Camera tilt controlYes
Lens viewing angle, diagonal93.9 °
Lens viewing angle, horizontal79.7 °
Lens viewing angle, vertical42.9 °
Minimum illumination0.005 lx
Pan range0 - 360 °
Tilt angle range0 - 85 °
Image sensor
Optical sensor size1/3 "
Sensor typeCMOS
Lens system
Lens diameter4 mm
Number of lenses1
Night vision
Infra-red wavelength850 nm
LED typeIR
Night visionYes
Night vision distance30 m
Number of illumination LEDs1
Video
Back Light Compensation (BLC)Yes
Bit rate64 Kbps - 4 Mbps
Digital Wide Dynamic Range (DWDR)Yes
Frame rate30 fps
Highlight Compensation (HLC)Yes
Image quality adjustmentBrightness/Contrast/Mirror/Saturation/Sharpness
Maximum resolution2560 x 1440 pixels
Noise reduction technology3D noise reduction
Privacy maskingYes
Supported graphics resolutions1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440/320 x 240/352 x 288/640 x 480 (VGA)
Total megapixels4 MP
Video compression formatsH.264/H.264+/H.265/H.265+
Video streamingYes
Audio
Built-in microphoneYes
Network
BluetoothNo
Ethernet interface typeFast Ethernet
Ethernet LANYes
Number of simultaneous live view channels3 channels
Supported network protocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Wi-FiNo
Storage
Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports1
Security
Active tampering alarmYes
Digest authenticationYes
HTTPS encryptionYes
Intelligent Video Surveillance (IVS) system featuresAbandoned object/Crossing line/Human detection/Intrusion/Region entrance detection/Region exiting detection/Vehicle detection
IP address filteringYes
MirrorYes
Password protectionYes
Video motion detectionYes
Management features
Management softwareVIGI App, VIGI Security Manager, VIGI NVR
Reset buttonYes
Web-based managementYes
Power
Power consumption (max)5.4 W
Power source typeDC,PoE
Operational conditions
Operating temperature (T-T)-30 - 60 °C
Weight & dimensions
Depth115 mm
Height86 mm
Width115 mm
Features
Basic eventMotion Detection, Camera Tampering Detection, Exception
Sustainability
Compliance certificatesCE
Packaging data
Package depth193 mm
Package height120 mm
Package weight470 g
Package width153 mm
Packaging content
Mounting kitYes
Number of cameras1
