All The Colors,
All The Time

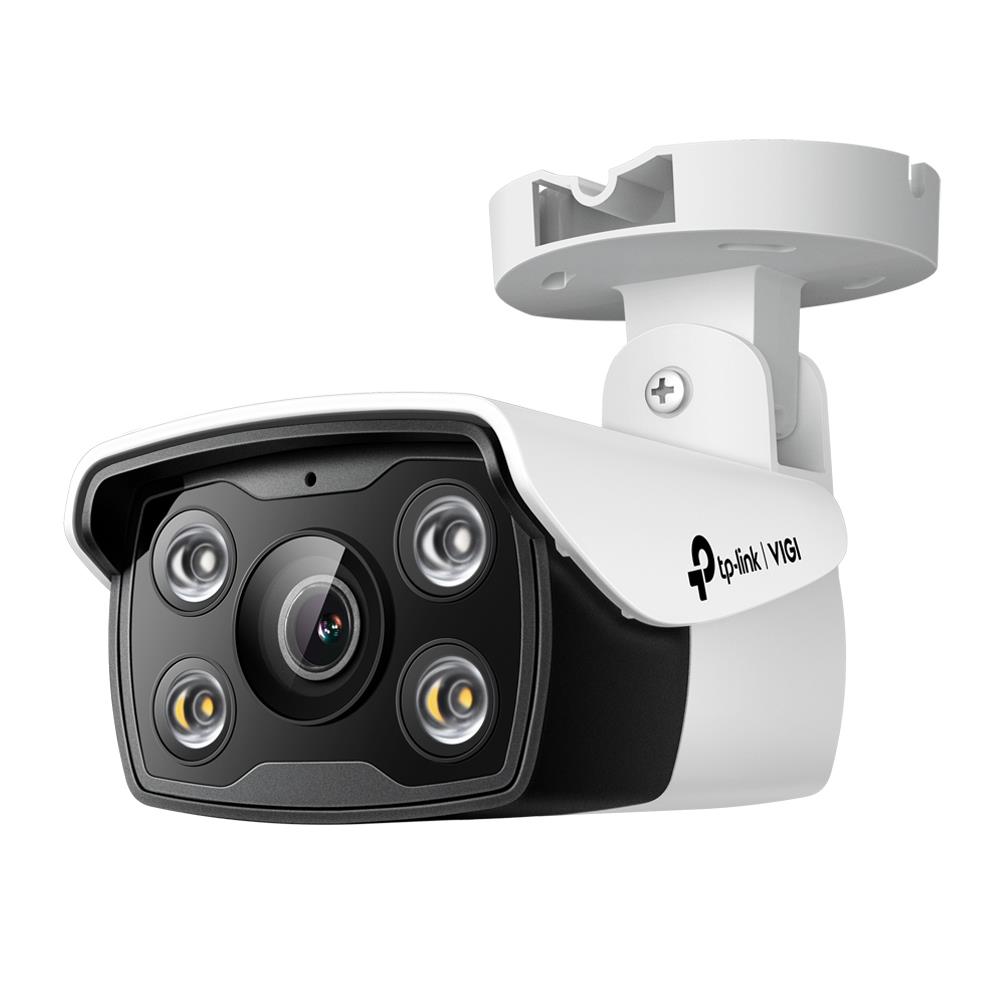

3MP Outdoor Full-Color Bullet Network Camera
Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 3MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
We keep an eye on your business.
Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
No more silent surveillance.
Built-In Microphone
The VIGI camera features a built-in microphone to record anything going on within a 15-ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.
Never miss a detail.
SmartVid-Smart Video Enhancement
VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Outdoor PoE Connection, Simple Wiring
Just connect your camera via an RJ45 cable, then power supply and data transmission are all settled. Waterproof hardware protect stable performance in outdoor scenarios.
Flexible Management
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.
Flexible Installation
Find the perfect vantage point by simply securing your camera to ceiling, pole or wall.
One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
General
| Unit Calculated Weight | 0.44 kg |
| Unit Calculated Volume | 0.00273 cubm |
| Units per Shipping Box | 1 |
| Summary | TP-Link VIGI C330(6MM). Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Bullet. Lens viewing angle, horizontal: 55.1°, Lens viewing angle, vertical: 30.2°, Lens viewing angle, diagonal: 64°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Lens diameter: 6 mm, Fixed focal length: 4 mm |
| Unit Box Height | 0.1 |
| Unit Box Length | 0.21 |
| Unit Box Width | 0.13 |
| Model | VIGI C330 (6mm) |
Design
| Form factor | Bullet |
| Housing material | Plastic |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | White |
Performance
| Certification | CE/BSMI/VCCI/ONVIF |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Placement supported | Outdoor |
| Type | IP security camera |
Camera
| Lens viewing angle, diagonal | 64 ° |
| Lens viewing angle, horizontal | 55.1 ° |
| Lens viewing angle, vertical | 30.2 ° |
| Minimum illumination | 0 lx |
Image sensor
| Optical sensor size | 1/2.8 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
Lens system
| Fixed focal length | 4 mm |
| Lens diameter | 6 mm |
| Maximum aperture number | 1.6 |
Night vision
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 30 m |
Video
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Image quality adjustment | Brightness/Contrast/Mirror/Saturation/Sharpness |
| Maximum resolution | 2304 x 1296 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Privacy masking | Yes |
| Smart IR | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/320 x 240/352 x 288/640 x 480 (VGA)/704 x 576 |
| Total megapixels | 3 MP |
| Video compression formats | H.264/H.264+/H.265/H.265+ |
| Video streaming | Yes |
Audio
| Built-in microphone | Yes |
Network
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Wi-Fi | No |
Storage
| Built-in HDD | No |
Security
| HTTPS encryption | Yes |
| Human and vehicle targets classification | Yes |
| IP address filtering | Yes |
| Mirror | Yes |
| Password protection | Yes |
| Password reset via email | Yes |
| Video motion detection | Yes |
Power
| DC output voltage | 12 |
| Power consumption (max) | 5.4 W |
| Power source type | DC,PoE |
Operational conditions
| Operating temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Depth | 70 mm |
| Height | 174 mm |
| Width | 78 mm |
Packaging content
| Number of cameras | 1 |
