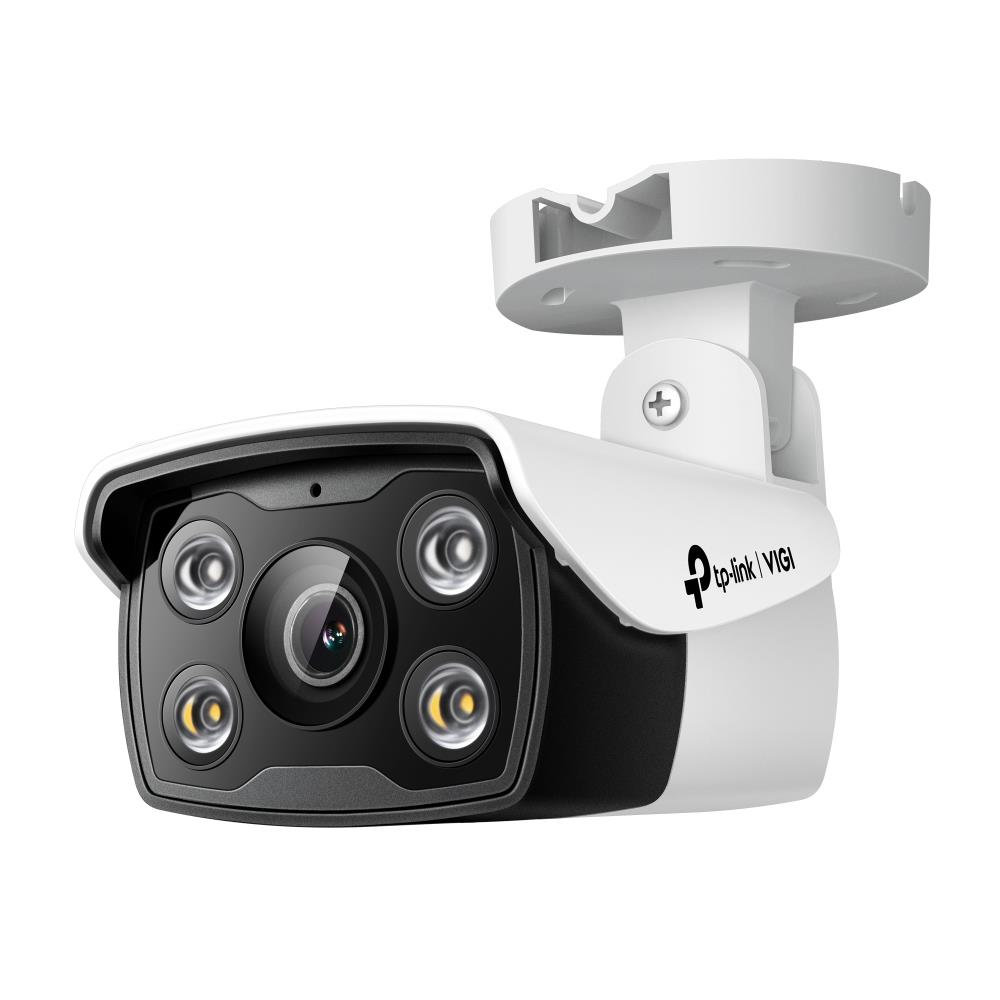

NET CAMERA BULLET H.264 4MP/VIGI C340(2.8MM) TP-LINK

Kainos tik partneriams Prisijungti B2B

TP-LINK
Garantija: 36 mėn.
Pristatymas į terminalą: DPD, InPost, Omniva
  • Gamintojas
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Gamintojas: TP-LINK

All The Colors,
All The Time

4MP Outdoor Full-Color Bullet Camera

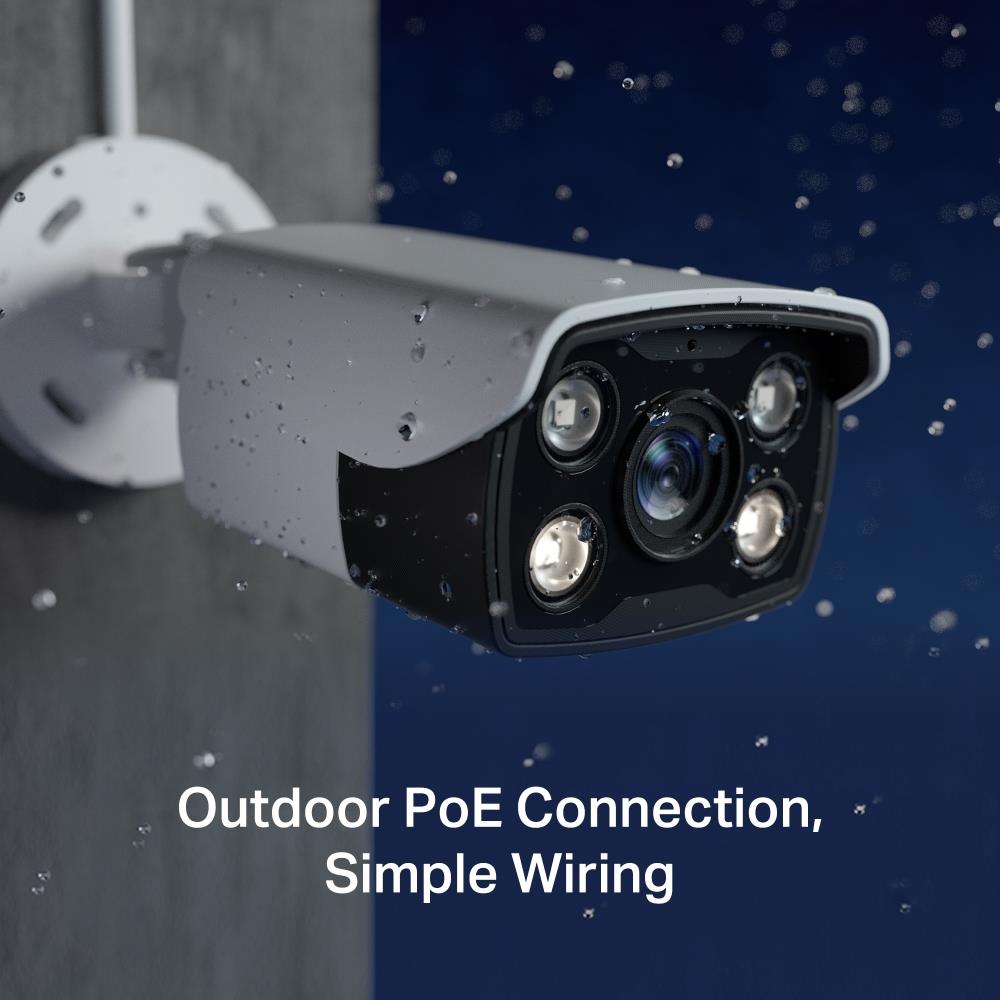

Outdoor PoE Connection, Simple Wiring
Just connect your camera via an RJ45 cable, then power supply and data transmission are all settled. Waterproof hardware protect stable performance in outdoor scenarios.

Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI’s Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

We keep an eye on your business.
Smart Detection

Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.

Motion Detection
Get instant notifications when your camera detects motion.

Area Intrusion
Set customized activity zones around key areas for more focused monitoring.

Line-Crossing
Set a boundary and receive an alert anytime a person crosses it from either or both directions.

Camera Tampering
Receive alerts when someone obstructs the camera.

Active Defense
Warn potential intruders instantly with sound and light when abnormal events

Every Event is Under Your Control.
VIGI camera intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.

Never miss a detail.
SmartVid-Smart Video Enhancement

Smart IR
Keeps objects from being under-rendered when far away or overexposed when close to camera at night.

Wide Dynamic Range
Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.

3D DNR
Removes abnormal pixelation to provide clearer video and eliminate distortion.

More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Flexible Management and Storage
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each method, as well as on-board storage with SD card slot (up to 256 GB).

Discover the best way to power your camera.
PoE/12V DC

Two power supply ways not only give you more convenience but also make your wiring remarkably easy.

Flexible Installation
Find the perfect vantage point by simply securing your camera to ceiling, pole or wall.

One system. Full security.
Run your business with peace of mind.

The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

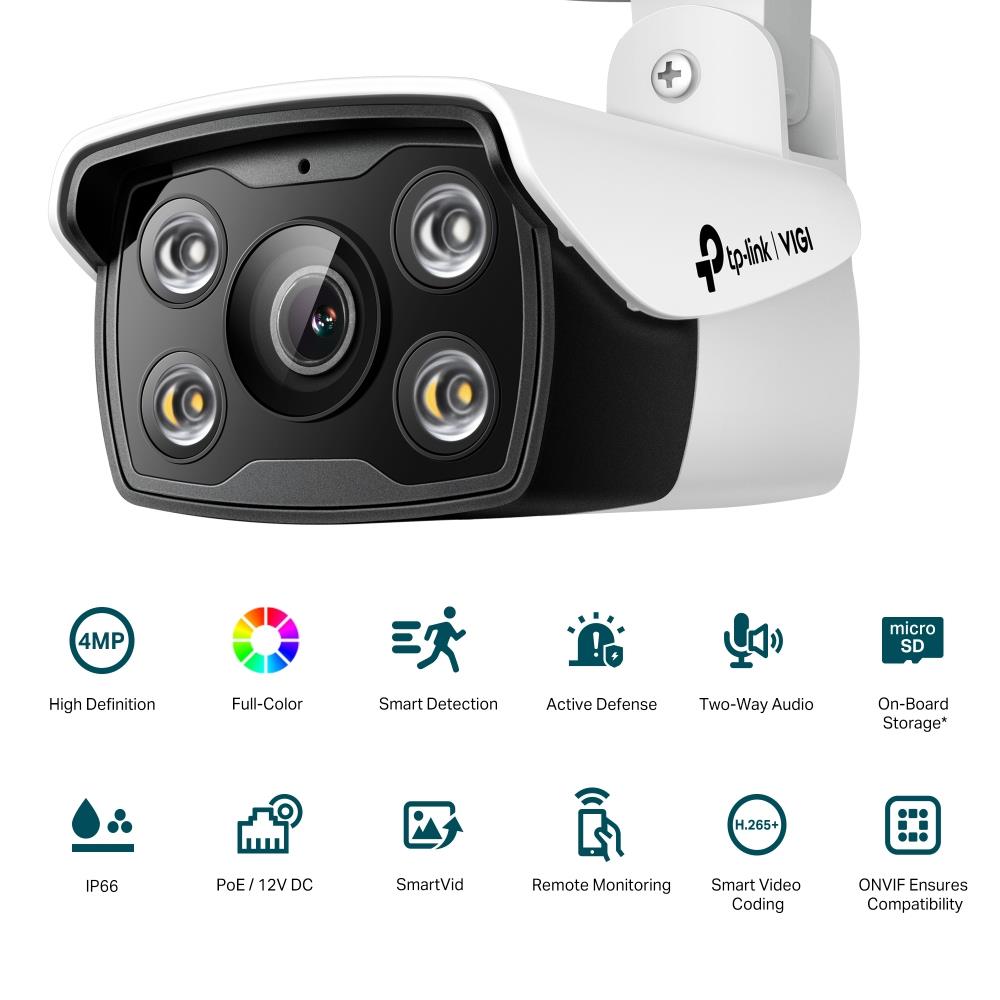

  • 4MP High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details
  • 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDs
  • Waterproof: Reliable IP66 for stable outdoor performance
  • Smart Detection (human detection, motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera
  • H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality
  • PoE/12V DC: Two power supply ways not only give you more convenience but also make your wiring remarkably easy

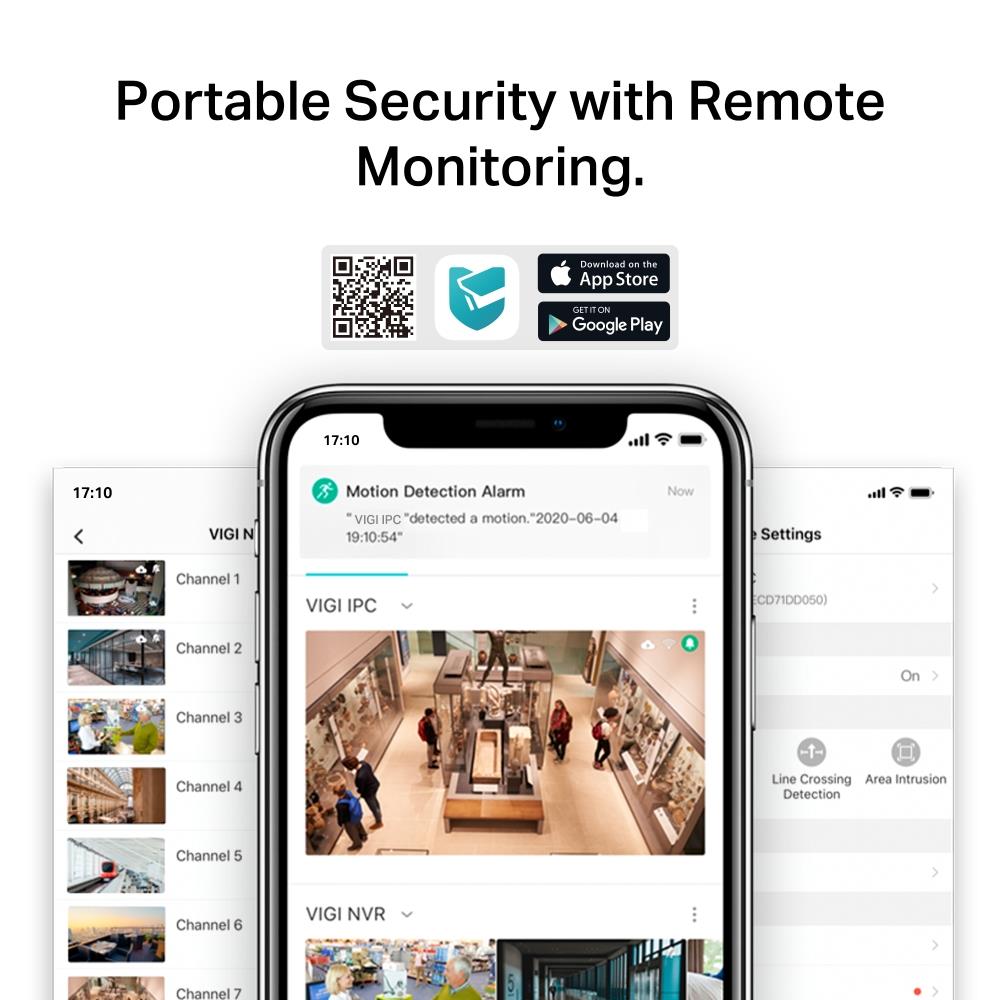

  • VIGI App: Manage your security from the palm of your hand with the VIGI app
General
Unit Calculated Weight0.47 kg
Unit Calculated Volume0.002687 cubm
Units per Shipping Box1
SummaryTP-Link VIGI 4MP Outdoor Full-Color Bullet Network Camera. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.005 lx, Lens viewing angle, horizontal: 102°, Lens viewing angle, vertical: 55°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Detect distance: 64 m, Observe distance: 27 m, Recognize distance: 13 m
Unit Box Height0.1
Unit Box Length0.215
Unit Box Width0.125
ModelVIGI C340(2.8MM)
Design
Form factorBullet
Housing materialPlastic
International Protection (IP) codeIP66
LED indicatorsYes
Mounting typeCeiling/Wall/Pole
Product colourBlack/White
Performance
Connectivity technologyWired
Day/night modeYes
Placement supportedOutdoor
TypeIP security camera
Camera
Camera shutter speed1/3 - 1/10000 s
Lens viewing angle, diagonal122 °
Lens viewing angle, horizontal102 °
Lens viewing angle, vertical55 °
Minimum illumination0.005 lx
Number of Privacy masking areas4
Pan range-90 - 90 °
Tilt angle range-90 - 90 °
Image sensor
Number of sensors1
Optical sensor size1/3 "
Progressive scanYes
Sensor typeCMOS
Lens system
Detect distance64 m
Fixed focal length2.8 mm
Identify distance6 m
Maximum aperture number1.6
Number of lenses1
Observe distance27 m
Recognize distance13 m
Night vision
Infra-red wavelength850 nm
LED typeIR
Night visionYes
Night vision distance30 m
Number of illumination LEDs2
Video
3D positioningYes
Back Light Compensation (BLC)Yes
Bit rate256 Kbps - 4 Mbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Frame rate30 fps
Highlight Compensation (HLC)Yes
Image quality adjustmentBrightness/Contrast/Mirror/Saturation
Maximum resolution2560 x 1440 pixels
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes
Supported graphics resolutions1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440
Total megapixels4 MP
Video compression formatsH.264/H.264+/H.265/H.265+
Video formats supportedH.264/H.264+/H.265/H.265+
Audio
Audio input channels1.0 channels
Audio output channels1.0 channels
Audio system2-way
Bit rate range0 - 64 Kbit/s
Built-in microphoneYes
Built-in speaker(s)Yes
Sample rate8 kHz
Signal-to-Noise Ratio (SNR)52 dB
Network
BluetoothNo
Ethernet interface typeFast Ethernet
Ethernet LANYes
Live viewYes
Networking standardsIEEE 802.3af/IEEE 802.3at
Number of simultaneous live view channels3 channels
Supported network protocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Wi-FiNo
Storage
Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Ports & interfaces
DC-in jackYes
Ethernet LAN (RJ-45) ports1
Security
Automatic Network Replenishment (ANR)Yes
HTTPS encryptionYes
IP address filteringYes
Network access storage (NAS)Yes
Password protectionYes
Video motion detectionYes
Management features
Reset buttonYes
Web browserYes
Power
DC output voltage12
Power consumption (max)7 W
Power consumption (typical)3.4 W
Power source typeDC,PoE
Operational conditions
Operating relative humidity (H-H)0 - 95 %
Operating temperature (T-T)-30 - 60 °C
Storage relative humidity (H-H)0 - 95 %
Storage temperature (T-T)-40 - 60 °C
Weight & dimensions
Height70 mm
Length78 mm
Weight280 g
Width174 mm
Sustainability
Compliance certificatesBSMI/CE/KC
Sustainability complianceYes
Packaging data
Package depth218 mm
Package height103 mm
Package typeBox
Package weight424 g
Package width128 mm

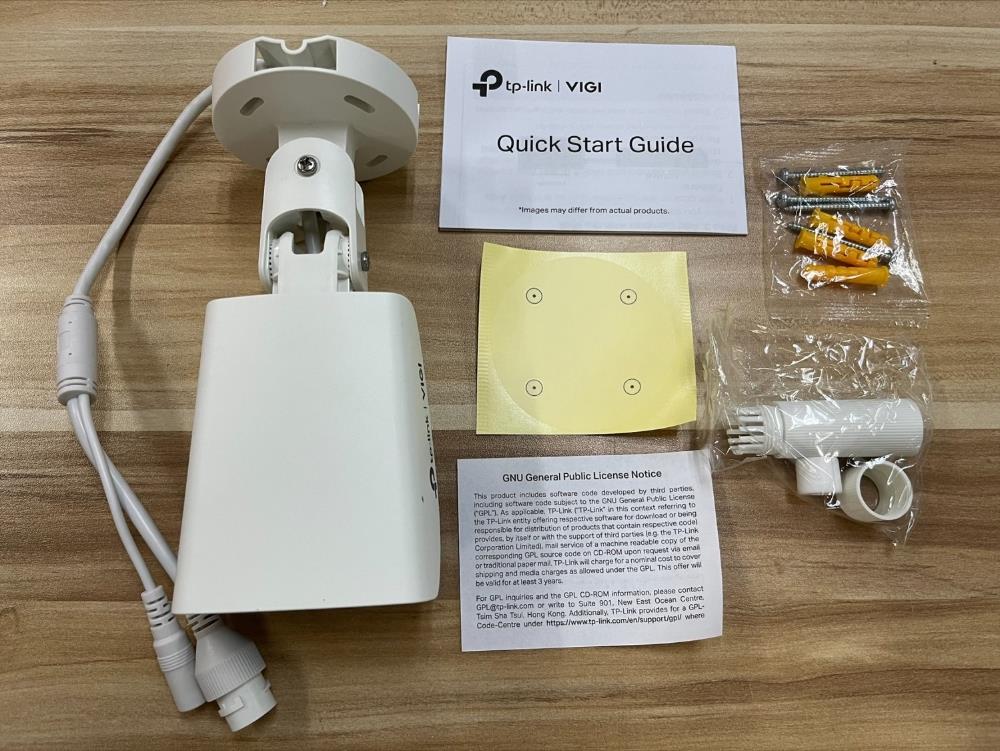

Packaging content
ManualYes
Mounting kitYes
Number of cameras1
