People & Vehicle Analytics
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
Smart Video Enhancement Technology
- True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.△
- Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
- 3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
- White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
General
| Unit Calculated Weight | 0.79 kg |
| Unit Calculated Volume | 0.003003 cubm |
| Units per Shipping Box | 1 |

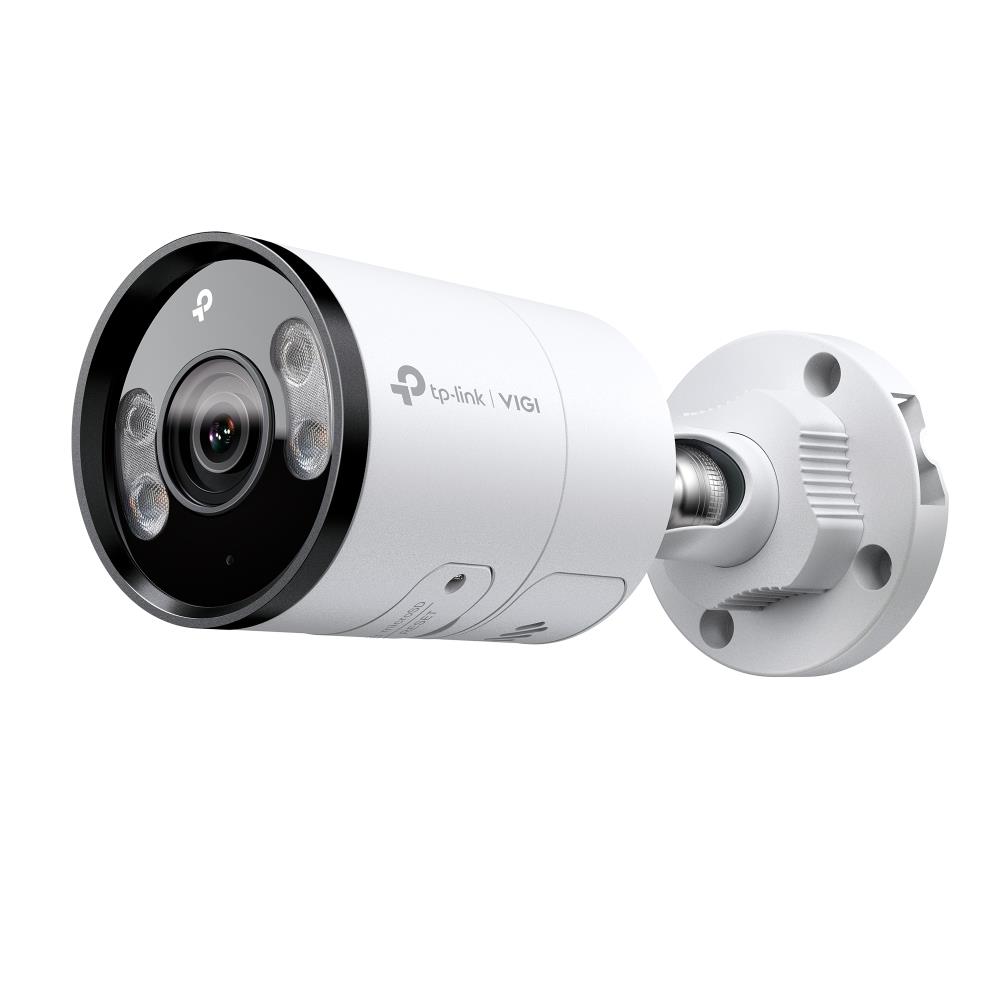

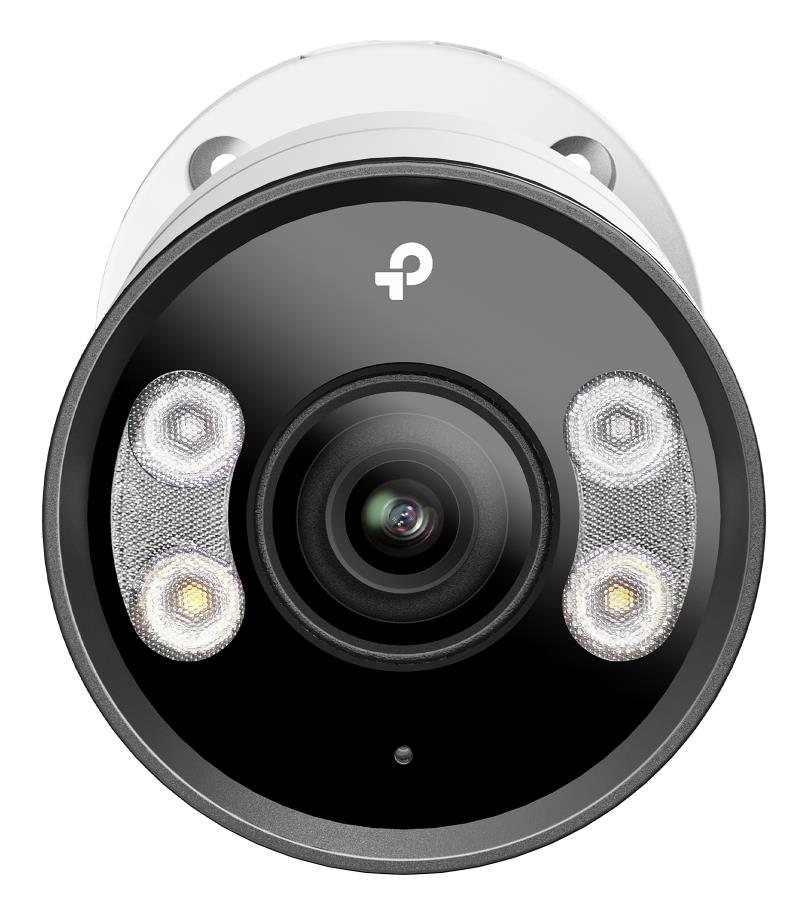

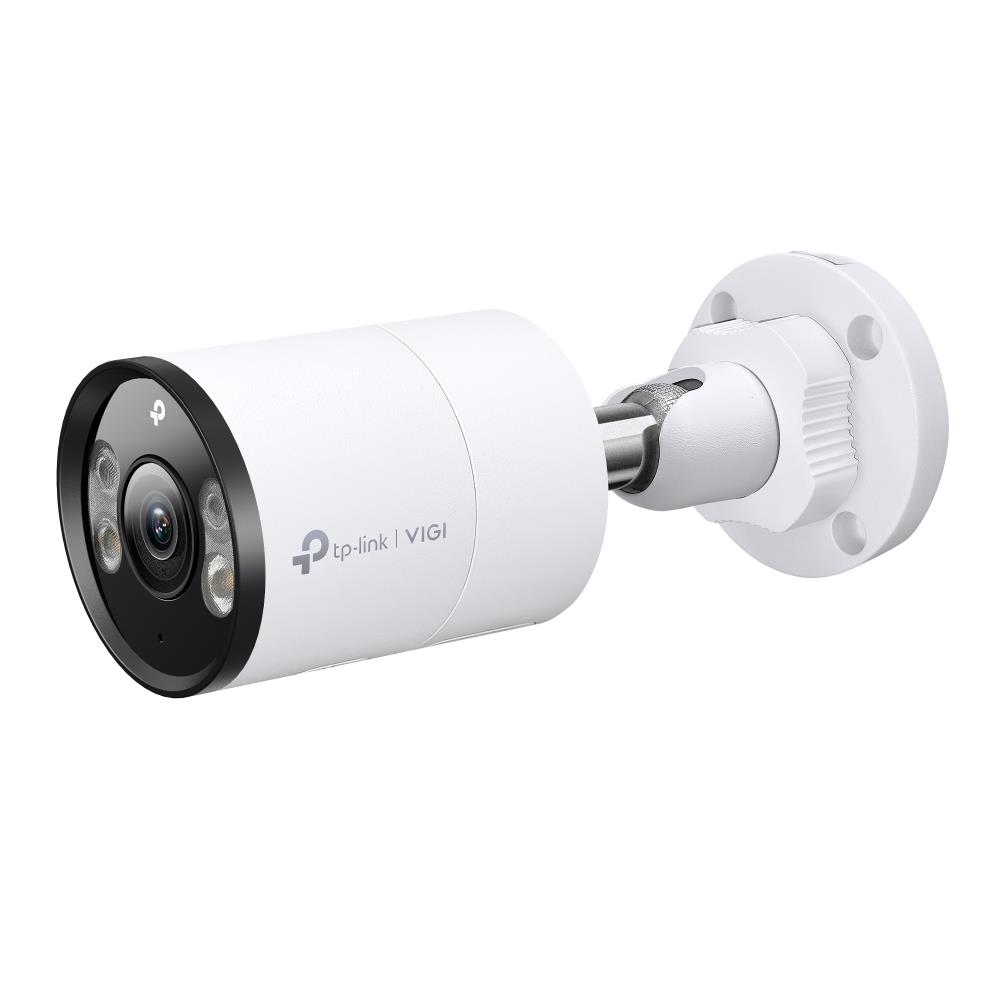

| Summary | TP-Link VIGI C355. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.005 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 111.4°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 64 m, Observe distance: 27 m, Recognize distance: 13 m |
| Unit Box Height | 0.1 |
| Unit Box Length | 0.22 |
| Unit Box Width | 0.13 |
| Model | VIGI C355(2.8MM) |
Design
| Form factor | Bullet |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
| Mounting type | Wall |
| Product colour | White |
Performance
| Built-in light | Yes |
| Certification | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Dynamic range | 120 dB |
| Infrared (IR) cut-off filter | Yes |
| Placement supported | Outdoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
Camera
| Angle of rotation | 360 ° |
| Camera shutter speed | 1/3 to 1/10000 s |
| Lens viewing angle, diagonal | 134 ° |
| Lens viewing angle, horizontal | 111.4 ° |
| Lens viewing angle, vertical | 58.8 ° |
| Minimum illumination | 0.005 lx |
| Number of Privacy masking areas | 4 |
| Pan range | 0 - 360 ° |
| Tilt angle range | 0 - 90 ° |
Image sensor
| Optical sensor size | 1/2.7 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
Lens system
| Detect distance | 64 m |
| Fixed focal length | 2.8 mm |
| Identify distance | 6 m |
| Maximum aperture number | 1.6 |
| Number of lenses | 1 |
| Observe distance | 27 m |
| Recognize distance | 13 m |
Night vision
| Infra-red wavelength | 850 nm |
| LED type | IR/White |
| Night vision | Yes |
| Night vision distance | 30 m |
| Number of illumination LEDs | 4 |
Video
| Back Light Compensation (BLC) | Yes |
| Bit rate | 6 Mbps |
| Bit rate control | Constant Bit Rate (CBR),Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate | 30 fps |
| Highlight Compensation (HLC) | Yes |
| Image quality adjustment | Brightness/Contrast/Mirror/Saturation/Sharpness |
| Maximum resolution | 2880 x 1620 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2688 x 1520/2880 x 1620 |
| Total megapixels | 5 MP |
| Video compression formats | H.264/H.264+/H.265/H.265+ |
Audio
| Audio formats supported | G.711 |
| Audio system | 2-way |
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
| Sample rate | 8 kHz |
| Signal-to-Noise Ratio (SNR) | 52 dB |
Network
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Wi-Fi | No |
Storage
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
Ports & interfaces
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Digest authentication | Yes |
| IP address filtering | Yes |
| Password protection | Yes |
| Privacy protection | Yes |
Management features
| Web browser | Yes |
Power
| DC output voltage | 12 |
| Power consumption (max) | 10.7 W |
| Power source type | DC,PoE |
Operational conditions
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Height | 74 mm |
| Length | 74 mm |
| Weight | 525 g |
| Width | 184 mm |
Packaging content
| Number of cameras | 1 |
