NET CAMERA TURRET H.264 3MP/VIGI C430(2.8MM) TP-LINK

Kainos tik partneriams Prisijungti B2B

TP-LINK
Garantija: 36 mėn.
Pristatymas į terminalą: DPD, InPost, Omniva
  • Gamintojas
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Gamintojas: TP-LINK

All The Colors, All The Time

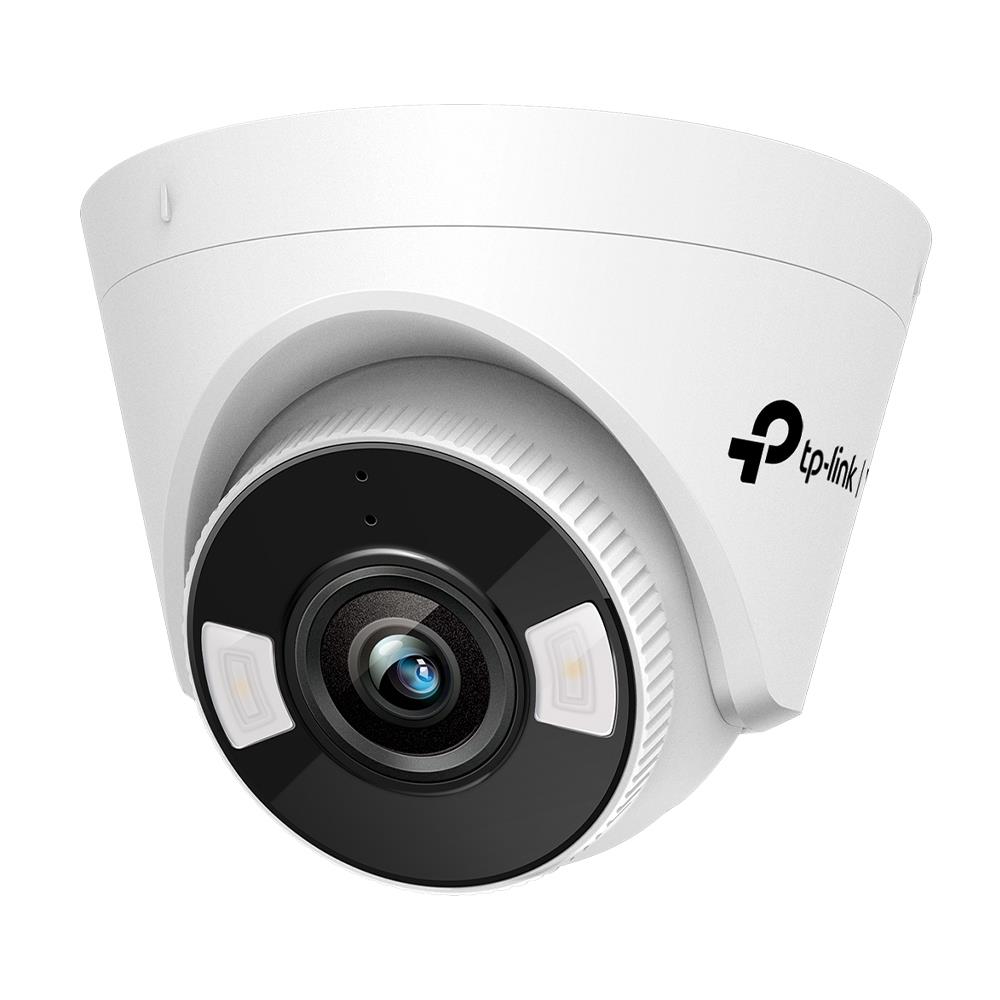

3MP Full-Color Turret Network Camera

Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 3MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

We keep an eye on your business.
Smart Detection

Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

No more silent surveillance.
Built-In Microphone

The VIGI camera features a built-in microphone to record anything going on within a 15-ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.

Never miss a detail.
SmartVid-Smart Video Enhancement

VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Plug & Play with One Cable
Enjoy simple wiring with PoE connections. Connect your camera with an RJ45 cable, then your power supply and data transmission are all settled.

Flexible Management
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.

Flexible Installation Gives You More Convenience.
Easily route your camera’s cable into a dropped ceiling or avoid drilling by slotting it through the camera’s side outlet.

One system. Full security.
Run your business with peace of mind.

The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

  • 3MP Super-High Definition: The camera comes with 3MP–more than enough pixels to pick up some of the more discrete details
  • 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights
  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications
  • Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects
  • Built-In Microphone: Features a built-in microphone to record anything going on within a 15-ft radius of the camera
  • H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality
  • Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision
  • PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy
  • Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager
General
Unit Calculated Weight0.4 kg
Unit Calculated Volume0.000384 cubm
Units per Shipping Box1
SummaryTP-Link VIGI C430. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Turret. Minimum illumination: 0.005 lx, Lens viewing angle, horizontal: 107.5°, Lens viewing angle, vertical: 57.2°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Fixed focal length: 2.8 mm
Unit Box Height0.015
Unit Box Length0.16
Unit Box Width0.16
ModelVIGI C430(4MM)
Design
Form factorTurret
Housing materialPlastic
Mounting typeCeiling
Product colourBlack/White
Performance
Connectivity technologyWired
Day/night modeYes
Infrared (IR) cut-off filterYes
Placement supportedIndoor & outdoor
TypeIP security camera
Wide Dynamic Range (WDR)Yes
Camera
Lens viewing angle, diagonal128.7 °
Lens viewing angle, horizontal107.5 °
Lens viewing angle, vertical57.2 °
Minimum illumination0.005 lx
Image sensor
Number of sensors1
Optical sensor size1/2.8 "
Progressive scanYes
Sensor typeCMOS
Lens system
Fixed focal length2.8 mm
Number of lenses1
Night vision
Night visionYes
Night vision distance30 m
Video
3D positioningYes
Back Light Compensation (BLC)Yes
Bit rate64 Kbps - 4 Mbps
Digital Wide Dynamic Range (DWDR)Yes
Frame rate25 fps
Highlight Compensation (HLC)Yes
Image quality adjustmentBrightness/Contrast/Mirror/Saturation
Maximum resolution2304 x 1296 pixels
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes
Supported graphics resolutions1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/320 x 240/352 x 288/640 x 480 (VGA)/704 x 576
Total megapixels3 MP
Video compression formatsH.264/H.264+/H.265/H.265+
Audio
Built-in microphoneYes
Network
BluetoothNo
Ethernet LANYes
Live viewYes
Networking standardsIEEE 802.3af/IEEE 802.3at
Number of simultaneous live view channels3 channels
Supported network protocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Wi-FiNo
Storage
Built-in HDDNo
Ports & interfaces
Ethernet LAN (RJ-45) ports1
Security
Active tampering alarmYes
Digest authenticationYes
HTTPS encryptionYes
Human and vehicle targets classificationYes
Intelligent Video Surveillance (IVS) system featuresHuman detection/Vehicle detection
IP address filteringYes
MirrorYes
Password protectionYes
Password reset via emailYes
Video motion detectionYes
Management features
Behavior analysisIntrusion detection,Line crossing detection,Object removal detection,Region entrance detection,Region exiting detection
Power
Power consumption (max)4.2 W
Power source typeDC,PoE
Operational conditions
Operating temperature (T-T)-30 - 60 °C
Weight & dimensions
Depth83 mm
Height123 mm
Width123 mm
Sustainability
Compliance certificatesBSMI/CE
Sustainability complianceYes
Packaging content
ManualYes
Mounting kitYes
Number of cameras1
