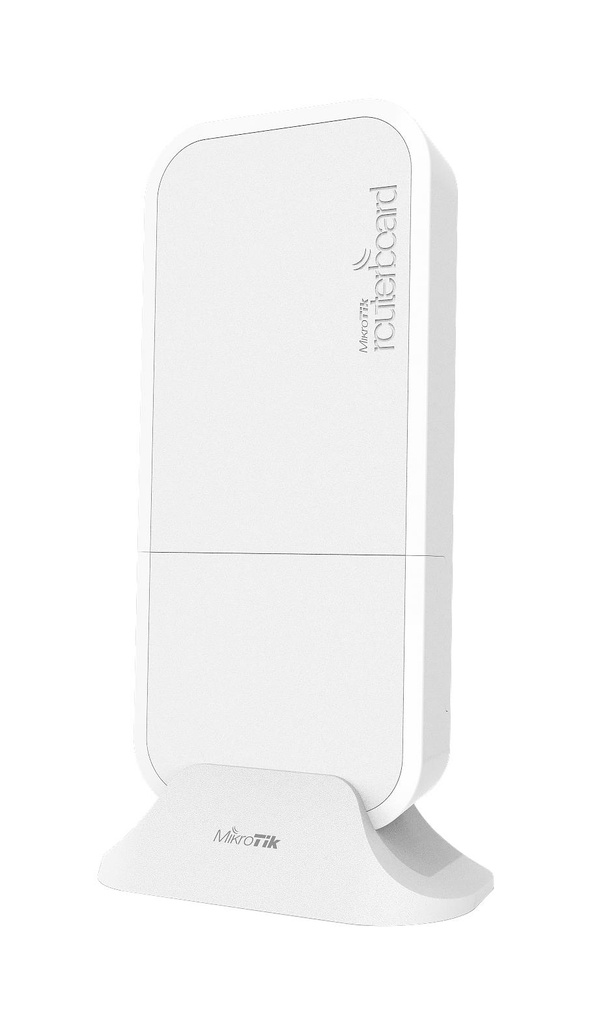

wAP LTE kit is a tiny weatherproof wireless access point for installation outside your house, in the garden, on your porch, or in any other challenging environment where you need a capable wireless connection on the tightest budget possible. It features an Ethernet port with passive PoE-in, but there are more ways to power this affordable access point: there’s also a standard DC jack and an automotive plug.
The new revision features a new LTE modem that offers improved connectivity, the addition of the popular B28 band, and a massive price drop!

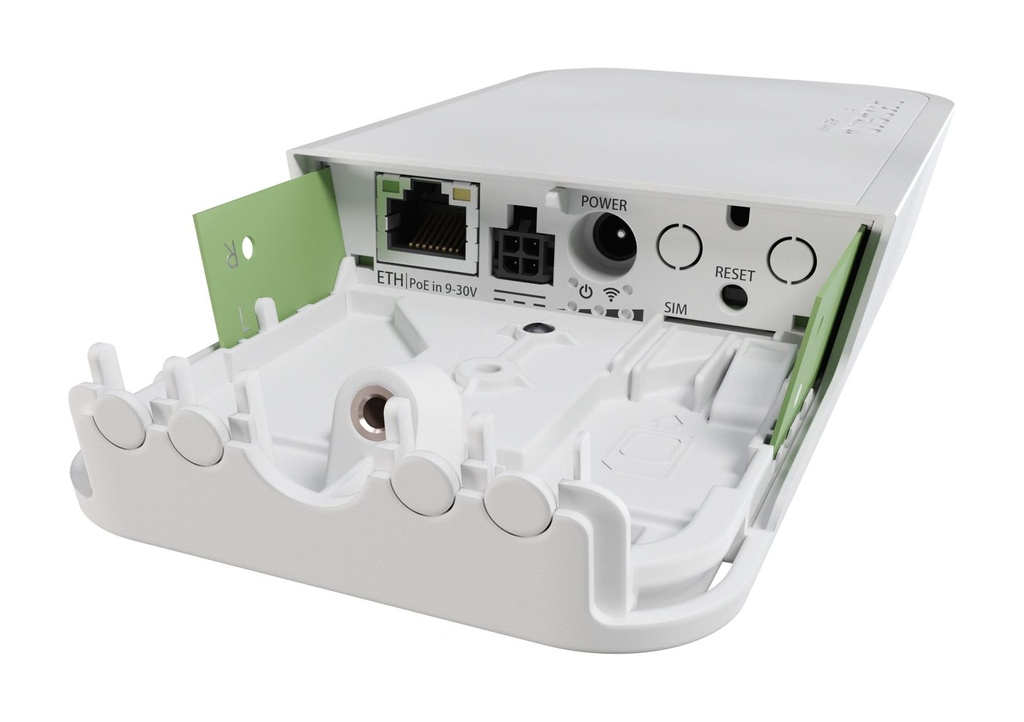

wAP LTE kit is weatherproof and can be fixed to any external wall from the inside of the case – for extra security and less visible attachments. The bottom part can also be secured with a special anti-vandal screw, which can only be opened by the owner. There is an opening in the back of the case, allowing you to run the Ethernet cable directly behind the unit and through the wall. This way the wAP attracts less attention and blends into any environment.
General
| Unit Calculated Weight | 0.71 kg |
| Unit Calculated Volume | 0.003045 cubm |
| Units per Shipping Box | 20 |
| Summary | Mikrotik wAP LTE kit (2024). 2.4 GHz, Maximum data transfer rate: 300 Mbit/s, Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 6 W |
| CnCode | 85176200 |
| Unit Box Height | 0.08 |
| Unit Box Length | 0.277 |
| Unit Box Width | 0.117 |
| Model name | wAP LTE kit (2024) |
| Model | WAPR-2ND&EC200A-EU |
Features
| 2.4 GHz | Yes |
| 5 GHz | No |
| 6 GHz | No |
| Ethernet LAN data rates | 10/100 Mbit/s |
| Maximum data transfer rate | 300 Mbit/s |
| Networking standards | IEEE 802.11b/IEEE 802.11g/IEEE 802.11n |
Ports & interfaces
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Power
| AC input voltage | 9 - 30 V |
| Power consumption (max) | 6 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
Design
| International Protection (IP) code | IP54 |
| Product colour | White |
Performance
| Built-in processor | Yes |
| Compatible operating systems | RouterOS v7 |
| Flash memory | 16 MB |
| Internal memory | 64 MB |
| Operating system installed | RouterOS |
Certificates
| Certification | CE, E-MARK, EAC, ROHS |
Mobile network
| SIM card slot | Yes |
| SIM card type | MiniSIM |
Packaging content
| AC adapter included | Yes |
| Mounting kit | Yes |
| Packaging content | 24V 0.8A power adapter Gigabit PoE injector K-52 fastening set K-50 locking set wAP desktop stand wAP mount 0.35m 4pin Automotive adapter cable wAP ceiling mount bracket |
Operational conditions
| Operating temperature (T-T) | -40 - 60 °C |
