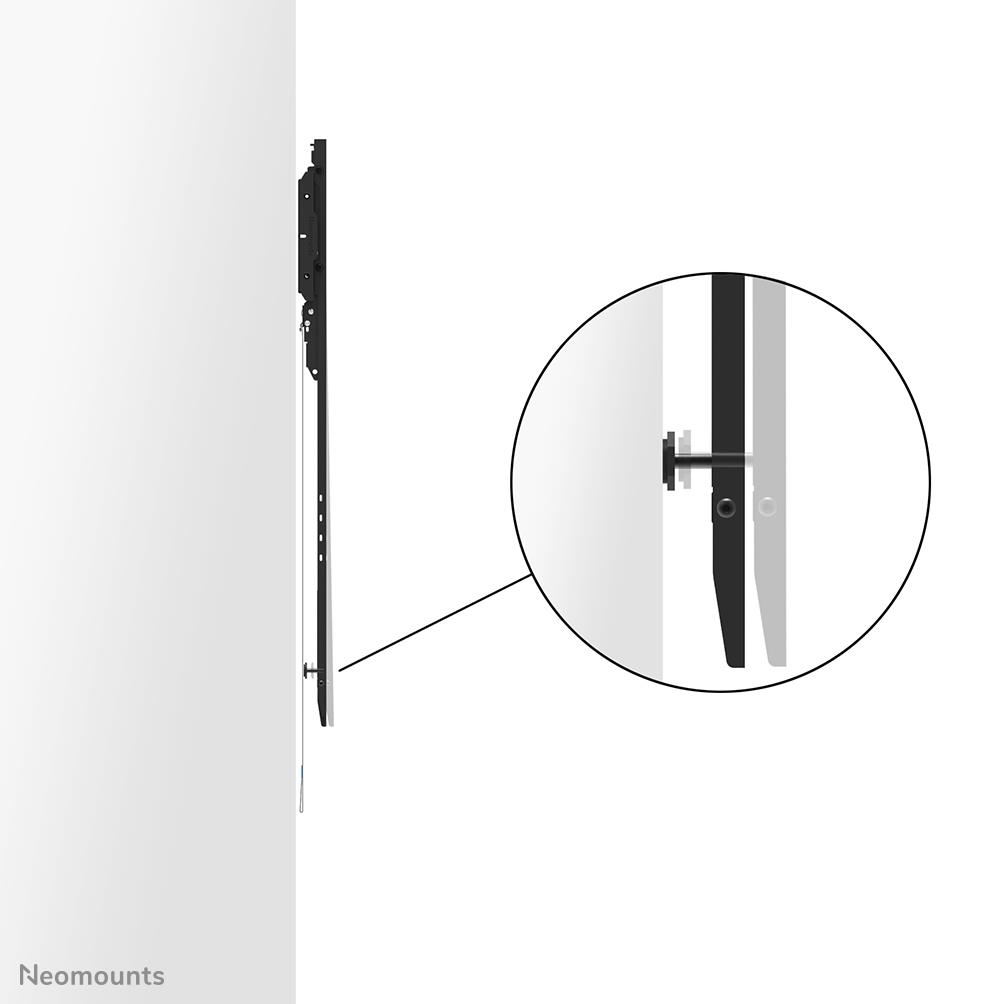

The Neomounts WL30-750BL18P LEVEL is the ultimate solution for securely portrait mounting an interactive or heavy weight display up to 98" with a maximum capacity of 100 kg. This heavy-duty wall mount features a high profile wall plate and is engineered for stability and precision, ensuring your screen is securely mounted even on uneven surfaces. The wall mount is designed to provide the sturdiest and most stable touch screen experience. The brackets of the WL30-750BL18P feature depth adjustable wall supports on the lower brackets for better weight distribution and maximum stability. The mount features individual adjustable brackets (10 mm) for securely adjusting the display height or levelling it.

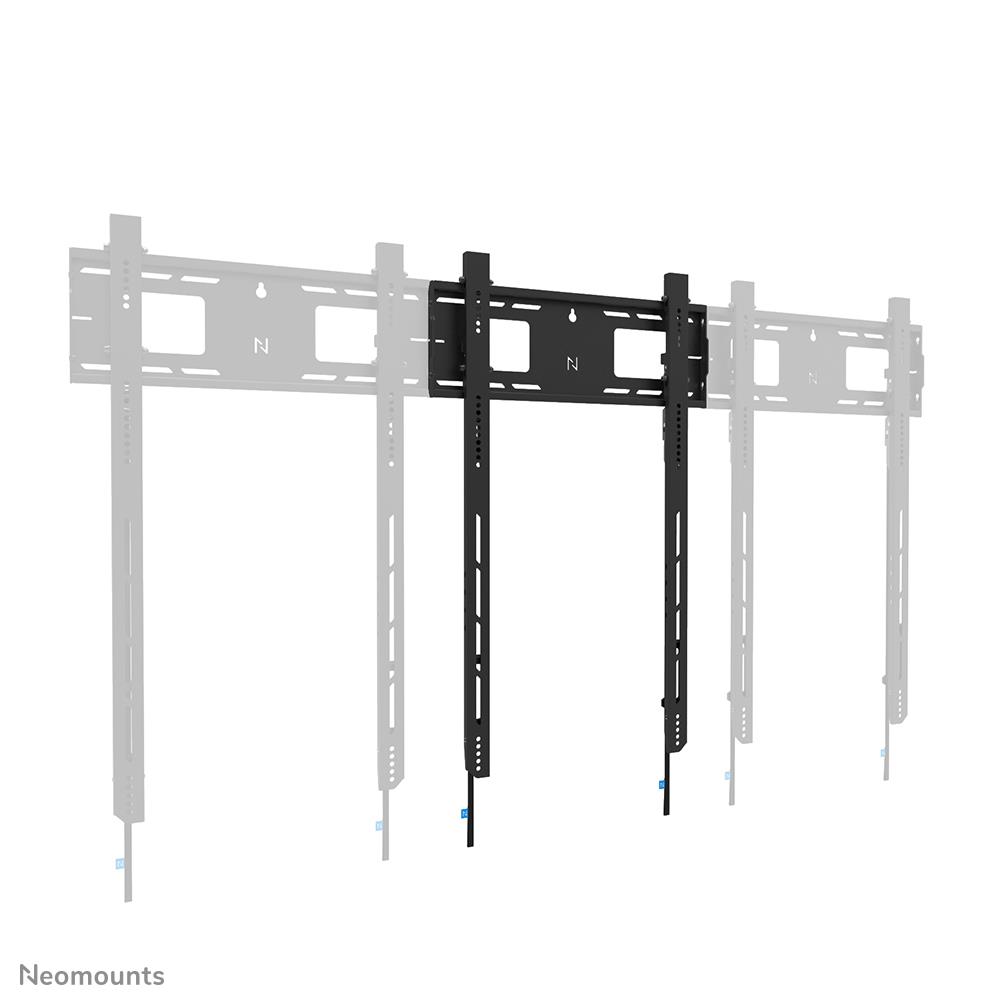

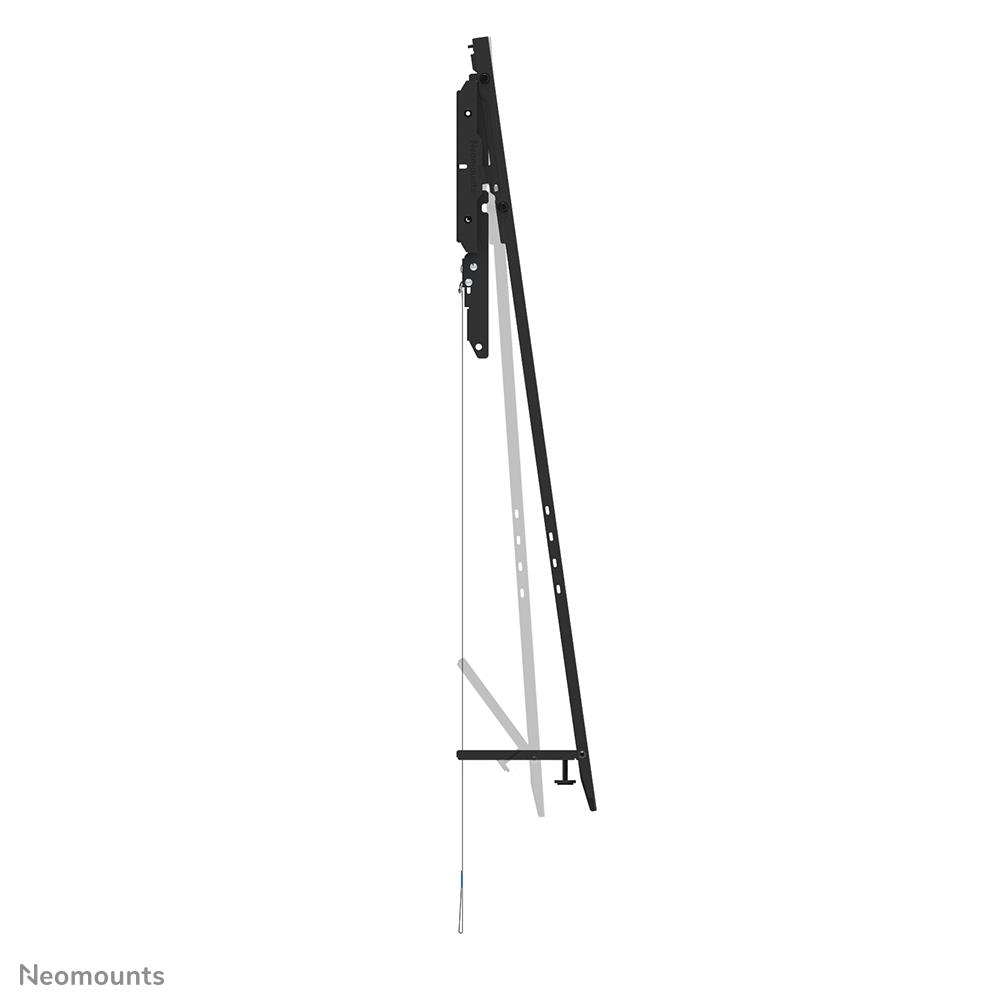

The LEVEL-750 wall mount has a profile depth of 4,2 cm and is suitable for screens that meet VESA hole pattern 100x100 to 500x800 mm. Its quickly connectable wall plate allows for multiple screen mounting, while a clever kickstand service position provides easy access to cables and connectors, ideal when mounting large displays in portrait. Additionally, the wall plate is designed with specific cut-outs for wall sockets and securing devices and cables. It features various perforated holes for easy tie-wrap cable fixing and provides space for cable storage, ensuring a clean and tidy finishing.
The WL30-750BL18P includes an safe and practical pull & release system, allowing you to quickly attach and detach the display in a safe and secure manner. It is possible to lock the brackets using a padlock (not included) for extra screen security.
For a simple and effective storage, an optionally available, AV-rack can be installed to the left or right side of the mount.
General
| Unit Calculated Weight | 6.73 kg |
| Unit Calculated Volume | 0.02185 cubm |
| Units per Shipping Box | 3 |
| Units per Pallet | 0 |
| Summary | Neomounts WL30-750BL18P Heavy duty wall mount 50-98" - fixed - lockable - portrait - fast installation - TÜV. Maximum weight capacity: 100 kg, Minimum screen size: 127 cm (50"), Maximum screen size: 2.49 m (98"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 500 x 800 mm. Height adjustment range: 0 - 10 mm, Distance to the wall (max): 4.2 cm. Product colour: Black |
| Unit Box Height | 0.09 |
| Unit Box Length | 0.94 |
| Unit Box Width | 0.21 |
| Model | WL30-750BL18P |
Mounting
| Maximum screen size | 98 " |
| Maximum VESA mount | 500 x 800 mm |
| Maximum weight capacity | 100 kg |
| Maximum weight capacity (per display) | 100 kg |
| Minimum screen size | 50 " |
| Minimum VESA mount | 100 x 100 mm |
| Mounting type | Wall |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/100 x 150/100 x 200/120 x 120/150 x 200/200 x 100/200 x 150/200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/350 x 350/400 x 200/400 x 300/400 x 400/400 x 600/440 x 400/460 x 640/500 x 400/500 x 500 mm |
Ergonomics
| Cable management | Yes |
| Distance to the wall (max) | 42 mm |
| Height adjustment | Yes |
| Height adjustment range | 0 - 10 mm |
| Type | Fixed |
Design
| Housing material | Steel |
| Product colour | Black |
Technical details
| Country of origin | China |
| Lockable | Padlock not included |
Weight & dimensions
| Depth | 42 mm |
| Depth (max) | 42 mm |
| Height | 684 mm |
| Weight | 5100 g |
| Width | 550 mm |
Packaging data
| Package depth | 90 mm |
| Package height | 209 mm |
| Package weight | 6700 g |
| Package width | 933 mm |
Logistics data
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 21000 g |
| Master (outer) case height | 288 mm |
| Master (outer) case length | 227 mm |
| Master (outer) case net weight | 15300 g |
| Master (outer) case width | 951 mm |
| Products per master (outer) case | 3 pc(s) |
| Products per pallet (EU) | 54 pc(s) |
